Waldmann 112461001-00083005 Information guide

90°

105°

105°

90°

75°

60°

45°

30°

15° 0° 15°

30°

45°

60°

75°

cd/klm

LED machine luminaire

Errors and technical changes excepted. Images can vary from original.

Emax:
measuring conditions: d=50cm

Photometric and electrical data may vary due to component tolerances.

illuminance

luminous intensity

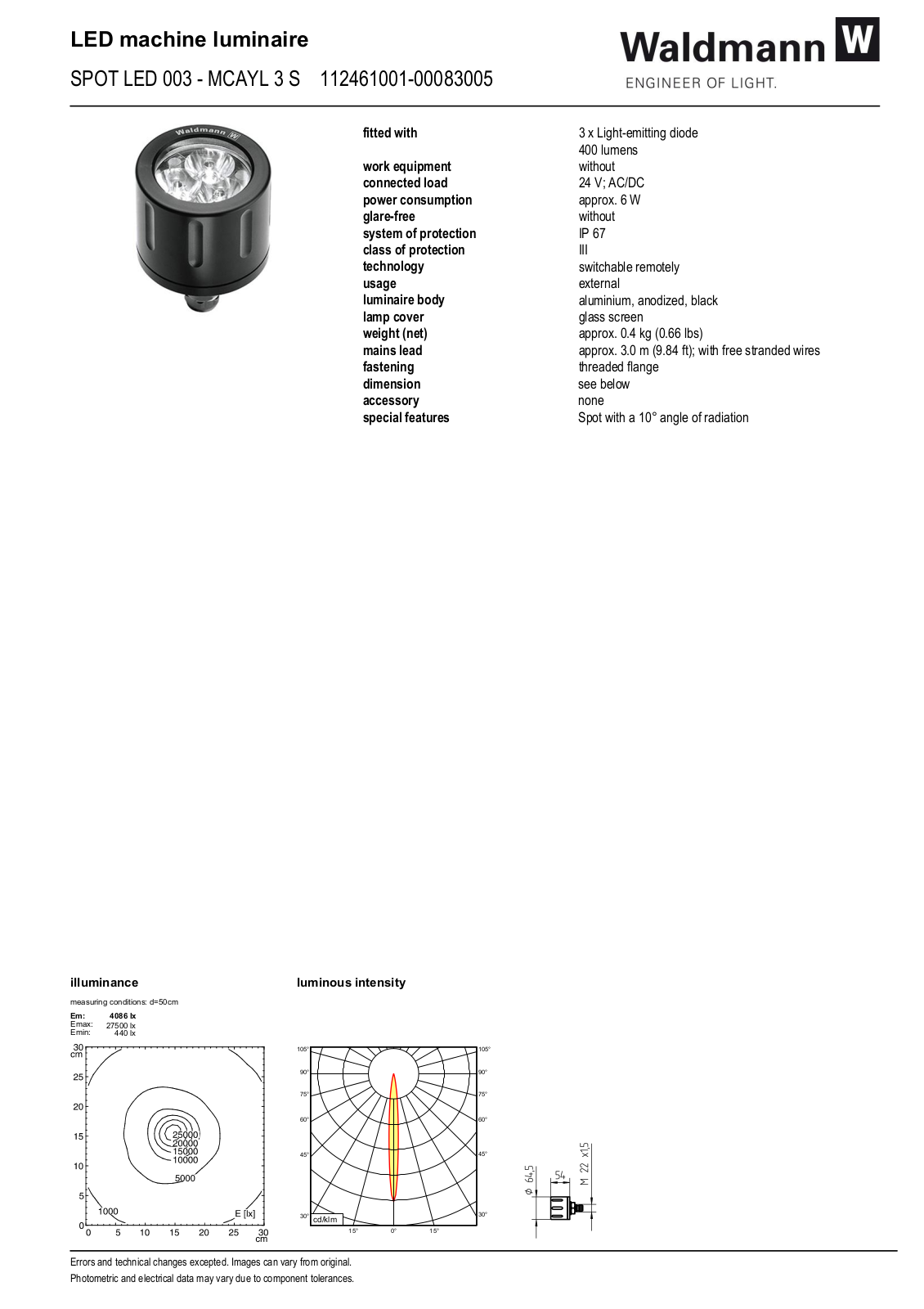

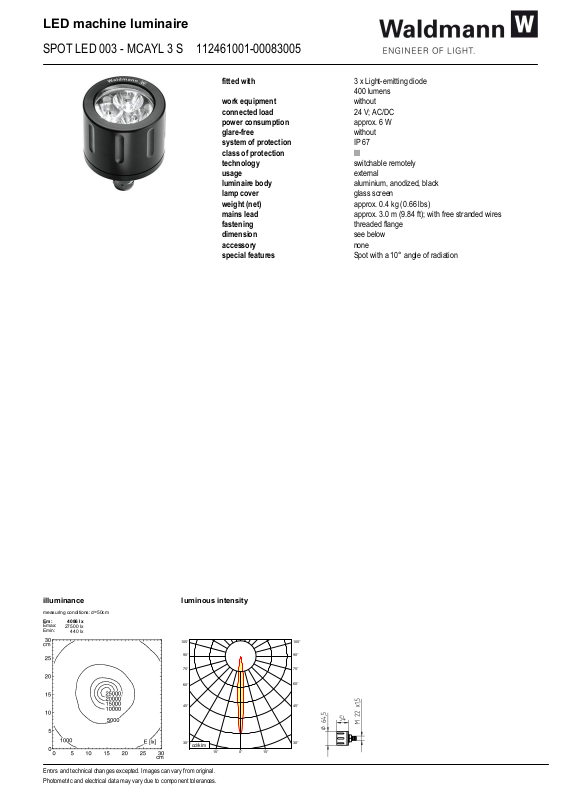

SPOT LED 003 - MCAYL 3 S 112461001-00083005

Em:

fitted with
work equipment

connected load

power consumption

glare-free

system of protection

class of protection

technology

usage

luminaire body

lamp cover

weight (net)

mains lead

fastening

3 x Light-emitting diode

dimension

accessory

special features

400 lumens

without
24 V; AC/DC
approx. 6 W
without
IP 67
III
switchable remotely
external
aluminium, anodized, black
glass screen
approx. 0.4 kg (0.66 lbs)
approx. 3.0 m (9.84 ft); with free stranded wires
threaded flange

see below
none

Spot with a 10° angle of radiation

4086 lx

27500 lx

440 lx
