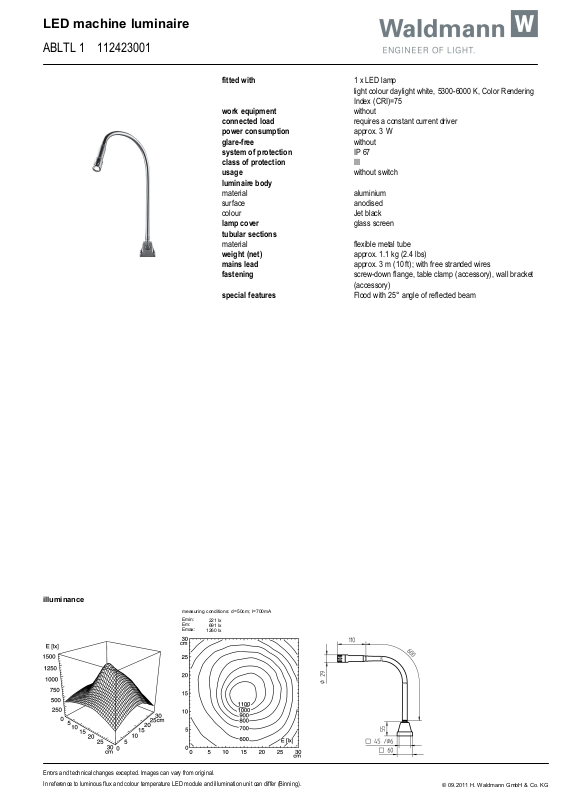

Waldmann 112423001 Information guide

LED machine luminaire

Errors and technical changes excepted. Images can vary from original.

Emin:
Em:
Emax:

measuring conditions: d=50cm; I=700mA

In reference to luminous flux and colour temperature LED module and illumination unit can differ (Binning).

illuminance

ABLTL 1 112423001

fitted with

work equipment

connected load

power consumption

glare-free

system of protection

class of protection

usage

luminaire body

material

surface

colour

lamp cover

tubular sections

material

weight (net)

mains lead

fastening
special features

1 x LED lamp
light colour daylight white, 5300-6000 K, Color Rendering
Index (CRI)=75
without

requires a constant current driver

approx. 3 W
without
IP 67
III
without switch

aluminium
anodised
Jet black
glass screen

flexible metal tube
approx. 1.1 kg (2.4 lbs)
approx. 3 m (10 ft); with free stranded wires
screw-down flange, table clamp (accessory), wall bracket
(accessory)
Flood with 25° angle of reflected beam

221 lx
691 lx

1260 lx

© 09.2011 H. Waldmann GmbH & Co. KG
