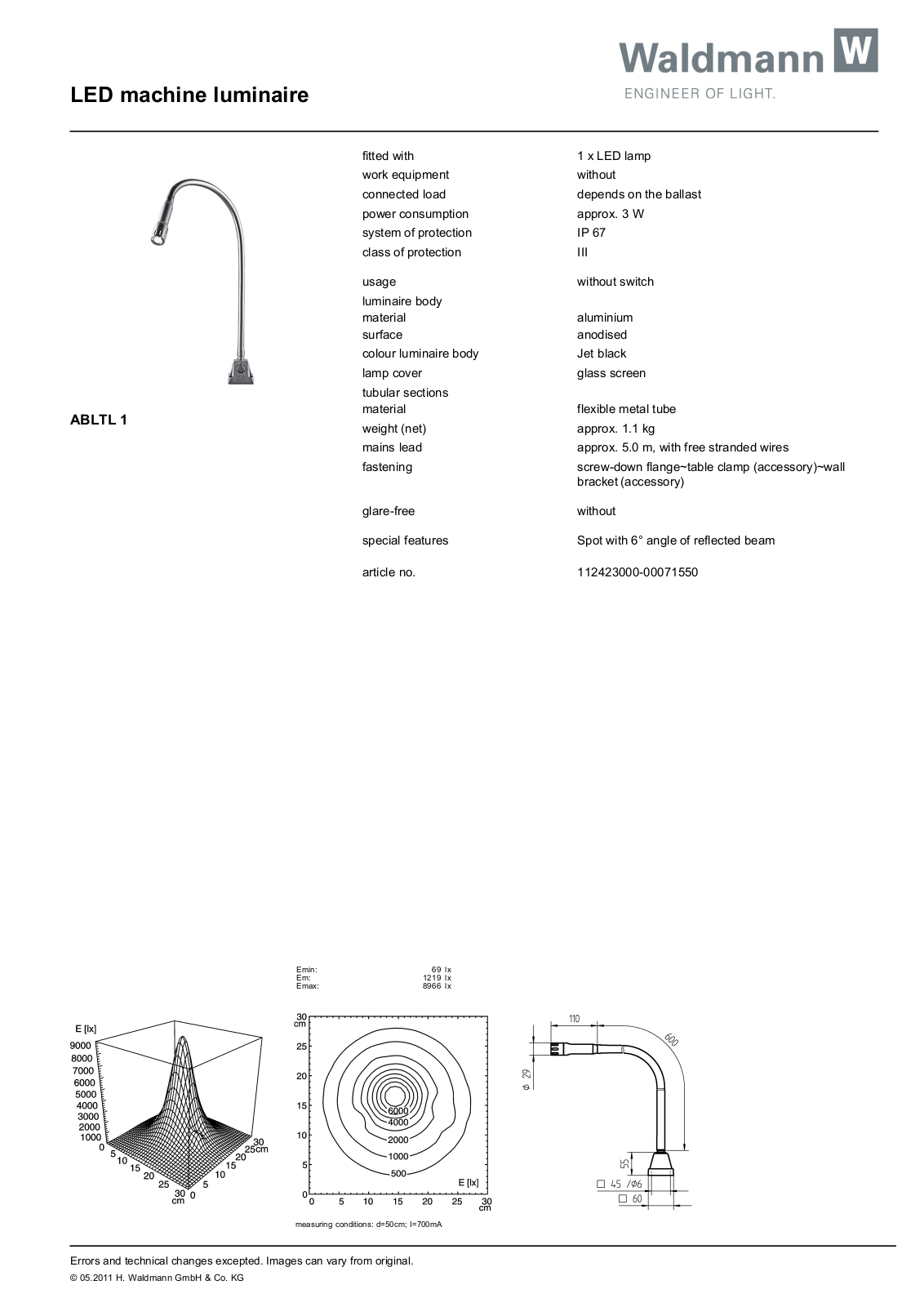

Waldmann 112423000-00071550 Information guide

© 05.2011 H. Waldmann GmbH & Co. KG

LED machine luminaire

ABLTL 1

Errors and technical changes excepted. Images can vary from original.

Emin:
Em:
Emax:

lx
lx
lx

measuring conditions: d=50cm; I=700mA

fitted with

1 x LED lamp

work equipment

without

connected load

depends on the ballast

power consumption

approx. 3 W

system of protection

IP 67

class of protection

III

usage

without switch

luminaire body
material
surface

aluminium
anodised

colour luminaire body

Jet black

lamp cover

glass screen

tubular sections
material

flexible metal tube

weight (net)

approx. 1.1 kg

mains lead

approx. 5.0 m, with free stranded wires

fastening

screw-down flange~table clamp (accessory)~wall
bracket (accessory)

glare-free

without

special features

Spot with 6° angle of reflected beam

article no.

112423000-00071550

1219
8966

69
