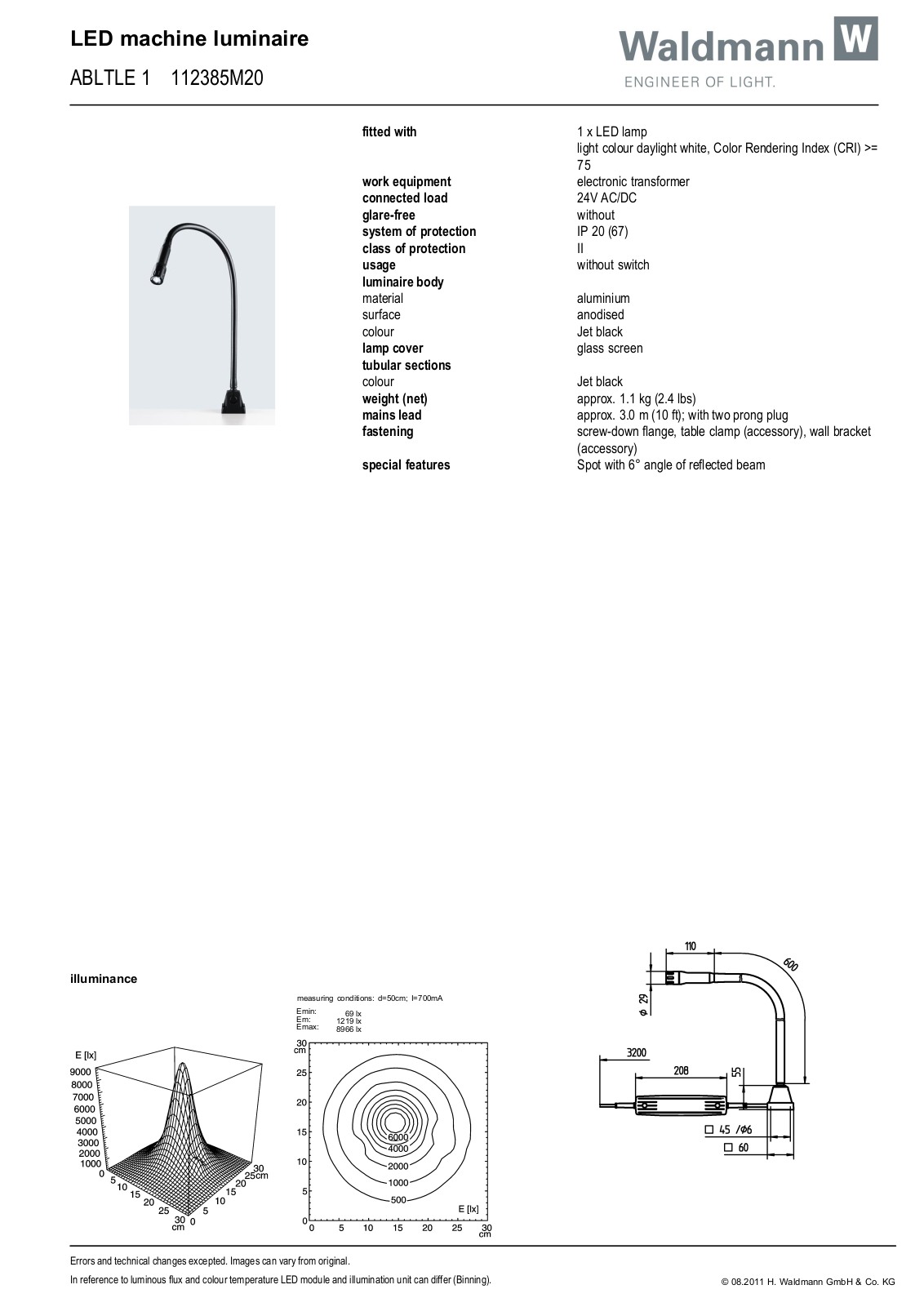

Waldmann 112385M20 Information guide

LED machine luminaire

Errors and technical changes excepted. Images can vary from original.

Emin:
Em:
Emax:

measuring conditions: d=50cm; I=700mA

In reference to luminous flux and colour temperature LED module and illumination unit can differ (Binning).

illuminance

ABLTLE 1 112385M20

fitted with

work equipment

connected load

glare-free

system of protection

class of protection

usage

luminaire body

material

surface

colour

lamp cover

tubular sections

colour

weight (net)

mains lead

fastening
special features

1 x LED lamp
light colour daylight white, Color Rendering Index (CRI) >=
75
electronic transformer
24V AC/DC
without
IP 20 (67)
II
without switch

aluminium
anodised
Jet black
glass screen

Jet black
approx. 1.1 kg (2.4 lbs)
approx. 3.0 m (10 ft); with two prong plug
screw-down flange, table clamp (accessory), wall bracket
(accessory)
Spot with 6° angle of reflected beam

69 lx
1219 lx
8966 lx
