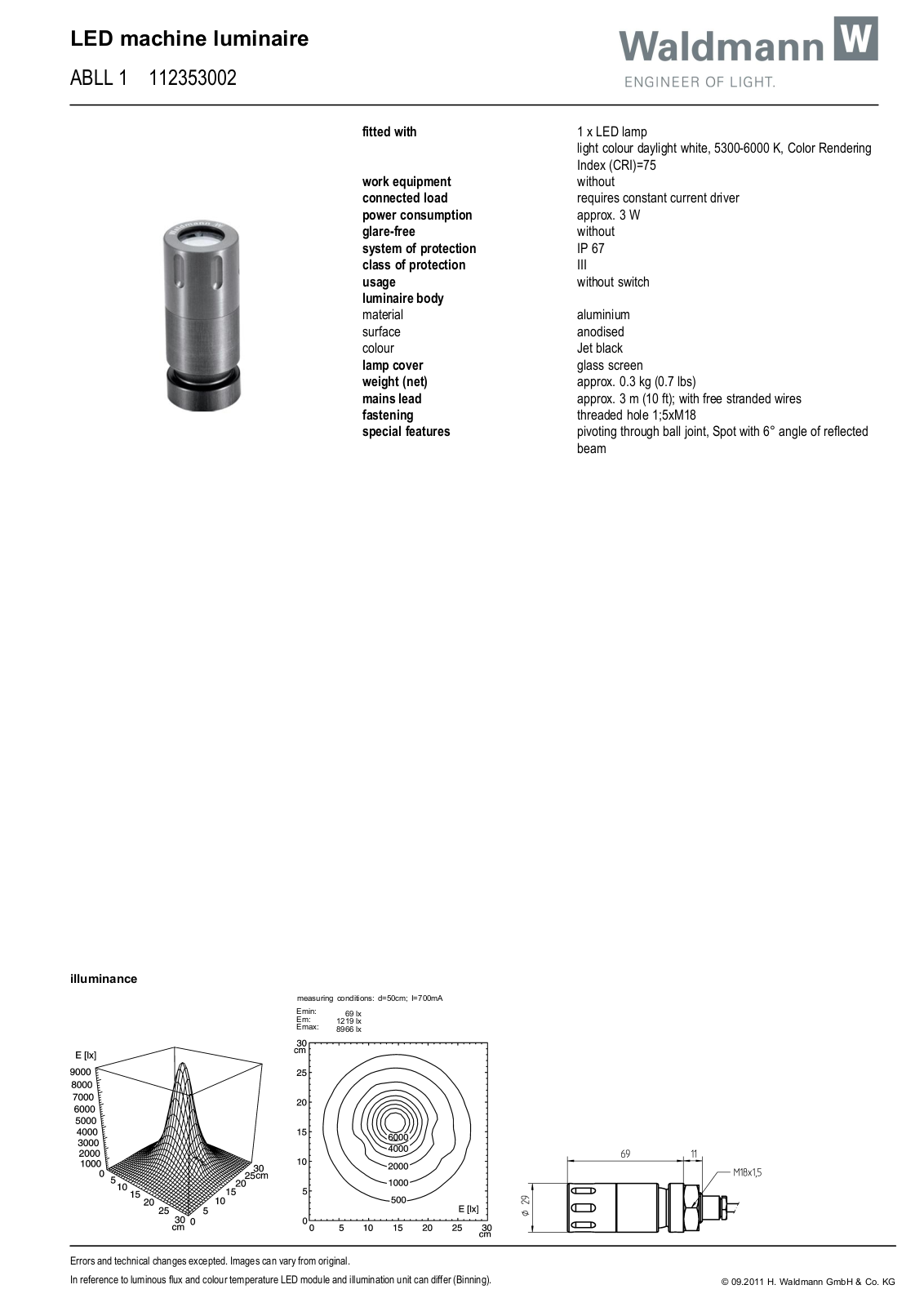

Waldmann 112353002 Information guide

LED machine luminaire

Errors and technical changes excepted. Images can vary from original.

Emin:
Em:
Emax:

measuring conditions: d=50cm; I=700mA

In reference to luminous flux and colour temperature LED module and illumination unit can differ (Binning).

illuminance

ABLL 1 112353002

fitted with

work equipment

connected load

power consumption

glare-free

system of protection

class of protection

usage

luminaire body

material

surface

colour

lamp cover

weight (net)

mains lead

fastening

special features

1 x LED lamp
light colour daylight white, 5300-6000 K, Color Rendering
Index (CRI)=75
without

requires constant current driver

approx. 3 W
without
IP 67
III
without switch

aluminium
anodised
Jet black
glass screen
approx. 0.3 kg (0.7 lbs)
approx. 3 m (10 ft); with free stranded wires
threaded hole 1;5xM18
pivoting through ball joint, Spot with 6° angle of reflected
beam

69 lx
1219 lx
8966 lx

© 09.2011 H. Waldmann GmbH & Co. KG
