Waldmann 111690000-00063406 Information guide

160 BU/3

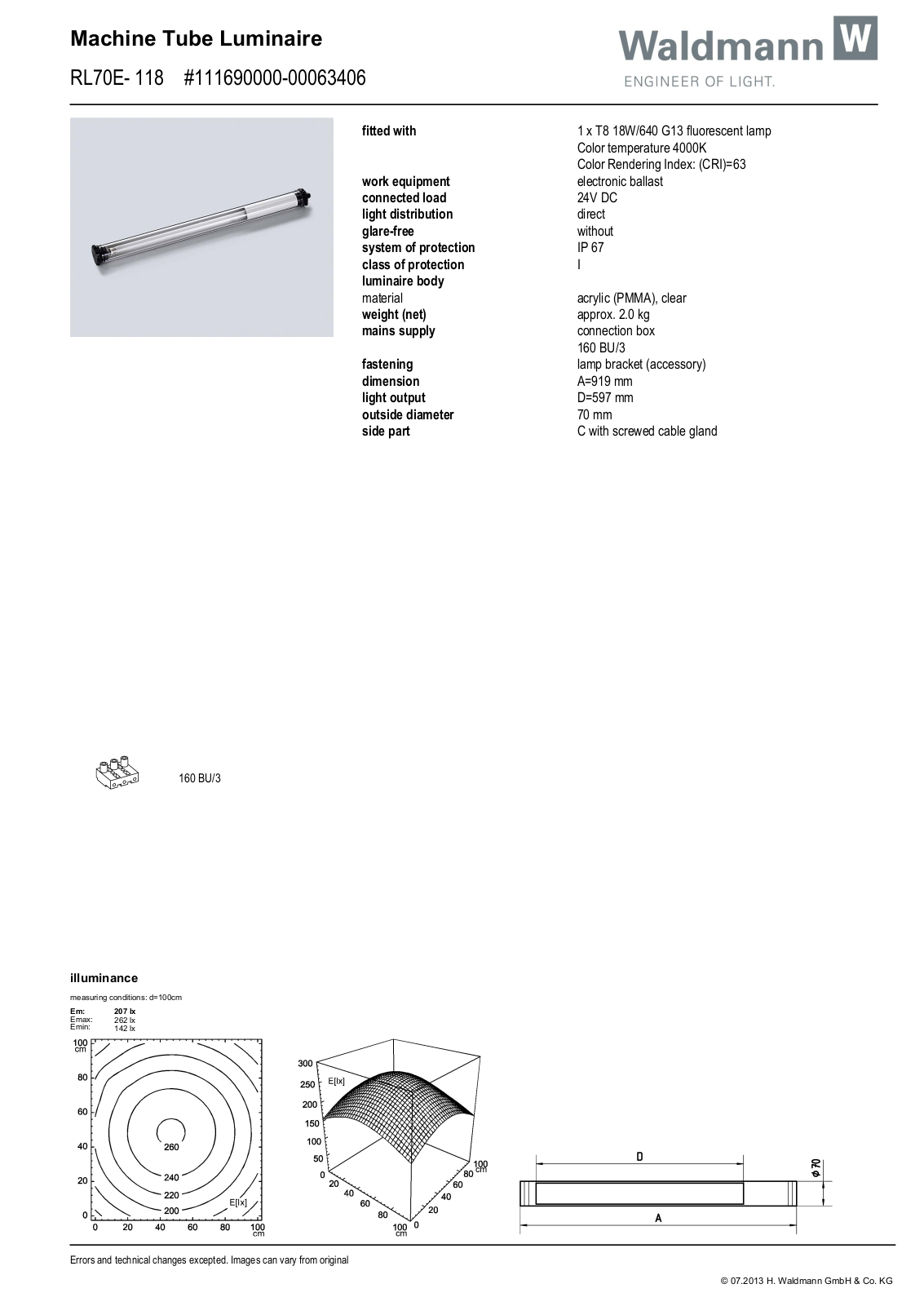

Machine Tube Luminaire

Emax:
measuring conditions: d=100cm

illuminance

RL70E- 118 #111690000-00063406

Em:

fitted with

work equipment

connected load

light distribution

glare-free

system of protection

class of protection

luminaire body

material

weight (net)

mains supply
fastening

dimension

light output

outside diameter

side part

1 x T8 18W/640 G13 fluorescent lamp
Color temperature 4000K

Color Rendering Index: (CRI)=63
electronic ballast
24V DC
direct
without
IP 67
I

acrylic (PMMA), clear
approx. 2.0 kg
connection box
160 BU/3
lamp bracket (accessory)
A=919 mm
D=597 mm
70 mm
C with screwed cable gland

207 lx

262 lx
142 lx

Errors and technical changes excepted. Images can vary from original

© 07.2013 H. Waldmann GmbH & Co. KG
