S1838 Snapper Gas SawPage 1 of 8

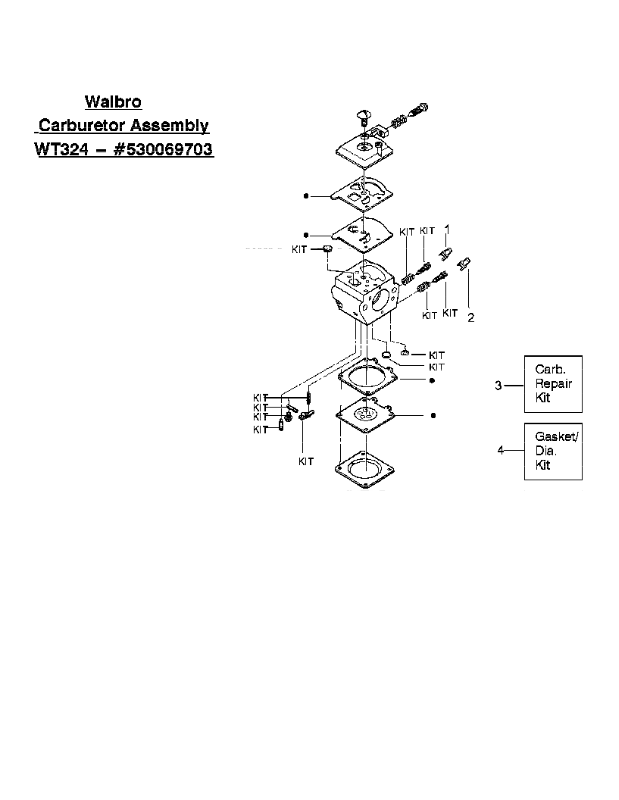

Carburetor Assembly (WT324) 530069703

Carburetor Assembly (WT324) 530069703

Ref # Part Number Qty Description

1 530038479 Limiter Cap-High (brown)
2 530038478 Limiter Cap-Low (tan)
3 530069826 Carburetor Repair Kit Walbro (WT324) (KIT=Indicates

Contents)

4 530069844 Gasket Diaphragm Kit Walbro (WT324) (DOT=Indicates

Contents)

530069703 530069703 Walbro Carburetor Assembly - WT324

S1838 Snapper Gas SawPage 2 of 8

S1838 Snapper Gas SawPage 3 of 8

Carburetor Assembly (WT624) 530071620

Carburetor Assembly (WT624) 530071620

Ref # Part Number Qty Description

530071620 530071620 Kit-Carburetor Assembly WT-624

S1838 Snapper Gas SawPage 4 of 8

S1838 Snapper Gas SawPage 5 of 8

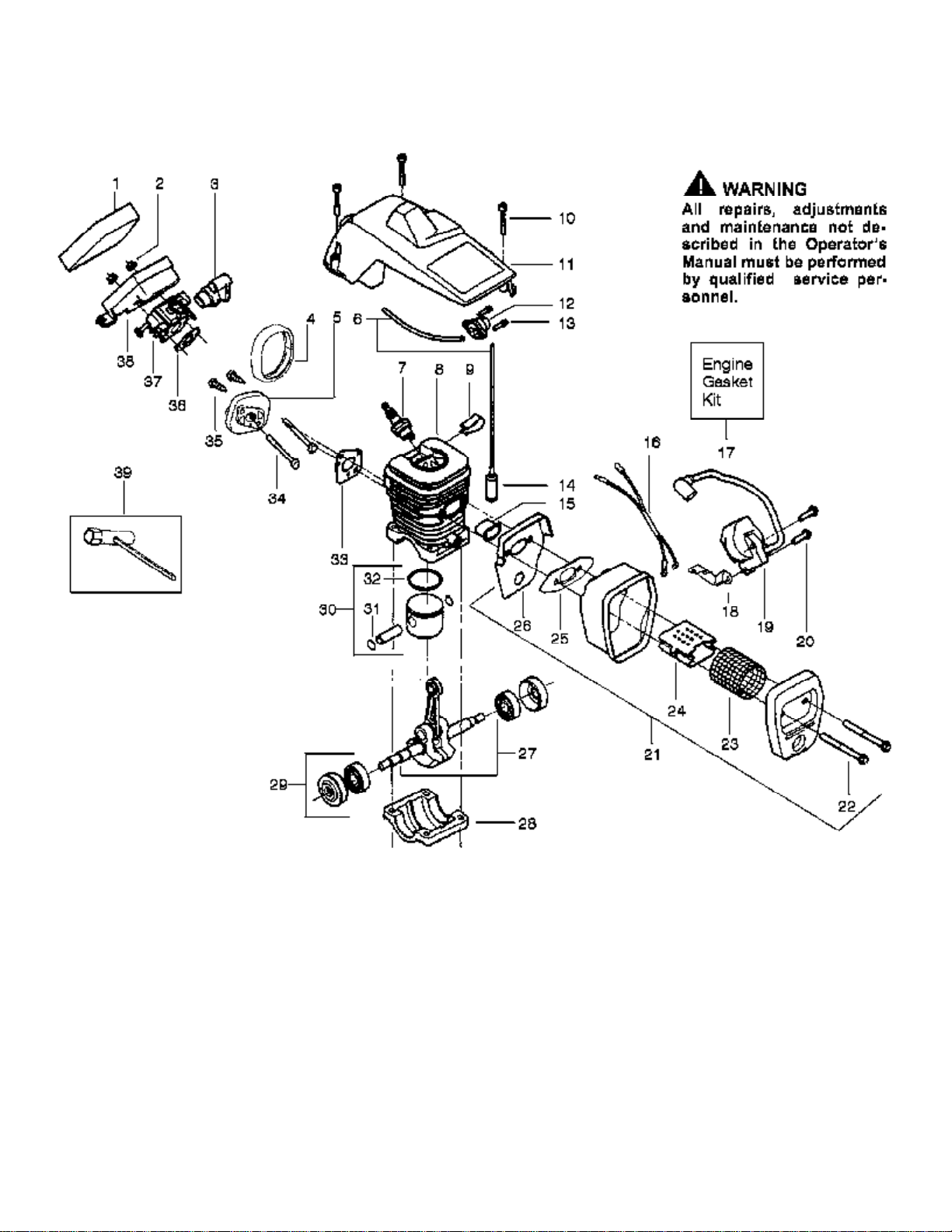

Engine Assembly

Ref # Part Number Qty Description

1 530037793 Foam Air Filter
2 530016101 Nut
3 530035526 Grommet Carb Adjust
4 530054144 Seal Carb Adapter
5 530049700 Adapter Carb.
6 530069247 Kit Fuel Line (Small)
7 952030150 Spark Plug (RCJ-7Y)
8 530071412 Kit Cylinder

9 530016136 Clip High Tension Lead
10 530016153 Screw
11 530071310 Shield Cylinder
12 530047213 Assy Air Purge
13 530015780 Screw
14 530095646 Assy Fuel Pick-up
15 530037652 Insulator Heat
16 530052296 Assy. Wire Harness
17 530069608 Kit Engine Gasket (Incl. 25, 33 & 36)
18 530047442 Strap Ground
19 530039198 Module Ignition
20 530015814 Screw
21 530047207 Assy Muffler (Incl. 22-26)
22 530016132 Screw
23 530036103 Screen Spark
24 530037813 Diffuser Muffler
25 530069608 Gasket Muffler (kit)
26 530049870 Backplate Muffler
27 530047062 Assy. Crankshaft
28 530037935 Cap Crankcase
29 530056363 Assy. Seal & Bearing
30 530071408 Kit-Piston (Incl. 31 & 32)
31 530015697 Retainer-Piston Pin
32 530038729 Ring Piston
33 530069608 Gasket-Adapter (kit)
34 530016187 Screw
35 530016386 Screw
36 UNKNOWN
37 UNKNOWN
38 530069608 Gasket-Carb.(kit)
39 530069703 Kit-Carburetor (WT 324)
39 530071620 Kit-Carburetor (WT 624)
40 530037804 Housing-Air Filter
41 530031163 Wrench-Bar

530163674 Operator Manual Not Shown

S1838 Snapper Gas SawPage 6 of 8
Engine Assembly

S1838 Snapper Gas SawPage 7 of 8

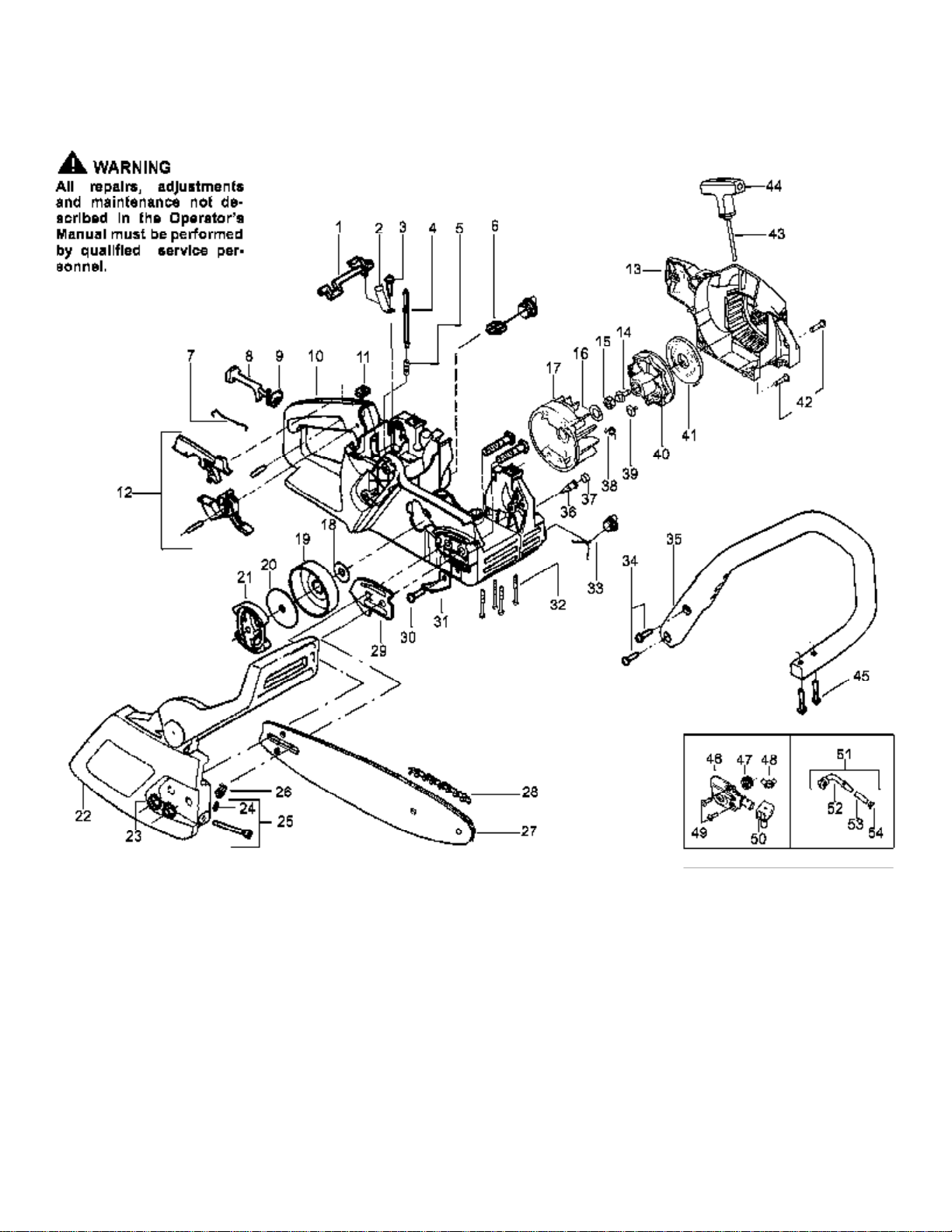

Handle & External Assembly

Ref # Part Number Qty Description

1 530038227 Lever-Switch (Includes Pin)

2 530016149 Spring-Switch

3 530015775 Screw

4 530069216 Kit-Fuel Line (Large)

5 530023877 Fitting

6 530047192 Assy-Fuel Cap

7 530037809 Wire-Throttle

8 530047989 Lever-Choke

9 530038406 Grommet-Choke Knob
10 530056607 Assy-Chassis
11 530015922 Nut-Speed
12 530071305 Kit-Trigger & Lockout
13 530054717 Housing-Fan
14 530015920 Screw
15 530016134 Nut-Flywheel
16 530015127 Washer-Flywheel
17 530039209 Assy-Flywheel
18 530015907 Washer - Thrust
19 530047061 Assy-Drum W/brg.
20 530015611 Washer-Clutch
21 530014949 Assy. - Clutch
22 530056960 Assy-Chain Brake
23 530015917 Nut-Bar Mounting
24 530038593 Retainer-Bar Adjust
25 530069611 Kit-Bar Adjust (Incl. 24,26)
26 530015826 Pin-Bar Adjust
27 530044693 Bar-18"
28 952051535 Chain-18"
29 530038238 Plate-Bar Mounting
30 530015814 Screw
31 530029850 Chain Catcher
32 530016132 Screw
33 530010846 Assy-Oil Cap
34 530015814 Screw
35 530056798 Handle-Front
36 530026119 Valve-Check
37 530038264 Plug - Bronze Vent
38 530023817 Spring - Starter Dog
39 530016080 Screw
40 530037817 Pulley-Starter
41 530027531 Spring-Starter
42 530015892 Screw.
43 530069232 Kit-Rope
44 530056402 Handle-Starter
45 530015940 Screw
46 530071259 Kit-Oil Pump (incl 47,48,50)
47 530037820 Gear-Worm Spring
48 530049477 Elbow-Oil Pickup
49 530016064 Screw
50 530019206 Seal Block
51 530047663 Assy-Oil-Pickup (Incl. 52, 53 & 54)
52 530038373 Pickup-Oiler
53 530037821 Filter-Oil
54 530030189 Plug-Oil Filter

S1838 Snapper Gas SawPage 8 of 8
Handle & External Assembly
