Waitrack GPS Vehicle tracker User Manual

GPS Vehicle tracker

(GPS+GSM+SMS/GPRS)

User Manual

(Version 2.6T)

www.waitrack.co.za

1. Accessories:

Please check the accessories before using. Pictures are for indication and
illustration purposes only.

2. Features:

● GSM 850/900/1800/1900 Quad band

● Wide for voltage input range: 9-36vDC

● GPS continuous positioning, GPRS timing interval

● Check location via SMS

● Built-in vibration sensor, theftproof

● ACC ignition detection

● Tele-cutoff (petrol/ electricity) function

● Three SOS numbers in maximum

● SOS alarm and burglar alarm

● Voice monitor function

● Alarm when the power supply is disconnected intentionally (with backup

battery)

● Compatible with external connection through (serial port)

●Geo-fence via sms command

2.1 Red LED (power/working status)

LED Status

Flashing (interval 0.1s)
Continuously in bright state
Slow flashing(interval 0.2s)
Continuously in dark state
Slow flashing(flash 0.1s after every 2s)

Meaning

Low battery indication
Charging
Full charge
Low battery / power off
Working normally

2.2 Green LED(GSM status indicator)

LED Status

Meaning

GSM initialization
Receive GSM signal normally
GSM conversation/Start GPRS
No GSM signal

Quick flashing (interval 0.1s)
Slow flashing(flash 0.1s after every 2s)
Continuously in bright state
Continuously in dark state

2.3 Blue LED GPS status indicatorLED（
GPSindicator）

LED Status

Flashing (interval 0.1s)
Continuously in bright state
Continuously in dark state

Meaning

Searching GPS signal
GPS located
GPS not located

2.4 Ignition detection indication

Three (blue/red/green) LEDs are in cycling flashing

3. Interface introduction

4. Method of installation

4.1. Preparation before installation

4.1.1 Open the packing box to check whether the type of device is correct and
whether the accessories are included, or else please contact your
distributor.

4.1.2 Choose SIM card: each device needs to insert a GSM SIM card.
Please refer to the distributor’s suggestions to choose the SIM card.

4.1.3 Installing SIM card: The SIM card slot is on the right side of device.
Open the SIM card silicon seal, then insert the SIM card to the slot (do
not insert the SIM card backwards). When the SIM card is ready you will
hear a click. Or else please insert again and then replace the silicon
seal.

Note:
Please use GSM network SIM card,
Power off before installing or removing the SIM card.
The SIM card used should be enabled for GPRS.
The SIM card used should be enabled for called ID.
If there is a power on password, or pin, please cancel it;
Ensure the SIM card can send and receive SMS.

4.2 Installation

The device installation is covert. Please refer installation to an auto electrical
contractor.

NOTE:

4.2.1 To prevent theft of the device, it should be installed as covertly as

possible. Covertly installation is suggested.

4.2.2 Avoid placing the device close to higher power electrical devices, such

as reversing radar, anti-theft device or other vehicle communication
equipment;

4.2.3 The device should be fixed into position with cable ties or wide

double-side tape.

4.2.4 The device has built-in GSM antenna and GPS antenna. During

installation, please make sure the receiving side face is up, with no
metal object above the device to interfere with GPS reception. The
following places are suggested for installation:

-shelter in the decorated board below the front windshield;

-shelter around the front instrument panel (non-metallic material face);

-in the decorated board below back windshield;

Notice: if the windshield is pasted with metal thermal-protective coating or
heating coating, It may affect the receiving signal. In this case, please change
the installation place.

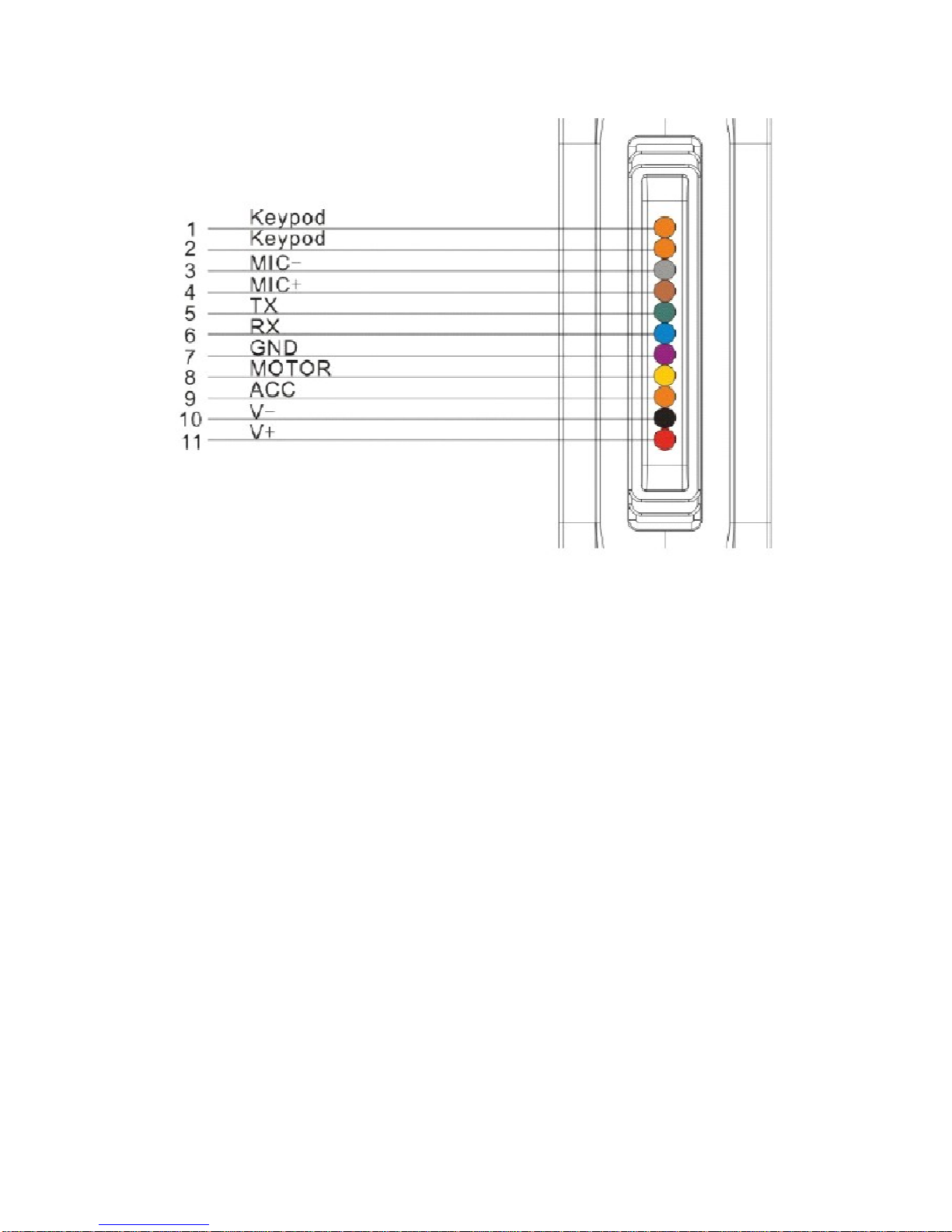

4.3 Device outlet specification
