WAGO I/O-SYSTEM 750-613 Series Manual

WAGO-I/O-SYSTEM 750

Manual

750-613

24V DC Power Supply (Bus)

Internal System Supply Module 24 VDC

Version 1.1.0

2 WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

© 2016 WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.

WAGO Kontakttechnik GmbH & Co. KG

Hansastraße 27
D-32423 Minden

Phone: [phone] – 0
Fax: [phone] – 1 69

E-Mail: [e-mail]

Web: http://www.wago.com

Technical Support

Phone: [phone] – 5 55
Fax: [phone] – 85 55

E-Mail: [e-mail]

Every conceivable measure has been taken to ensure the accuracy and
completeness of this documentation. However, as errors can never be fully
excluded, we always appreciate any information or suggestions for improving the
documentation.

E-Mail: [e-mail]

We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally protected by trademark or patent.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 List of Figures 3
750-613 24V DC Power Supply (Bus)

Table of Contents

1 Notes about this Documentation ................................................................. 5

1.1 Validity of this Documentation ................................................................. 5

1.2 Copyright ................................................................................................... 5

1.3 Symbols ..................................................................................................... 6

1.4 Number Notation ....................................................................................... 8

1.5 Font Conventions ...................................................................................... 8

2 Important Notes ........................................................................................... 9

2.1 Legal Bases ............................................................................................... 9

2.1.1 Subject to Changes ............................................................................... 9

2.1.2 Personnel Qualifications ....................................................................... 9

2.1.3 Use of the WAGO-I/O-SYSTEM 750 in Compliance with

Underlying Provisions .......................................................................... 9

2.1.4 Technical Condition of Specified Devices ......................................... 10

2.2 Safety Advice (Precautions) .................................................................... 11

3 Device Description ..................................................................................... 13

3.1 View ........................................................................................................ 14

3.2 Connectors ............................................................................................... 15

3.2.1 Data Contacts/Internal Bus ................................................................. 15

3.2.2 Power Jumper Contacts/Field Supply ................................................ 16

3.2.3 CAGE CLAMP® Connectors ............................................................. 17

3.3 Display Elements .................................................................................... 18

3.4 Operating Elements ................................................................................. 18

3.5 Schematic Diagram ................................................................................. 19

3.6 Technical Data ........................................................................................ 20

3.6.1 Device data ......................................................................................... 20

3.6.2 Supply ................................................................................................. 20

3.6.3 Climatic Environmental Conditions ................................................... 20

3.6.4 Connection Type ................................................................................ 21

3.7 Approvals ................................................................................................ 22

3.8 Standards and Guidelines ........................................................................ 24

4 Mounting ..................................................................................................... 25

4.1 Mounting Sequence ................................................................................. 25

4.2 Inserting and Removing Devices ............................................................ 26

4.2.1 Inserting the I/O Module .................................................................... 26

4.2.2 Removing the I/O Module .................................................................. 27

5 Connect Devices ......................................................................................... 28

5.1 Connecting a Conductor to the CAGE CLAMP® ................................... 28

5.2 Power Supply Concept ............................................................................ 29

5.2.1 Supplementary Power Supply Regulations ........................................ 31

5.2.2 Power Supply Unit ............................................................................. 31

6 Use in Hazardous Environments .............................................................. 33

6.1 Marking Configuration Examples ........................................................... 34

6.1.1 Marking for Europe According to ATEX and IEC-Ex ...................... 34

6.1.2 Marking for America According to NEC 500 .................................... 39

Manual
Version 1.1.0

4 List of Figures WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

6.2 Installation Regulations ........................................................................... 40

6.2.1 Special Conditions for Safe Use

(ATEX Certificate TÜV 07 ATEX 554086 X) .................................. 41

6.2.2 Special Conditions for Safe Use

(ATEX Certificate TÜV 12 ATEX 106032 X) .................................. 42

6.2.3 Special Conditions for Safe Use

(IEC-Ex Certificate TUN 09.0001 X) ................................................ 43

6.2.4 Special Conditions for Safe Use

(IEC-Ex Certificate IECEx TUN 12.0039 X) .................................... 44

6.2.5 Special Conditions for Safe Use According to ANSI/ISA 12.12.01 .. 45

List of Figures ...................................................................................................... 46

List of Tables ........................................................................................................ 47

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Notes about this Documentation 5
750-613 24V DC Power Supply (Bus)

1 Notes about this Documentation

Always retain this documentation!

This documentation is part of the product. Therefore, retain the documentation
during the entire service life of the product. Pass on the documentation to any
subsequent user. In addition, ensure that any supplement to this documentation is
included, if necessary.

1.1 Validity of this Documentation

This documentation is only applicable to the I/O module 750-613
(24V DC Power Supply (Bus)).

The I/O module 750-613 shall only be installed and operated according to the
instructions in this manual and in the manual for the used fieldbus
coupler/controller.

Consider power layout of the WAGO-I/O-SYSTEM 750!

In addition to these operating instructions, you will also need the manual for the
used fieldbus coupler/controller, which can be downloaded at www.wago.com.
There, you can obtain important information including information on electrical
isolation, system power and supply specifications.

1.2 Copyright

This Manual, including all figures and illustrations, is copyright-protected. Any
further use of this Manual by third parties that violate pertinent copyright
provisions is prohibited. Reproduction, translation, electronic and phototechnical
filing/archiving (e.g., photocopying) as well as any amendments require the
written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany.
Non-observance will involve the right to assert damage claims.

Manual
Version 1.1.0

6 Notes about this Documentation WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

1.3 Symbols

Personal Injury!

Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.

Personal Injury Caused by Electric Current!

Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.

Personal Injury!

Indicates a moderate-risk, potentially hazardous situation which, if not avoided,
could result in death or serious injury.

Personal Injury!

Indicates a low-risk, potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.

Damage to Property!

Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.

Damage to Property Caused by Electrostatic Discharge (ESD)!

Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.

Important Note!

Indicates a potential malfunction which, if not avoided, however, will not result in
damage to property.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Notes about this Documentation 7
750-613 24V DC Power Supply (Bus)

Additional Information:

Refers to additional information which is not an integral part of this
documentation (e.g., the Internet).

Manual
Version 1.1.0

8 Notes about this Documentation WAGO-I/O-SYSTEM 750

Table 1: Number Notation

Number Code

Example

Note

Decimal

100

Normal notation

Hexadecimal

0x64

C notation

Binary

'100'
'0110.0100'

In quotation marks, nibble separated with
dots (.)

Table 2: Font Conventions

Font Type

Indicates

italic

Names of paths and data files are marked in italic-type.
e.g.: C:\Program Files\WAGO Software

Menu

Menu items are marked in bold letters.
e.g.: Save

>

A greater-than sign between two names means the selection of a

e.g.: File > New

Input

Designation of input or optional fields are marked in bold letters,
e.g.: Start of measurement range

“Value”

Input or selective values are marked in inverted commas.
e.g.: Enter the value “4 mA” under Start of measurement range.

[Button]

Pushbuttons in dialog boxes are marked with bold letters in square

e.g.: [Input]

[Key]

Keys are marked with bold letters in square brackets.
e.g.: [F5]

750-613 24V DC Power Supply (Bus)

1.4 Number Notation

1.5 Font Conventions

menu item from a menu.

brackets.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Important Notes 9
750-613 24V DC Power Supply (Bus)

2 Important Notes

This section includes an overall summary of the most important safety
requirements and notes that are mentioned in each individual section. To protect
your health and prevent damage to devices as well, it is imperative to read and
carefully follow the safety guidelines.

2.1 Legal Bases

2.1.1 Subject to Changes

WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any
alterations or modifications that serve to increase the efficiency of technical
progress. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from
the granting of patents or from the legal protection of utility patents. Third-party
products are always mentioned without any reference to patent rights. Thus, the
existence of such rights cannot be excluded.

2.1.2 Personnel Qualifications

All sequences implemented on WAGO-I/O-SYSTEM 750 devices may only be
carried out by electrical specialists with sufficient knowledge in automation. The
specialists must be familiar with the current norms and guidelines for the devices
and automated environments.

All changes to the coupler or controller should always be carried out by qualified
personnel with sufficient skills in PLC programming.

2.1.3 Use of the WAGO-I/O-SYSTEM 750 in Compliance with Underlying Provisions

Fieldbus couplers, fieldbus controllers and I/O modules found in the modular
WAGO-I/O-SYSTEM 750 receive digital and analog signals from sensors and
transmit them to actuators or higher-level control systems. Using programmable
controllers, the signals can also be (pre-) processed.

The devices have been developed for use in an environment that meets the IP20
protection class criteria. Protection against finger injury and solid impurities up to

12.5 mm diameter is assured; protection against water damage is not ensured.
Unless otherwise specified, operation of the devices in wet and dusty
environments is prohibited.

Operating the WAGO-I/O-SYSTEM 750 devices in home applications without
further measures is only permitted if they meet the emission limits (emissions of
interference) according to EN 61000-6-3. You will find the relevant information
in the section “Device Description” > “Standards and Guidelines” in the manual
for the used fieldbus coupler/controller.

Manual
Version 1.1.0

10 Important Notes WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

Appropriate housing (per 2014/34/EU) is required when operating the WAGO­I/O-SYSTEM 750 in hazardous environments. Please note that a prototype test
certificate must be obtained that confirms the correct installation of the system in
a housing or switch cabinet.

2.1.4 Technical Condition of Specified Devices

The devices to be supplied ex works are equipped with hardware and software
configurations, which meet the individual application requirements. WAGO
Kontakttechnik GmbH & Co. KG will be exempted from any liability in case of
changes in hardware or software as well as to non-compliant usage of devices.

Please send your request for modified and new hardware or software
configurations directly to WAGO Kontakttechnik GmbH & Co. KG.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Important Notes 11
750-613 24V DC Power Supply (Bus)

2.2 Safety Advice (Precautions)

For installing and operating purposes of the relevant device to your system the
following safety precautions shall be observed:

Do not work on devices while energized!

All power sources to the device shall be switched off prior to performing any
installation, repair or maintenance work.

Install the device only in appropriate housings, cabinets or in electrical
operation rooms!

The WAGO-I/O-SYSTEM 750 and its components are an open system. As such,
install the system and its components exclusively in appropriate housings,
cabinets or in electrical operation rooms. Allow access to such equipment and
fixtures to authorized, qualified staff only by means of specific keys or tools.

Replace defective or damaged devices!

Replace defective or damaged device/module (e.g., in the event of deformed
contacts), since the long-term functionality of device/module involved can no
longer be ensured.

Protect the components against materials having seeping and insulating
properties!

The components are not resistant to materials having seeping and insulating
properties such as: aerosols, silicones and triglycerides (found in some hand
creams). If you cannot exclude that such materials will appear in the component
environment, then install the components in an enclosure being resistant to the
above-mentioned materials. Clean tools and materials are imperative for handling
devices/modules.

Clean only with permitted materials!

Clean soiled contacts using oil-free compressed air or with ethyl alcohol and
leather cloths.

Manual
Version 1.1.0

12 Important Notes WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

Do not use any contact spray!

Do not use any contact spray. The spray may impair contact area functionality in
connection with contamination.

Do not reverse the polarity of connection lines!

Avoid reverse polarity of data and power supply lines, as this may damage the
devices involved.

Avoid electrostatic discharge!

The devices are equipped with electronic components that may be destroyed by
electrostatic discharge when touched. Please observe the safety precautions
against electrostatic discharge per DIN EN 61340-5-1/-3. When handling the
devices, please ensure that environmental factors (personnel, work space and
packaging) are properly grounded.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Device Description 13
750-613 24V DC Power Supply (Bus)

3 Device Description

The I/O module 750-613 (24V DC Power Supply (Bus)) provides the internal
system power to the downstream modules and increases the system current supply
by 2 A.
Furthermore the I/O module 750-613 provides galvanically isolated DC 24 V field
side power to the downstream modules.

Resetting the system by switching on and off the system supply

Resetting the system by switching on and off the system supply must take place
simultaneously for all supply modules (field bus coupler/controller and system
supply modules 750-613)!

The system power supply is connected to the upper 24 V/0 V CAGE CLAMP®
connectors in parallel to the field bus coupler/controller.
The field power supply is derived from an external source via the lower CAGE

s

CLAMP® connectors 24 V, 0 V and ground (earth).
The assignment of the connections is described in the “Connectors” section.

2 green status LEDs indicate the status of the system supply voltage and the field
supply voltage.
The meaning of the LEDs is described in the “Display Elements” section.

The I/O module provides the 24V, 0V and earth potential to subsequent I/O
modules via the power contacts used as spring contacts.

Do not exceed maximum current via power jumper contacts!

The maximum current to flow through the power jumper contacts is 10 A.
Greater currents can damage the contacts.
When configuring your system, ensure that this current is not exceeded. If
exceeded, insert an additional supply module.

The I/O module 750-613 can be used with all fieldbus couplers/controllers of the
WAGO-I/O-SYSTEM 750.

Operation in shipbuilding or offshore and onshore applications

The supplementary power supply regulations (see section “Connect Devices” >
“Power supply concept”) must be observed for the certified operation of the
supply module 750-613 in shipbuilding or offshore and onshore applications!

Manual
Version 1.1.0

14 Device Description WAGO-I/O-SYSTEM 750

Table 3: Legend for Figure “View”

Pos.

Description

Details See Section

1

Marking possibility with Mini­WSB

--­2

Status LEDs

“Device Description” > “Display Elements”

3

Data contacts

“Device Description” > “Connectors”

4

CAGE CLAMP® connectors

“Device Description” > “Connectors”

5

Power jumper contacts

“Device Description” > “Connectors”

6

Release tab

“Mounting” > “Inserting and Removing
Devices”

750-613 24V DC Power Supply (Bus)

3.1 View

Figure 1: View

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Device Description 15
750-613 24V DC Power Supply (Bus)

3.2 Connectors

3.2.1 Data Contacts/Internal Bus

Communication between the fieldbus coupler/controller and the I/O modules as
well as the system supply of the I/O modules is carried out via the internal bus. It
is comprised of 6 data contacts, which are available as self-cleaning gold spring
contacts.

Figure 2: Data Contacts

Do not place the I/O modules on the gold spring contacts!

Do not place the I/O modules on the gold spring contacts in order to avoid soiling
or scratching!

Ensure that the environment is well grounded!

The devices are equipped with electronic components that may be destroyed by
electrostatic discharge. When handling the devices, ensure that the environment
(persons, workplace and packing) is well grounded. Avoid touching conductive
components, e.g. data contacts.

Manual
Version 1.1.0

16 Device Description WAGO-I/O-SYSTEM 750

Table 4: Legend for Figure “Power Jumper Contacts”

Contact

Type

Function

Potential transmission (UV)

for field supply

Potential transmission (0 V)

for field supply

Potential transmission (ground)

for field supply

750-613 24V DC Power Supply (Bus)

3.2.2 Power Jumper Contacts/Field Supply

The power supply module 750-613 has 3 self-cleaning power jumper contacts that
transmit power for the field side. The contacts on the right side of the power
supply module are designed as spring contacts.

Figure 3: Power Jumper Contacts

1 Spring contact

2 Spring contact

3 Spring contact

Do not exceed maximum current via power jumper contacts!

The maximum current to flow through the power jumper contacts is 10 A.
Greater currents can damage the contacts.
When configuring your system, ensure that this current is not exceeded. If
exceeded, insert an additional supply module.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Device Description 17

Table 5: Legend for Figure “CAGE CLAMP® Connectors”

Designation

Connector

Function

24 V

1

System supply voltage: DC 24 V

0 V

5

System supply voltage: 0 V

2

Field supply voltage: DC 24 V

6

Field supply voltage: DC 24 V

3

Field supply voltage: 0 V

7

Field supply voltage: 0 V

Common

4

Field supply voltage: Common (ground)

8

Field supply voltage: Common (ground)

750-613 24V DC Power Supply (Bus)

3.2.3 CAGE CLAMP® Connectors

Figure 4: CAGE CLAMP

®

Connectors

24 V

0 V

(ground)

Manual
Version 1.1.0

18 Device Description WAGO-I/O-SYSTEM 750

Table 6: Legend for Figure “Display Elements, LED Position from HW09”

Designation

LED

State

Function

Status of

system

Off

No 24 V system supply voltage.

Status of

field supply

No 24 V field supply voltage on the power
jumper contacts.

750-613 24V DC Power Supply (Bus)

3.3 Display Elements

Figure 5: Display Elements, LED Position from HW09

operating

voltage

-

A

Green 24 V system supply voltage.

operating

voltage

B

-

LED position is manufacturing dependent!

LED B from hardware version 09. In older versions, that same function is fulfilled
by LED C.

3.4 Operating Elements

The I/O module 750-613 has no operating elements.

Off

Green

24 V field supply voltage on the power jumper
contacts.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Device Description 19
750-613 24V DC Power Supply (Bus)

3.5 Schematic Diagram

Figure 6: Schematic Diagram

Manual
Version 1.1.0

20 Device Description WAGO-I/O-SYSTEM 750

Table 7: Technical Data – Device

Width

12 mm

Height (from upper edge of 35 DIN rail)

64 mm

Depth

100 mm

Weight

Approx.55 g

Table 8: Technical Data – Supply

Voltage supply

Via CAGE CLAMP® connectors
24 VDC (−25 % … +30 %)

24 V system supply via CAGE

Input current

max.

for 24 V

(typ)

500 mA

Efficiency of power supply

at

nominal load (24 V)

90 %

5 V system supply for I/O Modules:
Output current via data contacts

max.

2000 mA

Voltage via power jumper contacts

24 VDC (−25 % … +30 %)

Current via power jumper contacts

max.

10 A

Table 9: Technical Data – Climatic Environmental Conditions

Operating temperature range

0 °C … 55 °C

Storage temperature range

−25 °C … +85 °C

Relative humidity without condensation

Max. 95 %

Resistance to harmful substances

Acc. to IEC 60068-2-42 and
IEC 60068-2-43

Maximum pollutant concentration at

SO2 ≤ 25 ppm
H2S ≤ 10 ppm

Special conditions

Ensure that additional measures for

– ionizing radiation

750-613 24V DC Power Supply (Bus)

3.6 Technical Data

3.6.1 Device data

3.6.2 Supply

CLAMP® connectors:

typ.

3.6.3 Climatic Environmental Conditions

relative humidity < 75 %

Manual
Version 1.1.0

components are taken, which are used in
an environment involving:
– dust, caustic vapors or gases

WAGO-I/O-SYSTEM 750 Device Description 21

Table 10: Technical Data – Field Wiring

Wire connection

CAGE CLAMP®

Cross section

0.08 mm² … 2.5 mm², AWG 28 … 14

Stripped lengths

8 mm … 9 mm / 0.33 in

Table 11: Technical Data – Power Jumper Contacts

Power jumper contacts

Spring contact, self-cleaning

Voltage drop at I

max.

< 1 V/64 modules

Table 12: Technical Data – Data Contacts

Data contacts

Slide contact, hard gold plated, self­cleaning

750-613 24V DC Power Supply (Bus)

3.6.4 Connection Type

Manual
Version 1.1.0

22 Device Description WAGO-I/O-SYSTEM 750

Conformity Marking

TÜV 07 ATEX 554086 X

I M2 Ex d I Mb

II 3 D Ex tc IIIC T135°C Dc

IECEx TUN 09.0001 X

Ex d I Mb

Ex tc IIIC T135°C Dc

CULUS

ANSI/ISA 12.12.01

Class I, Div2 ABCD T4

750-613 24V DC Power Supply (Bus)

3.7 Approvals

More information about approvals.

Detailed references to the approvals are listed in the document “Overview
Approvals WAGO-I/O-SYSTEM 750”, which you can find via the internet
under: www.wago.com > SERVICES > DOWNLOADS > Additional
documentation and information on automation products > WAGO-I/O-SYSTEM
750 > System Description.

The following approvals have been granted to 750-613 I/O modules:

CULUS

UL508

Korea Certification MSIP-REM-W43-SPP750

The following Ex approvals have been granted to 750-613 I/O modules:

II 3 G Ex nA IIC T4 Gc

Ex nA IIC T4 Gc

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Device Description 23
750-613 24V DC Power Supply (Bus)

The following ship approvals have been granted to 750-613 I/O modules:

ABS (American Bureau of Shipping)

Federal Maritime and Hydrographic Agency

BV (Bureau Veritas)

DNV (Det Norske Veritas) Class B

GL (Germanischer Lloyd) Cat. A, B, C, D (EMC 1)

KR (Korean Register of Shipping)

LR (Lloyd’s Register) Env. 1, 2, 3, 4

NKK (Nippon Kaiji Kyokai)

PRS (Polski Rejestr Statków)

RINA (Registro Italiano Navale)

Operation in shipbuilding or offshore and onshore applications

The supplementary power supply regulations (see section “Connect Devices” >
“Power supply concept”) must be observed for the certified operation of the
supply module 750-613 in shipbuilding or offshore and onshore applications!

Manual
Version 1.1.0

24 Device Description WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

3.8 Standards and Guidelines

750-613 I/O modules meet the following requirements on emission and immunity
of interference:

EMC CE-Emission of interference EN 61000-6-3 + A1

EMC CE-Immunity to interference EN 61000-6-2

EMC marine applications-Emission
of interference acc. to DNV GL

EMC marine applications-Immunity
to interference acc. to DNV GL

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Mounting 25
750-613 24V DC Power Supply (Bus)

4 Mounting

4.1 Mounting Sequence

Fieldbus couplers/controllers and I/O modules of the WAGO-I/O-SYSTEM
750/753 are snapped directly on a carrier rail in accordance with the European
standard EN 50022 (DIN 35).

The reliable positioning and connection is made using a tongue and groove
system. Due to the automatic locking, the individual devices are securely seated
on the rail after installation.

Starting with the fieldbus coupler/controller, the I/O modules are mounted
adjacent to each other according to the project design. Errors in the design of the
node in terms of the potential groups (connection via the power contacts) are
recognized, as the I/O modules with power contacts (blade contacts) cannot be
linked to I/O modules with fewer power contacts.

Risk of injury due to sharp-edged blade contacts!

The blade contacts are sharp-edged. Handle the I/O module carefully to prevent
injury.

Insert I/O modules only from the proper direction!

All I/O modules feature grooves for power jumper contacts on the right side. For
some I/O modules, the grooves are closed on the top. Therefore, I/O modules
featuring a power jumper contact on the left side cannot be snapped from the top.
This mechanical coding helps to avoid configuration errors, which may destroy
the I/O modules. Therefore, insert I/O modules only from the right and from the
top.

Don't forget the bus end module!

Always plug a bus end module (750-600) onto the end of the fieldbus node! You
must always use a bus end module at all fieldbus nodes with WAGO-I/O­SYSTEM 750 fieldbus couplers/controllers to guarantee proper data transfer.

Manual
Version 1.1.0

26 Mounting WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

4.2 Inserting and Removing Devices

Perform work on devices only if they are de-energized!

Working on energized devices can damage them. Therefore, turn off the power
supply before working on the devices.

4.2.1 Inserting the I/O Module

1. Position the I/O module so that the tongue and groove joints to the fieldbus
coupler/controller or to the previous or possibly subsequent I/O module are
engaged.

Figure 7: Insert I/O Module (Example)

2. Press the I/O module into the assembly until the I/O module snaps into the
carrier rail.

Figure 8: Snap the I/O Module into Place (Example)

With the I/O module snapped in place, the electrical connections for the data
contacts and power jumper contacts (if any) to the fieldbus coupler/controller or to
the previous or possibly subsequent I/O module are established.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Mounting 27
750-613 24V DC Power Supply (Bus)

4.2.2 Removing the I/O Module

1. Remove the I/O module from the assembly by pulling the release tab.

Figure 9: Removing the I/O Module (Example)

Electrical connections for data or power jumper contacts are disconnected when
removing the I/O module.

Manual
Version 1.1.0

28 Connect Devices WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

5 Connect Devices

5.1 Connecting a Conductor to the CAGE CLAMP®

The WAGO CAGE CLAMP® connection is appropriate for solid, stranded and
finely stranded conductors.

Select conductor cross sections as required for current load!

The current consumed for field-side supply may not exceed 10 A. The wire cross
sections must be sufficient for the maximum current load for all of the I/O
modules to be supplied with power.

Only connect one conductor to each CAGE CLAMP® connection!

Only one conductor may be connected to each CAGE CLAMP® connection.
Do not connect more than one conductor at one single connection!

If more than one conductor must be routed to one connection, these must be
connected in an up-circuit wiring assembly, for example using WAGO feed­through terminals.

1. To open the CAGE CLAMP® insert the actuating tool into the opening
above the connection.

2. Insert the conductor into the corresponding connection opening.

3. To close the CAGE CLAMP® simply remove the tool - the conductor is
then clamped firmly in place.

Figure 10: Connecting a Conductor to a CAGE CLAMP

Manual
Version 1.1.0

®

WAGO-I/O-SYSTEM 750 Connect Devices 29
750-613 24V DC Power Supply (Bus)

5.2 Power Supply Concept

The system power supply is fed in via the upper 24 V/0 V CAGE CLAMP®
connectors in parallel to the coupler/controller and is protected using a joint fuse.

Figure 11: System Supply with a Standard Fieldbus Coupler/Controller

Figure 12: System Supply with an ECO Fieldbus Coupler/Controller (Supply Below)

Manual
Version 1.1.0

30 Connect Devices WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

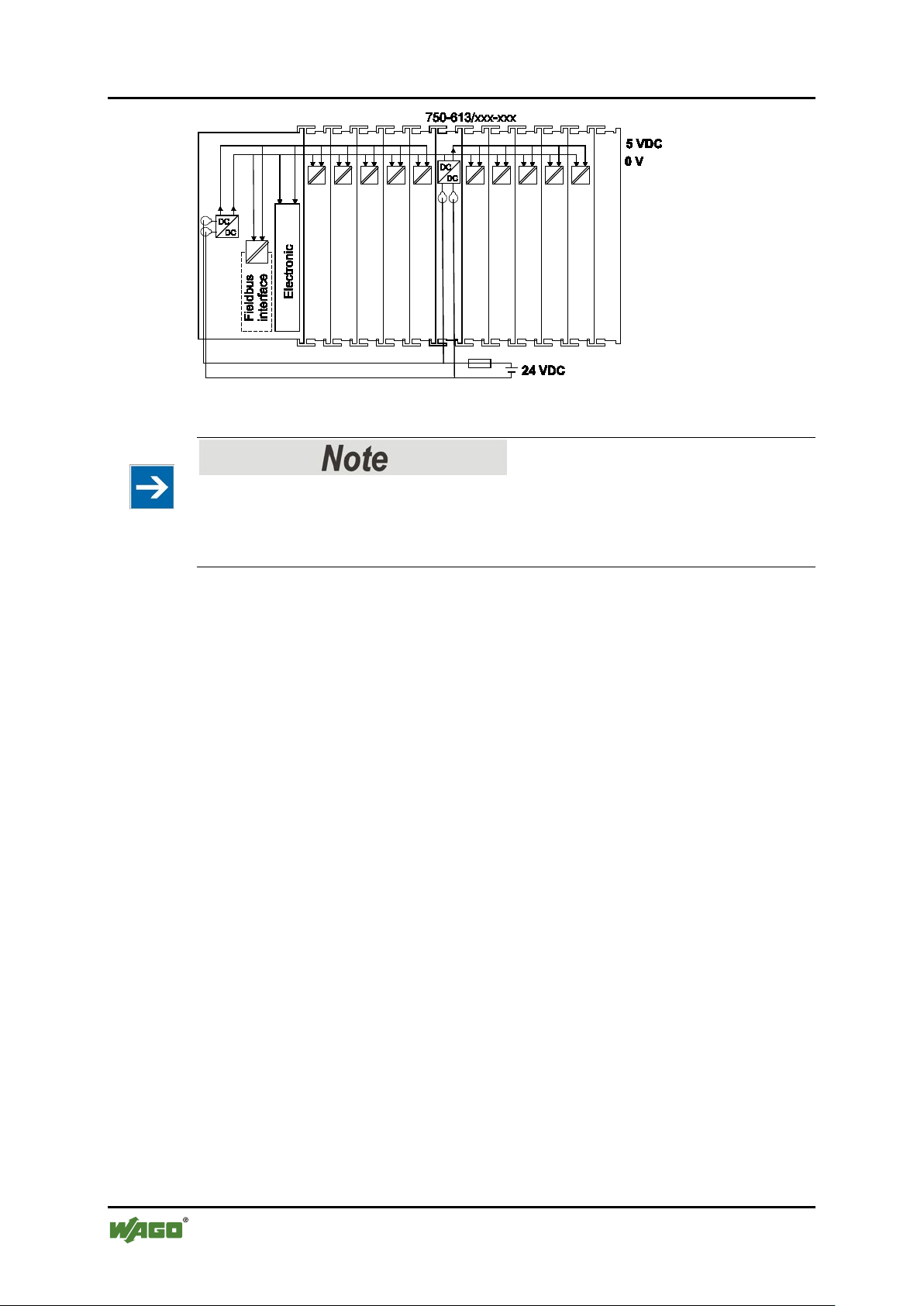

Figure 13: System Supply with an ECO Fieldbus Coupler/Controller (Supply Middle)

Resetting the system by switching on and off the system supply

Resetting the system by switching on and off the system supply must take place
simultaneously for all supply modules (field bus coupler/controller and system
supply modules 750-613)!

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Connect Devices 31
750-613 24V DC Power Supply (Bus)

5.2.1 Supplementary Power Supply Regulations

The overvoltage protection module 750-626, which is equipped with surge
suppression for the 24 V DC field side power supply and used to filter the 24 V
DC field power supply, is required for the certified operation of the supply
module 750-613 in shipbuilding or offshore and onshore applications.

Figure 14: Power Supply Concept GL/LR

5.2.2 Power Supply Unit

The WAGO-I/O-SYSTEM 750 requires a 24 VDC voltage (system supply).

Recommendation

A stable power supply cannot always be assumed everywhere. Therefore, you
should use regulated power supplies to ensure the quality of the supply voltage.

For brief voltage dips, a buffer (200 µF per 1 A load current) must be provided.

Buffer for system power supply!

The system power supply must be buffered to bridge power outages. As the power
demand depends on the respective node configuration, buffering is not
implemented internally.
To achieve power outages of 1 ms to 10 ms according to IEC61131-2, determine
the buffering appropriate for your node configuration and structure it as an
external circuit.

Manual
Version 1.1.0

32 Connect Devices WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

The power demand must be determined individually depending on the entry point
of the field supply. All loads through field devices and I/O modules must be taken
into account. The field supply also impacts the I/O modules because the input and
output drivers of some I/O modules require the voltage of the field supply.

System and field supply must be isolated!

The system supply and field supply must be isolated to ensure bus operation in the
event of short circuits on the actuator side.

Power supply units are available in the eShop.

You can find suitable power supply units, e. g. from the EPSITRON series, in the
eShop on www.wago.com.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 33
750-613 24V DC Power Supply (Bus)

6 Use in Hazardous Environments

The WAGO-I/O-SYSTEM 750 (electrical equipment) is designed for use in
Zone 2 hazardous areas.

The following sections include both the general identification of components
(devices) and the installation regulations to be observed. The individual
subsections of the “Installation Regulations” section must be taken into account if
the I/O module has the required approval or is subject to the range of application
of the ATEX directive.

Manual
Version 1.1.0

34 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

6.1 Marking Configuration Examples

6.1.1 Marking for Europe According to ATEX and IEC-Ex

Figure 15: Side Marking Example for Approved I/O Modules According to ATEX and IECEx

Figure 16: Text Detail – Marking Example for Approved I/O Modules According to ATEX and
IECEx.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 35

Table 13: Description of Marking Example for Approved I/O Modules According to ATEX and
IECEx

Marking

Description

TÜV 07 ATEX 554086 X
IECEx TUN 09.0001 X

Approving authority and certificate numbers

Dust

II

Equipment group: All except mining

3D

Category 3 (Zone 22)

Ex

Explosion protection mark

tc Dc

Type of protection and equipment protection
level (EPL):protection by enclosure

IIIC

Explosion group of dust

T 135°C

Max. surface temperature of the enclosure
(without a dust layer)

Mining

I

Equipment group: Mining

M2

Category: High level of protection

Ex

Explosion protection mark

d Mb

Type of protection and equipment protection
level (EPL): Flameproof enclosure

I

Explosion group for electrical equipment for
mines susceptible to firedamp

Gases

II

Equipment group: All except mining

3G

Category 3 (Zone 2)

Ex

Explosion protection mark

nA Gc

Type of protection and equipment protection
level (EPL): Non-sparking equipment

nC Gc

Type of protection and equipment protection

interior

IIC

Explosion group of gas and vapours

T4

Temperature class: Max. surface temperature
135°C

750-613 24V DC Power Supply (Bus)

Manual
Version 1.1.0

level (EPL): Sparking apparatus with protected
contacts. A device which is so constructed that
the external atmosphere cannot gain access to the

36 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

Figure 17: Side Marking Example for Approved Ex i I/O Modules According to ATEX and
IECEx.

Figure 18: Text Detail – Marking Example for Approved Ex i I/O Modules According to ATEX
and IECEx.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 37

Table 14: Description of Marking Example for Approved Ex i I/O Modules According to ATEX and
IECEx

Marking

Description

TÜV 07 ATEX 554086 X

IECEx TUN 12.0039 X

Approving authority and certificate numbers

Dust

II

Equipment group: All except mining

3(1)D

Category 3 (Zone 22) equipment containing a safety
device for a category 1 (Zone 20) equipment

3(2)D

Category 3 (Zone 22) equipment containing a safety
device for a category 2 (Zone 21) equipment

Ex

Explosion protection mark

tc Dc

Type of protection and equipment protection level
(EPL): protection by enclosure

[ia Da]

Type of protection and equipment protection level

circuits for use in Zone 20

[ib Db]

Type of protection and equipment protection level

circuits for use in Zone 21

IIIC

Explosion group of dust

T 135°C

Max. surface temperature of the enclosure (without a
dust layer)

Mining

I

Equipment Group: Mining

M2 (M1)

Category: High level of protection with electrical
circuits which present a very high level of protection

Ex d Mb

Explosion protection mark with Type of protection

enclosure

[ia Ma]

Type of protection and equipment protection level

electrical circuits

I Explosion group for electrical equipment for mines
susceptible to firedamp

750-613 24V DC Power Supply (Bus)

IECEx TUN 09.0001X

TÜV 12 ATEX 106032 X

(EPL): associated apparatus with intrinsic safety

(EPL): associated apparatus with intrinsic safety

and equipment protection level (EPL): Flameproof

(EPL): associated apparatus with intrinsic safety

Manual
Version 1.1.0

38 Use in Hazardous Environments WAGO-I/O-SYSTEM 750

Table 14: Description of Marking Example for Approved Ex i I/O Modules According to ATEX and
IECEx

Gases

II

Equipment group: All except mining

3(1)G

Category 3 (Zone 2) equipment containing a safety
device for a category 1 (Zone 0) equipment

3(2)G

Category 3 (Zone 2) equipment containing a safety
device for a category 2 (Zone 1) equipment

Ex

Explosion protection mark

nA Gc

Type of protection and equipment protection level
(EPL): Non-sparking equipment

[ia Ga]

Type of protection and equipment protection level

circuits for use in Zone 0

[ia Gb]

Type of protection and equipment protection level

circuits for use in Zone 1

IIC

Explosion group of gas and vapours

T4

Temperature class: Max. surface temperature 135°C

750-613 24V DC Power Supply (Bus)

(EPL): associated apparatus with intrinsic safety

(EPL): associated apparatus with intrinsic safety

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 39

Table 15: Description of Marking Example for Approved I/O Modules According to NEC 500

Marking

Description

CL I

Explosion protection group (condition of use
category)

DIV 2

Area of application

Grp. ABCD

Explosion group (gas group)

Op temp code T4

Temperature class

750-613 24V DC Power Supply (Bus)

6.1.2 Marking for America According to NEC 500

Figure 19: Side Marking Example for I/O Modules According to NEC 500

Figure 20: Text Detail – Marking Example for Approved I/O Modules According to NEC 500

Manual
Version 1.1.0

40 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

6.2 Installation Regulations

For the installation and operation of electrical equipment in hazardous areas, the
valid national and international rules and regulations which are applicable at the
installation location must be carefully followed.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 41
750-613 24V DC Power Supply (Bus)

6.2.1 Special Conditions for Safe Use (ATEX Certificate TÜV 07 ATEX 554086 X)

1. For use as Gc- or Dc-apparatus (in zone 2 or 22) the Field bus Independent

I/O Modules WAGO-I/O-SYSTEM 750-*** shall be erected in an
enclosure that fulfils the requirements of the applicable standards (see the
marking) EN 60079-0, EN 60079-11, EN 60079-15 and EN 60079-31.
For use as group I electrical apparatus M2 the apparatus shall be erected in
an enclosure that ensures a sufficient protection according to EN 60079-0
and EN 60079-1 and the degree of protection IP64.
The compliance of these requirements and the correct installation into an
enclosure or a control cabinet of the devices shall be certified by an ExNB.

2. Measures have to be taken outside of the device that the rating voltage is not

being exceeded of more than 40 % because of transient disturbances.

3. Dip-switches, binary-switches and potentiometers, connected to the module

may only be actuated when explosive atmosphere can be excluded.

4. The connecting and disconnecting of the non-intrinsically safe circuits is

only permitted during installation, for maintenance or for repair purposes.
The temporal coincidence of explosion hazardous atmosphere and
installation, maintenance resp. repair purposes shall be excluded.
This is although and in particular valid for the interfaces “Memory-Card”,
“USB”, “Fieldbus connection”, “Configuration and programming interface”,
“antenna socket”, “D-Sub”, “DVI-port” and the “Ethernet interface”. These
interfaces are not energy limited or intrinsically safe circuits. An operating
of those circuits is in the behalf of the operator.

5. For the types 750-606, 750-625/000-001, 750-487/003-000, 750-484 and

750-633 the following shall be considered: The Interface circuits shall be
limited to overvoltage category I/II/III (non mains/mains circuits) as defined
in EN 60664-1.

6. For replaceable fuses the following shall be considered: Do not remove or

replace the fuse when the apparatus is energized.

7. The following warnings shall be placed nearby the unit:

WARNING – DO NOT REMOVE OR REPLACE FUSE WHEN
ENERGIZED
WARNING – DO NOT SEPARATE WHEN ENERGIZED
WARNING – SEPARATE ONLY IN A NON-HAZARDOUS AREA

Manual
Version 1.1.0

42 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

6.2.2 Special Conditions for Safe Use (ATEX Certificate TÜV 12 ATEX 106032 X)

1. For use as Gc- or Dc-apparatus (in zone 2 or 22) the Field bus Independent

I/O Modules WAGO-I/O-SYSTEM 750-*** Ex i shall be erected in an
enclosure that fulfils the requirements of the applicable standards (see the
marking) EN 60079-0, EN 60079-11, EN 60079-15 and EN 60079-31.
For use as group I electrical apparatus M2 the apparatus shall be erected in
an enclosure that ensures a sufficient protection according to EN 60079-0
and EN 60079-1 and the degree of protection IP64.
The compliance of these requirements and the correct installation into an
enclosure or a control cabinet of the devices shall be certified by an ExNB.

2. Measures have to be taken outside of the device that the rating voltage is not

being exceeded of more than 40 % because of transient disturbances.

3. The connecting and disconnecting of the non-intrinsically safe circuits is

only permitted during installation, for maintenance or for repair purposes.
The temporal coincidence of explosion hazardous atmosphere and
installation, maintenance resp. repair purposes shall be excluded.

4. For the type the following shall be considered: The Interface circuits shall

be limited to overvoltage category I/II (non mains/mains circuits) as defined
in EN 60664-1.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 43
750-613 24V DC Power Supply (Bus)

6.2.3 Special Conditions for Safe Use (IEC-Ex Certificate TUN

09.0001 X)

1. For use as Gc- or Dc-apparatus (in zone 2 or 22) the Field bus Independent

I/O Modules WAGO-I/O-SYSTEM 750-*** shall be erected in an
enclosure that fulfils the requirements of the applicable standards (see the
marking) IEC 60079-0, IEC 60079-11, IEC 60079-15 and IEC 60079-31.
For use as group I electrical apparatus M2 the apparatus shall be erected in
an enclosure that ensures a sufficient protection according to IEC 60079-0
and IEC 60079-1 and the degree of protection IP64.
The compliance of these requirements and the correct installation into an
enclosure or a control cabinet of the devices shall be certified by an ExCB.

2. Measures have to be taken outside of the device that the rating voltage is not

being exceeded of more than 40 % because of transient disturbances.

3. DIP-switches, binary-switches and potentiometers, connected to the module

may only be actuated when explosive atmosphere can be excluded.

4. The connecting and disconnecting of the non-intrinsically safe circuits is

only permitted during installation, for maintenance or for repair purposes.
The temporal coincidence of explosion hazardous atmosphere and
installation, maintenance resp. repair purposes shall be excluded.
This is although and in particular valid for the interfaces “Memory-Card”,
“USB”, “Fieldbus connection”, “Configuration and programming interface”,
“antenna socket”, “D-Sub”, “DVI-port” and the “Ethernet interface”. These
interfaces are not energy limited or intrinsically safe circuits. An operating
of those circuits is in the behalf of the operator.

5. For the types 750-606, 750-625/000-001, 750-487/003-000, 750-484 and

750-633 the following shall be considered: The Interface circuits shall be
limited to overvoltage category I/II/III (non mains/mains circuits) as defined
in IEC 60664-1.

6. For replaceable fuses the following shall be considered: Do not remove or

replace the fuse when the apparatus is energized.

7. The following warnings shall be placed nearby the unit:

WARNING – DO NOT REMOVE OR REPLACE FUSE WHEN
ENERGIZED
WARNING – DO NOT SEPARATE WHEN ENERGIZED
WARNING – SEPARATE ONLY IN A NON-HAZARDOUS AREA

Manual
Version 1.1.0

44 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

6.2.4 Special Conditions for Safe Use (IEC-Ex Certificate IECEx TUN 12.0039 X)

1. For use as Gc- or Dc-apparatus (in zone 2 or 22) the Field bus independent

I/O Modules WAGO-I/O-SYSTEM 750-*** Ex i shall be erected in an
enclosure that fulfils the requirements of the applicable standards (see the
marking) IEC 60079-0, IEC 60079-11, IEC 60079-15, IEC 60079-31.
For use as group I electrical apparatus M2 the apparatus shall be erected in
an enclosure that ensures a sufficient protection according to IEC 60079-0
and IEC 60079-1 and the degree of protection IP64.
The compliance of these requirements and the correct installation into an
enclosure or a control cabinet of the devices shall be certified by an ExCB.

2. Measures have to be taken outside of the device that the rating voltage is not

being exceeded of more than 40 % because of transient disturbances.

3. The connecting and disconnecting of the non-intrinsically safe circuits is

only permitted during installation, for maintenance or for repair purposes.
The temporal coincidence of explosion hazardous atmosphere and
installation, maintenance resp. repair purposes shall be excluded.

4. For the type the following shall be considered: The Interface circuits shall

be limited to overvoltage category I/II (non mains/mains circuits) as defined
in IEC 60664-1.

Manual
Version 1.1.0

WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 45
750-613 24V DC Power Supply (Bus)

6.2.5 Special Conditions for Safe Use According to ANSI/ISA

12.12.01

A. “This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D

or non-hazardous locations only.”
B. “This equipment is to be fitted within tool-secured enclosures only.”
C. “WARNING Explosion hazard - substitution of components may impair

suitability for Class I, Div. 2.”
D. “WARNING – Do not disconnect equipment unless power has been

switched off or the area is known to be non-hazardous” has to be placed

near each operator accessible connector and fuse holder.
E. When a fuse is provided, the following information shall be provided: “A

switch suitable for the location where the equipment is installed shall be

provided to remove the power from the fuse.”
F. For devices with EtherCAT/Ethernet connectors “Only for use in LAN, not

for connection to telecommunication circuits.”
G. “WARNING - Use Module 750-642 only with antenna module 758-910.”
H. For Couplers/Controllers and Economy bus modules only: The instructions

shall contain the following: “The configuration interface Service connector

is for temporary connection only. Do not connect or disconnect unless the

area is known to be non-hazardous. Connection or disconnection in an

explosive atmosphere could result in an explosion.”
I. Modules containing fuses only: “WARNING - Devices containing fuses

must not be fitted into circuits subject to over loads, e.g. motor circuits.”
J. Modules containing SD card reader sockets only: “WARNING - Do not

connect or disconnect SD-Card while circuit is live unless the area is known

to be free of ignitable concentrations of flammable gases or vapors.”

Additional Information

Proof of certification is available on request.
Also take note of the information given on the operating and assembly
instructions.
The manual, containing these special conditions for safe use, must be readily
available to the user.

Manual
Version 1.1.0

46 List of Figures WAGO-I/O-SYSTEM 750
750-613 24V DC Power Supply (Bus)

List of Figures

Figure 1: View ....................................................................................................... 14

Figure 2: Data Contacts ......................................................................................... 15

Figure 3: Power Jumper Contacts ......................................................................... 16

Figure 4: CAGE CLAMP® Connectors................................................................. 17

Figure 5: Display Elements, LED Position from HW09 ....................................... 18

Figure 6: Schematic Diagram ................................................................................ 19

Figure 7: Insert I/O Module (Example) ................................................................. 26

Figure 8: Snap the I/O Module into Place (Example) ........................................... 26

Figure 9: Removing the I/O Module (Example) ................................................... 27

Figure 10: Connecting a Conductor to a CAGE CLAMP® ................................... 28

Figure 11: System Supply with a Standard Fieldbus Coupler/Controller ............. 29

Figure 12: System Supply with an ECO Fieldbus Coupler/Controller

(Supply Below) ............................................................................................ 29

Figure 13: System Supply with an ECO Fieldbus Coupler/Controller

(Supply Middle) ........................................................................................... 30

Figure 14: Power Supply Concept GL/LR ............................................................ 31

Figure 15: Side Marking Example for Approved I/O Modules According

to ATEX and IECEx .................................................................................... 34

Figure 16: Text Detail – Marking Example for Approved I/O Modules

According to ATEX and IECEx. ................................................................. 34

Figure 17: Side Marking Example for Approved Ex i I/O Modules According

to ATEX and IECEx. ................................................................................... 36

Figure 18: Text Detail – Marking Example for Approved Ex i I/O Modules

According to ATEX and IECEx. ................................................................. 36

Figure 19: Side Marking Example for I/O Modules According to NEC 500 ....... 39

Figure 20: Text Detail – Marking Example for Approved I/O Modules

According to NEC 500................................................................................. 39
