Wago 870-151 Data Sheet

Download

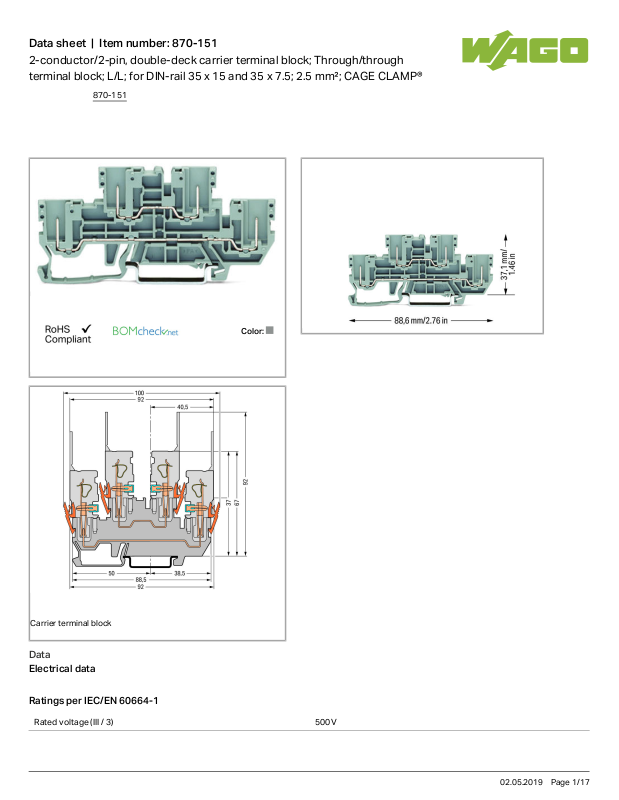

Data sheet | Item number:870-151
2-conductor/2-pin, double-deck carrier terminal block; Through/through terminal block; L/L; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®
Carrier terminal block

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V
870-151
02.05.2019Page /1 17
Data sheet | Item number:870-151
Rated impulse voltage (III / 3) 6 kV
Rated current 16 A

Connection data

Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 37.1mm/ 1.461inch
Depth 88.6mm/ 3.488inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Potential marking L/L
Marking level Side marking

Material Data

Color gray
Fire load 0.185 MJ
Weight 10.3g

Commercial data

Product Group 16 (Rail Mounted Terminal Block with CCC)
Country of origin DE
GTIN 4045454397265
Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7468
CCA
DEKRA Certification B.V.
EN 60947 2189801.01
870-151
02.05.2019Page /2 17
Data sheet | Item number:870-151
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1293677­PDA
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
UL International Germany GmbH
UL 1059 20160928-
E45172
