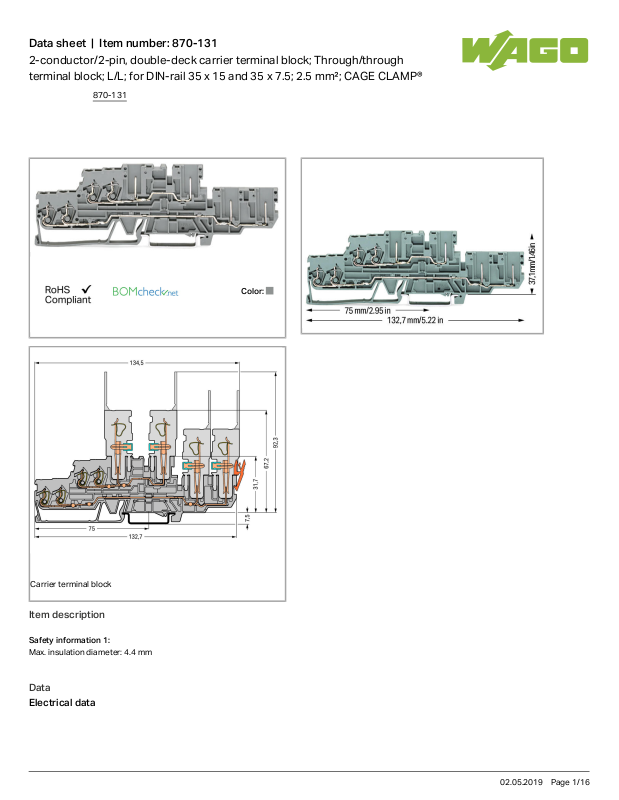

Wago 870-131 Data Sheet

Data sheet | Item number:870-131

2-conductor/2-pin, double-deck carrier terminal block; Through/through
terminal block; L/L; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®

Carrier terminal block

Color:

Item description

Safety information 1:

Max. insulation diameter: 4.4 mm

Data

Electrical data

870-131

02.05.2019Page /1 16

Data sheet | Item number:870-131

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 16 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

Total number of connection points 4

Total number of potentials 2

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 37.1mm/ 1.461inch

Depth 132.7mm/ 5.224inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking L/L

Marking level Side marking

Material Data

Color gray

Fire load 0.287 MJ

Weight 19g

Commercial data

Product Group 16 (Rail Mounted Terminal Block with CCC)

Country of origin DE

GTIN 4045454600211

Customs Tariff No. 85369010000

870-131

02.05.2019Page /2 16

Data sheet | Item number:870-131

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2189801.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7468

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

cURus

UL International Germany GmbH

UL 1059 20160928-

E45172

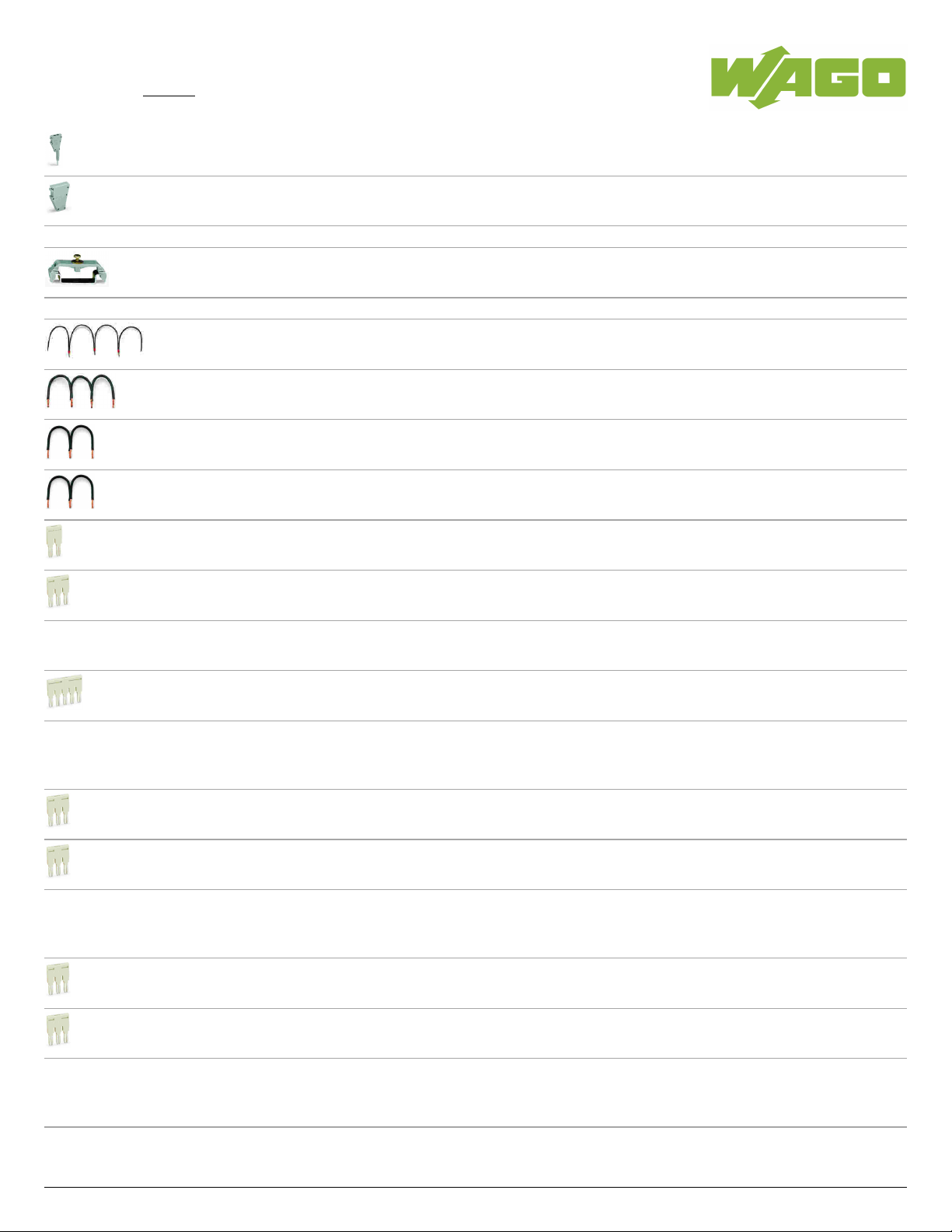

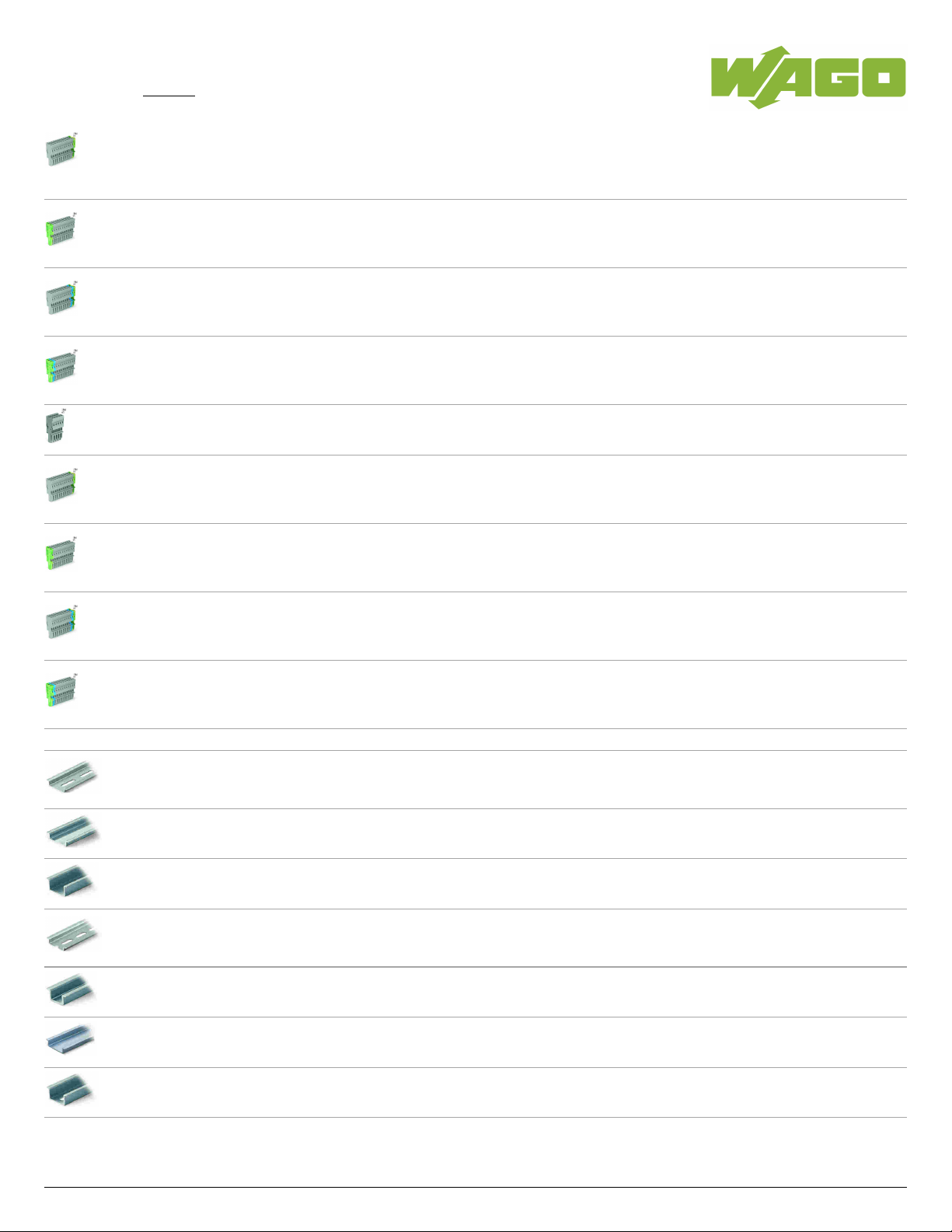

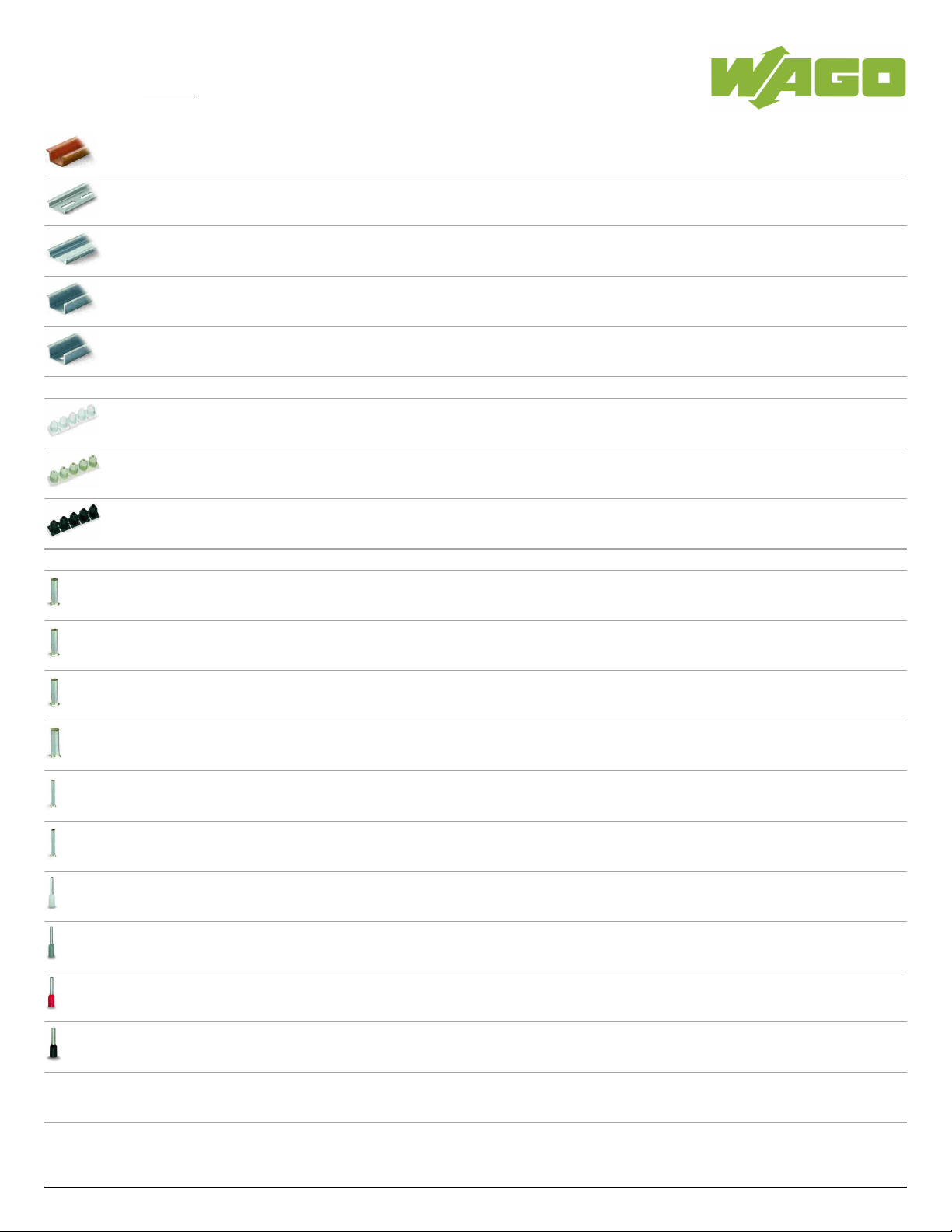

Compatible products

Coding

Item no.: 769-435

Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors

769-435

End plate

Item no.: 870-148

870-131

02.05.2019Page /3 16

Data sheet | Item number:870-131

Item no.: 870-148

End and intermediate plate; 1 mm thick 870-148

Item no.: 870-149

End and intermediate plate; 1 mm thick

870-149

Female plug

Item no.: 769-101

1-conductor female plug; 4 mm²; 1-pole

769-101

Item no.: 769-101/000-006

1-conductor female plug; 4 mm²; 1-pole

769-101

/000-006

Item no.: 769-101/000-016

1-conductor female plug; 4 mm²; 1-pole

769-101

/000-016

Item no.: 769-102

1-conductor female plug; 4 mm²; 2-pole

769-102

Item no.: 769-102/000-006

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-006

Item no.: 769-102/000-036

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-036

Item no.: 769-102/000-037

1-conductor female plug; 4 mm²; 2-pole

769-102

/000-037

Item no.: 769-103

1-conductor female plug; 4 mm²; 3-pole

769-103

Item no.: 769-103/000-006

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-006

Item no.: 769-103/000-036

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-036

Item no.: 769-103/000-037

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-037

Item no.: 769-103/000-038

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-038

Item no.: 769-103/000-039

1-conductor female plug; 4 mm²; 3-pole

769-103

/000-039

Item no.: 769-104

1-conductor female plug; 4 mm²; 4-pole

769-104

870-131

02.05.2019Page /4 16

Data sheet | Item number:870-131

Item no.: 769-104/000-006

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-006

Item no.: 769-104/000-036

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-036

Item no.: 769-104/000-037

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-037

Item no.: 769-104/000-038

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-038

Item no.: 769-104/000-039

1-conductor female plug; 4 mm²; 4-pole

769-104

/000-039

Item no.: 769-105

1-conductor female plug; 4 mm²; 5-pole

769-105

Item no.: 769-105/000-006

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-006

Item no.: 769-105/000-036

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-036

Item no.: 769-105/000-037

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-037

Item no.: 769-105/000-038

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-038

Item no.: 769-105/000-039

1-conductor female plug; 4 mm²; 5-pole

769-105

/000-039

Item no.: 769-106

1-conductor female plug; 4 mm²; 6-pole

769-106

Item no.: 769-106/000-006

1-conductor female plug; 4 mm²; 6-pole

769-106

/000-006

Item no.: 769-106/000-036

1-conductor female plug; 4 mm²; 6-pole

769-106

/000-036

Item no.: 769-106/000-037

1-conductor female plug; 4 mm²; 6-pole

769-106

/000-037
