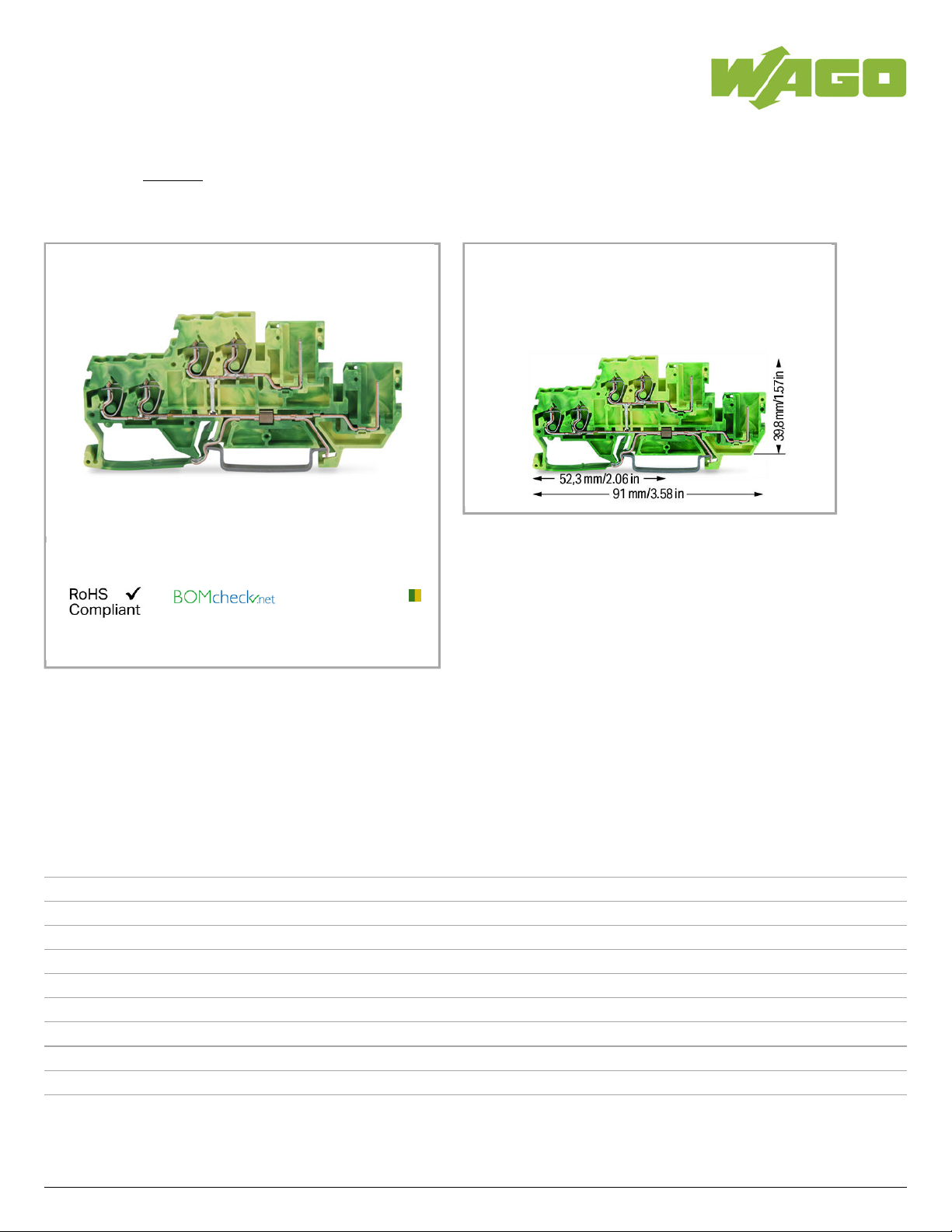

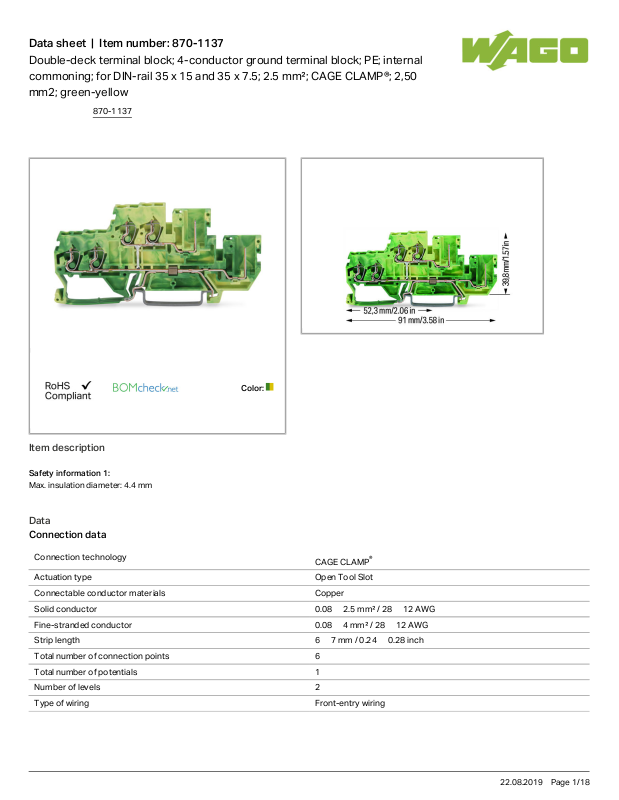

Data sheet | Item number:870-1137
Double-deck terminal block; 4-conductor ground terminal block; PE; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm2; green-yellow
Item description
Safety information 1:
Max. insulation diameter: 4.4 mm
Data
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Solid conductor 0.08 2.5mm²/ 28 12AWG
Fine-stranded conductor 0.08 4mm²/ 28 12AWG
Strip length 6 7mm/ 0.24 0.28inch
Total number of connection points 6
Total number of potentials 1
Number of levels 2
Type of wiring Front-entry wiring
870-1137
22.08.2019Page /1 18
Page 2
Data sheet | Item number:870-1137
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 39.8mm/ 1.567inch
Depth 91mm/ 3.583inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Potential marking PE
Marking level Side marking
Material Data
Color green-yellow
Weight 15.2g
Commercial data
Country of origin DE
GTIN 4055143343268
Customs Tariff No. 85366990990
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2189801.01
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7468
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1293677­PDA
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7468
870-1137
22.08.2019Page /2 18
Page 3
Data sheet | Item number:870-1137
CCA
DEKRA Certification B.V.
EN 60947 2189801.01
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1293677­PDA
Other Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
UL International Germany GmbH
UL 1059 20160928-
E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
UL International Germany GmbH
UL 1059 20160928-
E45172
Compatible products
Marking accessories
870-1137
22.08.2019Page /3 18
Page 4
Data sheet | Item number:870-1137
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; light green
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-115
/000-024
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-145
/000-023
870-1137
22.08.2019Page /4 18
Page 5
Data sheet | Item number:870-1137
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-145
/000-024
Item no.: 2009-198
Adaptor
2009-198
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; yellow
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-007
870-1137
22.08.2019Page /5 18
Page 6
Data sheet | Item number:870-1137
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-024
Item no.: 793-5501 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type; white
793-5501
Item no.: 793-5501/000-002 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type; yellow
793-5501
/000-002
Item no.: 793-5501/000-005 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; red
793-5501
/000-005
Item no.: 793-5501/000-006 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; blue
793-5501
/000-006
Item no.: 793-5501/000-007 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; gray
793-5501
/000-007
Item no.: 793-5501/000-012 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; orange
793-5501
/000-012
Item no.: 793-5501/000-017 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; light green
793-5501
/000-017
Item no.: 793-5501/000-023 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; green
793-5501
/000-023
Item no.: 793-5501/000-024 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; violet
793-5501
/000-024
Insulation stop
Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip; white
280-470
870-1137
22.08.2019Page /6 18
Page 7
Data sheet | Item number:870-1137
Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray
280-471
Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
280-472
End plate
Item no.: 870-1148
End and intermediate plate; 1 mm thick; gray
870-1148
Item no.: 870-1149
End and intermediate plate; 1 mm thick; orange
870-1149
tools
Item no.: 210-720
Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft
210-720
Protective Warning Marker
Item no.: 280-405
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks; yellow
280-405
Coding
Item no.: 769-435
Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors; orange
769-435
Jumper
Item no.: 210-103
Wire commoning chain; insulated; 50 connections; black
210-103
Item no.: 709-110
Wire commoning chain; insulated; 4 connections; 3 x 110 mm; black
709-110
Item no.: 709-111
Wire commoning chain; insulated; 3 connections; 2 x 120 mm; black
709-111
Item no.: 709-112
Wire commoning chain; insulated; 3 connections; 2 x 170 mm; black
709-112
Item no.: 870-402
Push-in type jumper bar; insulated; 2-way; Nominal current 18 A; light gray
870-402
Item no.: 870-403
Push-in type jumper bar; insulated; 3-way; Nominal current 18 A; light gray
870-403
Item no.: 870-404
Push-in type jumper bar; insulated; 4-way; Nominal current 18 A; light gray
870-404
Item no.: 870-405
Push-in type jumper bar; insulated; 5-way; Nominal current 18 A; light gray
870-405
Item no.: 870-405/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A; light gray
870-405
/011-000
Item no.: 870-406
Push-in type jumper bar; insulated; 6-way; Nominal current 18 A; light gray
870-406
870-1137
22.08.2019Page /7 18
Page 8
Data sheet | Item number:870-1137
Item no.: 870-407
Push-in type jumper bar; insulated; 7-way; Nominal current 18 A; light gray
870-407
Item no.: 870-407/011-000
Ready-made push-in type jumper bar; insulated; 1-3-5-7; Nominal current 18 A; light gray
870-407
/011-000
Item no.: 870-408
Push-in type jumper bar; insulated; 8-way; Nominal current 18 A; light gray
870-408
Item no.: 870-409
Push-in type jumper bar; insulated; 9-way; Nominal current 18 A; light gray
870-409
Item no.: 870-409/011-000
Ready-made push-in type jumper bar; insulated; 1-3-5-7-9; Nominal current 18 A; light gray
870-409
/011-000
Item no.: 870-410
Push-in type jumper bar; insulated; 10-way; Nominal current 18 A; light gray
870-410
Item no.: 870-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A; light gray
870-433
Item no.: 870-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A; light gray
870-434
Item no.: 870-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A; light gray
870-435
Item no.: 870-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A; light gray
870-440
assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails; gray
209-106
ferrule
Item no.: 216-121
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-121
Item no.: 216-122
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-122
Item no.: 216-123
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-123
Item no.: 216-124
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-124
Item no.: 216-131
Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated
216-131
Item no.: 216-132
Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated
216-132
Item no.: 216-221
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; white
216-221
Item no.: 216-222
870-1137
22.08.2019Page /8 18
Page 9
Data sheet | Item number:870-1137
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; gray 216-222
Item no.: 216-223
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; red
216-223
Item no.: 216-224
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; black
216-224
Item no.: 216-321
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated; yellow
216-321
Item no.: 216-322
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated; green
216-322
General accessories
Item no.: 769-438
Pin cover; with marker slot for miniature WSB; gray
769-438
Item no.: 769-439
Pin cover; with marker slot for miniature WSB; orange
769-439
Item no.: 769-501 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole; 4,00 mm2; gray
769-501
Item no.: 769-501/000-006
Start module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; blue
769-501
/000-006
Item no.: 769-501/000-016 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-501
/000-016
Item no.: 769-502
Center module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; gray
769-502
Item no.: 769-502/000-006 Center module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; blue
769-502
/000-006
Item no.: 769-502/000-016 Center module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-502
/000-016
Item no.: 769-503
End module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; gray
769-503
Item no.: 769-503/000-006 End module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; blue
769-503
/000-006
Item no.: 769-503/000-016 End module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-503
/000-016
Item no.: 769-512
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; gray
769-512
870-1137
22.08.2019Page /9 18
Page 10
Data sheet | Item number:870-1137
Item no.: 769-512/000-006 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; blue
769-512
/000-006
Item no.: 769-512/000-016 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-512
/000-016
Item no.: 769-513
Center module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; gray
769-513
Item no.: 769-513/000-006 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; blue
769-513
/000-006
Item no.: 769-513/000-016 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-513
/000-016
Item no.: 769-515
End module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; gray
769-515
Item no.: 769-515/000-006 End module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; blue
769-515
/000-006
Item no.: 769-515/000-016 End module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-515
/000-016
Item no.: 870-182
Adaptor
870-182
Item no.: 870-183
Adaptor
870-183
Item no.: 870-184
Adaptor
870-184
Item no.: 870-425 Tap-off module; with anti-rotation protection; modular; suitable for 870 Series terminal blocks with jumper slots in the current bar; 2,50 mm2; gray
870-425
Item no.: 870-426 Tap-off module; modular; suitable for 870 Series terminal blocks with jumper slots in the current bar; gray
870-426
Item no.: 870-427 Spacer module; modular; bridging commoned terminal blocks; gray
870-427
Female plug
Item no.: 769-101 1-conductor female plug; 4 mm²; 1-pole; 4,00 mm2; gray
769-101
Item no.: 769-101/000-006
1-conductor female plug; 4 mm²; 1-pole; 4,00 mm2; blue
769-101
/000-006
Item no.: 769-101/000-016
1-conductor female plug; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-101
/000-016
870-1137
22.08.2019Page /10 18
Page 11
Data sheet | Item number:870-1137
Item no.: 769-101/022-000
1-conductor female plug; angled; 4 mm²; 1-pole; 4,00 mm2; gray
769-101
/022-000
Item no.: 769-101/022-016
1-conductor female plug; angled; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-101
/022-016
Item no.: 769-102 1-conductor female plug; 4 mm²; 2-pole; 4,00 mm2; gray
769-102
Item no.: 769-102/000-006
1-conductor female plug; 4 mm²; 2-pole; 4,00 mm2; blue
769-102
/000-006
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole; 4,00 mm2; gray, green-yellow
769-102
/000-036
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole; 4,00 mm2; green-yellow, gray
769-102
/000-037
Item no.: 769-102/022-000
1-conductor female plug; angled; 4 mm²; 2-pole; 4,00 mm2; gray
769-102
/022-000
Item no.: 769-103 1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; gray
769-103
Item no.: 769-103/000-006
1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; blue
769-103
/000-006
Item no.: 769-103/000-036
1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; gray, green-yellow
769-103
/000-036
Item no.: 769-103/000-037
1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; green-yellow, gray
769-103
/000-037
Item no.: 769-103/000-038
1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; gray, blue, green-yellow
769-103
/000-038
Item no.: 769-103/000-039
1-conductor female plug; 4 mm²; 3-pole; 4,00 mm2; green-yellow, blue, gray
769-103
/000-039
Item no.: 769-103/022-000
1-conductor female plug; angled; 4 mm²; 3-pole; 4,00 mm2; gray
769-103
/022-000
Item no.: 769-104 1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; gray
769-104
870-1137
22.08.2019Page /11 18
Page 12
Data sheet | Item number:870-1137
Item no.: 769-104/000-006
1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; blue
769-104
/000-006
Item no.: 769-104/000-036
1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; gray, green-yellow
769-104
/000-036
Item no.: 769-104/000-037
1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; green-yellow, gray
769-104
/000-037
Item no.: 769-104/000-038
1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; gray, blue, green-yellow
769-104
/000-038
Item no.: 769-104/000-039
1-conductor female plug; 4 mm²; 4-pole; 4,00 mm2; green-yellow, blue, gray
769-104
/000-039
Item no.: 769-104/022-000
1-conductor female plug; angled; 4 mm²; 4-pole; 4,00 mm2; gray
769-104
/022-000
Item no.: 769-105 1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; gray
769-105
Item no.: 769-105/000-006
1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; blue
769-105
/000-006
Item no.: 769-105/000-036
1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; gray, green-yellow
769-105
/000-036
Item no.: 769-105/000-037
1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; green-yellow, gray
769-105
/000-037
Item no.: 769-105/000-038
1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; gray, blue, green-yellow
769-105
/000-038
Item no.: 769-105/000-039
1-conductor female plug; 4 mm²; 5-pole; 4,00 mm2; green-yellow, blue, gray
769-105
/000-039
Item no.: 769-105/022-000
1-conductor female plug; angled; 4 mm²; 5-pole; 4,00 mm2; gray
769-105
/022-000
Item no.: 769-106 1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; gray
769-106
Item no.: 769-106/000-006
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; blue
769-106
/000-006
870-1137
22.08.2019Page /12 18
Page 13
Data sheet | Item number:870-1137
Item no.: 769-106/000-036
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; gray, green-yellow
769-106
/000-036
Item no.: 769-106/000-037
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; green-yellow, gray
769-106
/000-037
Item no.: 769-106/000-038
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; gray, blue, green-yellow
769-106
/000-038
Item no.: 769-106/000-039
1-conductor female plug; 4 mm²; 6-pole; 4,00 mm2; green-yellow, blue, gray
769-106
/000-039
Item no.: 769-106/022-000
1-conductor female plug; angled; 4 mm²; 6-pole; 4,00 mm2; gray
769-106
/022-000
Item no.: 769-107 1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; gray
769-107
Item no.: 769-107/000-006
1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; blue
769-107
/000-006
Item no.: 769-107/000-036
1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; gray, green-yellow
769-107
/000-036
Item no.: 769-107/000-037
1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; green-yellow, gray
769-107
/000-037
Item no.: 769-107/000-038
1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; gray, blue, green-yellow
769-107
/000-038
Item no.: 769-107/000-039
1-conductor female plug; 4 mm²; 7-pole; 4,00 mm2; green-yellow, blue, gray
769-107
/000-039
Item no.: 769-107/022-000
1-conductor female plug; angled; 4 mm²; 7-pole; 4,00 mm2; gray
769-107
/022-000
Item no.: 769-108 1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; gray
769-108
Item no.: 769-108/000-006
1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; blue
769-108
/000-006
Item no.: 769-108/000-036
1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; gray, green-yellow
769-108
/000-036
870-1137
22.08.2019Page /13 18
Page 14
Data sheet | Item number:870-1137
Item no.: 769-108/000-037
1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; green-yellow, gray
769-108
/000-037
Item no.: 769-108/000-038
1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; gray, blue, green-yellow
769-108
/000-038
Item no.: 769-108/000-039
1-conductor female plug; 4 mm²; 8-pole; 4,00 mm2; green-yellow, blue, gray
769-108
/000-039
Item no.: 769-108/022-000
1-conductor female plug; angled; 4 mm²; 8-pole; 4,00 mm2; gray
769-108
/022-000
Item no.: 769-109 1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; gray
769-109
Item no.: 769-109/000-006
1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; blue
769-109
/000-006
Item no.: 769-109/000-036
1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; gray, green-yellow
769-109
/000-036
Item no.: 769-109/000-037
1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; green-yellow, gray
769-109
/000-037
Item no.: 769-109/000-038
1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; gray, blue, green-yellow
769-109
/000-038
Item no.: 769-109/000-039
1-conductor female plug; 4 mm²; 9-pole; 4,00 mm2; green-yellow, blue, gray
769-109
/000-039
Item no.: 769-109/022-000
1-conductor female plug; angled; 4 mm²; 9-pole; 4,00 mm2; gray
769-109
/022-000
Item no.: 769-110 1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; gray
769-110
Item no.: 769-110/000-006
1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; blue
769-110
/000-006
Item no.: 769-110/000-036
1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; gray, green-yellow
769-110
/000-036
Item no.: 769-110/000-037
1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; green-yellow, gray
769-110
/000-037
870-1137
22.08.2019Page /14 18
Page 15
Data sheet | Item number:870-1137
Item no.: 769-110/000-038
1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; gray, blue, green-yellow
769-110
/000-038
Item no.: 769-110/000-039
1-conductor female plug; 4 mm²; 10-pole; 4,00 mm2; green-yellow, blue, gray
769-110
/000-039
Item no.: 769-110/022-000
1-conductor female plug; angled; 4 mm²; 10-pole; 4,00 mm2; gray
769-110
/022-000
Item no.: 769-111 1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; gray
769-111
Item no.: 769-111/000-006
1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; blue
769-111
/000-006
Item no.: 769-111/000-036
1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; gray, green-yellow
769-111
/000-036
Item no.: 769-111/000-037
1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; green-yellow, gray
769-111
/000-037
Item no.: 769-111/000-038
1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; gray, blue, green-yellow
769-111
/000-038
Item no.: 769-111/000-039
1-conductor female plug; 4 mm²; 11-pole; 4,00 mm2; green-yellow, blue, gray
769-111
/000-039
Item no.: 769-111/022-000
1-conductor female plug; angled; 4 mm²; 11-pole; 4,00 mm2; gray
769-111
/022-000
Item no.: 769-112 1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; gray
769-112
Item no.: 769-112/000-006
1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; blue
769-112
/000-006
Item no.: 769-112/000-036
1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; gray, green-yellow
769-112
/000-036
Item no.: 769-112/000-037
1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; green-yellow, gray
769-112
/000-037
Item no.: 769-112/000-038
1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; gray, blue, green-yellow
769-112
/000-038
870-1137
22.08.2019Page /15 18
Page 16
Data sheet | Item number:870-1137
Item no.: 769-112/000-039
1-conductor female plug; 4 mm²; 12-pole; 4,00 mm2; green-yellow, blue, gray
769-112
/000-039
Item no.: 769-112/022-000
1-conductor female plug; angled; 4 mm²; 12-pole; 4,00 mm2; gray
769-112
/022-000
Item no.: 769-113 1-conductor female plug; 4 mm²; 13-pole; 4,00 mm2; gray
769-113
Item no.: 769-113/000-036
1-conductor female plug; 4 mm²; 13-pole; 4,00 mm2; gray, green-yellow
769-113
/000-036
Item no.: 769-113/000-037
1-conductor female plug; 4 mm²; 13-pole; 4,00 mm2; green-yellow, gray
769-113
/000-037
Item no.: 769-113/000-038
1-conductor female plug; 4 mm²; 13-pole; 4,00 mm2; gray, blue, green-yellow
769-113
/000-038
Item no.: 769-113/000-039
1-conductor female plug; 4 mm²; 13-pole; 4,00 mm2; green-yellow, blue, gray
769-113
/000-039
Item no.: 769-113/022-000
1-conductor female plug; angled; 4 mm²; 13-pole; 4,00 mm2; gray
769-113
/022-000
Item no.: 769-114 1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; gray
769-114
Item no.: 769-114/000-006
1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; blue
769-114
/000-006
Item no.: 769-114/000-036
1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; gray, green-yellow
769-114
/000-036
Item no.: 769-114/000-037
1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; green-yellow, gray
769-114
/000-037
Item no.: 769-114/000-038
1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; gray, blue, green-yellow
769-114
/000-038
Item no.: 769-114/000-039
1-conductor female plug; 4 mm²; 14-pole; 4,00 mm2; green-yellow, blue, gray
769-114
/000-039
Item no.: 769-114/022-000
1-conductor female plug; angled; 4 mm²; 14-pole; 4,00 mm2; gray
769-114
/022-000
Item no.: 769-115
870-1137
22.08.2019Page /16 18
Page 17
Data sheet | Item number:870-1137
1-conductor female plug; 4 mm²; 15-pole; 4,00 mm2; gray 769-115
Item no.: 769-115/000-036
1-conductor female plug; 4 mm²; 15-pole; 4,00 mm2; gray, green-yellow
769-115
/000-036
Item no.: 769-115/000-037
1-conductor female plug; 4 mm²; 15-pole; 4,00 mm2; green-yellow, gray
769-115
/000-037
Item no.: 769-115/000-038
1-conductor female plug; 4 mm²; 15-pole; 4,00 mm2; gray, blue, green-yellow
769-115
/000-038
Item no.: 769-115/000-039
1-conductor female plug; 4 mm²; 15-pole; 4,00 mm2; green-yellow, blue, gray
769-115
/000-039
Item no.: 769-115/022-000
1-conductor female plug; angled; 4 mm²; 15-pole; 4,00 mm2; gray
769-115
/022-000
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver­colored
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; copper­colored
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
870-1137
22.08.2019Page /17 18
Page 18
Data sheet | Item number:870-1137
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
Downloads
Documentation
Bid Text
870-1137 doc
25.6 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 870-1137 URL Download
EPLAN
EPLAN Data Portal Download
Product family
X-COM
Show all products from the family
870-1137
Subject to changes.
22.08.2019Page /18 18
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
