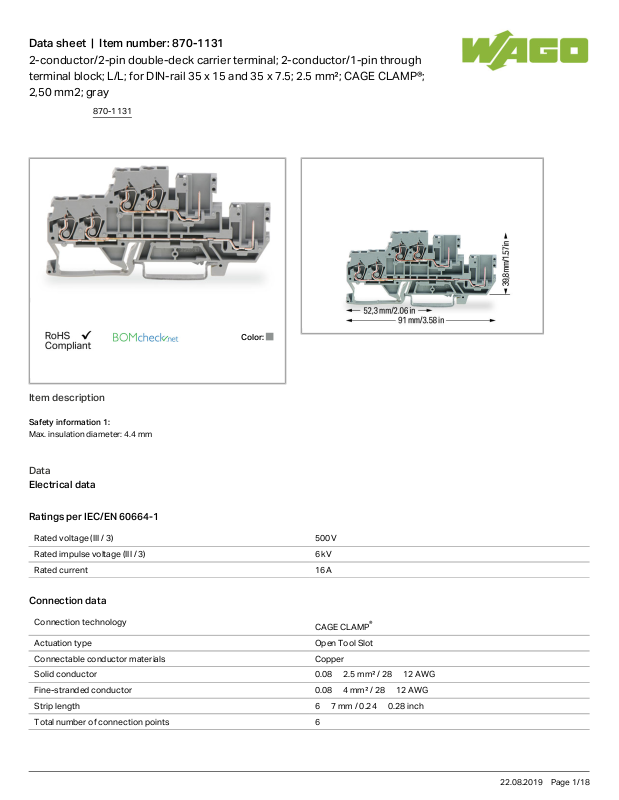

Data sheet | Item number:870-1131
2-conductor/2-pin double-deck carrier terminal; 2-conductor/1-pin through terminal block; L/L; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm2; gray
Item description
Safety information 1:
Max. insulation diameter: 4.4 mm
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 16 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Solid conductor 0.08 2.5mm²/ 28 12AWG
Fine-stranded conductor 0.08 4mm²/ 28 12AWG
Strip length 6 7mm/ 0.24 0.28inch
Total number of connection points 6
870-1131
22.08.2019Page /1 18
Data sheet | Item number:870-1131
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 39.8mm/ 1.567inch
Depth 91mm/ 3.583inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Potential marking L/L
Marking level Side marking
Material Data
Color gray
Weight 13.5g
Commercial data
Country of origin DE
GTIN 4055143343251
Customs Tariff No. 85366990990
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7468
CCA
DEKRA Certification B.V.
EN 60947 2189801.01
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1293677-
870-1131
22.08.2019Page /2 18
Data sheet | Item number:870-1131
PDA
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7468
CCA
DEKRA Certification B.V.
EN 60947 2189801.01
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1293677­PDA
Other Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
UL International Germany GmbH
UL 1059 20160928-
E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
UL International Germany GmbH
UL 1059 20160928-
E45172
Compatible products
870-1131
22.08.2019Page /3 18
Data sheet | Item number:870-1131
Jumper
Item no.: 210-103
Wire commoning chain; insulated; 50 connections; black
210-103
Item no.: 709-110
Wire commoning chain; insulated; 4 connections; 3 x 110 mm; black
709-110
Item no.: 709-111
Wire commoning chain; insulated; 3 connections; 2 x 120 mm; black
709-111
Item no.: 709-112
Wire commoning chain; insulated; 3 connections; 2 x 170 mm; black
709-112
Item no.: 870-402
Push-in type jumper bar; insulated; 2-way; Nominal current 18 A; light gray
870-402
Item no.: 870-403
Push-in type jumper bar; insulated; 3-way; Nominal current 18 A; light gray
870-403
Item no.: 870-404
Push-in type jumper bar; insulated; 4-way; Nominal current 18 A; light gray
870-404
Item no.: 870-405
Push-in type jumper bar; insulated; 5-way; Nominal current 18 A; light gray
870-405
Item no.: 870-405/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A; light gray
870-405
/011-000
Item no.: 870-406
Push-in type jumper bar; insulated; 6-way; Nominal current 18 A; light gray
870-406
Item no.: 870-407
Push-in type jumper bar; insulated; 7-way; Nominal current 18 A; light gray
870-407
Item no.: 870-407/011-000
Ready-made push-in type jumper bar; insulated; 1-3-5-7; Nominal current 18 A; light gray
870-407
/011-000
Item no.: 870-408
Push-in type jumper bar; insulated; 8-way; Nominal current 18 A; light gray
870-408
Item no.: 870-409
Push-in type jumper bar; insulated; 9-way; Nominal current 18 A; light gray
870-409
Item no.: 870-409/011-000
Ready-made push-in type jumper bar; insulated; 1-3-5-7-9; Nominal current 18 A; light gray
870-409
/011-000
Item no.: 870-410
Push-in type jumper bar; insulated; 10-way; Nominal current 18 A; light gray
870-410
Item no.: 870-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A; light gray
870-433
Item no.: 870-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A; light gray
870-434
870-1131
22.08.2019Page /4 18
Data sheet | Item number:870-1131
Item no.: 870-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A; light gray
870-435
Item no.: 870-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A; light gray
870-440
Protective Warning Marker
Item no.: 280-405
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks; yellow
280-405
End plate
Item no.: 870-1148
End and intermediate plate; 1 mm thick; gray
870-1148
Item no.: 870-1149
End and intermediate plate; 1 mm thick; orange
870-1149
General accessories
Item no.: 769-438
Pin cover; with marker slot for miniature WSB; gray
769-438
Item no.: 769-439
Pin cover; with marker slot for miniature WSB; orange
769-439
Item no.: 769-501 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole; 4,00 mm2; gray
769-501
Item no.: 769-501/000-006
Start module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; blue
769-501
/000-006
Item no.: 769-501/000-016 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-501
/000-016
Item no.: 769-502
Center module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; gray
769-502
Item no.: 769-502/000-006 Center module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; blue
769-502
/000-006
Item no.: 769-502/000-016 Center module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-502
/000-016
Item no.: 769-503
End module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; gray
769-503
Item no.: 769-503/000-006 End module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; blue
769-503
/000-006
870-1131
22.08.2019Page /5 18
Data sheet | Item number:870-1131
Item no.: 769-503/000-016 End module for 1-conductor female connector; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-503
/000-016
Item no.: 769-512
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; gray
769-512
Item no.: 769-512/000-006 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; blue
769-512
/000-006
Item no.: 769-512/000-016 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-512
/000-016
Item no.: 769-513
Center module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; gray
769-513
Item no.: 769-513/000-006 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; blue
769-513
/000-006
Item no.: 769-513/000-016 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-513
/000-016
Item no.: 769-515
End module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; gray
769-515
Item no.: 769-515/000-006 End module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; blue
769-515
/000-006
Item no.: 769-515/000-016 End module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm2; green-yellow
769-515
/000-016
Item no.: 870-182
Adaptor
870-182
Item no.: 870-183
Adaptor
870-183
Item no.: 870-184
Adaptor
870-184
Item no.: 870-425 Tap-off module; with anti-rotation protection; modular; suitable for 870 Series terminal blocks with jumper slots in the current bar; 2,50 mm2; gray
870-425
Item no.: 870-426 Tap-off module; modular; suitable for 870 Series terminal blocks with jumper slots in the current bar; gray
870-426
Item no.: 870-427 Spacer module; modular; bridging commoned terminal blocks; gray
870-427
assembling
Item no.: 209-106 Mounting carrier; for isolated mounting on DIN 35 rails; gray
209-106
870-1131
22.08.2019Page /6 18
