Wago 870-107 Data Sheet

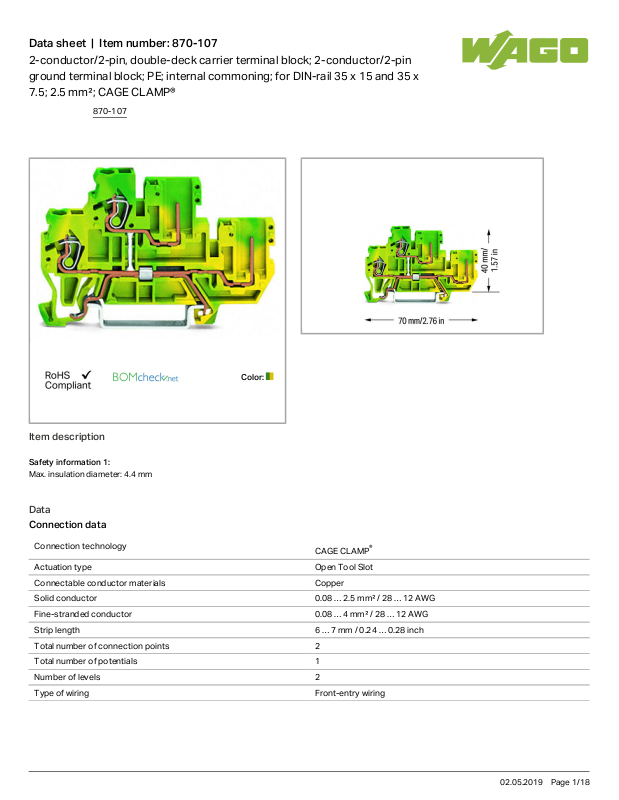

Data sheet | Item number:870-107
2-conductor/2-pin, double-deck carrier terminal block; 2-conductor/2-pin ground terminal block; PE; internal commoning; for DIN-rail 35 x 15 and 35 x
7.5; 2.5 mm²; CAGE CLAMP®

Item description

Safety information 1:
Max. insulation diameter: 4.4 mm

Data

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 6 … 7mm/ 0.24 … 0.28inch
Total number of connection points 2
Total number of potentials 1
Number of levels 2
Type of wiring Front-entry wiring
870-107
02.05.2019Page /1 18
Data sheet | Item number:870-107

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 40mm/ 1.575inch
Depth 70mm/ 2.756inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Potential marking PE
Marking level Side marking

Material Data

Color green-yellow
Fire load 0.165 MJ
Weight 11g

Commercial data

Country of origin DE
GTIN 4045454225346
Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7468
CCA
DEKRA Certification B.V.
EN 60947 2189801.01
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1293677­PDA
870-107
02.05.2019Page /2 18
Data sheet | Item number:870-107
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
UL International Germany GmbH
UL 1059 20160928-
E45172

Compatible products

General accessories
Item no.: 769-438
Pin cover; with marker slot for miniature WSB
769-438
Item no.: 769-439
Pin cover; with marker slot for miniature WSB
769-439
Item no.: 769-501
Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
Item no.: 769-501/000-006
Start module for 1-conductor female connector; 4 mm²; 1-pole
769-501
/000-006
Item no.: 769-501/000-016
Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
/000-016
Item no.: 769-502
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
Item no.: 769-502/000-006
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-006
870-107
02.05.2019Page /3 18
Data sheet | Item number:870-107
Item no.: 769-502/000-016
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-016
Item no.: 769-503
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
Item no.: 769-503/000-006
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-006
Item no.: 769-503/000-016
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-016
Item no.: 769-512
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
Item no.: 769-512/000-006
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-006
Item no.: 769-512/000-016
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-016
Item no.: 769-513
Center module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-513
Item no.: 769-513/000-006
1-conductor center module; angled; codable; 1-pole
769-513
/000-006
Item no.: 769-513/000-016
1-conductor center module; angled; codable; 1-pole
769-513
/000-016
Item no.: 769-515
1-conductor end module; angled; codable; 1-pole
769-515
Item no.: 769-515/000-006
1-conductor end module; angled; codable; 1-pole
769-515
/000-006
Item no.: 769-515/000-016
1-conductor end module; angled; codable; 1-pole
769-515
/000-016
Item no.: 870-182
Adaptor
870-182
Item no.: 870-183
Adaptor
870-183
Item no.: 870-184
Adaptor
870-184
Item no.: 870-425
Tap-off module; with anti-rotation protection; modular; suitable for 870 Series terminal blocks with
870-425
870-107
02.05.2019Page /4 18
Data sheet | Item number:870-107
jumper slots in the current bar
870-425
Item no.: 870-426
Tap-off module; modular; suitable for 870 Series terminal blocks with jumper slots in the current bar
870-426
Item no.: 870-427
Spacer module; modular; bridging commoned terminal blocks
870-427
Jumper
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 709-110
Wire commoning chain; insulated; 4 connections; 3 x 110 mm
709-110
Item no.: 709-111
Wire commoning chain; insulated; 3 connections; 2 x 120 mm
709-111
Item no.: 709-112
Wire commoning chain; insulated; 3 connections; 2 x 170 mm
709-112
Item no.: 870-402
Push-in type jumper bar; insulated; 2-way; Nominal current 18 A
870-402
Item no.: 870-403
Push-in type jumper bar; insulated; 3-way; Nominal current 18 A
870-403
Item no.: 870-404
Push-in type jumper bar; insulated; 4-way; Nominal current 18 A
870-404
Item no.: 870-405
Push-in type jumper bar; insulated; 5-way; Nominal current 18 A
870-405
Item no.: 870-405/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A
870-405
/011-000
Item no.: 870-406
Push-in type jumper bar; insulated; 6-way; Nominal current 18 A
870-406
Item no.: 870-407
Push-in type jumper bar; insulated; 7-way; Nominal current 18 A
870-407
Item no.: 870-407/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A
870-407
/011-000
Item no.: 870-408
Push-in type jumper bar; insulated; 8-way; Nominal current 18 A
870-408
Item no.: 870-409
Push-in type jumper bar; insulated; 9-way; Nominal current 18 A
870-409
Item no.: 870-409/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A
870-409
/011-000
Item no.: 870-410
870-107
02.05.2019Page /5 18
Data sheet | Item number:870-107
Push-in type jumper bar; insulated; 10-way; Nominal current 18 A 870-410
Item no.: 870-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A
870-433
Item no.: 870-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A
870-434
Item no.: 870-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A
870-435
Item no.: 870-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A
870-440
Female plug
Item no.: 769-101
1-conductor female plug; 4 mm²; 1-pole
769-101
Item no.: 769-101/000-006
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-006
Item no.: 769-101/000-016
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-016
Item no.: 769-101/022-000
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-000
Item no.: 769-101/022-016
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-016
Item no.: 769-102
1-conductor female plug; 4 mm²; 2-pole
769-102
Item no.: 769-102/000-006
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-006
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-036
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-037
Item no.: 769-102/022-000
1-conductor female plug; angled; 4 mm²; 2-pole
769-102
/022-000
Item no.: 769-103
1-conductor female plug; 4 mm²; 3-pole
769-103
Item no.: 769-103/000-006
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-006
870-107
02.05.2019Page /6 18
