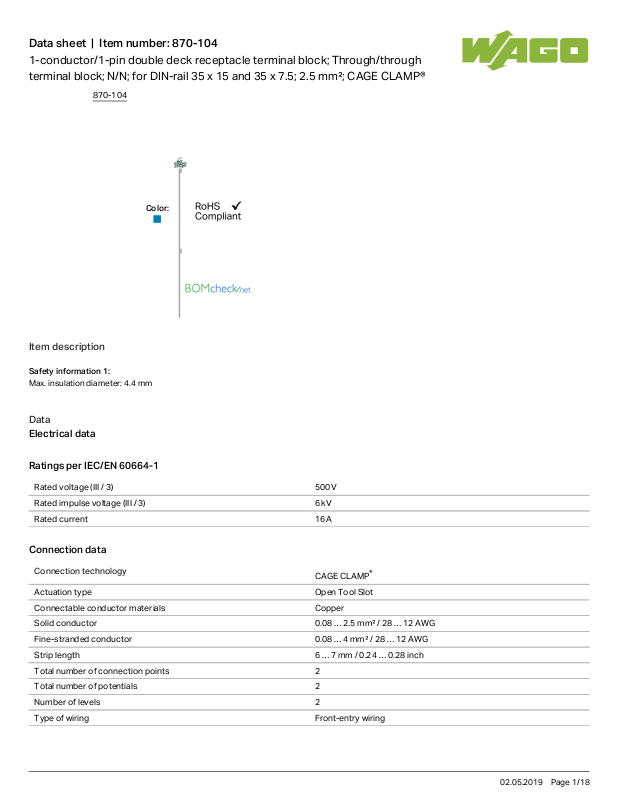

Wago 870-104 Data Sheet

Data sheet | Item number:870-104
1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; N/N; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®
Color:
Safety information 1:
Max. insulation diameter: 4.4 mm

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 16 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 6 … 7mm/ 0.24 … 0.28inch
Total number of connection points 2
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
870-104
02.05.2019Page /1 18
Data sheet | Item number:870-104
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 40mm/ 1.575inch
Depth 70mm/ 2.756inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Potential marking N/N
Marking level Side marking

Material Data

Color blue
Fire load 0.165 MJ
Weight 9.106g

Commercial data

Country of origin DE
GTIN 4045454004477
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2189801.01
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7468
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1293677­PDA
LR
Lloyds Register
EN 60947 91/20112
(E9)
870-104
02.05.2019Page /2 18
Data sheet | Item number:870-104
Lloyds Register (E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
UL International Germany GmbH
UL 1059 20160928-
E45172

Compatible products

assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Jumper
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 709-110
Wire commoning chain; insulated; 4 connections; 3 x 110 mm
709-110
Item no.: 709-111
Wire commoning chain; insulated; 3 connections; 2 x 120 mm
709-111
Item no.: 709-112
Wire commoning chain; insulated; 3 connections; 2 x 170 mm
709-112
Item no.: 870-402
Push-in type jumper bar; insulated; 2-way; Nominal current 18 A
870-402
Item no.: 870-403
Push-in type jumper bar; insulated; 3-way; Nominal current 18 A
870-403
Item no.: 870-404
Push-in type jumper bar; insulated; 4-way; Nominal current 18 A
870-404
Item no.: 870-405
870-104
02.05.2019Page /3 18
Data sheet | Item number:870-104
Item no.: 870-405
Push-in type jumper bar; insulated; 5-way; Nominal current 18 A 870-405
Item no.: 870-405/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A
870-405
/011-000
Item no.: 870-406
Push-in type jumper bar; insulated; 6-way; Nominal current 18 A
870-406
Item no.: 870-407
Push-in type jumper bar; insulated; 7-way; Nominal current 18 A
870-407
Item no.: 870-407/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A
870-407
/011-000
Item no.: 870-408
Push-in type jumper bar; insulated; 8-way; Nominal current 18 A
870-408
Item no.: 870-409
Push-in type jumper bar; insulated; 9-way; Nominal current 18 A
870-409
Item no.: 870-409/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A
870-409
/011-000
Item no.: 870-410
Push-in type jumper bar; insulated; 10-way; Nominal current 18 A
870-410
Item no.: 870-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A
870-433
Item no.: 870-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A
870-434
Item no.: 870-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A
870-435
Item no.: 870-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A
870-440
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
870-104
02.05.2019Page /4 18
Data sheet | Item number:870-104
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
General accessories
Item no.: 769-438 Pin cover; with marker slot for miniature WSB
769-438
Item no.: 769-439 Pin cover; with marker slot for miniature WSB
769-439
Item no.: 769-501 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
Item no.: 769-501/000-006
Start module for 1-conductor female connector; 4 mm²; 1-pole
769-501
/000-006
Item no.: 769-501/000-016
Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
/000-016
Item no.: 769-502 Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
Item no.: 769-502/000-006
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-006
Item no.: 769-502/000-016
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-016
Item no.: 769-503 End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
Item no.: 769-503/000-006
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-006
870-104
02.05.2019Page /5 18
Data sheet | Item number:870-104
Item no.: 769-503/000-016
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-016
Item no.: 769-512 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
Item no.: 769-512/000-006
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-006
Item no.: 769-512/000-016
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-016
Item no.: 769-513 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-513
Item no.: 769-513/000-006
1-conductor center module; angled; codable; 1-pole
769-513
/000-006
Item no.: 769-513/000-016
1-conductor center module; angled; codable; 1-pole
769-513
/000-016
Item no.: 769-515 1-conductor end module; angled; codable; 1-pole
769-515
Item no.: 769-515/000-006
1-conductor end module; angled; codable; 1-pole
769-515
/000-006
Item no.: 769-515/000-016
1-conductor end module; angled; codable; 1-pole
769-515
/000-016
Item no.: 870-182 Adaptor
870-182
Item no.: 870-183 Adaptor
870-183
Item no.: 870-184 Adaptor
870-184
Item no.: 870-425 Tap-off module; with anti-rotation protection; modular; suitable for 870 Series terminal blocks with jumper slots in the current bar
870-425
Item no.: 870-426 Tap-off module; modular; suitable for 870 Series terminal blocks with jumper slots in the current bar
870-426
Item no.: 870-427 Spacer module; modular; bridging commoned terminal blocks
870-427
Insulation stop
Item no.: 280-470 Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
280-470
870-104
02.05.2019Page /6 18
