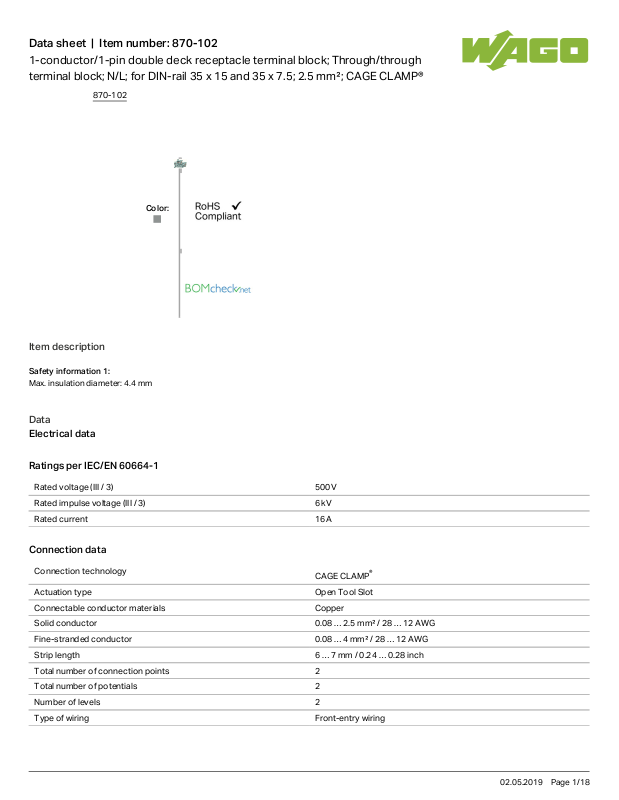

Wago 870-102 Data Sheet

Data sheet | Item number:870-102
1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; N/L; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®
Color:
Safety information 1:
Max. insulation diameter: 4.4 mm

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 16 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 6 … 7mm/ 0.24 … 0.28inch
Total number of connection points 2
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
870-102
02.05.2019Page /1 18
Data sheet | Item number:870-102
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 40mm/ 1.575inch
Depth 70mm/ 2.756inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Potential marking N/L
Marking level Side marking

Material Data

Color gray
Fire load 0.163 MJ
Weight 9.106g

Commercial data

Country of origin DE
GTIN 4045454004453
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2189801.01
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7468
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1293677­PDA
LR
Lloyds Register
EN 60947 91/20112
(E9)
870-102
02.05.2019Page /2 18
Data sheet | Item number:870-102
Lloyds Register (E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
UL International Germany GmbH
UL 1059 20160928-
E45172

Compatible products

Female plug
Item no.: 769-101
1-conductor female plug; 4 mm²; 1-pole
769-101
Item no.: 769-101/000-006
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-006
Item no.: 769-101/000-016
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-016
Item no.: 769-101/022-000
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-000
Item no.: 769-101/022-016
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-016
Item no.: 769-102
1-conductor female plug; 4 mm²; 2-pole
769-102
Item no.: 769-102/000-006
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-006
870-102
02.05.2019Page /3 18
Data sheet | Item number:870-102
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-036
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-037
Item no.: 769-102/022-000
1-conductor female plug; angled; 4 mm²; 2-pole
769-102
/022-000
Item no.: 769-103
1-conductor female plug; 4 mm²; 3-pole
769-103
Item no.: 769-103/000-006
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-006
Item no.: 769-103/000-036
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-036
Item no.: 769-103/000-037
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-037
Item no.: 769-103/000-038
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-038
Item no.: 769-103/000-039
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-039
Item no.: 769-103/022-000
1-conductor female plug; angled; 4 mm²; 3-pole
769-103
/022-000
Item no.: 769-104
1-conductor female plug; 4 mm²; 4-pole
769-104
Item no.: 769-104/000-006
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-006
Item no.: 769-104/000-036
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-036
Item no.: 769-104/000-037
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-037
Item no.: 769-104/000-038
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-038
870-102
02.05.2019Page /4 18
Data sheet | Item number:870-102
Item no.: 769-104/000-039
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-039
Item no.: 769-104/022-000
1-conductor female plug; angled; 4 mm²; 4-pole
769-104
/022-000
Item no.: 769-105
1-conductor female plug; 4 mm²; 5-pole
769-105
Item no.: 769-105/000-006
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-006
Item no.: 769-105/000-036
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-036
Item no.: 769-105/000-037
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-037
Item no.: 769-105/000-038
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-038
Item no.: 769-105/000-039
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-039
Item no.: 769-105/022-000
1-conductor female plug; angled; 4 mm²; 5-pole
769-105
/022-000
Item no.: 769-106
1-conductor female plug; 4 mm²; 6-pole
769-106
Item no.: 769-106/000-006
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-006
Item no.: 769-106/000-036
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-036
Item no.: 769-106/000-037
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-037
Item no.: 769-106/000-038
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-038
Item no.: 769-106/000-039
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-039
870-102
02.05.2019Page /5 18
Data sheet | Item number:870-102
Item no.: 769-106/022-000
1-conductor female plug; angled; 4 mm²; 6-pole
769-106
/022-000
Item no.: 769-107
1-conductor female plug; 4 mm²; 7-pole
769-107
Item no.: 769-107/000-006
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-006
Item no.: 769-107/000-036
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-036
Item no.: 769-107/000-037
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-037
Item no.: 769-107/000-038
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-038
Item no.: 769-107/000-039
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-039
Item no.: 769-107/022-000
1-conductor female plug; angled; 4 mm²; 7-pole
769-107
/022-000
Item no.: 769-108
1-conductor female plug; 4 mm²; 8-pole
769-108
Item no.: 769-108/000-006
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-006
Item no.: 769-108/000-036
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-036
Item no.: 769-108/000-037
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-037
Item no.: 769-108/000-038
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-038
Item no.: 769-108/000-039
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-039
Item no.: 769-108/022-000
1-conductor female plug; angled; 4 mm²; 8-pole
769-108
/022-000
870-102
02.05.2019Page /6 18
