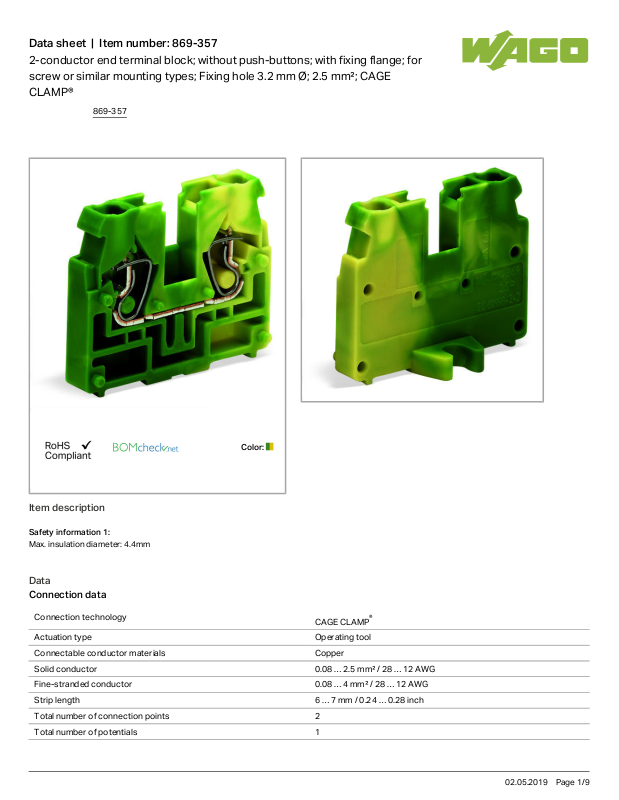

Wago 869-357 Data Sheet

Data sheet | Item number:869-357

2-conductor end terminal block; without push-buttons; with fixing flange; for
screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE
CLAMP®

Color:

Item description

Safety information 1:

Max. insulation diameter: 4.4mm

Data

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

Total number of connection points 2

Total number of potentials 1

869-357

02.05.2019Page /1 9

Data sheet | Item number:869-357

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from the surface 27.6mm/ 1.087inch

Depth 33.4mm/ 1.315inch

Mechanical data

Design horizontal

Marking level Side marking

Material Data

Color green-yellow

Fire load 0.076 MJ

Weight 4g

Commercial data

Country of origin DE

GTIN 4044918480475

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6827/A1

CCA

DEKRA Certification B.V.

EN 60947 2143311.02

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

869-357

02.05.2019Page /2 9

Data sheet | Item number:869-357

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 Sec. 34

Compatible products

End plate

Item no.: 869-395

End plate; with fixing flange M4; 2.5 mm thick

869-395

Item no.: 869-397

End plate; with fixing flange M4; 2.5 mm thick

869-397

Item no.: 869-398

End plate; with fixing flange M4; 2.5 mm thick

869-398

Item no.: 869-399

End plate; with fixing flange M4; 2.5 mm thick

869-399

tools

Item no.: 210-657

Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short

210-657

Item no.: 210-658

Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled

210-658

Item no.: 210-720

Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm

210-720

Insulation stop

Item no.: 280-470

Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip

280-470

Item no.: 280-471

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

280-471
