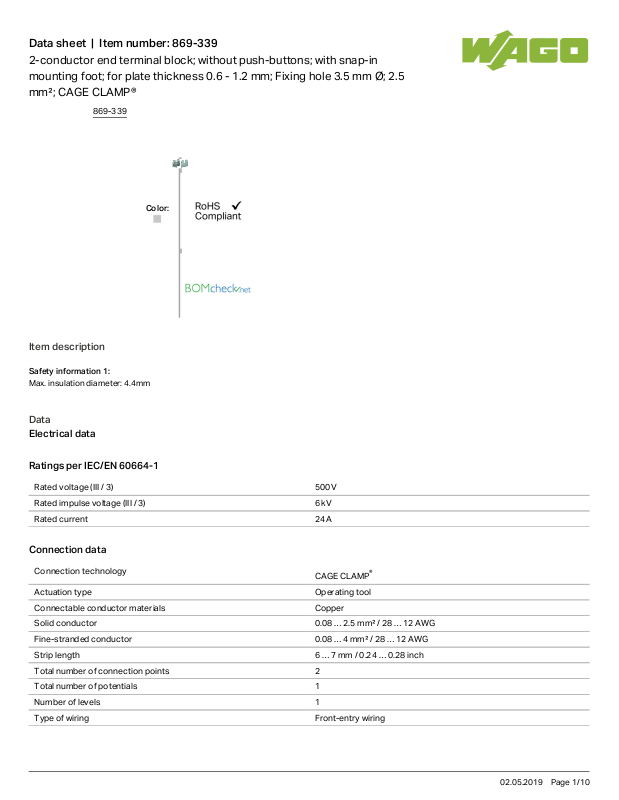

Wago 869-339 Data Sheet

Data sheet | Item number:869-339

2-conductor end terminal block; without push-buttons; with snap-in
mounting foot; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5
mm²; CAGE CLAMP®

Color:

Item description

Safety information 1:

Max. insulation diameter: 4.4mm

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

869-339

02.05.2019Page /1 10

Data sheet | Item number:869-339

Geometrical Data

Width 5mm/ 0.197inch

Height from the surface 27.6mm/ 1.087inch

Depth 33.4mm/ 1.315inch

Mechanical data

Design horizontal

Mounting type Snap-in mounting foot

Marking level Side marking

Material Data

Color light gray

Fire load 0.071 MJ

Weight 3.993g

Commercial data

Country of origin DE

GTIN 4044918480321

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2143311.02

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6827/A1

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

869-339

02.05.2019Page /2 10

Data sheet | Item number:869-339

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 Sec. 34

Compatible products

assembling

Item no.: 209-120
Mounting foot; can be snapped on terminal blocks with snap-in mounting foot; for mounting on
relay-modules; 6.4 mm wide

209-120

End plate

Item no.: 869-375
End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-375

Item no.: 869-377
End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-377

Item no.: 869-378
End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-378

Item no.: 869-379
End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-379

Protective Warning Marker

Item no.: 280-405
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

280-405

tools

Item no.: 210-657
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short

210-657

Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled

210-658
