Wago 869-328 Data Sheet

Download

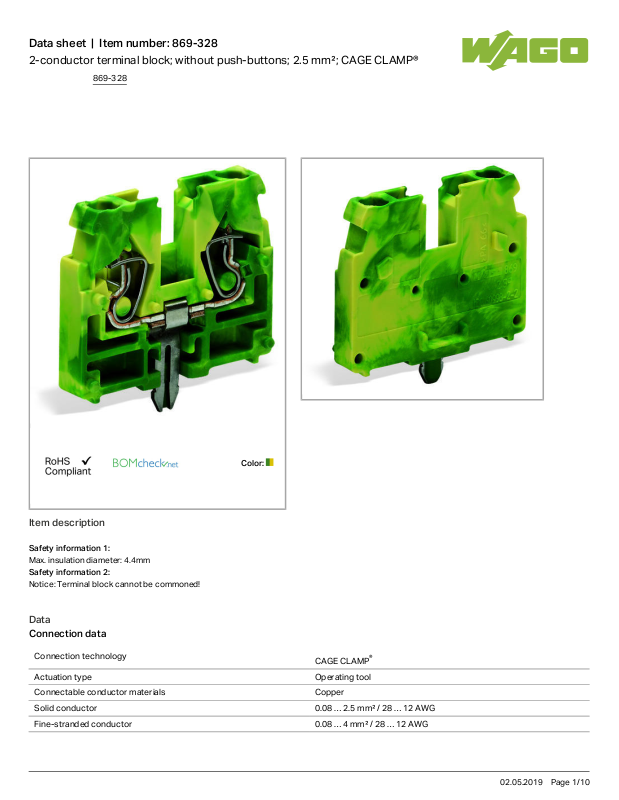

Data sheet | Item number:869-328
2-conductor terminal block; without push-buttons; 2.5 mm²; CAGE CLAMP®
Color:
Safety information 1:
Max. insulation diameter: 4.4mm
Safety information 2:
Notice: Terminal block cannot be commoned!

Data

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
869-328
02.05.2019Page /1 10
Data sheet | Item number:869-328
Strip length 6 … 7mm/ 0.24 … 0.28inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from the surface 27.6mm/ 1.087inch
Depth 33.4mm/ 1.315inch

Mechanical data

Design horizontal
Mounting type Mounting flange
Marking level Side marking

Material Data

Color green-yellow
Fire load 0.069 MJ
Weight 4.746g

Commercial data

Country of origin DE
GTIN 4045454549497
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2143311.02
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
6827/A1
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
869-328
02.05.2019Page /2 10
Data sheet | Item number:869-328
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 Sec. 34

Compatible products

Protective Warning Marker
Item no.: 280-405
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
280-405
End plate
Item no.: 869-375
End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick
869-375
Item no.: 869-377
End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick
869-377
Item no.: 869-378
End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick
869-378
Item no.: 869-379
End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick
869-379
Item no.: 869-385
End plate; with fixing flange M3; 2.5 mm thick
869-385
Item no.: 869-387
End plate; with fixing flange M3; 2.5 mm thick
869-387
Item no.: 869-388
End plate; with fixing flange M3; 2.5 mm thick
869-388
869-328
02.05.2019Page /3 10
Data sheet | Item number:869-328
Item no.: 869-389
End plate; with fixing flange M3; 2.5 mm thick
869-389
Item no.: 869-395
End plate; with fixing flange M4; 2.5 mm thick
869-395
Item no.: 869-397
End plate; with fixing flange M4; 2.5 mm thick
869-397
Item no.: 869-398
End plate; with fixing flange M4; 2.5 mm thick
869-398
Item no.: 869-399
End plate; with fixing flange M4; 2.5 mm thick
869-399
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
869-328
02.05.2019Page /4 10
Data sheet | Item number:869-328
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
Item no.: 709-177
Marking strips; on reel; 7.5 mm wide; not stretchable; plain; snap-on type
709-177
Item no.: 709-178
869-328
02.05.2019Page /5 10
Data sheet | Item number:869-328
Marking strips; on reel; 7.5 mm wide; not stretchable; plain; snap-on type 709-178
Item no.: 709-196
Marking strips; for laser printer
709-196
Item no.: 709-198
Marking strips
709-198
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
Item no.: 793-5501/000-002 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-002
Item no.: 793-5501/000-005 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
869-328
02.05.2019Page /6 10
Data sheet | Item number:869-328
Item no.: 793-5501/000-007 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-017 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
Jumper
Item no.: 870-402
Push-in type jumper bar; insulated; 2-way; Nominal current 18 A
870-402
Item no.: 870-403
Push-in type jumper bar; insulated; 3-way; Nominal current 18 A
870-403
Item no.: 870-404
Push-in type jumper bar; insulated; 4-way; Nominal current 18 A
870-404
Item no.: 870-405
Push-in type jumper bar; insulated; 5-way; Nominal current 18 A
870-405
Item no.: 870-405/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A
870-405
/011-000
Item no.: 870-406
Push-in type jumper bar; insulated; 6-way; Nominal current 18 A
870-406
Item no.: 870-407
Push-in type jumper bar; insulated; 7-way; Nominal current 18 A
870-407
Item no.: 870-407/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A
870-407
/011-000
Item no.: 870-408
Push-in type jumper bar; insulated; 8-way; Nominal current 18 A
870-408
Item no.: 870-409
Push-in type jumper bar; insulated; 9-way; Nominal current 18 A
870-409
Item no.: 870-409/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A
870-409
/011-000
Item no.: 870-410
Push-in type jumper bar; insulated; 10-way; Nominal current 18 A
870-410
869-328
02.05.2019Page /7 10
Data sheet | Item number:869-328
Push-in type jumper bar; insulated; 10-way; Nominal current 18 A
Item no.: 870-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A
870-433
Item no.: 870-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A
870-434
Item no.: 870-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A
870-435
Item no.: 870-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A
870-440
tools
Item no.: 210-657
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short
210-657
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
check
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
Insulation stop
Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
280-470
Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
280-471
Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
280-472
ferrule
Item no.: 216-121
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-121
Item no.: 216-122
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-122
Item no.: 216-123
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-123
Item no.: 216-124
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-124
Item no.: 216-131
Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated
216-131
Item no.: 216-132
Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated
216-132
869-328
02.05.2019Page /8 10
Data sheet | Item number:869-328
Item no.: 216-221
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-221
Item no.: 216-222
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-222
Item no.: 216-223
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-223
Item no.: 216-224
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-224
Item no.: 216-321
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-321
Item no.: 216-322
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-322
General accessories
Item no.: 870-182
Adaptor
870-182
Item no.: 870-183
Adaptor
870-183
Item no.: 870-184
Adaptor
870-184

Downloads

Documentation

Bid Text
869-328 doc
25.1 kB
Download
Additional Information
pdf
2.1 MB
Download

CAD/CAE - Smart Data

CAD data
3D Download 869-328 URL Download
869-328
02.05.2019Page /9 10
Data sheet | Item number:869-328
869-328
Subject to changes.
02.05.2019Page /10 10
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
