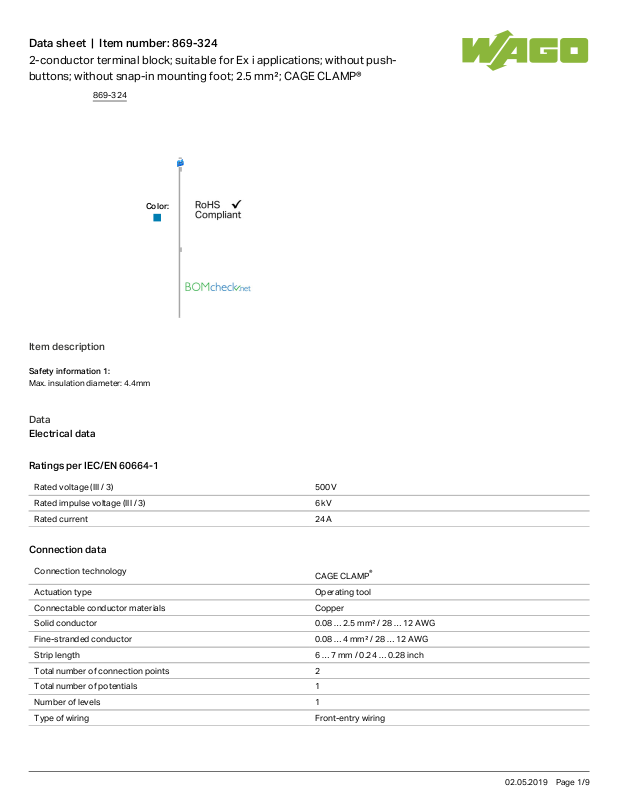

Wago 869-324 Data Sheet

Data sheet | Item number:869-324

2-conductor terminal block; suitable for Ex i applications; without push­buttons; without snap-in mounting foot; 2.5 mm²; CAGE CLAMP®

Color:

Item description

Safety information 1:

Max. insulation diameter: 4.4mm

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

869-324

02.05.2019Page /1 9

Data sheet | Item number:869-324

Geometrical Data

Width 5mm/ 0.197inch

Height from the surface 27.6mm/ 1.087inch

Depth 33.4mm/ 1.315inch

Mechanical data

Design horizontal

Mounting type Mounting flange

Marking level Side marking

Material Data

Color blue

Fire load 0.072 MJ

Weight 4.038g

Commercial data

Country of origin DE

GTIN 4044918480161

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2143311.02

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6827/A1

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

869-324

02.05.2019Page /2 9

Data sheet | Item number:869-324

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 Sec. 34

Compatible products

End plate

Item no.: 869-375

End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-375

Item no.: 869-377

End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-377

Item no.: 869-378

End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-378

Item no.: 869-379

End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-379

Item no.: 869-385

End plate; with fixing flange M3; 2.5 mm thick

869-385

Item no.: 869-387

End plate; with fixing flange M3; 2.5 mm thick

869-387

Item no.: 869-388

End plate; with fixing flange M3; 2.5 mm thick

869-388

Item no.: 869-389

End plate; with fixing flange M3; 2.5 mm thick

869-389

Item no.: 869-395

End plate; with fixing flange M4; 2.5 mm thick

869-395

Item no.: 869-397

End plate; with fixing flange M4; 2.5 mm thick

869-397
