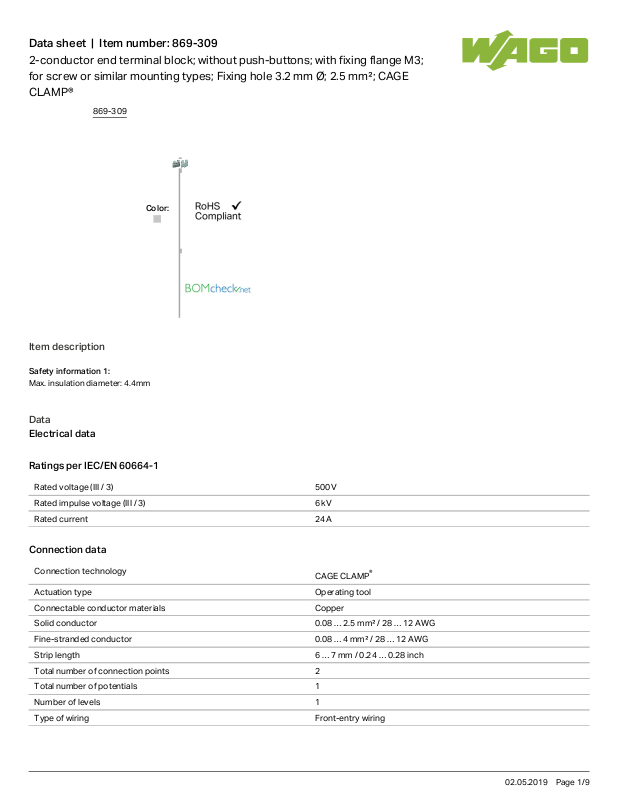

Wago 869-309 Data Sheet

Data sheet | Item number:869-309

2-conductor end terminal block; without push-buttons; with fixing flange M3;
for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE
CLAMP®

Color:

Item description

Safety information 1:

Max. insulation diameter: 4.4mm

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

869-309

02.05.2019Page /1 9

Data sheet | Item number:869-309

Geometrical Data

Width 5mm/ 0.197inch

Height from the surface 27.6mm/ 1.087inch

Depth 33.4mm/ 1.315inch

Mechanical data

Design horizontal

Mounting type Mounting flange

Marking level Side marking

Material Data

Color light gray

Fire load 0.076 MJ

Weight 4.173g

Commercial data

Country of origin DE

GTIN 4044918479974

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6827/A1

CCA

DEKRA Certification B.V.

EN 60947 2143311.02

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

869-309

02.05.2019Page /2 9

Data sheet | Item number:869-309

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 Sec. 34

Compatible products

Insulation stop

Item no.: 280-470

Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip

280-470

Item no.: 280-471

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

280-471

Item no.: 280-472

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

280-472

End plate

Item no.: 869-385

End plate; with fixing flange M3; 2.5 mm thick

869-385

Item no.: 869-387

End plate; with fixing flange M3; 2.5 mm thick

869-387

Item no.: 869-388

End plate; with fixing flange M3; 2.5 mm thick

869-388

Item no.: 869-389

End plate; with fixing flange M3; 2.5 mm thick

869-389

Jumper

Item no.: 870-402

Push-in type jumper bar; insulated; 2-way; Nominal current 18 A

870-402

Item no.: 870-403

Push-in type jumper bar; insulated; 3-way; Nominal current 18 A

870-403
