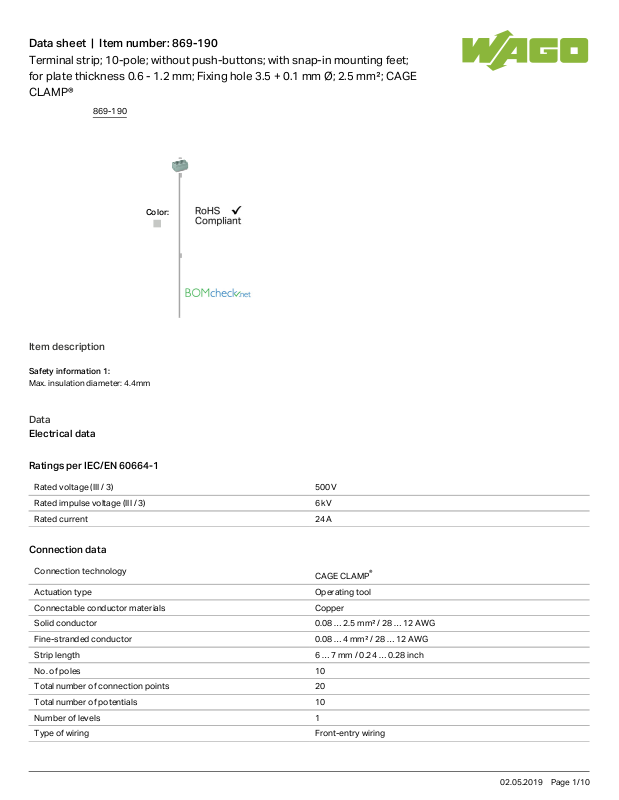

Wago 869-190 Data Sheet

Data sheet | Item number:869-190

Terminal strip; 10-pole; without push-buttons; with snap-in mounting feet;
for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 + 0.1 mm Ø; 2.5 mm²; CAGE
CLAMP®

Color:

Item description

Safety information 1:

Max. insulation diameter: 4.4mm

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

No. of poles 10

Total number of connection points 20

Total number of potentials 10

Number of levels 1

Type of wiring Front-entry wiring

869-190

02.05.2019Page /1 10

Data sheet | Item number:869-190

Type of wiring Front-entry wiring

Geometrical Data

Width 52.5mm/ 2.067inch

Height from the surface 27.6mm/ 1.087inch

Depth 33.4mm/ 1.315inch

Module width 5mm/ 0.197inch

Mechanical data

Design horizontal

Mounting type Snap-in mounting foot

Marking level Side marking

Material Data

Color light gray

Fire load 0.775 MJ

Weight 42.47g

Commercial data

Country of origin DE

GTIN 4044918481557

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6827/A1

CCA

DEKRA Certification B.V.

EN 60947 2143311.02

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

869-190

02.05.2019Page /2 10

Data sheet | Item number:869-190

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 Sec. 34

Compatible products

ferrule

Item no.: 216-121

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-121

Item no.: 216-122

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-122

Item no.: 216-123

Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated

216-123

Item no.: 216-124

Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated

216-124

Item no.: 216-131

Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated

216-131

Item no.: 216-132

Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated

216-132

Item no.: 216-221

Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated

216-221

Item no.: 216-222

Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated

216-222

Item no.: 216-223

Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated

216-223

869-190

02.05.2019Page /3 10
