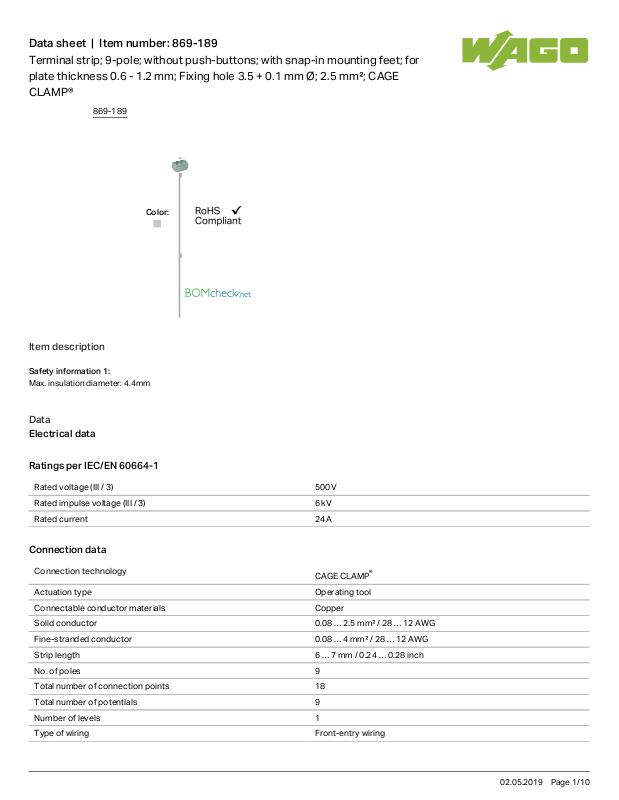

Wago 869-189 Data Sheet

Data sheet | Item number:869-189

Terminal strip; 9-pole; without push-buttons; with snap-in mounting feet; for
plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 + 0.1 mm Ø; 2.5 mm²; CAGE
CLAMP®

Color:

Item description

Safety information 1:

Max. insulation diameter: 4.4mm

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

No. of poles 9

Total number of connection points 18

Total number of potentials 9

Number of levels 1

Type of wiring Front-entry wiring

869-189

02.05.2019Page /1 10

Data sheet | Item number:869-189

Type of wiring Front-entry wiring

Geometrical Data

Width 47.5mm/ 1.87inch

Height from the surface 27.6mm/ 1.087inch

Depth 33.4mm/ 1.315inch

Module width 5mm/ 0.197inch

Mechanical data

Design horizontal

Mounting type Snap-in mounting foot

Marking level Side marking

Material Data

Color light gray

Fire load 0.702 MJ

Weight 38.369g

Commercial data

Country of origin DE

GTIN 4044918481533

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2143311.02

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6827/A1

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

869-189

02.05.2019Page /2 10

Data sheet | Item number:869-189

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 Sec. 34

Compatible products

General accessories

Item no.: 209-122

Plastic end stop; for WSB markers; for 210-154 aluminum rail

209-122

Jumper

Item no.: 870-402

Push-in type jumper bar; insulated; 2-way; Nominal current 18 A

870-402

Item no.: 870-403

Push-in type jumper bar; insulated; 3-way; Nominal current 18 A

870-403

Item no.: 870-404

Push-in type jumper bar; insulated; 4-way; Nominal current 18 A

870-404

Item no.: 870-405

Push-in type jumper bar; insulated; 5-way; Nominal current 18 A

870-405

Item no.: 870-405/011-000

Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A

870-405

/011-000

Item no.: 870-406

Push-in type jumper bar; insulated; 6-way; Nominal current 18 A

870-406

Item no.: 870-407

Push-in type jumper bar; insulated; 7-way; Nominal current 18 A

870-407
