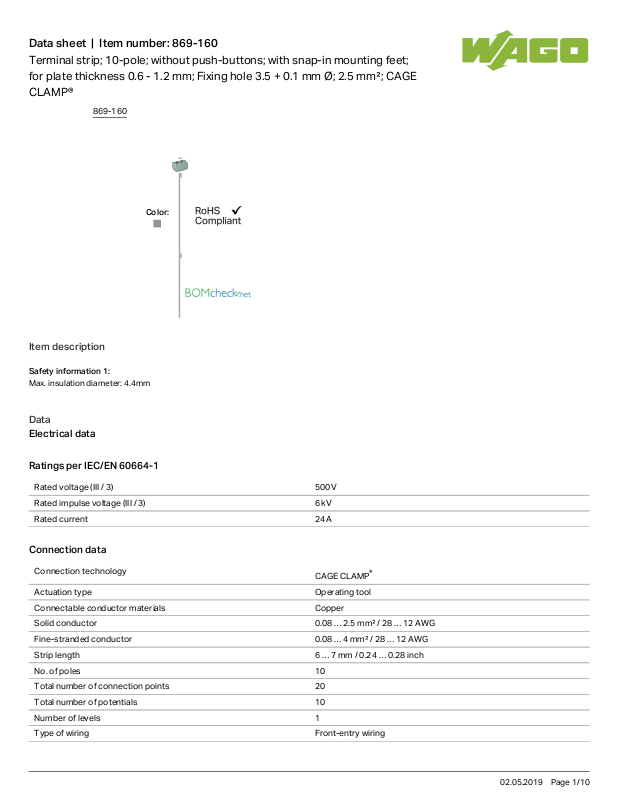

Wago 869-160 Data Sheet

Data sheet | Item number:869-160

Terminal strip; 10-pole; without push-buttons; with snap-in mounting feet;
for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 + 0.1 mm Ø; 2.5 mm²; CAGE
CLAMP®

Color:

Item description

Safety information 1:

Max. insulation diameter: 4.4mm

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

No. of poles 10

Total number of connection points 20

Total number of potentials 10

Number of levels 1

Type of wiring Front-entry wiring

869-160

02.05.2019Page /1 10

Data sheet | Item number:869-160

Type of wiring Front-entry wiring

Geometrical Data

Width 52.5mm/ 2.067inch

Height from the surface 27.6mm/ 1.087inch

Depth 33.4mm/ 1.315inch

Module width 5mm/ 0.197inch

Mechanical data

Design horizontal

Mounting type Snap-in mounting foot

Marking level Side marking

Material Data

Color gray

Fire load 0.774 MJ

Weight 42.47g

Commercial data

Country of origin DE

GTIN 4044918481281

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6827/A1

CCA

DEKRA Certification B.V.

EN 60947 2143311.02

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

869-160

02.05.2019Page /2 10

Data sheet | Item number:869-160

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 Sec. 34

Compatible products

End plate

Item no.: 869-375

End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-375

Item no.: 869-377

End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-377

Item no.: 869-378

End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-378

Item no.: 869-379

End plate; for terminal blocks with snap-in mounting foot; 2.5 mm thick

869-379

tools

Item no.: 210-657

Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short

210-657

Item no.: 210-658

Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled

210-658

Item no.: 210-720

Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm

210-720

Marking accessories

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115
