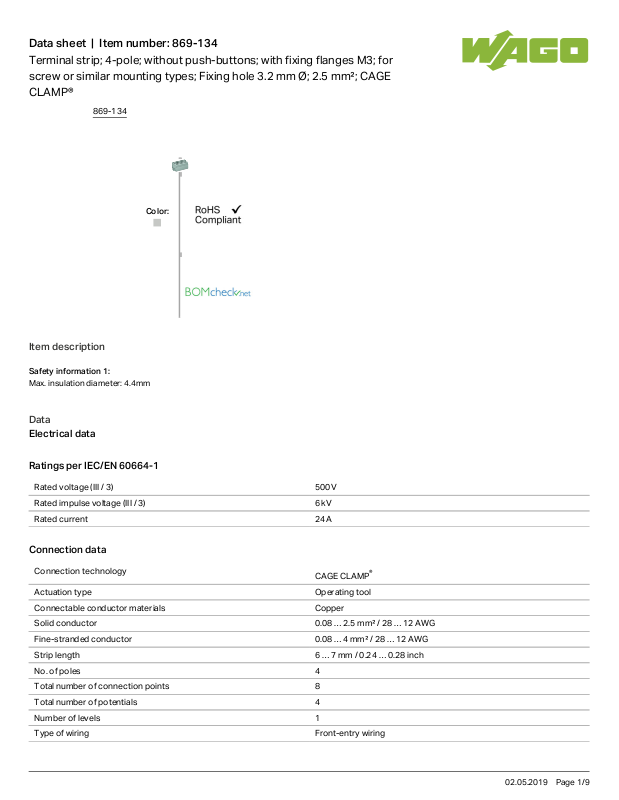

Wago 869-134 Data Sheet

Data sheet | Item number:869-134

Terminal strip; 4-pole; without push-buttons; with fixing flanges M3; for
screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE
CLAMP®

Color:

Item description

Safety information 1:

Max. insulation diameter: 4.4mm

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

No. of poles 4

Total number of connection points 8

Total number of potentials 4

Number of levels 1

Type of wiring Front-entry wiring

869-134

02.05.2019Page /1 9

Data sheet | Item number:869-134

Type of wiring Front-entry wiring

Geometrical Data

Width 34.5mm/ 1.358inch

Height from the surface 27.6mm/ 1.087inch

Depth 33.4mm/ 1.315inch

Module width 5mm/ 0.197inch

Mechanical data

Design horizontal

Mounting type Mounting flange

Marking level Side marking

Material Data

Color light gray

Fire load 0.342 MJ

Weight 18.194g

Commercial data

Product Group 16 (Rail Mounted Terminal Block with CCC)

Country of origin DE

GTIN 4044918480888

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2143311.02

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6827/A1

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

869-134

02.05.2019Page /2 9

Data sheet | Item number:869-134

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 Sec. 34
