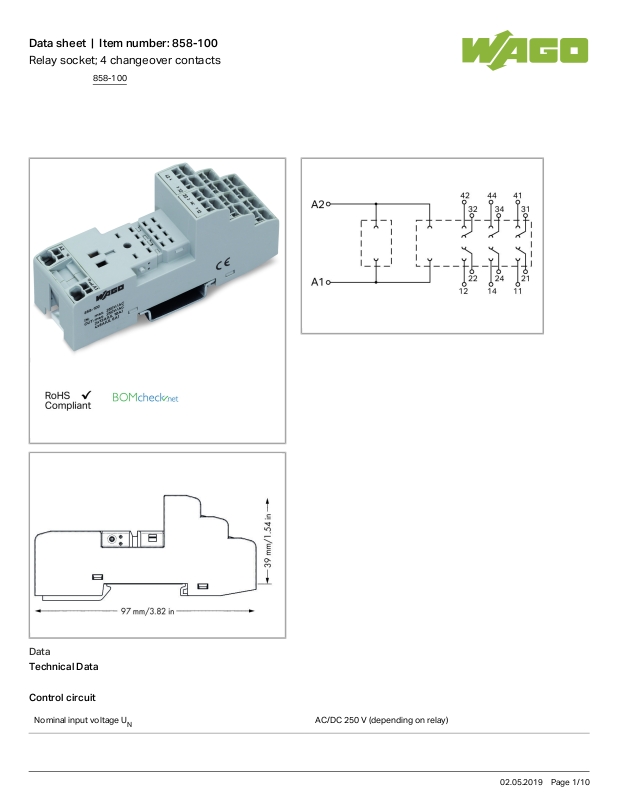

Data sheet | Item number:858-100
Relay socket; 4 changeover contacts
Data
Technical Data
Control circuit
Nominal input voltage U
N
AC/DC250V (depending on relay)
858-100
02.05.2019Page /1 10
Data sheet | Item number:858-100
Input voltage range AC/DC0 … 250V
Nominal input current at U
N
0
Load circuit:
Limiting continuous current 12A
Max. switching voltage AC250V
Min. switching current 0µA
Drop-out time ≤0µs
Safety and protection:
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 2
Dielectric strength, control/load circuit (AC, 1 min) 2.5kVrms (depending on relay))
Dielectric strength open contact (AC, 1 min) 1.5kVrms (depending on relay))
Dielectric strength, channel/channel (AC, 1 min) (depending on relay))
Dielectric strength, load/load circuit (AC, 1 min) 2kVrms (depending on relay))
Protection class IP20
Connection data
Connection technology
Push-in CAGE CLAMP
®
Solid conductor 0.34 … 1.5mm²/ 22 … 16AWG
Fine-stranded conductor 0.34 … 1.5mm²/ 22 … 16AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Note (conductor cross-section) 2 x 0.34 … 2 x 1.5 mm² / 1 x 2.5 mm² / 2 x 22 … 2 x 16 AWG
Geometrical Data
Width 31mm/ 1.22inch
Height from upper-edge of DIN-35 rail 39mm/ 1.535inch
Depth 97mm/ 3.819inch
Mechanical data
Type of mounting DIN-35 rail
Material Data
Fire load 0 MJ
Weight 56.195 g
858-100
02.05.2019Page /2 10
Data sheet | Item number:858-100
Environmental Requirements
Pollution degree 2
Surrounding air (operating) temperature at U
N
-40 … 70°C (depending on relay)
Surrounding air (storage) temperature -40 … 80°C
Standards and specifications
Standards/specifications EN 60664-1; UL 508
Commercial data
Product Group 6 (Interface Electronics)
Country of origin CN
GTIN 4055143669078
Customs Tariff No. 85366990990
Approvals / Certificates
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
Underwriters Laboratories Inc. (ORDINARY
LOCATIONS)
UL 508 E175199
Vol.2 Sec.
1
