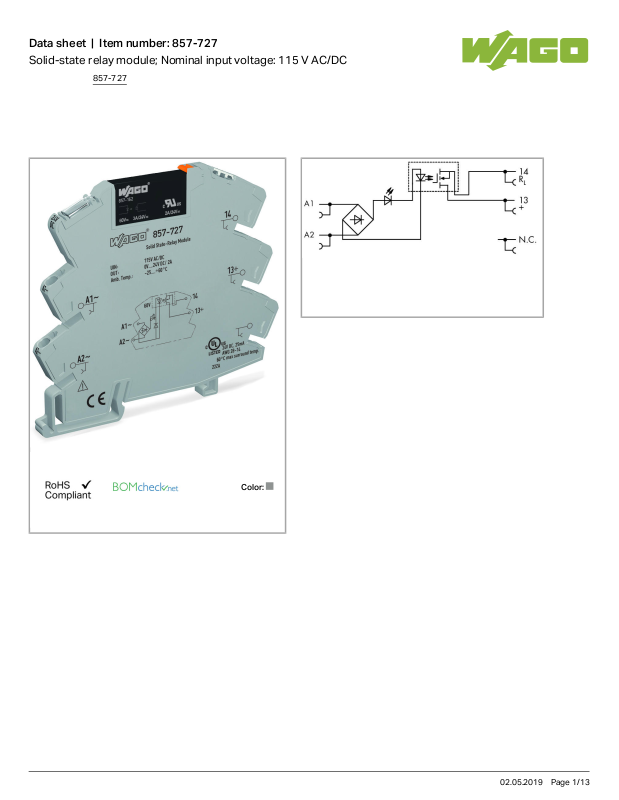

Wago 857-727 Data Sheet

Data sheet | Item number:857-727

Solid-state relay module; Nominal input voltage: 115 V AC/DC

Color:

857-727

02.05.2019Page /1 13

Data sheet | Item number:857-727

Current-carrying capacity curve

Item description

Note:

Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply

networks.

Data

Technical Data

Control circuit

Nominal input voltage U

N

AC/DC115V

Input voltage range (low level) AC/DC0 … 25V

Input voltage range (high level) AC/DC90 … 138V

Nominal input current at U

N

3.9mA

Load circuit:

Circuit type 2-conductor termination

Limiting continuous current 3A

Max. make current (resistive) (AC) 15A/ 0.01s

Output voltage range DC 0 … 24V

Max. voltage drop at output ≤DC0.12V

Min. switching current 50µA

Turn-on time ≤4.5ms

Drop-out time ≤10ms

857-727

02.05.2019Page /2 13

Data sheet | Item number:857-727

Switching frequency ≤20Hz

Signaling

Status indication LED yellow

Safety and protection:

Dielectric strength, control/load circuit (AC, 1 min) 3.75kVrms

Protection class IP20

Connection data

Connection technology

Push-in CAGE CLAMP

®

Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG

Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 6mm/ 0.236inch

Height from upper-edge of DIN-35 rail 81mm/ 3.189inch

Depth 94mm/ 3.701inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Color gray

Fire load 0 MJ

Weight 30.1 g

Environmental Requirements

Surrounding air (operating) temperature at U

N

-20 … 70°C

Surrounding air (storage) temperature -40 … 70°C

Processing temperature -25 … +50°C

Standards and specifications

Standards/specifications EN 61000-6-2; EN 61000-6-3; EN 61373; EN 61010-2-201; UL 508

Commercial data

Product Group 6 (Interface Electronics)

857-727

02.05.2019Page /3 13

Data sheet | Item number:857-727

Country of origin DE

GTIN 4045454835569

Customs Tariff No. 85365005000
