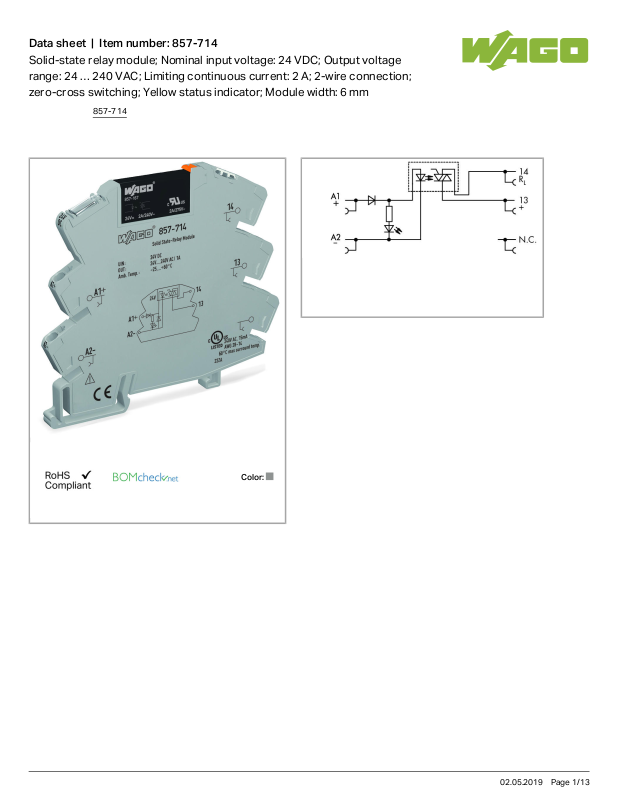

Wago 857-714 Data Sheet

Data sheet | Item number:857-714

Solid-state relay module; Nominal input voltage: 24 VDC; Output voltage
range: 24 … 240 VAC; Limiting continuous current: 2 A; 2-wire connection;
zero-cross switching; Yellow status indicator; Module width: 6 mm

Color:

857-714

02.05.2019Page /1 13

Data sheet | Item number:857-714

Current-carrying capacity curve

Item description

Note:

Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply

networks.

Data

Technical Data

Control circuit

Nominal input voltage U

N

DC24V

Input voltage range (low level) DC0 … 10V

Input voltage range (high level) DC20 … 28.8V

Nominal input current at U

N

9.2mA

Load circuit:

Circuit type 2-conductor termination

Zero-voltage switching

Limiting continuous current 2A

Output voltage range AC 24 … 240V

Max. voltage drop at output ≤AC1.6V

Leakage current at nominal voltage ≤1.5mA

Min. switching current 22mA

Turn-on time ≤10ms

857-714

02.05.2019Page /2 13

Data sheet | Item number:857-714

Drop-out time ≤10ms

Switching frequency 50Hz/ 60Hz

Signaling

Status indication LED yellow

Safety and protection:

Dielectric strength, control/load circuit (AC, 1 min) 3.75kVrms

Protection class IP20

Connection data

Connection technology

Push-in CAGE CLAMP

®

Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG

Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 6mm/ 0.236inch

Height from upper-edge of DIN-35 rail 81mm/ 3.189inch

Depth 94mm/ 3.701inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Color gray

Fire load 0 MJ

Weight 28.389 g

Environmental Requirements

Surrounding air (operating) temperature at U

N

-20 … 60°C

Surrounding air (storage) temperature -40 … 70°C

Processing temperature -25 … +50°C

Standards and specifications

Standards/specifications EN 61000-6-2; EN 61000-6-3; EN 61373; EN 61010-2-201; UL 508

857-714

02.05.2019Page /3 13

Data sheet | Item number:857-714

Commercial data

Product Group 6 (Interface Electronics)

Country of origin CN

GTIN 4045454835545

Customs Tariff No. 85365005000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text Certificate name

ATEX

DEKRA EXAM GmbH

EN 60079-0 BVS_14_ATEX_E_091_X

IECEx

DEKRA EXAM GmbH

IEC 60079-0 IECEx_BVS_14.0079_X

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Netherlands B.V. (ORDINARY
LOCATIONS)

UL 508 E175199

Sec.4

Compatible products

transfer module

Item no.: 857-980

Interface adapter; 16-pole; analog

857-980

Item no.: 857-981

Interface adapter; 14-pole; High-side switching input

857-981

Item no.: 857-982

Interface adapter; 14-pole; High-side switching output

857-982

Jumper

Item no.: 281-482

Comb-style jumper bar; insulated; 2-way; IN = IN terminal block

281-482

857-714

02.05.2019Page /4 13
