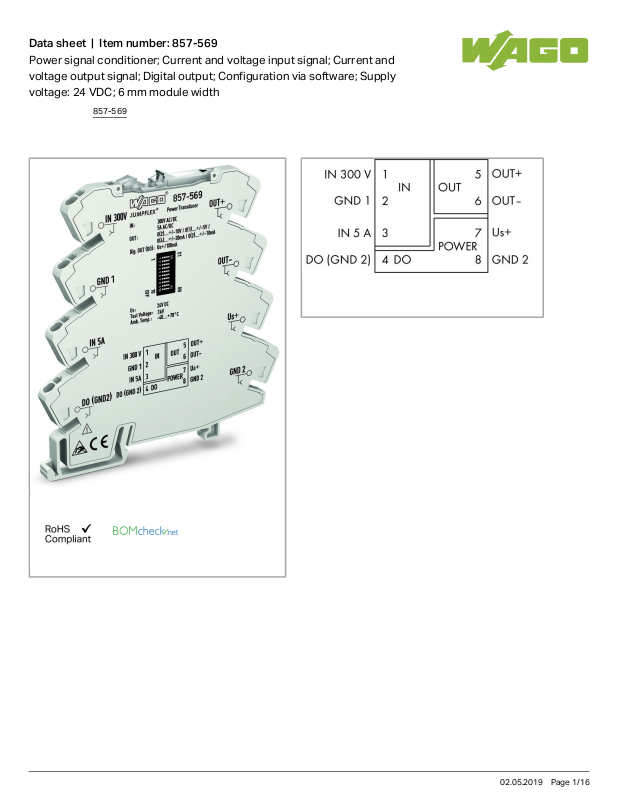

Data sheet | Item number:857-569
Power signal conditioner; Current and voltage input signal; Current and
voltage output signal; Digital output; Configuration via software; Supply
voltage: 24 VDC; 6 mm module width
857-569
02.05.2019Page /1 16
Data sheet | Item number:857-569
Item description
Short description:
WAGO’s power signal conditioner measures both AC/DC voltages and currents, converting the input signal into a standard analog signal at the
output. Measured value processing can be switched between RMS value or arithmetic mean value and between effective, apparent or reactive
power, and phase angle.
Features:
Two isolated measurement inputs for both AC/DC voltages and currents
RMS measurement or arithmetic mean value
A digital signal output reacts to configured measurement range limits (on/off switching delay and threshold value switch function can be
configured with up to two threshold values)
Switchable filter function
Safe 3-way isolation with 3 kV test voltage per DIN EN 61010-1
Data
Technical Data
Configuration
Configuration options DIP switches
Interface configuration software
Interface configuration app
Input
Input signal type Voltage
Current
Input signal voltage AC/DC300V (IN 1)
Input signal, current AC/DC0 … 5A (IN 2)
Frequency range 15 … 70Hz (AC)
Input resistance (intput/current) ≤10mΩ
Input resistance (input/voltage) ≥300kΩ
Max. input current 10 A AC/DC (IN 2; permanent)
857-569
02.05.2019Page /2 16
Data sheet | Item number:857-569
Max. input voltage 600 V (IN 1; permanent)
Response threshold 300 mV (IN 1); 10 mA (IN 2)
Resolution 30 mV (IN 1); 1 mA (IN 2)
Output
Output signal type Current
Voltage
Output signal voltage 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (can be inverted, also bipolar)
Output signal current 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA (can be inverted, also
bipolar)
Load impedance (output/voltage) ≥1kΩ
Load impedance (output/current) ≤600Ω
Output – Digital
Max. switching voltage (DO) Supply voltage applied
Max. continuous current (DO) 100mA (no internal restriction)
Number of switching tresholds (DO) 1 or 2 (adjustable)
Configurable rise/fall delay time (DO) 0 … 60s (via software)
Signal processing
Measuring procedure RMS measurement; Arithmetic mean value
Max. operating frequency 2kHz
Software filter; adjustable moving mean value (filtering level: 30)
Step response typ. 100ms
Measurement error
Transmission error max. ≤ 0.5 % (of the full scale value)
Temperature coefficient ≤ 0.01 %/K
Power supply
Type of power supply 24 VDC
Nominal supply voltage U
S
DC24V
Supply voltage range ±30%
Current consumption at supply voltage ≤46mA(+ I )
DO
Safety and protection:
Test voltage (input/output/supply) AC 3kV;50Hz;1min
Protection class IP20
857-569
02.05.2019Page /3 16
Data sheet | Item number:857-569
Connection data
Connection technology
Push-in CAGE CLAMP
®
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Geometrical Data
Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 97.8mm/ 3.85inch
Depth 94mm/ 3.701inch
Mechanical data
Type of mounting DIN-35 rail
Material Data
Fire load 0 MJ
Weight 39.2 g
Environmental Requirements
Surrounding air (operating) temperature -25 … 70°C (at nominal current)
Surrounding air (storage) temperature -40 … 85°C
Max. operating altitude 2000 m
Standards and specifications
Conformity marking CE
EMC immunity to interference EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
EMC emission of interference EN 61000-6-3; EN 61326-2-3; EN 50121-3-2
Standards/specifications EN 61010-1; EN 61373
Commercial data
Country of origin DE
GTIN 4055143501026
Customs Tariff No. 85437090300
Compatible products
857-569
02.05.2019Page /4 16
Data sheet | Item number:857-569
General accessories
Item no.: 750-921
Bluetooth® Adapter
750-921
Item no.: 750-923
Configuration cable; USB connector; Length: 2.5 m
750-923
Item no.: 750-923/000-001
Configuration cable; USB connector; Length: 5 m
750-923
/000-001
Item no.: 855-8001
Power tap; with fuse; 2,5 mm² (12 AWG) - 6 mm² (10 AWG); Phase
855-8001
Item no.: 855-8002
Power tap; without fuse; 2,5 mm² (12 AWG) - 6 mm² (10 AWG); N-conductor
855-8002
Item no.: 855-8003
Power tap; with fuse; 10 mm² (8 AWG) - 16 mm² (6 AWG); Phase
855-8003
Item no.: 855-8004
Power tap; without fuse; 10 mm² (8 AWG) - 16 mm² (6 AWG); N-conductor
855-8004
Item no.: 855-8006
Power tap; for busbar; with fuse; Mounting screw M6
855-8006
Item no.: 855-8008
Power tap; for busbar; with fuse; Mounting screw M8
855-8008
Item no.: 855-8015
Power tap; for busbar; with fuse; Clamping connection
855-8015
Item no.: 857-304
Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 6 A;
Yellow status indicator; Module width: 6 mm
857-304
Item no.: 857-979
Supply and through module
857-979
current transformer
Item no.: 855-1005/2500-1001
Plug-in current transformer; Primary rated current: 2500 A; Secondary rated current: 5 A; Rated power:
10 VA; Accuracy class: 1
855-1005
/2500-1001
Item no.: 855-305/050-103
Plug-in current transformer; Primary rated current: 50 A; Secondary rated current: 5 A; Rated power:
1.25 VA; Accuracy class: 3
855-305
/050-103
Item no.: 855-305/060-101
Plug-in current transformer; Primary rated current: 60 A; Secondary rated current: 5 A; Rated power:
1.25 VA; Accuracy class: 1
855-305
/060-101
Item no.: 855-305/075-201
Plug-in current transformer; Primary rated current: 75 A; Secondary rated current: 5 A; Rated power:
855-305
/075-201
857-569
02.05.2019Page /5 16
Data sheet | Item number:857-569
2.5 VA; Accuracy class: 1
Item no.: 855-305/100-201
Plug-in current transformer; Primary rated current: 100 A; Secondary rated current: 5 A; Rated power:
2.5 VA; Accuracy class: 1
855-305
/100-201
Item no.: 855-305/150-501
Plug-in current transformer; Primary rated current: 150 A; Secondary rated current: 5 A; Rated power: 5
VA; Accuracy class: 1
855-305
/150-501
Item no.: 855-305/200-501
Plug-in current transformer; Primary rated current: 200 A; Secondary rated current: 5 A; Rated power: 5
VA; Accuracy class: 1
855-305
/200-501
Item no.: 855-305/250-501
Plug-in current transformer; Primary rated current: 250 A; Secondary rated current: 5 A; Rated power: 5
VA; Accuracy class: 1
855-305
/250-501
Item no.: 855-305/300-501
Plug-in current transformer; Primary rated current 300 A; Secondary rated current: 5 A; Rated power: 5
VA; Accuracy class: 1
855-305
/300-501
Item no.: 855-305/400-1001
Plug-in current transformer; Primary rated current: 400 A; Secondary rated current: 5 A; Rated power:
10 VA; Accuracy class: 1
855-305
/400-1001
Item no.: 855-305/600-1001
Plug-in current transformer; Primary rated current: 600 A; Secondary rated current: 5 A; Rated power:
10 VA; Accuracy class: 1
855-305
/600-1001
Item no.: 855-4005/150-101
Split-core current transformer; Primary rated current: 150 A; Secondary rated current: 5 A; Rated
power: 1 VA; Accuracy class: 1; Cable length: 0.5 m
855-4005
/150-101
Item no.: 855-405/250-501
Plug-in current transformer; Primary rated current: 250 A; Secondary rated current: 5 A; Rated power: 5
VA; Accuracy class: 1
855-405
/250-501
Item no.: 855-405/400-501
Plug-in current transformer; Primary rated current: 400 A; Secondary rated current: 5 A; Rated power: 5
VA; Accuracy class: 1
855-405
/400-501
Item no.: 855-405/750-501
Plug-in current transformer; Primary rated current 750 A; Secondary rated current: 5 A; Rated power: 5
VA; Accuracy class: 1
855-405
/750-501
Item no.: 855-4105/250-101
Split-core current transformer; Primary rated current: 250 A; Secondary rated current: 5 A; Rated
power: 1 VA; Accuracy class: 1; Cable length: 0.5 m
855-4105
/250-101
Item no.: 855-4105/400-101
Split-core current transformer; Primary rated current: 400 A; Secondary rated current: 5 A; Rated
power: 1 VA; Accuracy class: 1; Cable length: 0.5 m
855-4105
/400-101
Item no.: 855-5005/1000-000
Split-core current transformer; Primary rated current: 1000 A; Secondary rated current: 5 A; Rated
power: 0.5 VA; Accuracy class: 0.5; Cable length: 3 m
855-5005
/1000-000
Item no.: 855-5005/400-001
857-569
02.05.2019Page /6 16
Data sheet | Item number:857-569
Split-core current transformer; Primary rated current: 400 A; Secondary rated current: 5 A; Rated
power: 0.5 VA; Accuracy class: 1; Cable length: 3 m
855-5005
/400-001
Item no.: 855-5005/600-000
Split-core current transformer; Primary rated current: 600 A; Secondary rated current: 5 A; Rated
power: 0.5 VA; Accuracy class: 0.5; Cable length: 3 m
855-5005
/600-000
Item no.: 855-505/1000-1001
Plug-in current transformer; Primary rated current: 1000 A; Secondary rated current: 5 A; Rated power:
10 VA; Accuracy class: 1
855-505
/1000-1001
Item no.: 855-505/400-1001
Plug-in current transformer; Primary rated current: 400 A; Secondary rated current: 5 A; Rated power:
10 VA; Accuracy class: 1
855-505
/400-1001
Item no.: 855-505/600-1001
Plug-in current transformer; Primary rated current: 600 A; Secondary rated current: 5 A; Rated power:
10 VA; Accuracy class: 1
855-505
/600-1001
Item no.: 855-505/800-1001
Plug-in current transformer; Primary rated current: 800 A; Secondary rated current: 5 A; Rated power:
10 VA; Accuracy class: 1
855-505
/800-1001
Item no.: 855-5105/1000-000
Split-core current transformer; Primary rated current: 1000 A; Secondary rated current: 5 A; Rated
power: 0.5 VA; Accuracy class: 0.5; Cable length: 3 m
855-5105
/1000-000
Item no.: 855-605/1500-501
Plug-in current transformer; Primary rated current: 1500 A; Secondary rated current: 5 A; Rated power:
5 VA; Accuracy class: 1
855-605
/1500-501
Item no.: 855-805/2000-1001
Plug-in current transformer; Primary rated current: 2000 A; Secondary rated current: 5 A; Rated power:
10 VA; Accuracy class: 1
855-805
/2000-1001
power supply
Item no.: 787-2852
Switched-mode power supply; for JUMPFLEX® Signal Conditioners; 1-phase; 24 VDC output voltage; 1
A output current
787-2852
Jumper
Item no.: 281-482
Comb-style jumper bar; insulated; 2-way; IN = IN terminal block
281-482
Item no.: 859-402
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
Item no.: 859-402/000-005
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
/000-005
Item no.: 859-402/000-006
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
/000-006
Item no.: 859-402/000-029
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
/000-029
857-569
02.05.2019Page /7 16
Data sheet | Item number:857-569
Item no.: 859-403
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
Item no.: 859-403/000-005
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
/000-005
Item no.: 859-403/000-006
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
/000-006
Item no.: 859-403/000-029
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
/000-029
Item no.: 859-404
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
Item no.: 859-404/000-005
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
/000-005
Item no.: 859-404/000-006
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
/000-006
Item no.: 859-404/000-029
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
/000-029
Item no.: 859-405
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
Item no.: 859-405/000-005
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
/000-005
Item no.: 859-405/000-006
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
/000-006
Item no.: 859-405/000-029
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
/000-029
Item no.: 859-406
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
Item no.: 859-406/000-005
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
/000-005
Item no.: 859-406/000-006
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
/000-006
Item no.: 859-406/000-029
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
/000-029
857-569
02.05.2019Page /8 16
Data sheet | Item number:857-569
Item no.: 859-407
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
Item no.: 859-407/000-005
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
/000-005
Item no.: 859-407/000-006
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
/000-006
Item no.: 859-407/000-029
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
/000-029
Item no.: 859-408
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
Item no.: 859-408/000-005
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
/000-005
Item no.: 859-408/000-006
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
/000-006
Item no.: 859-408/000-029
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
/000-029
Item no.: 859-409
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
Item no.: 859-409/000-005
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
/000-005
Item no.: 859-409/000-006
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
/000-006
Item no.: 859-409/000-029
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
/000-029
Item no.: 859-410
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
Item no.: 859-410/000-005
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
/000-005
Item no.: 859-410/000-006
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
/000-006
857-569
02.05.2019Page /9 16
Data sheet | Item number:857-569
Item no.: 859-410/000-029
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
/000-029
assembling
Item no.: 249-116
Screwless end stop; 6 mm wide; for DIN-rail 35 x 15 and 35 x 7.5
249-116
Item no.: 249-117
Screwless end stop; 10 mm wide; for DIN-rail 35 x 15 and 35 x 7.5
249-117
Item no.: 249-197
Screwless end stop; 14 mm wide; for DIN-rail 35 x 15 and 35 x 7.5
249-197
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
857-569
02.05.2019Page /10 16
Data sheet | Item number:857-569
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-502
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
Item no.: 793-502/000-002
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-002
Item no.: 793-502/000-005
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-005
Item no.: 793-502/000-006
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-006
Item no.: 793-502/000-007
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-007
Item no.: 793-502/000-012
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-012
Item no.: 793-502/000-017
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-017
Item no.: 793-502/000-023
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-023
857-569
02.05.2019Page /11 16
Data sheet | Item number:857-569
Item no.: 793-502/000-024
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-024
Item no.: 793-503
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
Item no.: 793-503/000-002
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-002
Item no.: 793-503/000-005
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-005
Item no.: 793-503/000-006
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-006
Item no.: 793-503/000-007
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-007
Item no.: 793-503/000-012
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-012
Item no.: 793-503/000-017
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-017
Item no.: 793-503/000-023
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-023
Item no.: 793-503/000-024
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-024
Item no.: 793-504
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
Item no.: 793-504/000-002
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-002
Item no.: 793-504/000-005
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-005
Item no.: 793-504/000-006
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-006
Item no.: 793-504/000-012
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-012
857-569
02.05.2019Page /12 16
Data sheet | Item number:857-569
Item no.: 793-504/000-017
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-017
Item no.: 793-504/000-023
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-023
Item no.: 793-505
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
Item no.: 793-505/000-005
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-005
Item no.: 793-505/000-006
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-006
Item no.: 793-505/000-007
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-007
Item no.: 793-505/000-012
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-012
Item no.: 793-506
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
Item no.: 793-506/000-005
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-005
Item no.: 793-506/000-006
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-006
Item no.: 793-506/000-012
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-012
Item no.: 793-506/000-017
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-017
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on
type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on
type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
857-569
02.05.2019Page /13 16
Data sheet | Item number:857-569
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-014
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-014
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
Item no.: 793-566
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
Item no.: 793-566/000-002
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-002
Item no.: 793-566/000-005
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-005
Item no.: 793-566/000-006
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-006
Item no.: 793-566/000-007
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-007
Item no.: 793-566/000-012
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-012
Item no.: 793-566/000-017
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-017
Item no.: 793-566/000-023
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-023
857-569
02.05.2019Page /14 16
Data sheet | Item number:857-569
Item no.: 793-566/000-024
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-024
tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
transfer module
Item no.: 857-980
Interface adapter; 16-pole; analog
857-980
Downloads
Documentation
Bid Text
857-569 doc
34.8 kB
Download
Instruction Leaflet
Messumformer
Leistungsmessumformer, DIP-Schalter / Interface-Konfigurations-Software
pdf
1.9 MB
Download
Additional Information
Disposal; Electrical and electronic equipment, Packaging V 1.0.0 pdf
265.8 kB
Download
Engineering-Software
Software for Interface-Products
Interface Configuration Software SMALL
The full setup only includes the WAGO Interface Configuration Software.
1.6.2.11
Jan 14, 2019
exe
47.1 MB
Download
Interface Configuration Software FULL
The full setup, in addition to the WAGO Interface Configuration Software, includes the
installation for the Microsoft .NET Framework.
1.6.2.11
Jan 14, 2019
exe
97.5 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 857-569 URL Download
857-569
02.05.2019Page /15 16
Data sheet | Item number:857-569
857-569
Subject to changes.
02.05.2019Page /16 16
Loading...
