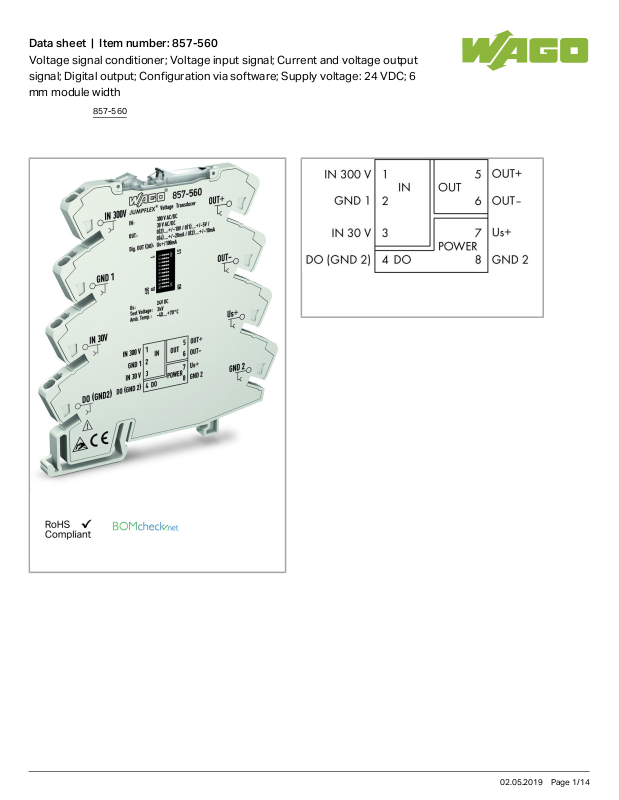

Data sheet | Item number:857-560
Voltage signal conditioner; Voltage input signal; Current and voltage output
signal; Digital output; Configuration via software; Supply voltage: 24 VDC; 6
mm module width
857-560
02.05.2019Page /1 14
Data sheet | Item number:857-560
Item description
Short description:
The 857-569 Voltage Signal Conditioner measures AC and DC voltages up to 300 V AC/DC and converts the input signal into a standard analog
signal at the output.
Features:
Two isolated measurement inputs for 30 V and 300 V AC/DC
RMS measurement or arithmetic mean value
A digital signal output reacts to configured measurement range limits (switching ON/OFF delay and threshold value switch function
configurable with up to two threshold values)
Switchable filter function
Safe 3-way isolation with 3 kV test voltage per DIN EN 61010-1
Data
Technical Data
Configuration
Configuration options DIP switches
Interface configuration software
Interface configuration app
Input
Input signal type Voltage
Input signal voltage AC/DC300V (IN 1);AC/DC30V (IN 2)
Frequency range 10 … 100Hz (AC)
Input resistance (input/voltage) ≥300kΩ
Max. input voltage 600 V (IN 1; permanent); 60 V (IN 2; permanent)
Response threshold 300 mV (IN 1); 30 mV (IN 2)
Resolution 30 mV (IN 1); 3 mV (IN 2)
857-560
02.05.2019Page /2 14
Data sheet | Item number:857-560
Resolution 30 mV (IN 1); 3 mV (IN 2)
Output
Output signal type Current
Voltage
Output signal voltage 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (can be inverted, also bipolar)
Output signal current 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA (can be inverted, also
bipolar)
Load impedance (output/voltage) ≥1kΩ
Load impedance (output/current) ≤600Ω
Output – Digital
Max. switching voltage (DO) Supply voltage applied
Max. continuous current (DO) 100mA (no internal restriction)
Number of switching tresholds (DO) 1 or 2 (adjustable)
Configurable rise/fall delay time (DO) 0 … 60s (via software)
Signal processing
Measuring procedure RMS measurement; Arithmetic mean value
Max. operating frequency 2kHz
Software filter; adjustable moving mean value (filtering level: 30)
Step response typ. 30ms
Measurement error
Transmission error max. ≤ 0.5 % (of the full scale value)
Temperature coefficient ≤ 0.01 %/K
Power supply
Type of power supply 24 VDC
Nominal supply voltage U
S
DC24V
Supply voltage range ±30%
Current consumption at supply voltage ≤46mA(+ I )
DO
Safety and protection:
Test voltage (input/output/supply) AC 3kV;50Hz;1min
Protection class IP20
Connection data
Connection technology
Push-in CAGE CLAMP
®
857-560
02.05.2019Page /3 14
Data sheet | Item number:857-560
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Geometrical Data
Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 97.8mm/ 3.85inch
Depth 94mm/ 3.701inch
Mechanical data
Type of mounting DIN-35 rail
Material Data
Fire load 0 MJ
Weight 39.1 g
Environmental Requirements
Surrounding air (operating) temperature -25 … 70°C (at nominal current)
Surrounding air (storage) temperature -40 … 85°C
Max. operating altitude 2000 m
Standards and specifications
Conformity marking 1
EMC immunity to interference EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
EMC emission of interference EN 61000-6-3; EN 61326-2-3; EN 50121-3-2
Standards/specifications EN 61010-1; EN 61373
Commercial data
Country of origin DE
GTIN 4055143481571
Customs Tariff No. 85437090300
