Wago 857-415 Data Sheet

Download

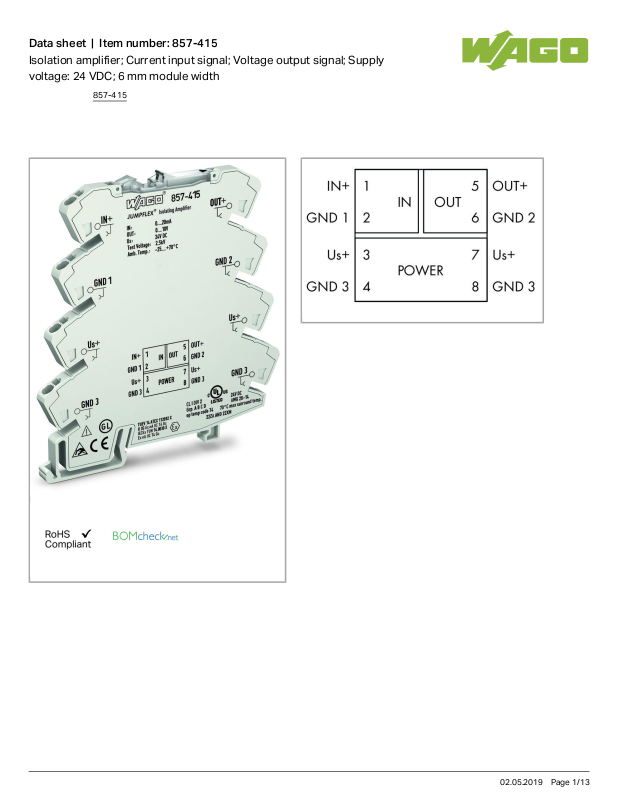

Data sheet | Item number:857-415
Isolation amplifier; Current input signal; Voltage output signal; Supply voltage: 24 VDC; 6 mm module width
857-415
02.05.2019Page /1 13

Item description

Short description:
The pre-configured isolation amplifier converts, amplifies, filters and electrically isolates standard analog signals.
Features:
Input/Output: current/voltage signal
Safe 3-way isolation with 2.5kV test voltage per EN 61140

Data

Technical Data

Configuration

Configuration options permanently configured

Input

Input signal type Current
Input signal, current 0 … 20mA
Input resistance (intput/current) ≤50Ω
Max. input current 50 mA

Output

Output signal type Voltage
Output signal voltage 0 … 10 V
Load impedance (output/voltage) ≥2kΩ

Signal processing

Max. operating frequency 100Hz
857-415
02.05.2019Page /2 13
Step response typ. 3.5ms

Measurement error

Transmission error typ. ≤ 0.1 % of upper range value
Temperature coefficient ≤ 0.01 %/K

Power supply

Type of power supply 24 VDC
Nominal supply voltage U
S
DC24V
Supply voltage range ±30%
Current consumption at supply voltage ≤25mA

Safety and protection:

Test voltage (input/output/supply) AC 2.5kV;50Hz;1min
Protection class IP20

Connection data

Connection technology
Push-in CAGE CLAMP
®
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 97.8mm/ 3.85inch
Depth 94mm/ 3.701inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Color light gray
Fire load 0 MJ
Weight 35.31 g

Environmental Requirements

Surrounding air (operating) temperature -25 … 70°C
Surrounding air (storage) temperature -40 … 85°C
857-415
02.05.2019Page /3 13
Standards and specifications
Conformity marking 1
EMC immunity to interference EN 61000-6-2
EMC emission of interference EN 61000-6-4

Commercial data

Product Group 6 (Interface Electronics)
Country of origin DE
GTIN 4045454609856
Customs Tariff No. 85437090300

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text Certificate name
IECEx
TUEV Nord Cert GmbH
IEC 60079-0 IECEX_TUN_14.0030_X
IECEx
TUEV Nord Cert GmbH
EN 60079-0 TÜV_14_ATEX_112692_X
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
BV
Bureau Veritas S.A.
- 40179_A0
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAA00001D1
NK
Nippon Kaiji Kyokai
- TA17255M
PRS
Polski Rejestr Statków
- TE/2186 /880590/18
UL-Approvals
857-415
02.05.2019Page /4 13
Logo
Approval Additional Approval Text
Certificate name
UL
UL International Netherlands B.V. (ORDINARY LOCATIONS)
UL 508 E175199
Sec.4

Compatible products

Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
857-415
02.05.2019Page /5 13
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-502
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
Item no.: 793-502/000-002
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-002
Item no.: 793-502/000-005
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-005
Item no.: 793-502/000-006
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-006
Item no.: 793-502/000-007
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-007
Item no.: 793-502/000-012
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-012
Item no.: 793-502/000-017
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-017
857-415
02.05.2019Page /6 13
Item no.: 793-502/000-023
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-023
Item no.: 793-502/000-024
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-024
Item no.: 793-503
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
Item no.: 793-503/000-002
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-002
Item no.: 793-503/000-005
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-005
Item no.: 793-503/000-006
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-006
Item no.: 793-503/000-007
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-007
Item no.: 793-503/000-012
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-012
Item no.: 793-503/000-017
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-017
Item no.: 793-503/000-023
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-023
Item no.: 793-503/000-024
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-024
Item no.: 793-504
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
Item no.: 793-504/000-002
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-002
Item no.: 793-504/000-005
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-005
Item no.: 793-504/000-006
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-006
857-415
02.05.2019Page /7 13
Item no.: 793-504/000-012
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-012
Item no.: 793-504/000-017
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-017
Item no.: 793-504/000-023
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-023
Item no.: 793-505
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
Item no.: 793-505/000-005
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-005
Item no.: 793-505/000-006
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-006
Item no.: 793-505/000-007
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-007
Item no.: 793-505/000-012
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-012
Item no.: 793-506
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
Item no.: 793-506/000-005
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-005
Item no.: 793-506/000-006
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-006
Item no.: 793-506/000-012
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-012
Item no.: 793-506/000-017
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-017
Item no.: 793-5501 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
Item no.: 793-5501/000-002 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-002
857-415
02.05.2019Page /8 13
Item no.: 793-5501/000-005 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-014 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-014
Item no.: 793-5501/000-017 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
Item no.: 793-566
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
Item no.: 793-566/000-002
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-002
Item no.: 793-566/000-005
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-005
Item no.: 793-566/000-006
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-006
Item no.: 793-566/000-007
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-007
Item no.: 793-566/000-012
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-012
Item no.: 793-566/000-017
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-017
857-415
02.05.2019Page /9 13
Item no.: 793-566/000-023
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-023
Item no.: 793-566/000-024
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-024
Jumper
Item no.: 281-482
Comb-style jumper bar; insulated; 2-way; IN = IN terminal block
281-482
Item no.: 859-402
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
Item no.: 859-402/000-005
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
/000-005
Item no.: 859-402/000-006
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
/000-006
Item no.: 859-402/000-029
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
/000-029
Item no.: 859-403
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
Item no.: 859-403/000-005
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
/000-005
Item no.: 859-403/000-006
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
/000-006
Item no.: 859-403/000-029
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
/000-029
Item no.: 859-404
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
Item no.: 859-404/000-005
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
/000-005
Item no.: 859-404/000-006
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
/000-006
Item no.: 859-404/000-029
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
/000-029
Item no.: 859-405
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
857-415
02.05.2019Page /10 13
Item no.: 859-405/000-005
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
/000-005
Item no.: 859-405/000-006
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
/000-006
Item no.: 859-405/000-029
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
/000-029
Item no.: 859-406
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
Item no.: 859-406/000-005
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
/000-005
Item no.: 859-406/000-006
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
/000-006
Item no.: 859-406/000-029
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
/000-029
Item no.: 859-407
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
Item no.: 859-407/000-005
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
/000-005
Item no.: 859-407/000-006
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
/000-006
Item no.: 859-407/000-029
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
/000-029
Item no.: 859-408
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
Item no.: 859-408/000-005
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
/000-005
Item no.: 859-408/000-006
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
/000-006
Item no.: 859-408/000-029
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
/000-029
857-415
02.05.2019Page /11 13
Item no.: 859-409
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
Item no.: 859-409/000-005
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
/000-005
Item no.: 859-409/000-006
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
/000-006
Item no.: 859-409/000-029
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
/000-029
Item no.: 859-410
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
Item no.: 859-410/000-005
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
/000-005
Item no.: 859-410/000-006
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
/000-006
Item no.: 859-410/000-029
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
/000-029
assembling
Item no.: 249-116
Screwless end stop; 6 mm wide; for DIN-rail 35 x 15 and 35 x 7.5
249-116
Item no.: 249-117
Screwless end stop; 10 mm wide; for DIN-rail 35 x 15 and 35 x 7.5
249-117
Item no.: 249-197
Screwless end stop; 14 mm wide; for DIN-rail 35 x 15 and 35 x 7.5
249-197
power supply
Item no.: 787-2852 Switched-mode power supply; for JUMPFLEX® Signal Conditioners; 1-phase; 24 VDC output voltage; 1 A output current
787-2852
tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
transfer module
Item no.: 857-980
Interface adapter; 16-pole; analog
857-980
General accessories
Item no.: 857-979
Supply and through module
857-979
857-415
02.05.2019Page /12 13
Data sheet | Item number:857-415
Downloads

Documentation

Bid Text
857-415 Trennverstärker,
Mar 9, 2016 doc
29.7 kB
Download
Instruction Leaflet
Signal Conditioners and Isolation Amps
0...20 mA / 0...10 V
pdf
1.5 MB
Download
Additional Information
Disposal; Electrical and electronic equipment, Packaging V 1.0.0 pdf
265.8 kB
Download

CAD/CAE - Smart Data

CAD data
3D Download 857-415 URL Download
857-415
Subject to changes.
02.05.2019Page /13 13
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
