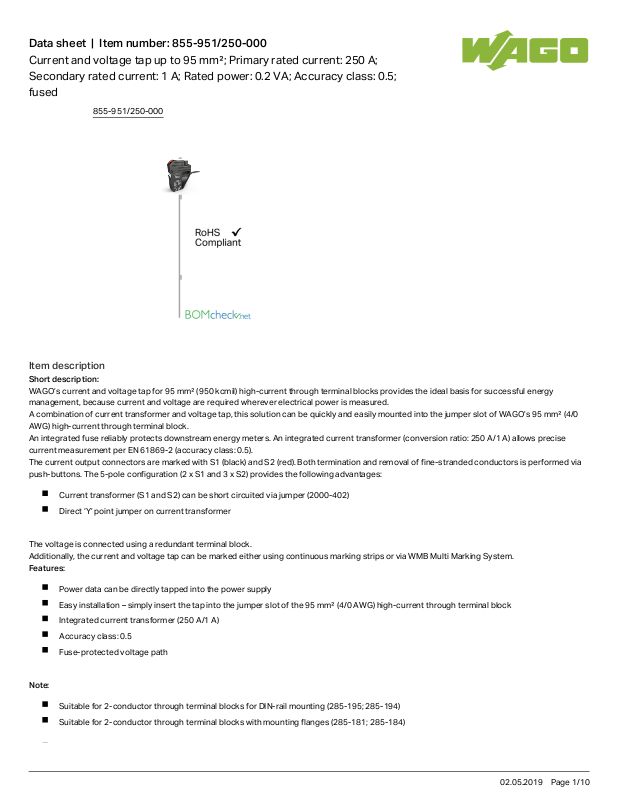

Data sheet | Item number:855-951/250-000
Current and voltage tap up to 95 mm²; Primary rated current: 250 A;
Secondary rated current: 1 A; Rated power: 0.2 VA; Accuracy class: 0.5;
fused
Item description
Short description:
WAGO’s current and voltage tap for 95 mm² (950 kcmil) high-current through terminal blocks provides the ideal basis for successful energy
management, because current and voltage are required wherever electrical power is measured.
A combination of current transformer and voltage tap, this solution can be quickly and easily mounted into the jumper slot of WAGO’s 95 mm² (4/0
AWG) high-current through terminal block.
An integrated fuse reliably protects downstream energy meters. An integrated current transformer (conversion ratio: 250 A/1 A) allows precise
current measurement per EN 61869-2 (accuracy class: 0.5).
The current output connectors are marked with S1 (black) and S2 (red). Both termination and removal of fine-stranded conductors is performed via
push-buttons. The 5-pole configuration (2 x S1 and 3 x S2) provides the following advantages:
Current transformer (S1 and S2) can be short circuited via jumper (2000-402)
Direct ‘Y’ point jumper on current transformer
The voltage is connected using a redundant terminal block.
Additionally, the current and voltage tap can be marked either using continuous marking strips or via WMB Multi Marking System.
Features:
Power data can be directly tapped into the power supply
Easy installation – simply insert the tap into the jumper slot of the 95 mm² (4/0 AWG) high-current through terminal block
Integrated current transformer (250 A/1 A)
Accuracy class: 0.5
Fuse-protected voltage path
Note:
Suitable for 2-conductor through terminal blocks for DIN-rail mounting (285-195; 285-194)
Suitable for 2-conductor through terminal blocks with mounting flanges (285-181; 285-184)
855-951/250-000
02.05.2019Page /1 10
Data sheet | Item number:855-951/250-000
Spare fuse: SIBA Fuse, Item No. 7008913.2
Data
Technical Data
Intput – current transformer
Primary rated current 250A
Rated continuous thermal current I
cth
250 A
Rated short-time thermal current I
th
15 kA / 1 s
Rated surge current I
dyn
37.5 kA
Rated frequency 50 … 60Hz
Output – Current transformer
Highest voltage for equipment U
m
720 V AC
rms
Secondary rated current 1 A
Rated power S
r
0.2 VA
Output – Voltage tap
Rated voltage AC 400V
Fuse (voltage path) 2 A; 450 V; F; 70 kA; 5 x 25 mm
Measurement error
Accuracy class 0.5
Safety and protection:
Highest voltage for equipment U
m
AC 720V
rms
Test voltage AC 3kV;50Hz;1min
Overvoltage category III
Pollution degree 2
Protection class IP20
Connection data
Connection type (1) Current output
Connection technology
Push-in CAGE CLAMP
®
WAGO terminal WAGO 250 Series
Solid conductor 0.2 … 1.5mm²/ 24 … 16AWG
Fine-stranded conductor 0.2 … 1.5mm²/ 24 … 16AWG
855-951/250-000
02.05.2019Page /2 10
Data sheet | Item number:855-951/250-000
Strip length 8.5 … 9.5mm/ 0.33 … 0.37inch
Connection type (2) Voltage output
Connection technology 2
Push-in CAGE CLAMP
®
WAGO terminal 2 WAGO 2624 Series
Solid conductor (2) 0.2 … 6mm²/ 24 … 10AWG
Strip length (2) 10 … 12mm/ 0.39 … 0.47inch
Feedthrough for measurement conductor Ø ≤ 16 mm
Geometrical Data
Width 25mm/ 0.984inch
Height 73mm/ 2.874inch
Depth 58mm/ 2.283inch
Mechanical data
Type of mounting via jumper slot of the 2-conductor high-current through terminal
block
Material Data
Flammability class per UL94 V2
Housing material PA 66
Weight 98 g
Environmental Requirements
Pollution degree 2
Surrounding air (operating) temperature -25 … 70°C
Surrounding air (storage) temperature -25 … 70°C
Relative humidity 5 … 85% (no condensation)
Max. operating altitude 2000 m
Standards and specifications
Conformity marking 1
Standards/specifications EN 61869-2; EN 60947-7-3
Commercial data
Country of origin NL
GTIN 4055143556354
Customs Tariff No. 85043180888
855-951/250-000
02.05.2019Page /3 10
Data sheet | Item number:855-951/250-000
Compatible products
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 210-831
Marking strips; on reel; 2.3 mm wide; plain; Self-adhesive
210-831
Item no.: 210-832
Marking strips; on reel; 3 mm wide; plain; Self-adhesive
210-832
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
855-951/250-000
02.05.2019Page /4 10
Data sheet | Item number:855-951/250-000
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-502
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
Item no.: 793-502/000-002
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-002
Item no.: 793-502/000-005
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-005
Item no.: 793-502/000-006
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-006
Item no.: 793-502/000-007
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-007
Item no.: 793-502/000-012
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-012
Item no.: 793-502/000-017
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-017
Item no.: 793-502/000-023
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-023
Item no.: 793-502/000-024
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-024
855-951/250-000
02.05.2019Page /5 10
Data sheet | Item number:855-951/250-000
Item no.: 793-503
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
Item no.: 793-503/000-002
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-002
Item no.: 793-503/000-005
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-005
Item no.: 793-503/000-006
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-006
Item no.: 793-503/000-007
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-007
Item no.: 793-503/000-012
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-012
Item no.: 793-503/000-017
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-017
Item no.: 793-503/000-023
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-023
Item no.: 793-503/000-024
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-024
Item no.: 793-504
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
Item no.: 793-504/000-002
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-002
Item no.: 793-504/000-005
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-005
Item no.: 793-504/000-006
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-006
Item no.: 793-504/000-012
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-012
Item no.: 793-504/000-017
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-017
855-951/250-000
02.05.2019Page /6 10
Data sheet | Item number:855-951/250-000
Item no.: 793-504/000-023
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-023
Item no.: 793-505
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
Item no.: 793-505/000-005
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-005
Item no.: 793-505/000-006
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-006
Item no.: 793-505/000-007
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-007
Item no.: 793-505/000-012
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-012
Item no.: 793-506
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
Item no.: 793-506/000-005
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-005
Item no.: 793-506/000-006
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-006
Item no.: 793-506/000-012
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-012
Item no.: 793-506/000-017
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-017
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on
type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on
type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
855-951/250-000
02.05.2019Page /7 10
Data sheet | Item number:855-951/250-000
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-014
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-014
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
Item no.: 793-566
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
Item no.: 793-566/000-002
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-002
Item no.: 793-566/000-005
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-005
Item no.: 793-566/000-006
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-006
Item no.: 793-566/000-007
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-007
Item no.: 793-566/000-012
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-012
Item no.: 793-566/000-017
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-017
Item no.: 793-566/000-023
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-023
Item no.: 793-566/000-024
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-024
855-951/250-000
02.05.2019Page /8 10
Data sheet | Item number:855-951/250-000
tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
General accessories
Item no.: 2007-8873
Compact terminal block; for current and voltage transformers
2007-8873
Item no.: 2007-8874
Compact terminal block; for current and voltage transformers
2007-8874
Item no.: 2007-8875
Compact terminal block; for current transformer circuit
2007-8875
Item no.: 2007-8876
Compact terminal block; for 3-phase current transformer circuit
2007-8876
Item no.: 2007-8877
Compact terminal block; for current transformer circuit
2007-8877
Item no.: 285-181
2-conductor through terminal block; 95 mm²; lateral marker slots; with fixing flanges; POWER CAGE
CLAMP
285-181
Item no.: 285-184
2-conductor through terminal block; 95 mm²; lateral marker slots; with fixing flanges; POWER CAGE
CLAMP
285-184
Item no.: 285-194
2-conductor through terminal block; 95 mm²; lateral marker slots; only for DIN 35 x 15 rail; 2.3 mm
thick; copper; POWER CAGE CLAMP
285-194
Item no.: 285-195
2-conductor through terminal block; 95 mm²; lateral marker slots; only for DIN 35 x 15 rail; 2.3 mm
thick; copper; POWER CAGE CLAMP
285-195
Item no.: 2857-570/024-001
3-Phase Power Measurement Module; 3x400/690 V/1 A; Modbus RTU; Digital output; Configuration via
software; Supply voltage: 24 VDC
2857-570
/024-001
Item no.: 857-550
Current signal conditioner; Current input signal; Current and voltage output signal; Digital output;
Configuration via software; Supply voltage: 24 VDC; 6 mm module width
857-550
Downloads
Documentation
Bid Text
855-951/250-000 docx
21.9 kB
Download
Instruction Leaflet
Strom- und Spannungsabgriff für 2-Leiter-Durchgangsklemmen der Serie 285 pdf
1.3 MB
Download
Additional Information
855-951/250-000
02.05.2019Page /9 10
Data sheet | Item number:855-951/250-000
Disposal; Electrical and electronic equipment, Packaging
V 1.0.0 pdf
265.8 kB
Download
855-951/250-000
Subject to changes.
02.05.2019Page /10 10
Loading...
