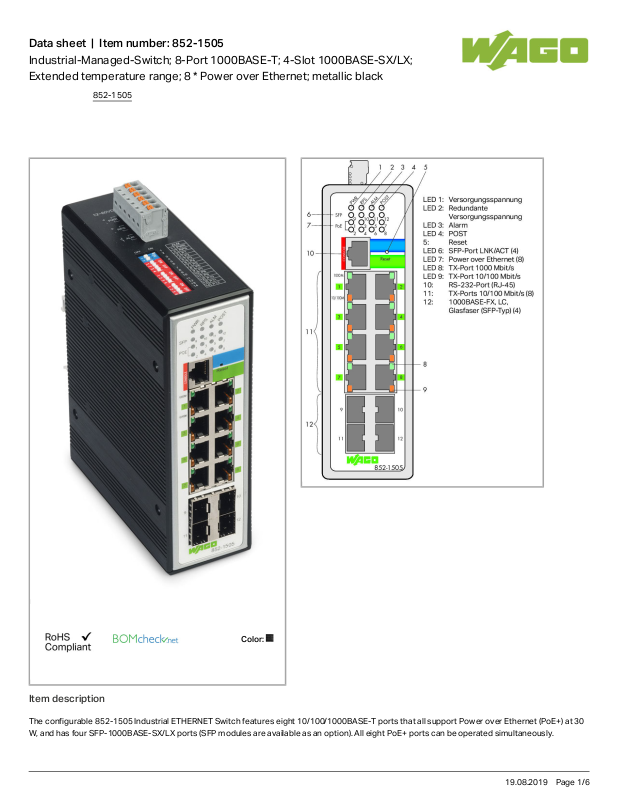

Wago 852-1505 Data Sheet

Data sheet | Item number:852-1505

Industrial-Managed-Switch; 8-Port 1000BASE-T; 4-Slot 1000BASE-SX/LX;
Extended temperature range; 8 * Power over Ethernet; metallic black

Color:

Item description

The configurable 852-1505 Industrial ETHERNET Switch features eight 10/100/1000BASE-T ports that all support Power over Ethernet (PoE+) at 30
W, and has four SFP-1000BASE-SX/LX ports (SFP modules are available as an option). All eight PoE+ ports can be operated simultaneously.

852-1505

19.08.2019Page /1 6

Data sheet | Item number:852-1505

The switch has a rugged housing, redundant power supply and function monitoring with a relay. These functions, along with extensive ETHERNET
switch options, make it ideal for a wide range of applications.

Features:

Web-based/SNMP management

Redundant DC power supply

Supply voltage range: 48 … 57 VDC

DIP switches to set alarm functions

Full compliance with IEEE802.3, 802.3u, 802.3z, 802.3x, 802.3ad, 802.3ab, 802.1d, 802.1q, 802.1p, 802.1w, 802.1x and 802.3at standards

Xpress Ring (redundant ring, switching time < 20 ms)

Non‐blocking, store‐and‐forward switching, rapid spanning tree protocol (RSTP)

Auto-negotiation at all 10/100/1000Base-T ports

Auto-MDI/MDIX (crossover) at all 10/100/1000Base-T ports

VLAN (802.1q) VID

IGMP snooping for multicast filtering

Port configuration, status, statistics

Port trunking

SNMP v1/v2 and RMON

Data

Technical Data

Switchingmodus Store‐and‐forward, non-blocking

Number of 1000Base-T ports 8

Number of 1000Base SX/LX ports 4

Communication standards IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ad Port Trunk with LACP
IEEE 802.3x Flow Control
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1q VLAN Tagging
IEEE 802.1p Prioritization
IEEE 802.1x Port Authentication
IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
IEEE 802.3ad Port Trunk with LACP
IEEE 1588v2 Precision Time Protocol (PTP)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at High Power over Ethernet (PoE+)
ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS)

Redundancy function Redundant DC power supply, STP, RSTP, MSTP, Jetring < 300 ms,

XPRESS ring < 20 ms, Dual homing < 20 ms, Dual ring, ERPSv2 < 50
ms, LCAP

852-1505

19.08.2019Page /2 6

Data sheet | Item number:852-1505

Configuration options DIP switch for signal contact

Command Line Interface
SNMPv1/v2c/v3

Diagnostics Signal contact, Modbus/TCP, port status, port statistics, port load,

traffic monitor, SFP information, syslog, mail alarm, SNMP traps

MAC table (large) 16000 addresses

Jumbo frame size 10000 Byte

Supply voltage DC48 57V

Energy consumption max. 258 W

ESD (contact/air discharge) 8 KV / 15 KV

Baud rate Copper cable:10/1000Mbit/s;Fiber optic:1000Mbit/s

Transmission medium (communication/fieldbus) Copper cable:Cat. 5e or higher, max. line length: 100 m;Fiber

optic:SX Multi-Mode, LX Single-Mode

LWL-Fasertyp Single-Mode and Multi-Mode

VLANs Port-based and tag-based (4k VIDs)

Panel 14 x DIP switch: Alarm function power supplies and ports 1–12

Indicators Gerät: LED (PWR, RPS, POST) grün: Versorgungsspannung (primär),

Redundante Versorgungsspannung (sekundär), POST-Funktion; LED
(ALM) rot: Alarm; LED (SFP) grün: Status Glasfaser Ports; pro Port:
LED (1000M, 10/100M) grün, gelb: Status 1000 Mbps, 10/100 Mbps
Port 1 8

Connection data

Connection technology: communication/fieldbus Copper cable:8 x RJ-45;Fiber optic:4 x SFP, LC fiber-optic

connectors

Anschlusstechnik: Versorgung 1 x im Gerät verbaute Stiftleiste: 231-436/001-000; mitgelieferte

Federleiste (Steckverbinder MCS): 2231-106/026-000

Geometrical Data

Width 50mm/ 1.969inch

Height from upper-edge of DIN-35 rail 120mm/ 4.724inch

Depth 162mm/ 6.378inch

Mechanical data

Weight 860 g

Color metallic black

Housing material Aluminum

Conformity marking CE

Environmental Requirements

Surrounding air (operating) temperature -40 70°C

Surrounding air (storage) temperature -40 80°C

852-1505

19.08.2019Page /3 6

Data sheet | Item number:852-1505

Protection class IP30

Relative air humidity (no condensation) 95 %

Type of mounting DIN-35 rail

Vibration resistance acc. to IEC 60068-2-6

Shock resistance acc. to IEC 60068-2-27

EMC immunity to interference acc. to EN 61000-6-2

EMC emission of interference acc. to EN 61000-6-4

Commercial data

Country of origin TW

GTIN 4055143728010

Customs Tariff No. 85176200000

Compatible products

power supply

Item no.: 787-1633
Switched-mode power supply; Classic; 1-phase; 48 VDC output voltage; 5 A output current; TopBoost;
DC OK contact

787-1633

Item no.: 787-1635
Switched-mode power supply; Classic; 1-phase; 48 VDC output voltage; 10 A output current;
TopBoost; DC OK contact

787-1635

transfer module

Item no.: 289-195

Interface module; RJ-45; IDC technology; Cat. 6; in mounting carrier; with shield connection

289-195

wiring and connectors

Item no.: 750-976

PROFINET RJ-45 connector, IP20; ETHERNET 10/100 Mbit/s; for field assembly

750-976

Item no.: 750-977/000-011

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 22

750-977

/000-011

Item no.: 750-977/000-012

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 22

750-977

/000-012

Item no.: 750-977/000-013

Connector PROFINET; RJ-45; Cat. 6A; straight; AWG 22

750-977

/000-013

Item no.: 750-977/000-021

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 24

750-977

/000-021

852-1505

19.08.2019Page /4 6

Data sheet | Item number:852-1505

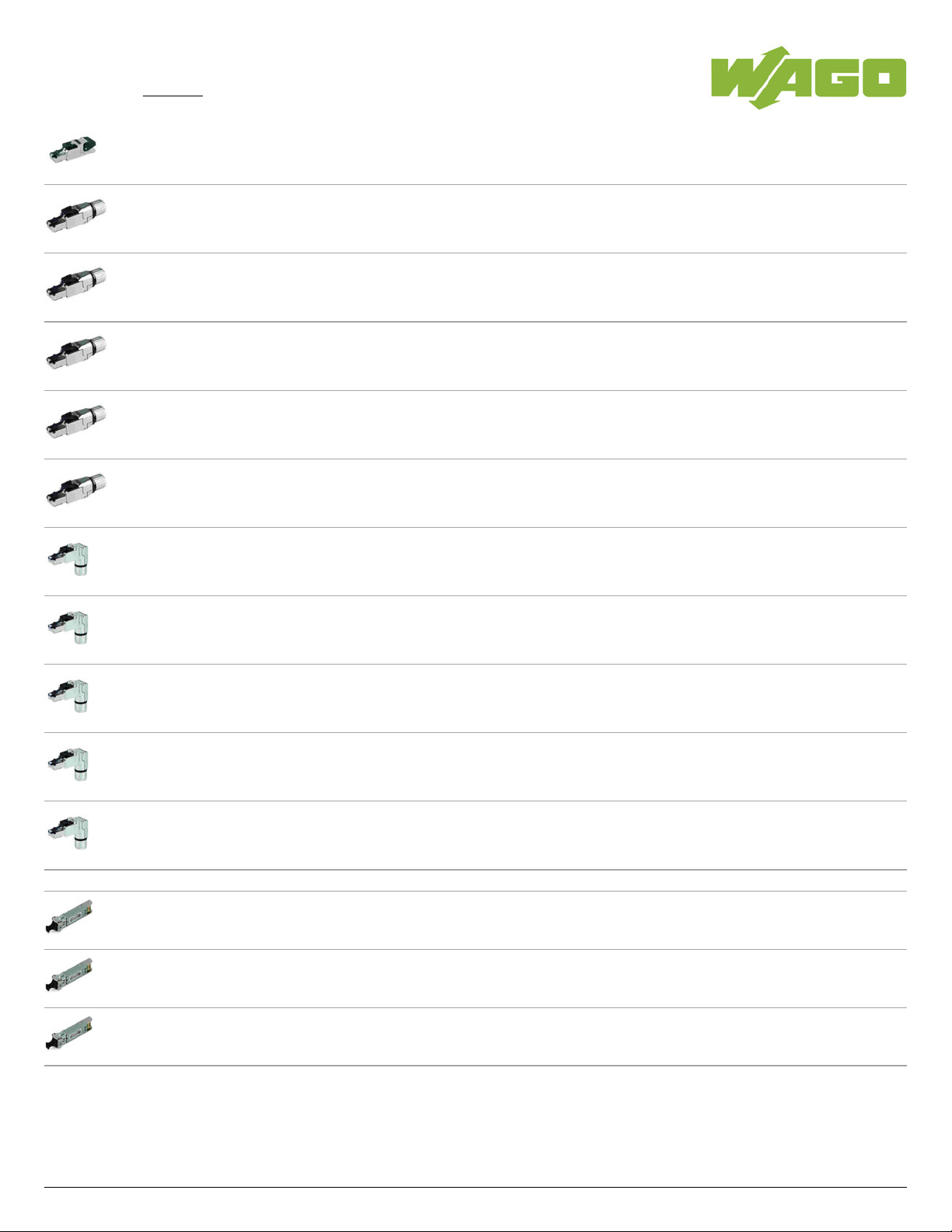

Item no.: 750-977/000-022

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 24

750-977

/000-022

Item no.: 750-978/000-011

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 22; Strain relief

750-978

/000-011

Item no.: 750-978/000-012

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 22; Strain relief

750-978

/000-012

Item no.: 750-978/000-013

Connector PROFINET; RJ-45; Cat. 6A; straight; AWG 22; Strain relief

750-978

/000-013

Item no.: 750-978/000-021

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568A; AWG 24; Strain relief

750-978

/000-021

Item no.: 750-978/000-022

Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 24; Strain relief

750-978

/000-022

Item no.: 750-979/000-011

Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568A; AWG 22; Strain relief

750-979

/000-011

Item no.: 750-979/000-012

Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568B; AWG 22; Strain relief

750-979

/000-012

Item no.: 750-979/000-013

Connector PROFINET; RJ-45; Cat. 6A; angled; AWG 22; Strain relief

750-979

/000-013

Item no.: 750-979/000-021

Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568A; AWG 24; Strain relief

750-979

/000-021

Item no.: 750-979/000-022

Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568B; AWG 24; Strain relief

750-979

/000-022

General accessories

Item no.: 852-1200
SFP Module 1000BASE; SX Multi-Mode 850 nm LC; 0.55 km; Extended temperature range; DDM; silver­colored

852-1200

Item no.: 852-1210
SFP Module 1000BASE; LX Single-Mode 1310 nm LC; 10 km; Extended temperature range; DDM; silver­colored

852-1210

Item no.: 852-1280
SFP Module 1000BASE; ZX Single-Mode 1550 nm LC; 80 km; Extended temperature range; DDM; silver­colored

852-1280

852-1505

19.08.2019Page /5 6

Data sheet | Item number:852-1505

Downloads

Documentation

Manual

Industrial Managed Switch; 8Port 1000BASE-T; 4Slot 1000BASE-SX/LX; EXT; 8PoE

Industrial Managed Switch; 8 Ports 1000BASE-T; 4 Slots 1000BASESX/LX; Extended
Temperature Range; 8 * Power over Ethernet

V 1.0.0 pdf

9.6 MB

Download

Bid Text

852-1505 docx

23.1 kB

Download

Instruction Leaflet

Gebrauchs- und Montageanleitung 852-1505

Industrial-ETHERNET-Switch

V 1.0.0 pdf

793.9 kB

Download

Additional Information

Disposal; Electrical and electronic equipment, Packaging V 1.0.0 pdf

265.8 kB

Download

System Description

Industrial Switches ‒ General Product Information pdf

2.0 MB

Download

Runtime Software

Firmware

Firmware: 852-1505 Industrial-Managed-Switch; 8-Port 1000BASE-T; 4-Slot
1000BASE-SX/LX; Extended temperature range; 8 * Power over Ethernet; metallic
black

02
Jun 7, 2019

zip

10.0 MB

Download


