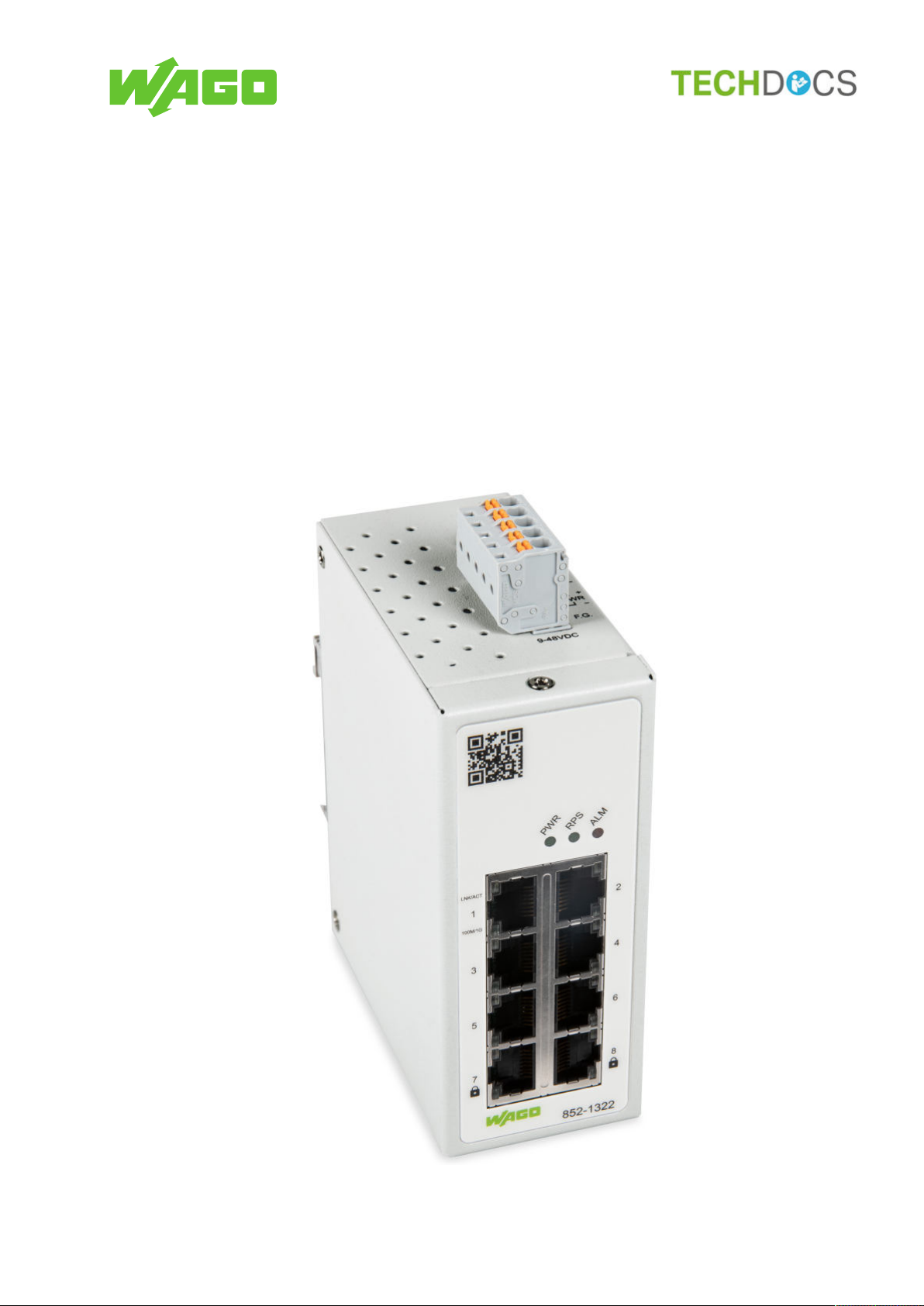

Industrial Managed Switch
8 Ports 1000BASE-T; MAC Security
852-1322
Product manual | Version 1.2.0
© 2021 WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.
WAGO Kontakttechnik GmbH & Co. KG
Hansastraße 27
D - 32423 Minden
Phone: +49 571/887 – 0
Fax: +49 571/887 – 844169
E-Mail:
* info@wago.com
Internet: ü www.wago.com
Technical Support
Phone: +49 571/887 – 44555
Fax: +49 571/887 – 844555
E-Mail: * support@wago.com
852-1322Legal Information
Every conceivable measure has been taken to ensure the accuracy and completeness of
this documentation. However, as errors can never be fully excluded, we always appreciate any information or suggestions for improving the documentation.
E-Mail: * documentation@wago.com
We wish to point out that the software and hardware terms as well as the trademarks of
companies used and/or mentioned in the present manual are generally protected by
trademark or patent.
WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH.
Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Table of Contents
Table of Contents
1 Provisions.........................................................................................................................6
1.1 Proper Use .............................................................................................................. 6
1.2 Typographical Conventions..................................................................................... 7
1.3 Legal Information .................................................................................................... 8
2 Safety ..............................................................................................................................10
2.1 General Safety Regulations .................................................................................. 10
2.2 Electrical Safety..................................................................................................... 10
2.3 Mechanical Safety................................................................................................. 11
2.4 Indirect Safety ....................................................................................................... 12
3 Overview .........................................................................................................................13
4 Properties .......................................................................................................................14
4.1 Views..................................................................................................................... 14
4.1.1 Front View ....................................................................................................14
4.1.2 Top View ...................................................................................................... 15
4.2 Label...................................................................................................................... 16
4.3 Connectors............................................................................................................ 16
4.3.1 Grounding screw ..........................................................................................16
4.3.2 Power Supply ...............................................................................................16
4.3.3 Network Connections ...................................................................................17
4.3.3.1 10/100/1000BASE-T(X) ports..............................................................18
4.3.3.2 10/100/1000BASE-T(X) (MACsec) ports.............................................18
4.4 Display Elements................................................................................................... 18
4.4.1 Unit LEDs .....................................................................................................18
4.4.2 Port LEDs ..................................................................................................... 19
4.5 Technical data....................................................................................................... 19
4.5.1 Product ......................................................................................................... 19
4.5.2 System Data ................................................................................................. 19
4.5.3 Power Supply ...............................................................................................19
4.5.4 Communication ............................................................................................ 19
4.5.5 Environment requirements ...........................................................................20
4.6 Guidelines, approvals and standards.................................................................... 20
4.6.1 Approvals ..................................................................................................... 20
4.6.2 Regulations and Standards .......................................................................... 20
5 Functions........................................................................................................................22
5.1 Security ................................................................................................................. 22
5.1.1 IEEE 802.1X ................................................................................................. 22
5.1.2 RADIUS ........................................................................................................ 22
5.1.3 MAC Security (MACSec) .............................................................................. 23
6 Planning..........................................................................................................................24
6.1 Structure Guidelines.............................................................................................. 24
Product manual | Version: 1.2.0 iii
Industrial Managed Switch
852-1322Table of Contents
6.1.1 Installation Site ............................................................................................. 24
7 Transport and Storage...................................................................................................25
8 Installation and Removal...............................................................................................26
8.1 Installation ............................................................................................................. 26
8.1.1 Installation on a Carrier Rail ......................................................................... 26
8.2 Removal ................................................................................................................ 26
8.2.1 Removal from Carrier Rail ............................................................................ 26
9 Connection .....................................................................................................................27
9.1 Grounding.............................................................................................................. 27
9.2 Connecting the Supply Voltage............................................................................. 27
9.3 Connect 10/100/1000BASE-T ports...................................................................... 27
10 Configuration in the WBM .............................................................................................29
10.1 Login...................................................................................................................... 29
10.2 Login Failure.......................................................................................................... 32
10.3 Information ............................................................................................................ 35
10.3.1 System Information ...................................................................................... 35
10.3.2 Legal Information..........................................................................................36
10.4 Configuration ......................................................................................................... 36
10.4.1 System Settings ........................................................................................... 36
10.4.2 Device Discovery – LLDP.............................................................................37
10.4.3 System Management – SNTP ...................................................................... 38
10.4.3.1 General Information .............................................................................38
10.4.3.2 SNTP Setup.........................................................................................39
10.4.4 Network Settings ..........................................................................................41
10.4.5 Port Settings ................................................................................................. 42
10.4.5.1 Setting .................................................................................................42
10.4.6 Interface – Port Mirroring..............................................................................43
10.4.6.1 General Information .............................................................................43
10.4.6.2 Port Mirroring Setup ............................................................................44
10.4.7 Password......................................................................................................44
10.5 Diagnostics............................................................................................................ 45
10.5.1 SNMP ........................................................................................................... 45
10.5.1.1 SNMP Agent ........................................................................................49
10.5.1.2 SNMPv1/v2c-Community ....................................................................50
10.5.1.3 SNMP Trap ..........................................................................................51
10.5.1.4 SNMP-V3-Auth. ...................................................................................53
10.5.2 Modbus TCP ................................................................................................ 54
10.5.3 System-Log ..................................................................................................55
10.5.3.1 Setting .................................................................................................55
10.5.3.2 Log.......................................................................................................57
10.5.4 Port Monitor .................................................................................................. 59
10.6 Security ................................................................................................................. 60
10.6.1 Static SAK ....................................................................................................60
10.6.2 Secure Code ................................................................................................ 61
10.6.3 802.1X (IEEE 802.1X) .................................................................................. 61
10.6.3.1 Setting (IEEE 802.1X - Setting) ...........................................................62
iv Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Table of Contents
10.6.3.2 Parameters Setting (IEEE 802.1X - Parameter Setting)......................63
10.6.3.3 Port Setting (IEEE 802.1X - Port Setting) ............................................64
10.6.4 Port Security ................................................................................................. 65
10.6.5 VLAN ............................................................................................................ 67
10.6.5.1 Port Isolation........................................................................................67
10.6.5.2 VLAN Setup .........................................................................................68
10.6.5.3 Management VLAN .............................................................................70
10.7 Redundancy .......................................................................................................... 72
10.7.1 RSTP ............................................................................................................ 72
10.7.1.1 General Information .............................................................................72
10.7.1.2 RSTP Setup.........................................................................................75
10.7.1.3 RSTP Port Setup .................................................................................76
10.7.1.4 RSTP Failover & Recovery Times .......................................................76
10.8 Maintenance.......................................................................................................... 77
10.8.1 Firmware Upgrade........................................................................................77
10.8.2 Reset to Default............................................................................................78
10.8.3 Backup/Restore ............................................................................................ 79
10.8.4 Reboot .......................................................................................................... 79
10.8.5 Logout .......................................................................................................... 80
11 Commissioning ..............................................................................................................81
12 Diagnostics.....................................................................................................................82
13 Service ............................................................................................................................83
14 Decommissioning ..........................................................................................................84
14.1 Disposal and Recycling ......................................................................................... 84
15 Appendix.........................................................................................................................85
15.1 MODBUS/TCP Map .............................................................................................. 85
15.1.1 Modbus-Register .......................................................................................... 85
Product manual | Version: 1.2.0 v
Industrial Managed Switch
1Provisions
This documentation applies to the following product:
852-1322
1.1 Proper Use
The device is designed for the IP30 protection class. It is protected against the insertion
of solid items and solid impurities up to 2.5 mm in diameter, but not against water penetration. Unless otherwise specified, the device must not be operated in wet and dusty environments.
Warranty and Liability
The terms set forth in the General Business & Contract Conditions for Delivery and Service of WAGO Kontakttechnik GmbH & Co. KG and the terms for software products and
products with integrated software stated in the WAGO Software License Contract – both
available at
• The product is improperly used.
• The deficiency (hardware and software configurations) is due to special instructions.
• Modifications to the hardware or software have been made by the user or third parties
that are not described in this documentation and that has contributed to the fault.
üwww.wago.com – shall apply. In particular, the warranty is void if:
852-1322Provisions
Individual agreements always have priority.
Obligations of Installers/Operators
The installers and operators bear responsibility for the safety of an installation or a system assembled with the products. The installer/operator is responsible for proper installation and safety of the system. All laws, standards, guidelines, local regulations and accepted technology standards and practices applicable at the time of installation, and the
instructions in the the products’ Instructions for Use, must be complied with. In addition,
the Installation regulations specified by Approvals must be observed. In the event of noncompliance, the products may not be operated within the scope of the approval.
Improper Use
Improper use of the product is not permitted. Improper use occurs especially in the following cases:
• Non-observance of the intended use.
• Use without protective measures in an environment in which moisture, salt water, salt
spray mist, dust, corrosive fumes, gases, direct sunlight or ionizing radiation can occur.
• Use of the product in areas with special risk that require continuous fault-free operation
and in which failure of or operation of the product can result in an imminent risk to life,
limb or health or cause serious damage to property or the environment (such as the
operation of nuclear power plants, weapons systems, aircraft and motor vehicles).
6 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Provisions
ü
1.2 Typographical Conventions
Number Notation
100 Decimals: Normal notation
0x64 Hexadecimals: C-notation
‘100’
‘0110.0100’
Text Formatting
italic Names of paths or files
bold Menu items, entry or selection fields, emphasis
Code Sections of program code
> Selection of a menu point from a menu
“Value” Value entries
[F5] Identification of buttons or keys
Cross References / Links
Binary: In single quotation marks
Nibbles separated by a period
Cross references/links to a topic in a document
Cross references / links to a separate document
Cross references / links to a website
Cross references / links to an email address
Action Instructions
ü This symbol identifies a precondition.
1. Action step
2. Action step
ð This symbol identifies an intermediate result.
ð This symbol identifies the result of an action.
Lists
• Lists, first level
– Lists, second level
Figures
Figures in this documentation are for better understanding and may differ from the actual
product design.
Notes
DANGER
Type and source of hazard
Possible consequences of hazard that also include death or irreversible injury
• Action step to reduce risk
Product manual | Version: 1.2.0 7
Industrial Managed Switch
852-1322Provisions
!
WARNING
Type and source of hazard
Possible consequences of hazard that also include severe injury
• Action step to reduce risk
CAUTION
Type and source of hazard
Possible consequences of hazard that include at least slight injury
• Action step to reduce risk
NOTICE
Type and source of malfunction (property damage only)
Possible malfunctions that may restrict the product’s scope of functions or ergonomics,
but do not lead to foreseeable risks to persons
• Action step to reduce risk
Note
Notes and information
Indicates information, clarifications, recommendations, referrals, etc.
1.3 Legal Information
Intellectual Property
Unless barred by applicable legal provisions, unauthorized copying and distribution of this
document, as well as the use and communication of its content are strictly prohibited unless expressly authorized by prior agreement. Third-party products are always mentioned
without any reference to patent rights. WAGO Kontakttechnik GmbH & Co. KG, or for
third-party products, their manufacturer, retain all rights regarding patent, utility model or
design registration.
Third-party trademarks are referred to in the product documentation. The “®” and “TM”
symbols are omitted hereinafter. The trademarks are listed in the Appendix (Protected
Rights).
Subject to Change
The instructions, guidelines, standards, etc., in this manual correspond to state of the art
at the time the documentation was created and are not subject to updating service. The
installer and operator bear sole responsibility to ensure they are complied with in their
currently applicable form. WAGO Kontakttechnik GmbH & Co. KG retains the right to
carry out technical changes and improvements of the products and the data, specifica-
8 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Provisions
tions and illustrations of this manual. All claims for change or improvement of products
that have already been delivered – excepting change or improvement performed under
guarantee agreement – are excluded.

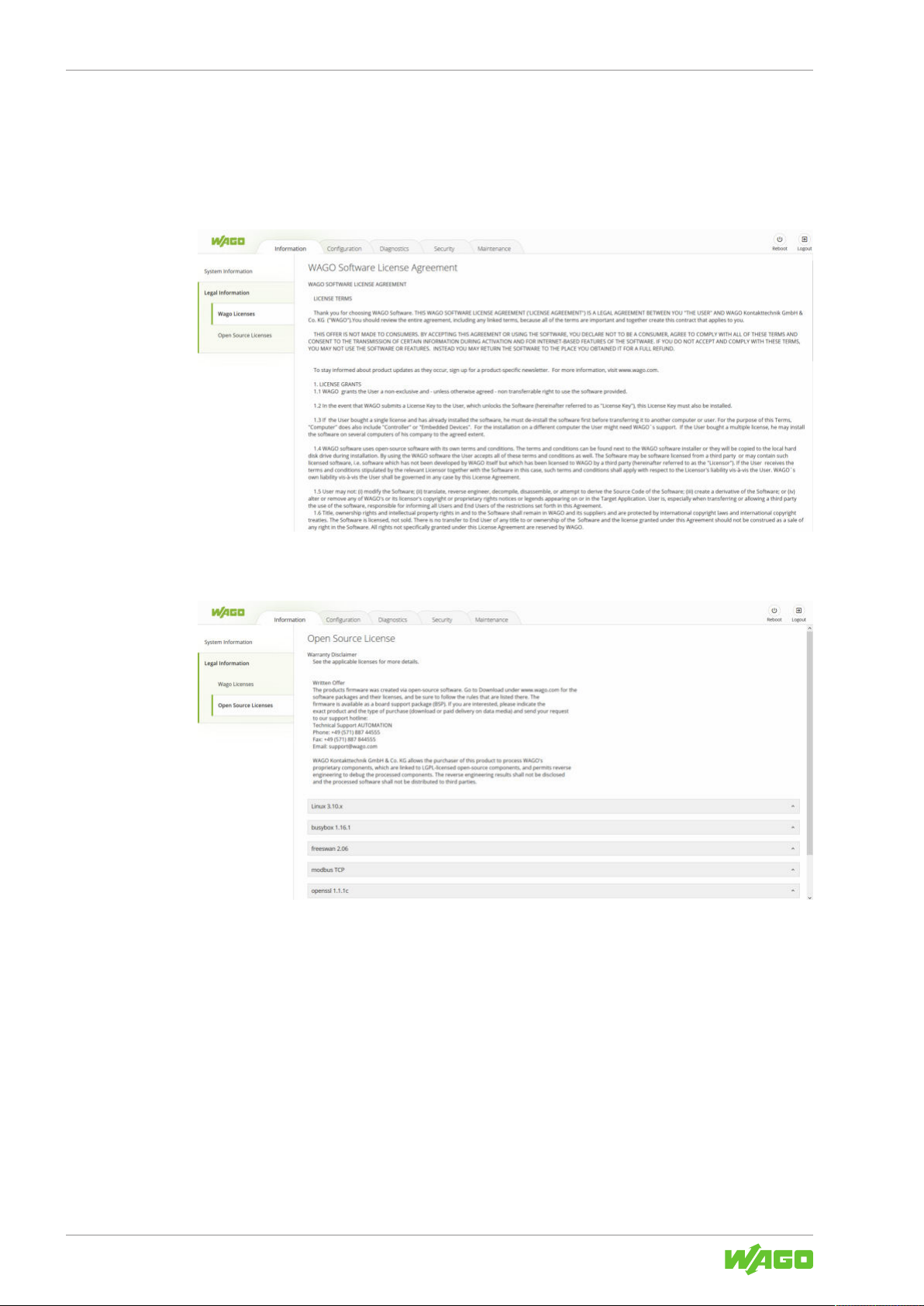

Licenses
The products may contain open-source software. The requisite license information is
saved in the products. This information is also available under
üwww.wago.com.
Product manual | Version: 1.2.0 9
Industrial Managed Switch
2Safety
This section contains safety rules that must be followed for hazard-free use of the product.
This section is aimed at the following target groups:
• Planners and installers
• Operators
• Qualified assembly personnel
• Qualified installation personnel (electrical installation, technician network installation
etc.)
• Qualified operating personnel
• Qualified service and maintenance personnel
Obey the following safety rules:
2.1 General Safety Regulations
• This documentation is part of the product. Therefore, retain the documentation during
the entire service life of the product. Pass on the documentation to any subsequent
user of the product. In addition, ensure that any supplement to this documentation is
included, if necessary.
• Any actions related to the use of WAGO software may only be performed by qualified
staff with sufficient knowledge to use the respective PC system.
Steps in which files are created or changed on a PC system may only be performed by
qualified employees with sufficient knowledge in the administration of the PC system
used in addition to file creation or modification.
Steps that change the PC system’s behavior within a network may only be performed
by qualified employees with sufficient knowledge of administration of the responsible
network.
• Changes to switch configurations in the network must always be performed by qualified
personnel with sufficient skills.
• Comply with the laws, standards, guidelines, local regulations and accepted technology standards and practices applicable at the time of installation.
• If remote access to control components and control networks is required, use a Virtual
Private Network (VPN).
852-1322Safety
2.2 Electrical Safety
• High voltage can cause electric shock or burns! Disconnect all power sources from the
product before performing any installation, repair or maintenance.
Power Supply
• Connecting impermissible current or frequency values may destroy the product.
• Switch off power supply to the device immediately if the product malfunctions or is
damaged.
Ground/Protection/Fuses
• Protect the product with an appropriate overcurrent protection device.
• Using the overvoltage and lightning protection designs intended for the building.
10 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Safety
• When handling the product, please ensure that environmental factors (personnel, work
space and packaging) are properly equalized. Do not touch any conducting parts.
Lines
• Maintain spacing between control, signal and data lines and the power supply lines.
• Observe permissible temperature range of connecting cables.
• Use appropriate strain relief.
• Make sure the pin assignment is correct.
• Avoid reverse polarity of data and power supply lines, as this may damage the devices
involved.
Protect
• Observe the applicable standards for EMC-compatible installations.
Radio, etc.
• This is a Class A product. The product can cause radio interference in residential areas; in this case, the operator can be required to take appropriate measures to prevent
such interference.
• For industrial use: WAGO's 852 Series ETHERNET Switches are certified to be used
in residential and in industrial environments. If the latter, they should be considered as
exposed operating components. Therefore, in industrial applications, only install these
switches in lockable housings, cabinets or electrical operation rooms. Access must be
limited to authorized, qualified staff having the appropriate key or tool.
• Only use devices equipped with ETHERNET or RJ-45 connectors in LANs. Never connect these devices with telecommunication networks.
Components
• Replace defective or damaged device/module (e.g., in the event of deformed contacts).
2.3 Mechanical Safety
• As the installer of the system, you are responsible for ensuring the necessary touchproof protection. Follow the installation guidelines for the specific application.
• The surrounding air temperature for operation indicated in the technical data applies to
the nominal mounting position. Different mounting positions may affect the permissible
surrounding air temperature for operation.
• Cooling of the product must not be impaired. Ensure air can flow freely and that the
minimum clearances from adjacent products/areas are maintained.
• Do not install the product on or in the vicinity of easily flammable materials.
• When selecting the location for installation, note that the control cabinet must remain
accessible for maintenance purposes.
• Before startup, please check the product for any damage that may have occurred during shipping. Do not put the product into operation in the event of mechanical damage.
• Only use this product in a controlled environment.
• Do not open the product housing.
• Avoid conductive contamination.
Product manual | Version: 1.2.0 11
Industrial Managed Switch
2.4 Indirect Safety
• Do not use hard objects that could cause scratches for cleaning.
• Do not use any contact spray for cleaning.
• Clean tools and materials are imperative for handling the product.
• The products are not resistant to materials having seeping and insulating properties
such as aerosols, silicones and triglycerides (found in some hand creams). If these
substances occur in the environment of the products, install the products in an additional housing that is also resistant to these substances.
• Before installation and operation, please read the product documentation thoroughly
and carefully. In addition, note the information on the product housing and further information, e.g. at
• Change the password. The factory default setting is widely known and does not provide adequate protection.
• Give all products in a network different IP addresses.
• Use only the current firmware.
• Regularly perform threat analyses. You can check whether the measures taken meet
your security requirements.
• Use “defense-in-depth” mechanisms in your system's security configuration to restrict
the access to and control of individual products and networks.
üwww.wago.com/<item number>.
852-1322Safety
12 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Overview
3Overview
WAGO´s 852-1322 industrial managed switch is a switch with 8 Gigabit-Ports
10/100/1000 BASE-T(X) RJ-45, of which two ports support MAC Security encryption.
This industrial managed switch is easy to configure and install; thus, it can be used in numerous applications including residential applications. It is ideal for plug-and-play local
area network protection with embedded MACsec key agreement that offers security protection.
MACsec uses GCM-AES to implement point-to-point security for ETHERNET links between switches. In other words, it can secure a network from a whole host of security
threats, including intrusion, man-in-the-middle, masquerading, passive wiretapping, and
playback attacks. And because MACsec encryption is hardware-based, there is no nameable added latency.
WAGO’s 852-1322 is ideal for adding an extra layer of security in residential and industrial applications that require compact solutions while delivering high network performance up to 97 % of throughput guaranteed with no nameable additional latency.
It also supports a wide operating temperature range of -20 °C to 70 °C and is EN/
IEC(CB)/UL62368-1, and IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32. WAGO’s
852-1322 switches is a powerful compact device that can perform under a variety of environmental conditions, such as power input voltage, shock, drop and vibration.
Product manual | Version: 1.2.0 13
Industrial Managed Switch
4Properties
4.1 Views
4.1.1 Front View
852-1322Properties
14 Product manual | Version: 1.2.0
Industrial Managed Switch

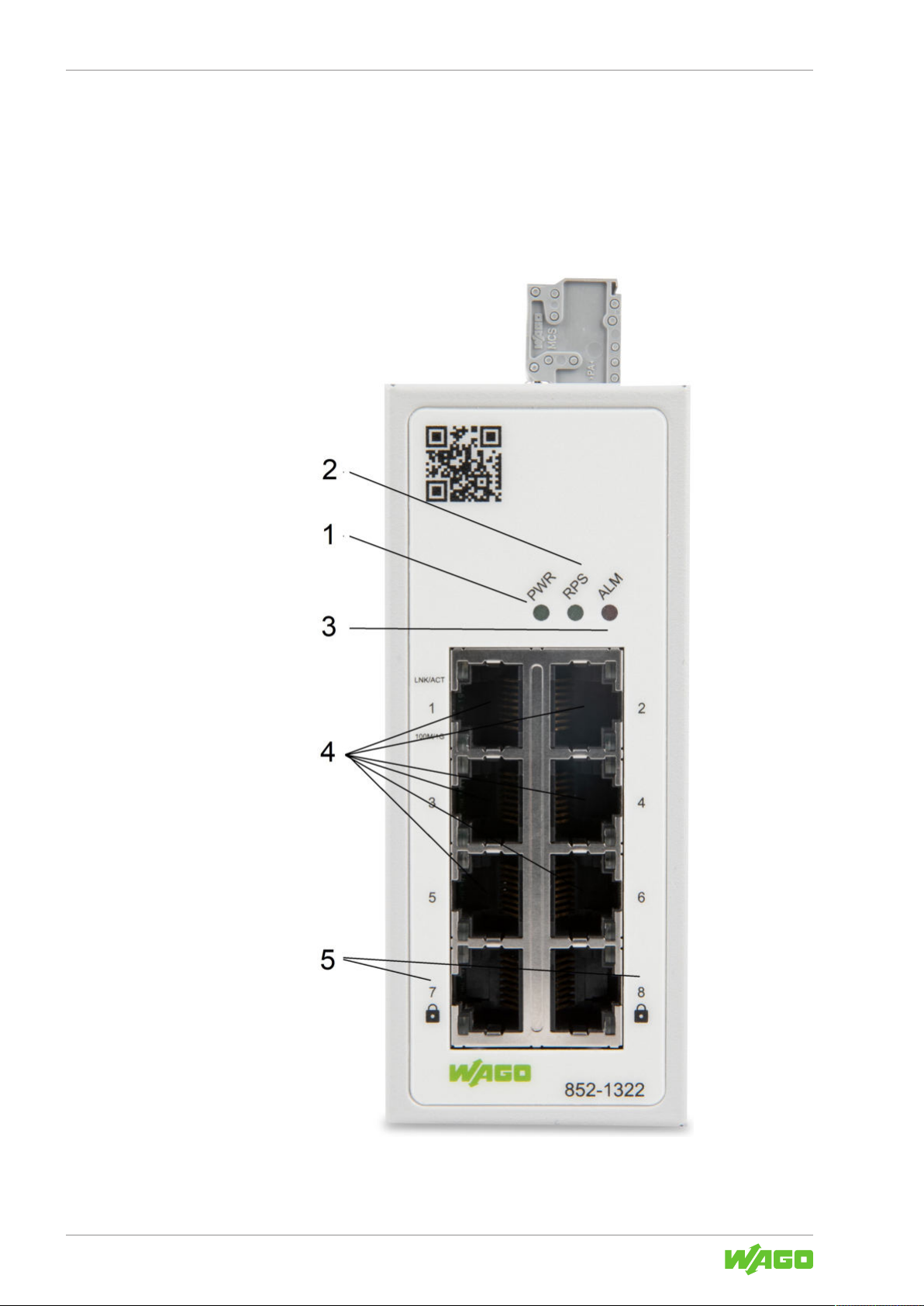

Figure1: Front View of the Industrial Managed Switch
852-1322 Properties
Table1: Legend for the Figure "Front View of the Industrial Managed Switch"
Pos. Custom Name Explanation
1 PWR Status LED Power input
2 RPS Status LED redundant input
3 ALM Status LED alarm
4 RJ-45 ports (10/100/1000BASE-T(X))
(6)
5 RJ-45 ports (10/100/1000BASE-T(X)
(MACsec) (2)
8Display Elements [}18]
8Display Elements [}18]
8Display Elements [}18]

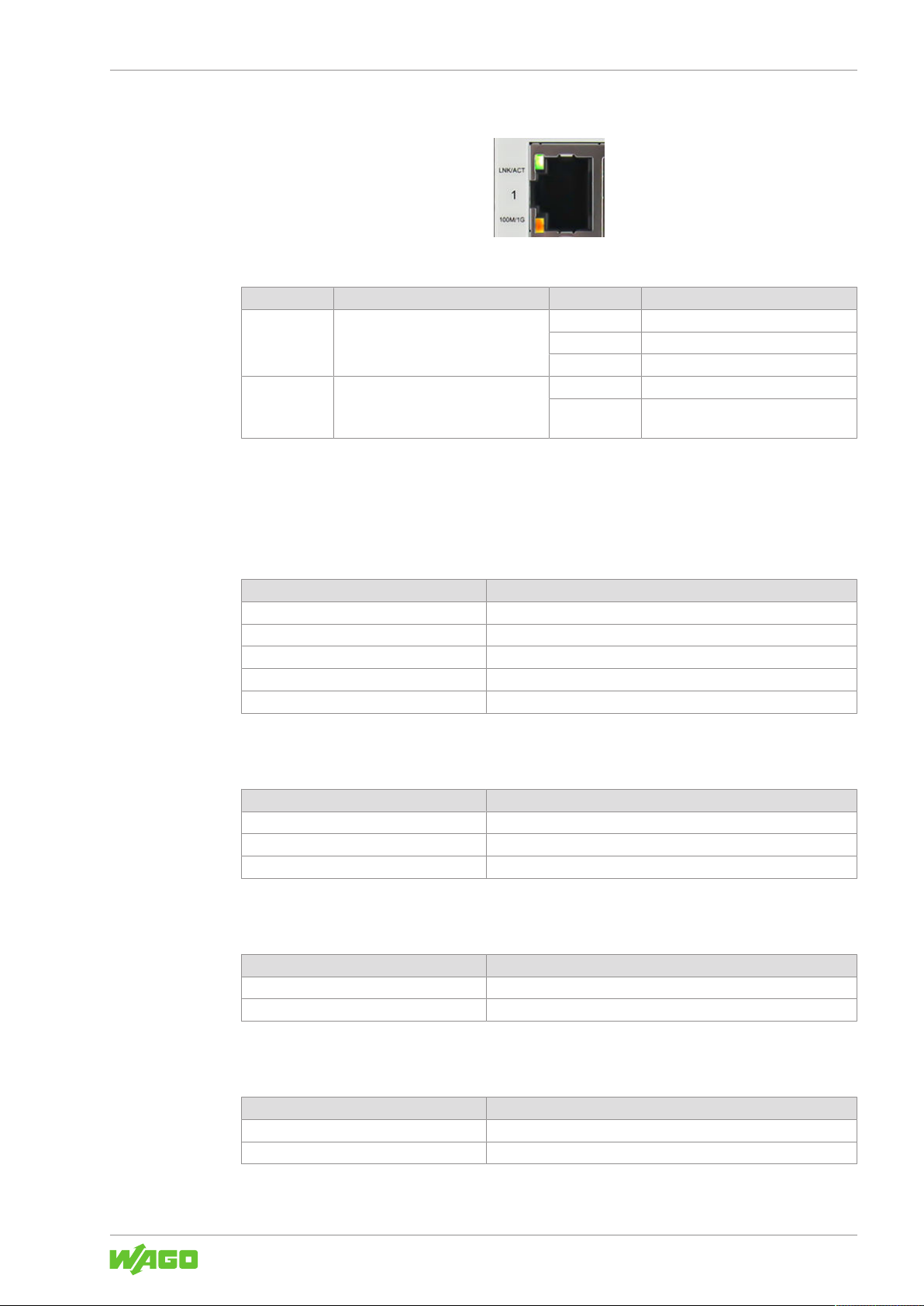

8Port LEDs [}19]
8Port LEDs [}19]

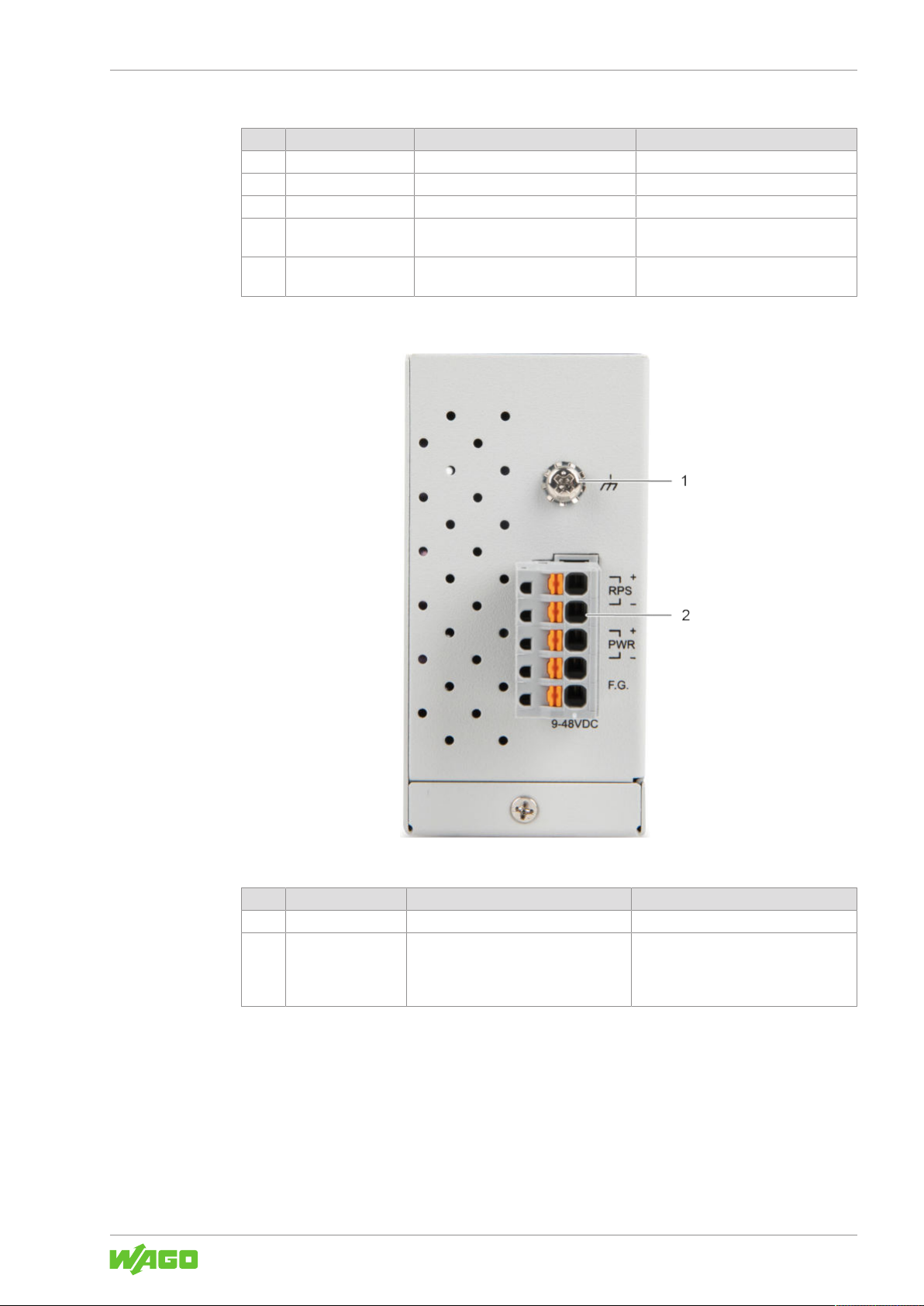

4.1.2 Top View
Figure2: Top View of the Industrial Managed Switch
Table2: Legend for the Figure “Top View of the Industrial Managed Switch”
Pos. Custom Name Explanation Details
1 - Grounding screw
2 - Connector (male) for power consump-
tion (RPS/PWR/F.G.)
(RPS/PWR/F.G.)
(Item number 2231-105/026-000)
8Grounding screw [}16]
8Power Supply [}16]
Product manual | Version: 1.2.0 15
Industrial Managed Switch

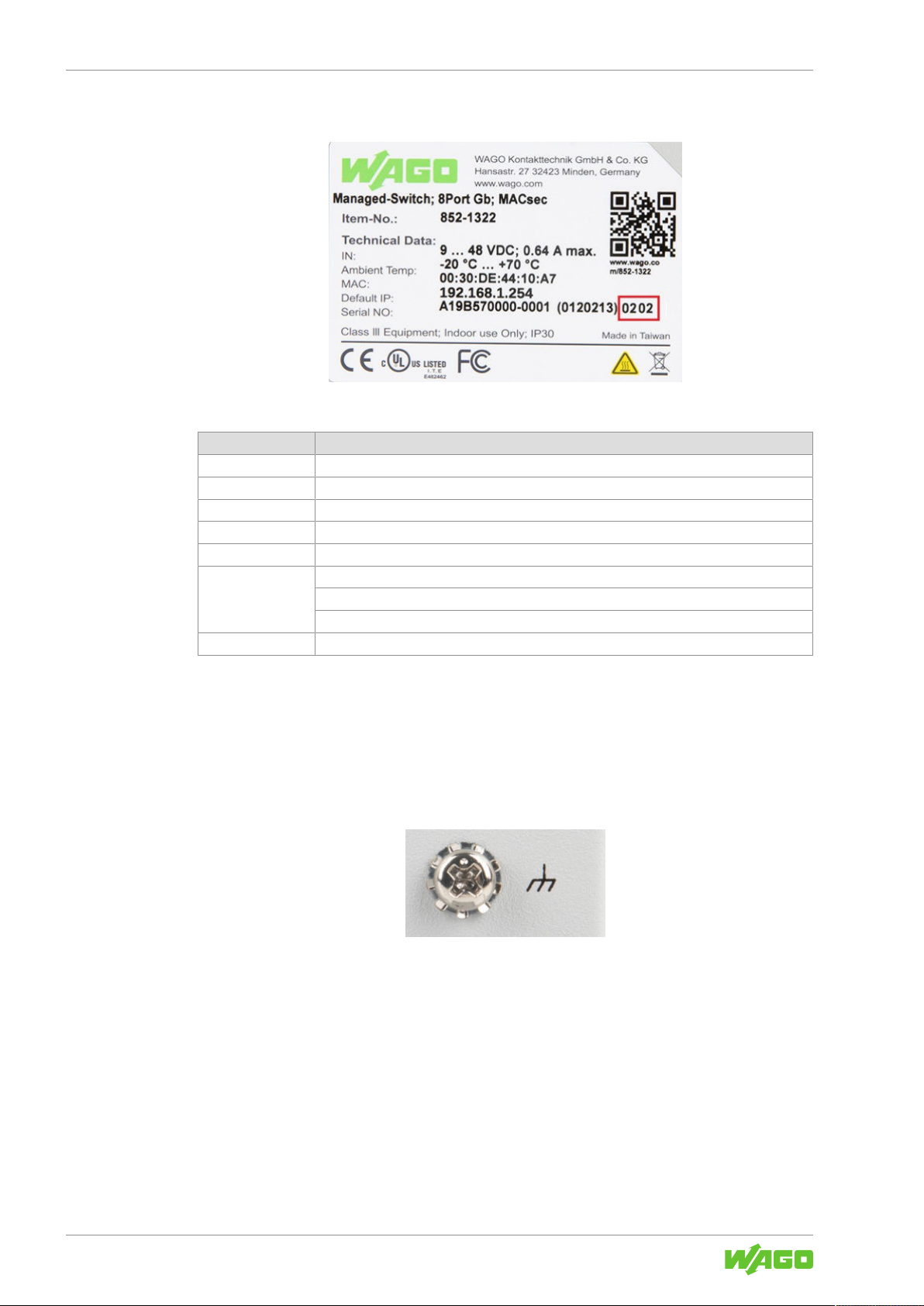

4.2 Label
Custom Name Description
Item-No Item number
IN Device input and maximum current and voltage
Ambient Temp Device input and maximum current and voltage
MAC Device MAC information
Default IP Device default IP address
Serial NO Device serial number
Firmware Version (left digit sequence) (02)
Hardware Version (right digit sequence) (02)
QR code Connect to product information by scanning this QR code
852-1322Properties
Figure3: Label
Table3: Legend for Figure „Label“
4.3 Connectors
4.3.1 Grounding screw
The switch must be grounded. Connect the grounding screw to the ground potential. Do
not operate the switch without an appropriately installed protective earth conductor.
4.3.2 Power Supply
The female connector (Item No. 2231-105/026-000) can easily be connected to the 5pole male connector (Item No. 231-435/001-000) located on the top of the switch.
Both PWR and RPS support input voltage between 9 and 48 VDC.
The male connector shows the following pin assignment:
Figure4: Grounding screw
16 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Properties
!

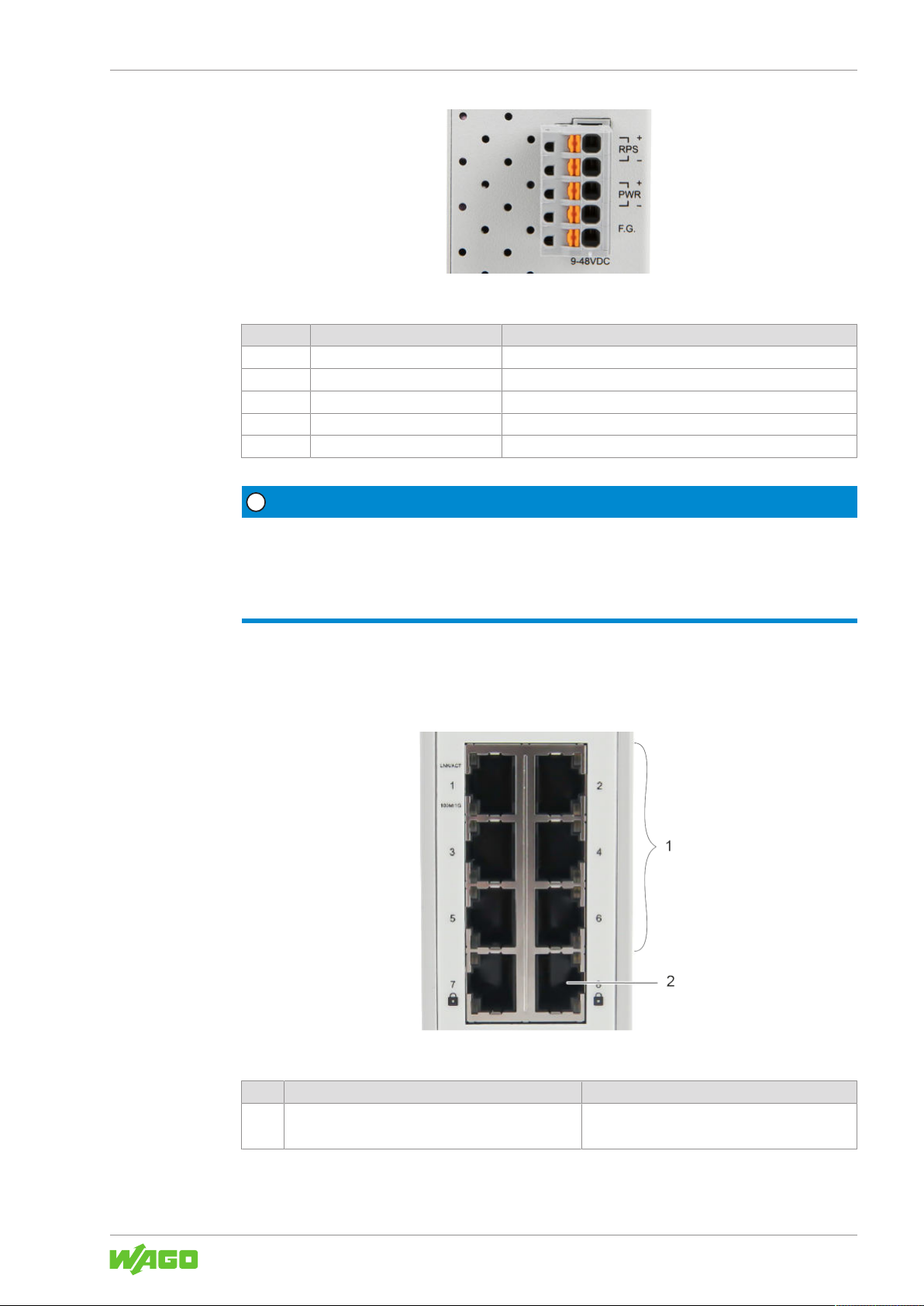

Figure5: Power Supply Connector
Table4: Legend for Figure “Power Supply"
Connection Custom Name Description
+ RPS Secondary DC input
‑ RPS Secondary DC input
+ PWR Primary DC input
- PWR Primary DC input
F.G. Functional Ground
NOTICE
Damage to Property Caused by Electrostatic Discharge (ESD)!
DC Powered Switch: Power is supplied through an external DC power source. Since the
switch does not include a power switch, plugging its power adapter into a power outlet will
immediately power it on.
4.3.3 Network Connections
The industrial managed Switch uses ports with copper connectors and supports ETHERNET, Fast ETHERNET and Gigabit ETHERNET
Figure6: Network Connections
Table5: Legend for Figure "Network Connections"
Pos. Description For Details, see Section:
1 6 x RJ-45 connections
(10/100/1000BASE-T(X))
810/100/1000BASE-T(X) ports [}18]
Product manual | Version: 1.2.0 17
Industrial Managed Switch
Pos. Description For Details, see Section:
2 2 x SFP connections
(10/100/1000BASE-T(X) (MACsec)
4.3.3.1 10/100/1000BASE-T(X) ports
10/100/1000BASE-T(X) ports support networks speeds of 10Mbit/s, 100 Mbit/s und 1000
Mbit/s and can be operated in half- and full-duplex transmission modes. These ports also
provide automatic crossover detection (Auto-MDI/MDI-X), with plug-and-play capabilities.
Simply plug the network cables into the ports; they then adapt to the end node devices.
We recommend the following cable for the RJ-45 ports:
• Cat 5e or better with a max. cable length 100 m.
4.3.3.2 10/100/1000BASE-T(X) (MACsec) ports
The 10/100/1000BASE-T(X) (MACsec) connections offer not only the network speeds
of10 Mbit/s,100 Mbit/s and 1000 Mbit/s, but also encrypted data traffic using the
MACSecurity security standard.
852-1322Properties
810/100/1000BASE-T(X) (MACsec) ports
}18]
[
4.4 Display Elements
The is equipped with device LEDs and port LEDs. You can see the status quickly with the
device LEDs, while the port LEDs provide information about connection actions.

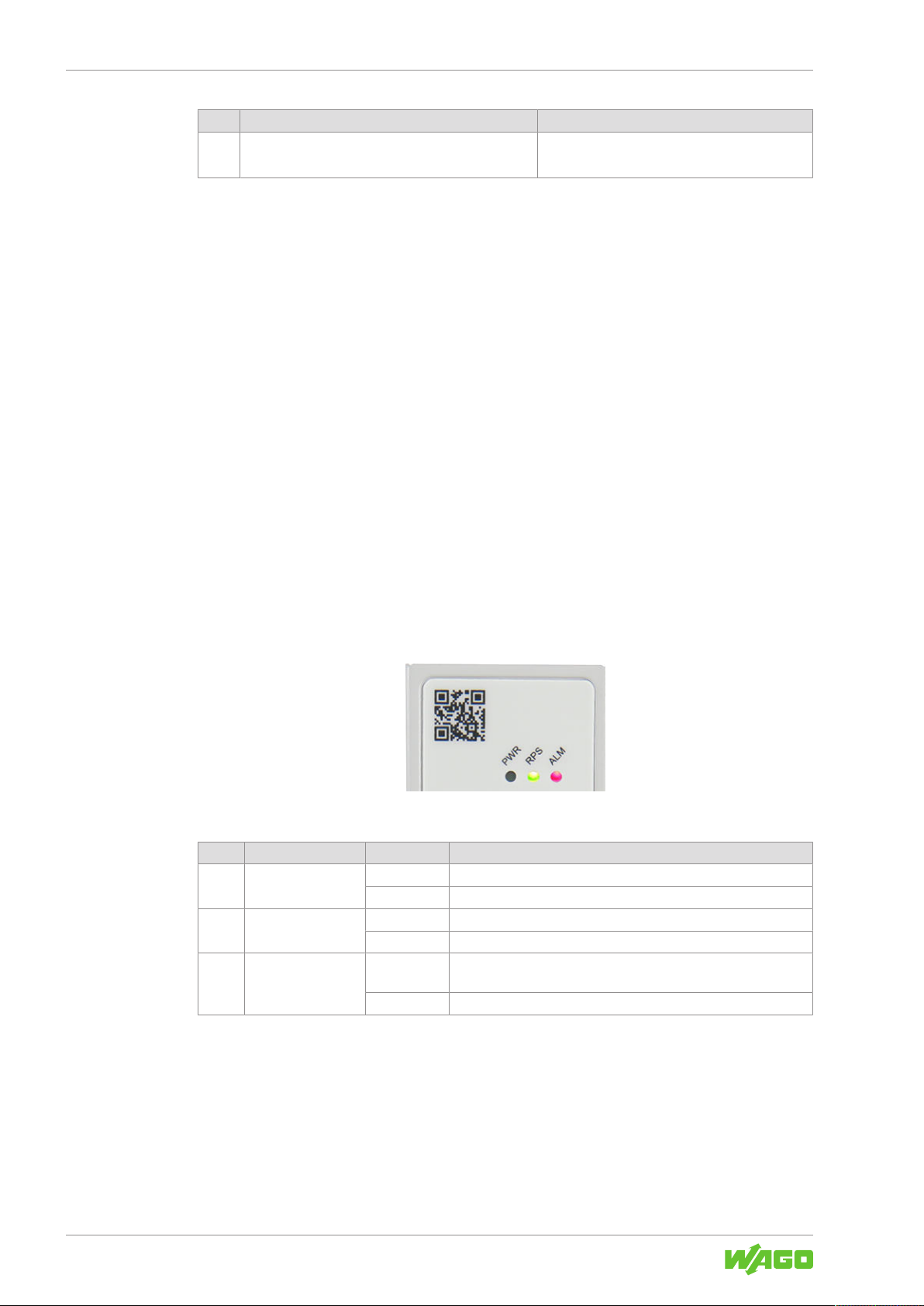

4.4.1 Unit LEDs
LED Name Status Description
PWR Primary-Power-LED Green Use the primary power supply.
RPS Redundant-Power-
System-LED
ALM Alarm-LED Red No power supply at the primary or secondary (PWR or RPS)
Figure7: Unit LEDs
Table6: Legend for “Unit LEDs” Figure
Off Primary power off or failure.
Green Use the redundant power supply.
Off Redundant power off or failure.
power supply.
Off No alarm reported
18 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Properties
4.4.2 Port LEDs
Figure8: Port LEDs
Table7: Legend for „Port LEDs“ Figure
LED Connection Status Description
LINK/ACT 10/100/1000 BASE T Ports LED
(1 LED for each port)
100M/1G 10/100/1000 BASE T Ports LED
(1 LED for each port)
Green Port in operation
Flashes Data traffic routed via the port
Off No proper link established
Amber Port in operation at 100/1000Mbit/s
Off Port in operation at 10Mbit/s or not
linked
4.5 Technical data
4.5.1 Product
Property Value
Width 45.3 mm
Height 110 mm
Depth 92 mm (from the top edge of the carrier rail)
Weight 441 g
Degree of protection IP30
4.5.2 System Data
Property Value
MAC table 16384 entries
Jumbo Frame Size 10kB
Maximum lengths 10/100/1000BASE-T(X): 100m
4.5.3 Power Supply
Property Value
Supply voltage 9 … 48 VDC
Power consumption, max. 5.8 W
Table8: Technical Data – Device Data
Table9: Technical Data – System Data
Table10: Technical Data – Power Supply
4.5.4 Communication
Property Value
Ports (copper, RJ-45) 6x10/100/1000BASE-T(X)
Ports (copper, RJ-45, MAC Security) 2x10/100/1000BASE-T (MAC Security)
Product manual | Version: 1.2.0 19
Industrial Managed Switch
Table11: Technical Data – Communication
Property Value
Standards IEEE 802.3 10BASE-T
4.5.5 Environment requirements
Property Value
Surrounding air temperature, operation -20 … +70 °C
Surrounding air temperature, storage -40 … +85 °C
UL 62368-1 Use Indoor
Pollution degree PD 2
Relative humidity 5 … 95 %, 55 °C
Vibration resistance IEC 60068-2-6
Shock resistance IEC 60068-2-27
EMC immunity to interference EN 55024
EMC Emission of interference FCC Part15, SubpartB, ClassA,
852-1322Properties
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control, back pressure Flow Control
IEEE 802.1Q for VLAN Tagging (Prioritization of Profinet Packets)
IEEE 802.1p for CoS (Prioritization of Profinet Packets)
IEEE 802.1AE for MAC Security
Table12: Technical Data ‒ Environmental Conditions
EN 61000-6-2
EN 61000-6-1
ClassB
EN 55032 ClassA and ClassB
EN 61000-6-4
EN 61000-6-3
EN 55011
4.6 Guidelines, approvals and standards
4.6.1 Approvals
The following approvals have been granted for the product:
Conformity Marking
Ordinary Locations UL62368 (E482462)
Note
More information on approvals
You can find detailed information on the approvals online at:
number>
4.6.2 Regulations and Standards
Please observe the standards and regulations that are relevant to installation:
üwww.wago.com/<item
20 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Properties
• The data and power lines must be connected and installed in compliance with the standards to avoid failures on your installation and eliminate any danger to personnel.
• For installation, startup, maintenance and repair, please observe the accident prevention regulations of your machine (e.g., DGUV Regulation “Electrical Installations and
Equipment”).
• Emergency stop functions and equipment must not be deactivated or otherwise made
ineffective. See relevant standards (e.g., EN418).
• Your installation must be equipped in accordance to the EMC guidelines so electromagnetic interferences can be eliminated.
• Please observe the safety measures against electrostatic discharge according to EN
61340-5-1/-3. When handling the modules, ensure that environmental factors (persons,
workplace and packing) are well grounded.
• The relevant valid and applicable standards and guidelines regarding the installation of
switch cabinets must be observed.
Product manual | Version: 1.2.0 21
Industrial Managed Switch
5Functions
5.1 Security
5.1.1 IEEE 802.1X
IEEE 802.1X is an IEEE standard for port-based Network-Access Control protocol. It provides an authentication mechanism to devices that need to attach to a LAN. This protocol
restricts unauthorized clients from connecting to a LAN through ports that are opened to
the Internet. The authentication generally involves three parties (see Figure “RADIUS Authentication Sequence” in Section
and an authentication server.
• Supplicant: A client device that requests access to the LAN
• Authentication Server: This server performs the actual authentication. We utilize RA-
DIUS („Remote Authentication Dial-In User Service“ as the authentication server.
• Authenticator: The Authenticator is a network device (i.e. the WAGO Industrial managed switch) that acts as a proxy between the supplicant and the authentication server.
It passes around information, verifies information with the server, and relays responses
to the supplicant.
852-1322Functions
8RADIUS [}22]): a supplicant, an authenticator,
The authenticator acts like a security guard to a protected network. The supplicant is not
allowed accessing to the protected side of the network through the authenticator until the
supplicant’s identity has been validated and authorized. With IEEE802.1X authentication,
a supplicant and an authenticator exchange EAP („Extensible Authentication Protocol“,
an authentication framework widely used by IEEE) aus. Then the authenticator forwards
this information to the authentication server for verification. If the authentication server
confirms the request, the supplicant (client device) will be allowed to access resources located on the protected side of the network.
5.1.2 RADIUS
The RADIUS is a networking protocol that provides authentication, authorization and accounting (AAA) management for devices to connect and use a network services. Figure

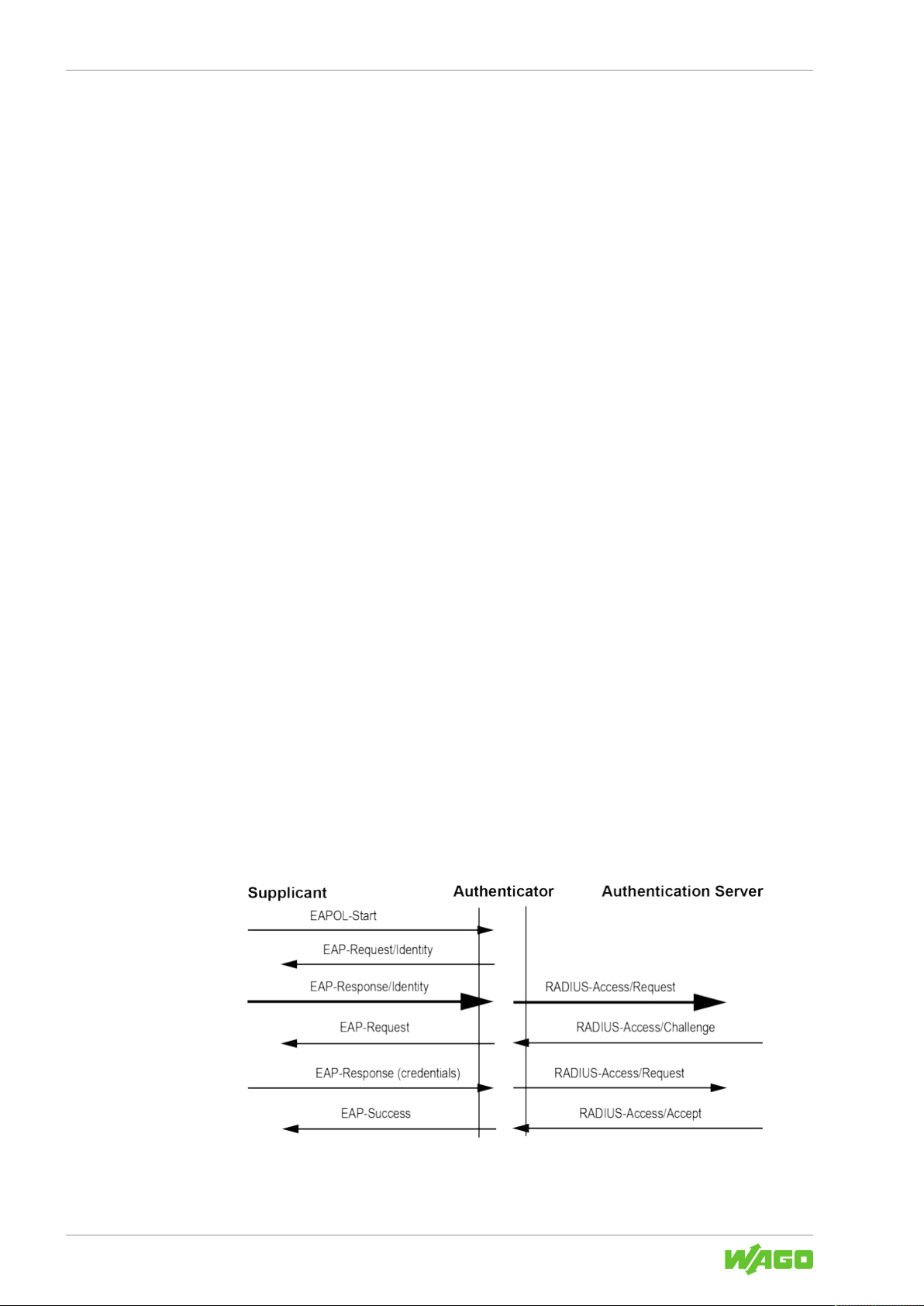

“RADIUS Authentication Sequence” shows a diagram of RADIUS authentication sequence.
22 Product manual | Version: 1.2.0
Industrial Managed Switch
Figure9: RADIUS Authentication Sequence
852-1322 Functions
5.1.3 MAC Security (MACSec)
WAGO industrial managed switches support advanced security features that allow traffic
encryption and high throughput. MACsec or Media Access Control Security is a security
standard specified by IEEE also called IEEE 802.1AE. This IEEE MAC security standard
provides connectionless user data confidentiality, frame data integrity, and data origin authenticity. MACsec can establish point-to-point security on ETHERNET links between directly connected nodes. WAGO industrial managed switches support this security feature
and can be used to transparently secure an IEEE 802 LAN connection to a peer device
(such as another switch) that also supports the MACsec.
MACsec defines two terms called secure channel and connectivity association when setting up a secure communication between two switches. A secure channel in MACsec is
unidirectional and used for transmitting (outbound traffic) or receiving (inbound traffic)
data. A connectivity association when MACsec is enabled consists of two secure channels: one for inbound traffic and one for outbound traffic.
The point-to-point links can be secured by MACsec after matching security keys are exchanged and verified between the ports on two different secure switches.
The static secure association key (SAK) security mode is when the user manually configured the same static secure association key (SAK) on both sides of a connection. There
is no key server in this mode and the keys must be matched on the ports of both
switches. This can be viewed as setting up two secure channels within a connectivity association. It is suggested to have a periodic manual key update in order to prevent the
key to be broken by brute-force attack.
Product manual | Version: 1.2.0 23
Industrial Managed Switch
6Planning
6.1 Structure Guidelines
6.1.1 Installation Site
The location selected to install the may greatly affect its performance. When selecting a
site, we recommend considering the following rules:
• Install the at an appropriate place. See Section
for the acceptable temperature and humidity operating ranges.
• Make sure that the heat output from the and ventilation around it is adequate.
• Do not place any heavy objects on the .
852-1322Planning
8Environment requirements [}20] ,
24 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Transport and Storage
7Transport and Storage
The original packaging offers optimal protection during transport and storage.
• Store the product in suitable packaging, preferably the original packaging.
• Only transport the product in suitable containers/packaging.
• Make sure the product contacts are not contaminated or damaged during packing or
unpacking.
• Observe the specified ambient climatic conditions for transport and storage (
ronment requirements [
}20]).
8Envi-
Product manual | Version: 1.2.0 25
Industrial Managed Switch
8Installation and Removal
8.1 Installation
8.1.1 Installation on a Carrier Rail
The carrier rail must optimally support the EMC measures integrated into the system and
the shielding of the internal data bus connections.
Place the onto the DIN rail from the top and snap it into position.
8.2 Removal
8.2.1 Removal from Carrier Rail
To remove the industrial managed switch from the carrier rail, insert a suitable tool into
the metal tab under the switch and deflect the metal tab downward.
852-1322Installation and Removal
You can then release the switch down from the carrier rail and remove it upwards.
26 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Connection
9Connection
9.1 Grounding
Grounding is through the grounding screw on the top of the product.
The switch must be grounded. Connect the grounding screw to the ground potential. Do
not operate the switch without an appropriately installed protective earth conductor.
9.2 Connecting the Supply Voltage
The switch uses direct-current power supply of 9 … 48 VDC .
The primary and secondary power supply pins are connected via a 5-pin plug-in connection located on the top of the industrial managed switch.
The female connector (Item No. 2231-105/026-000) is composed of five connecting terminals and can be inserted and removed easily by hand to connect to the 5-pin plug connector located on the top of the switch.
1. Connect a suitable grounding conductor to the grounding lug on the top of the
switch.
Note Ground for the switch
The ground for the switch prevents electromagnetic interference from electromagnetic radiation.
Observe the corresponding standards for EMC-compatible installations as well.
2. Plug the female connector into the male connector of the switch if it has not already
been plugged in. Check the tight fit of the multipoint connector by gently shaking it.
3. PWR +/-:
To connect or disconnect the conductors, actuate the spring directly in the female
connector using a screwdriver or an operating tool and insert or remove the conductor.
4. Check whether the power LED “PWR” on the top of the device lights up when power
is supplied to the device. If not, check to ensure that the power cable is plugged in
correctly and fits securely.
5. RPS +/-:
To connect or disconnect the conductors, actuate the spring in the female connector
directly using a screwdriver or an operating tool and insert or remove the conductor.
6. Check whether the power LED “RPS” on the top of the device lights up when power
is supplied to the device. If not, check to ensure that the power cable is plugged in
correctly and fits securely.
9.3 Connect 10/100/1000BASE-T ports
The 10/100/1000BASE-T ports (RJ-45 ETHERNET ports) of the support both autosensing and auto-negotiation.
Product manual | Version: 1.2.0 27
Industrial Managed Switch
852-1322Connection
1. Connect one end of the twisted pair cable of the type Category3/4/5/5e to an available RJ-45 port on the and the other end to the port of the selected network node.
2. Check the respective port LED on the that the connection is established (see Section
8Port LEDs [}19]).
28 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
10Configuration in the WBM
An internal file system and integrated Webserver can be used for configuration and administration of the system. Together, they are referred to as the Web-Based Management
(WBM) system.
The HTML pages saved internally provide you with information about the configuration
and status of the industrial managed switch. In addition, you can also change the configuration of the device here.
Note
Always restart after making changes to the configuration!
The system must always be restarted for the changed configuration settings to take effect.
10.1 Login
1. To open the WBM, launch a Web browser (e.g., Microsoft Edge, Mozilla Firefox or
Google Chrome).
2. Enter the IP address of the device.
3. While the device is booting up, it would send the GARP packets to the network.
Therefore, if you use the DHCP protocol to assign the device’s IP address or you forget the static IP address of the device, you could capture the GARP packets by using Wireshark (a network sniffer software) as shown in Figure “Example of Wireshark
software sniffing on IP address of a switch” to find the IP address that is assigned to
the device.

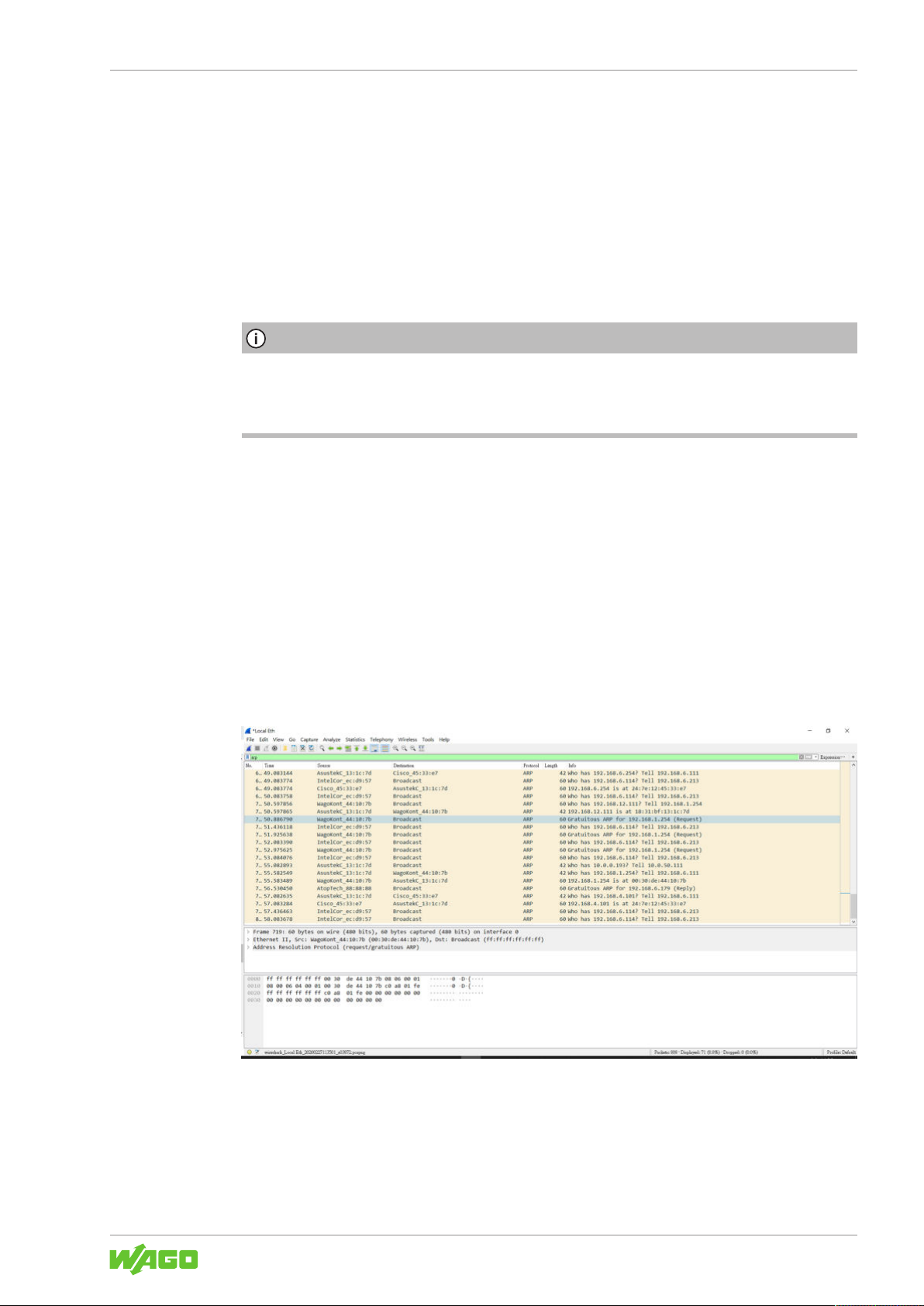

Figure10: Example of Wireshark software sniffing on IP address of a switch
4. Click [Enter] to confirm.
Product manual | Version: 1.2.0 29
Industrial Managed Switch
852-1322Configuration in the WBM
5. If this is the first time that your Web browser access the device, you may see a security warning page.
- Please, click on the red box [Advanced] button and click on [Accept the Risk and
Continue] button.
6. After pressing the [Enter] key.
7. Enter your user name and password in the query dialog:
Username = „admin“
Password = „wago“
8. The start page of WBM loads.

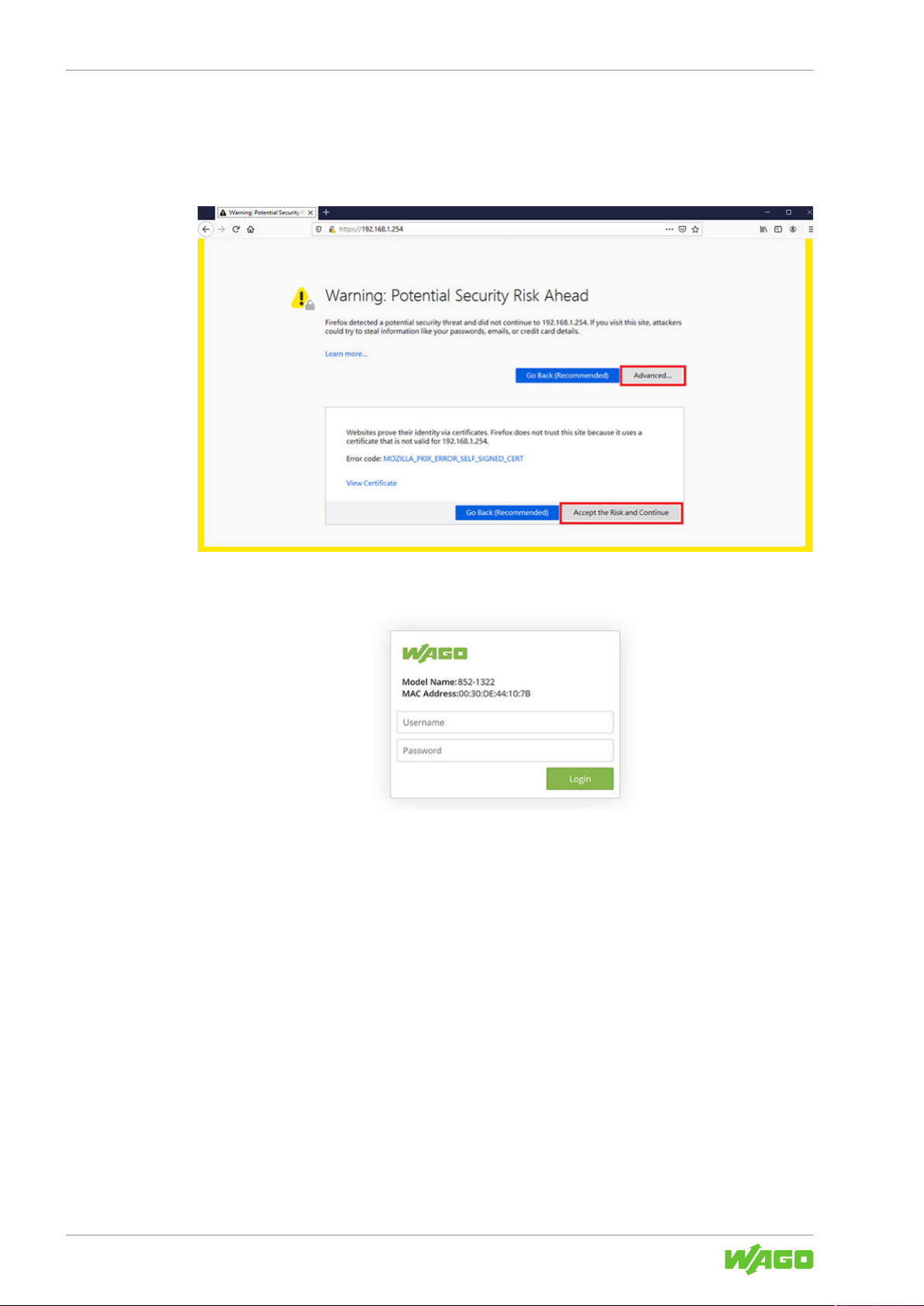

Figure11: Security Warning Page
Figure12: WAGO Login Page
30 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
Figure13: Start Page of WBM
9. Select your desired page on the navigation bar at the top of the screen and clicking
on corresponding tab on the left hand side of the screen.
10. Make the desired settings on the desired web page.
11. Click [Submit] or [Change] or [Add] to confirm or update your changes to apply the
settings.
12. It is highly recommended to avoid using the factory default password during the actual operation of your device. Therefore, if you logged in with the default password
successfully, the device will remind the user to change the password with a warning
pop-up dialog and redirect the user to the change password page as shown in Figure “Default Password Warning Pop-up Dialog on Password Web Page”. Please
click the [OK] button to accept the warning.

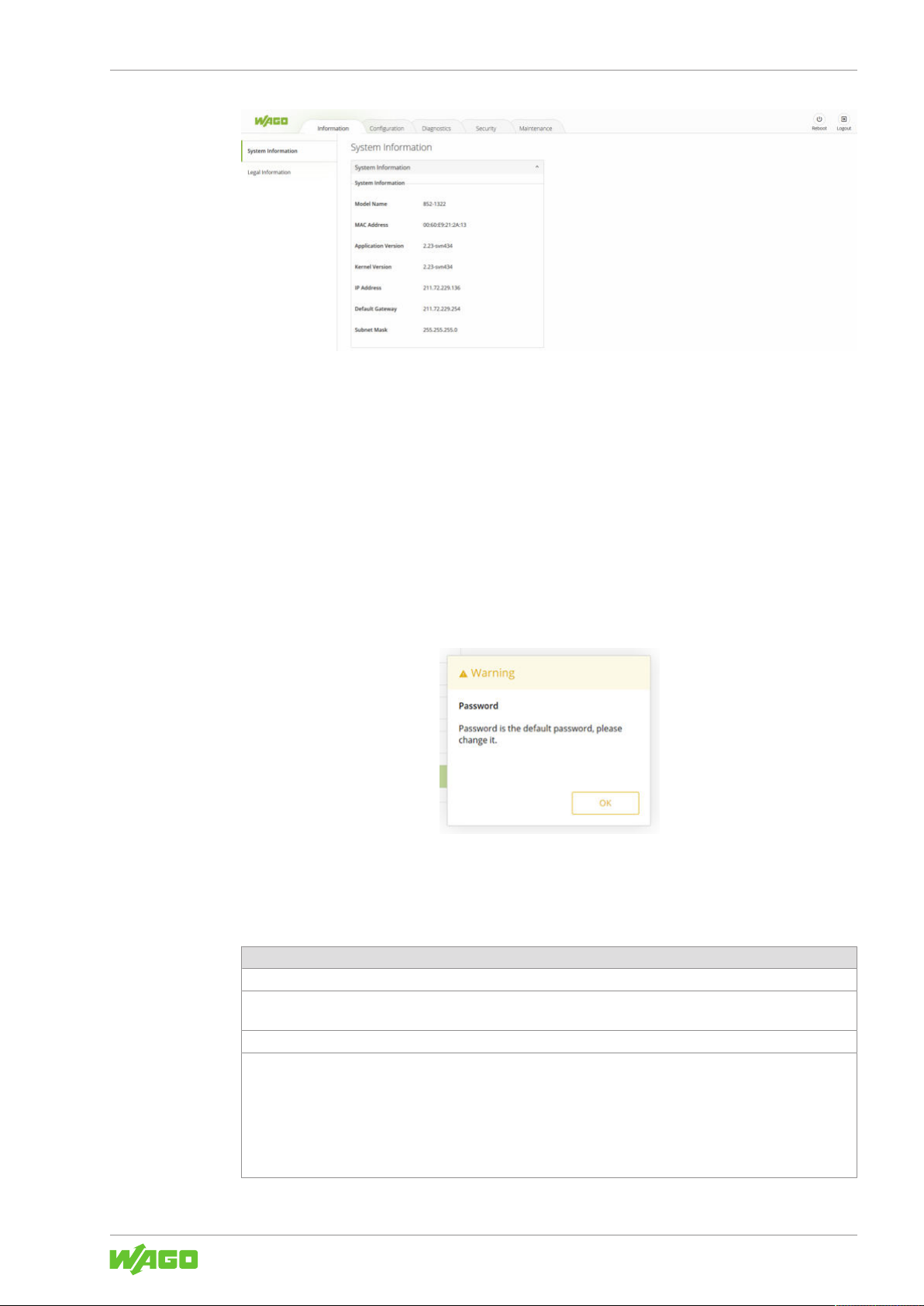

Figure14: Default Password Warning Pop-up Dialog on Password Web Page
You can access the corresponding WBM pages via the links in the navigation bar.
Table13: Overview – Navigation Links and WBM Pages
Navigation Links and WBM Pages
[Information]
• System Information
• Legal Information
[Configuration]
• System Settings
• Device Discovery - LLDP
• System Management - SNTP
• Network Settings
• Port Settings

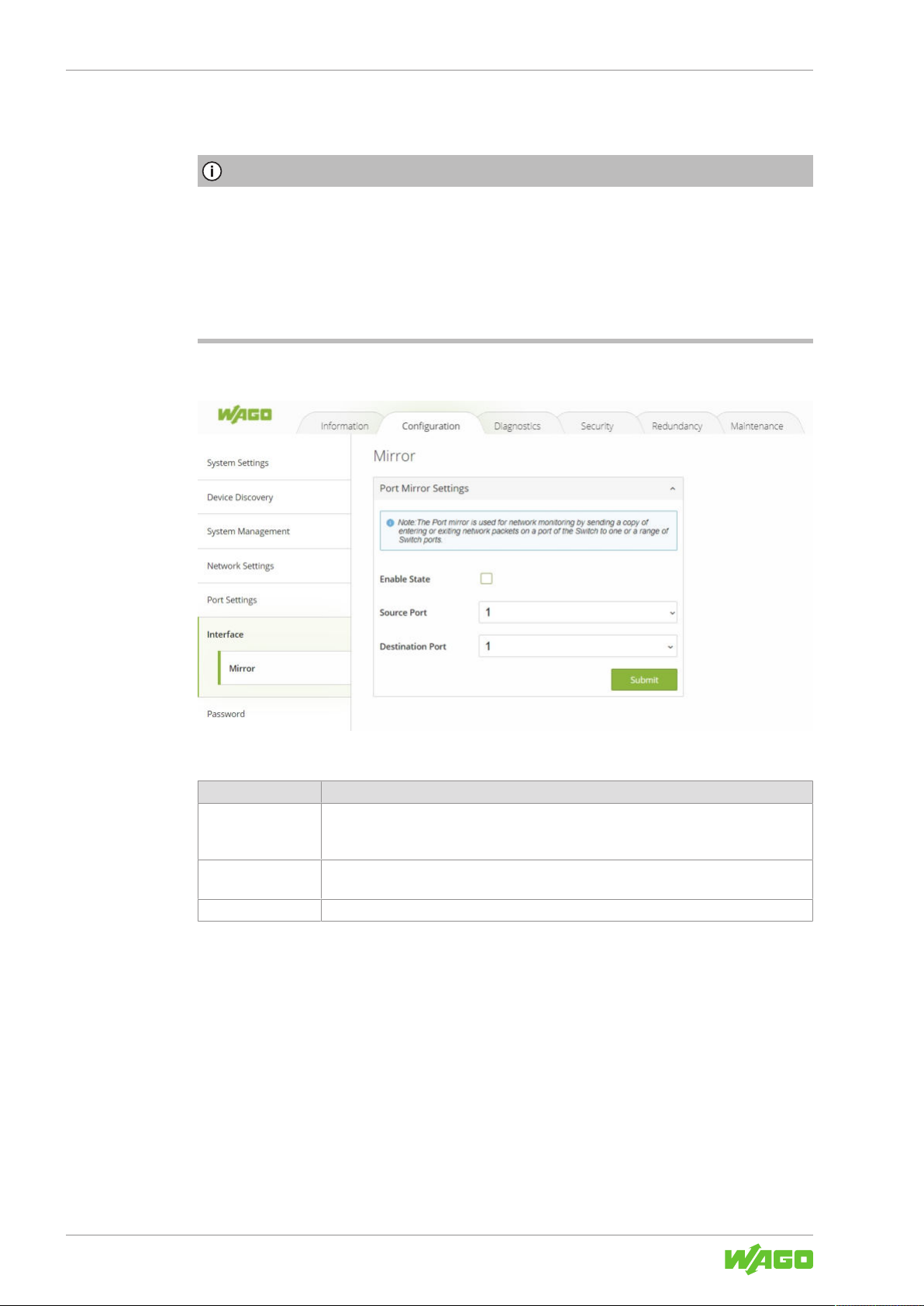

• Interface - Mirror
• Password
Product manual | Version: 1.2.0 31
Industrial Managed Switch
Navigation Links and WBM Pages
[Diagnostics]
• SNMP
• Modbus® TCP
• System-Log
• Port Monitor
[Security]
• Static SAK
• Secure Code
• 802.1X (IEEE 802.1X)
• Port Security

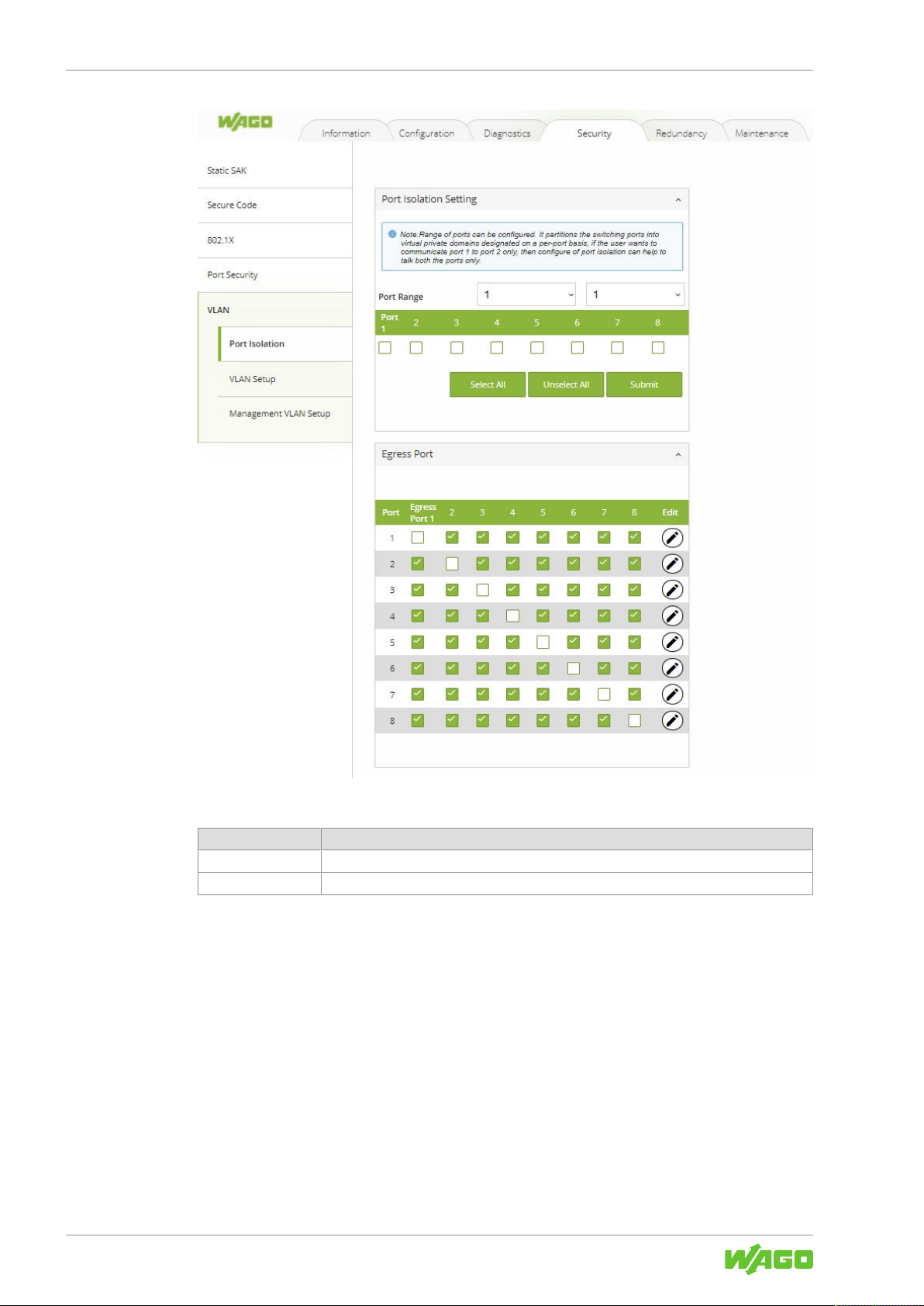

• VLAN
[Redundancy]

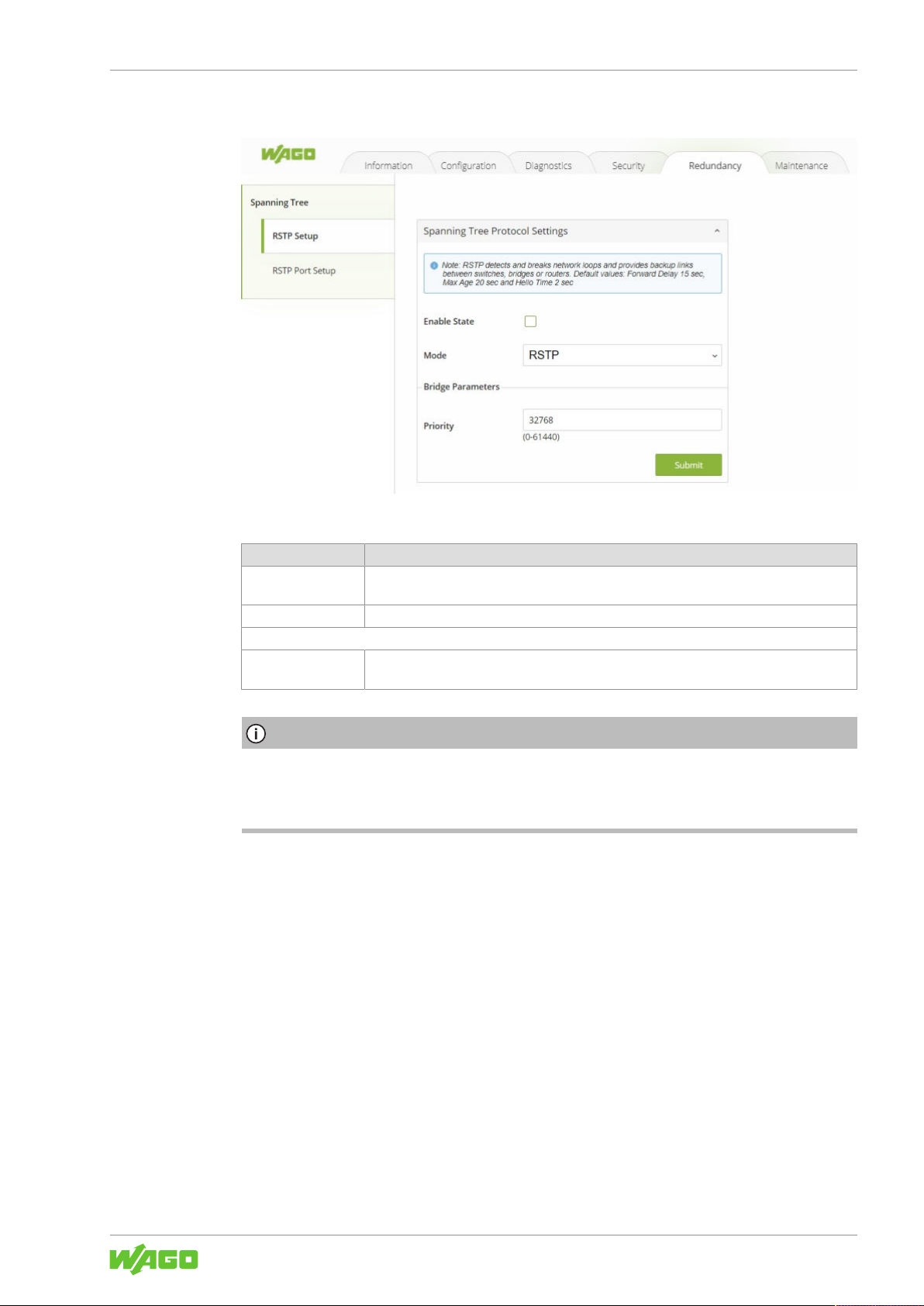

• RSTP
[Maintenance]
• Firmware-Upgrade
• Reset to Default
• Backup/Restore
• Reboot
• Logout
852-1322Configuration in the WBM
The settings/configuration of the industrial managed switch can be made on these WBM
pages.
The default values are displayed in bold.
10.2 Login Failure
If you failed to login, you will encounter an Error dialog as shown in Figure “Login Failure
Dialog”. You will have two options or buttons to choose from which are [Forget it] or [Try
again] buttons. If you click the [Try again] button, you will be re-directed to the Login
page with some waiting time, which is determined by the number of times that the user
failed to login. The first and the second tries will have 0 second waiting time. The third try
will have a waiting time of 10 seconds. The fourth try will have a waiting time of 100 seconds. The fifth up to tenth tries will have a waiting time of 1000 seconds. If the user tried
more than ten times, the user will only be able to click the [Forget it] button to log in with
the a secure code generated by the security card as shown in Figure “Example of Security Card”.
Note
Functions of the “Secure code” tab
The use of the security card and the [Forget it] option is enabled by default on the device. You can disable this feature in the “Security” – “Secure code” tab page, after logging
in for the first time.
32 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM

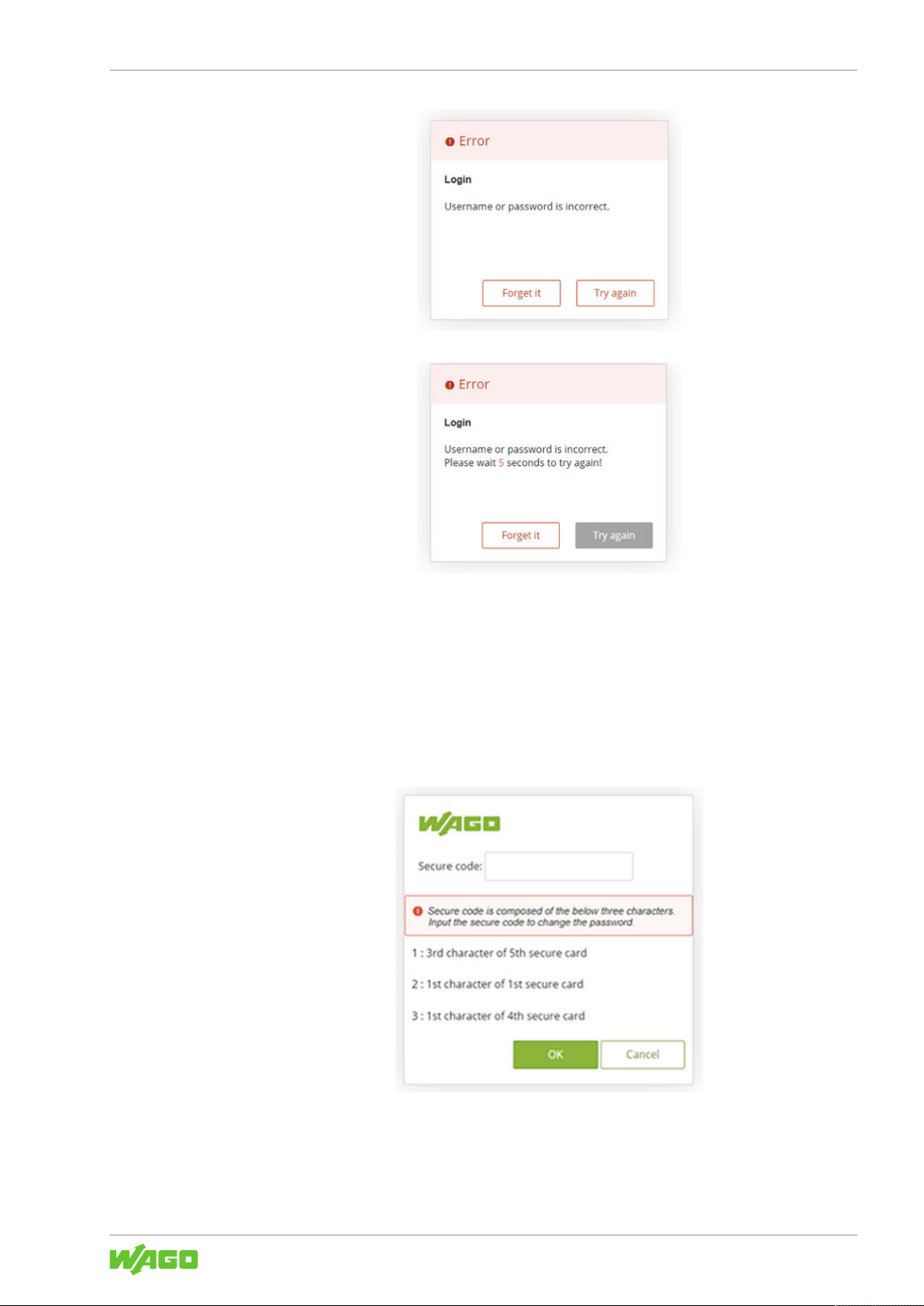

Figure15: Login Failure Dialog
Figure16: Login Failure Dialog with only [Forget it] button
If you click on the [Forget it] button, the device will randomly ask for a secure code of
three characters. The three characters are randomly chosen from the security card. You
will need to look up the characters in the security card and use them to enter them in the
Secure code textbox as shown in Figure “Example of Dialog after Clicking [Forget it] Button”. The secure code dialog in Figure “Example of Dialog after Clicking [Forget it] Button” provides the hints on the newly composed secure code. Based on the security card
given in Figure “Example of Security Card”, the secure code is “NLS”. The dialog has two
buttons to choose from: [OK] and [Cancel] .
Figure17: Example of Dialog after Clicking [Forget it] Button
Product manual | Version: 1.2.0 33
Industrial Managed Switch
852-1322Configuration in the WBM

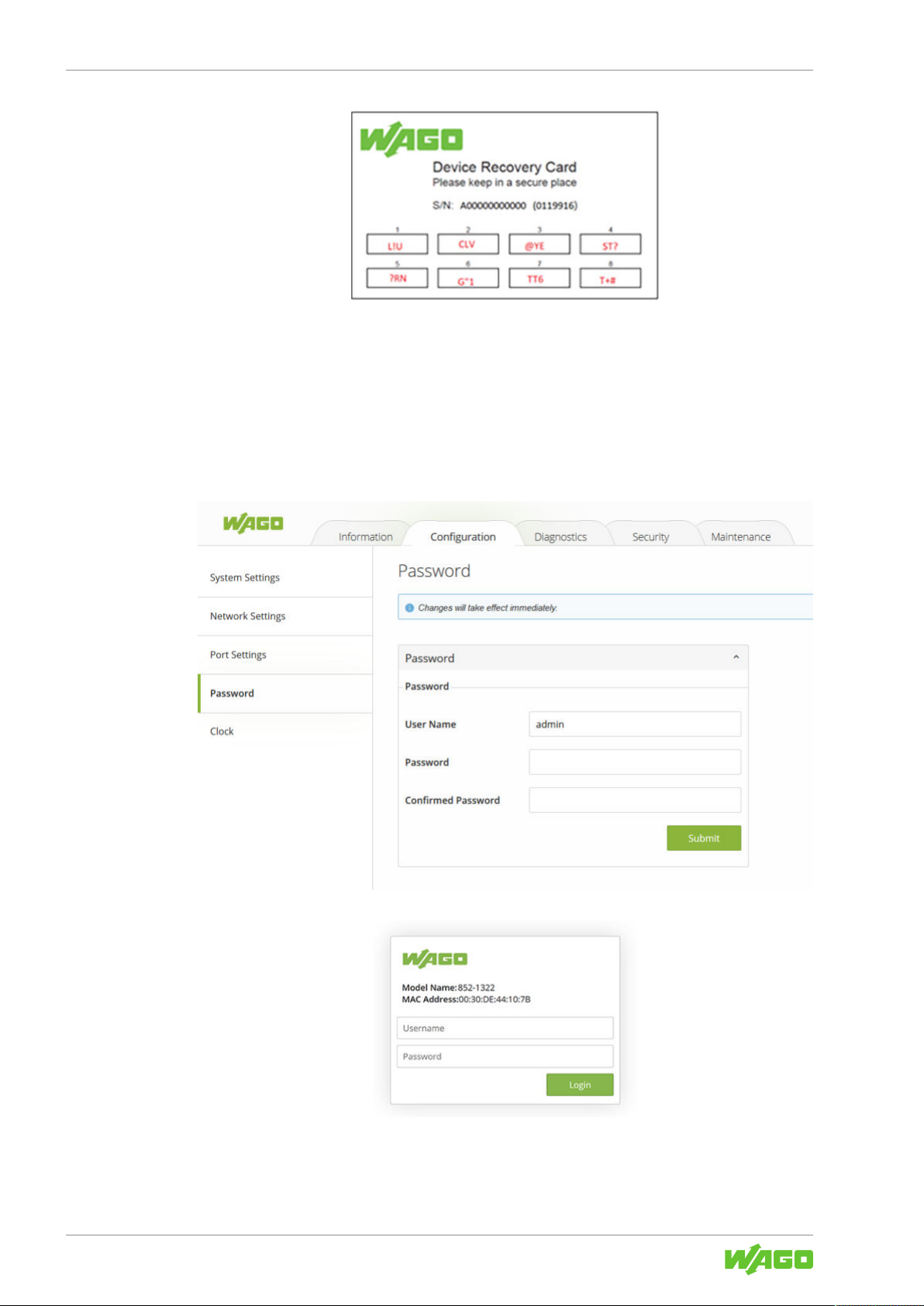

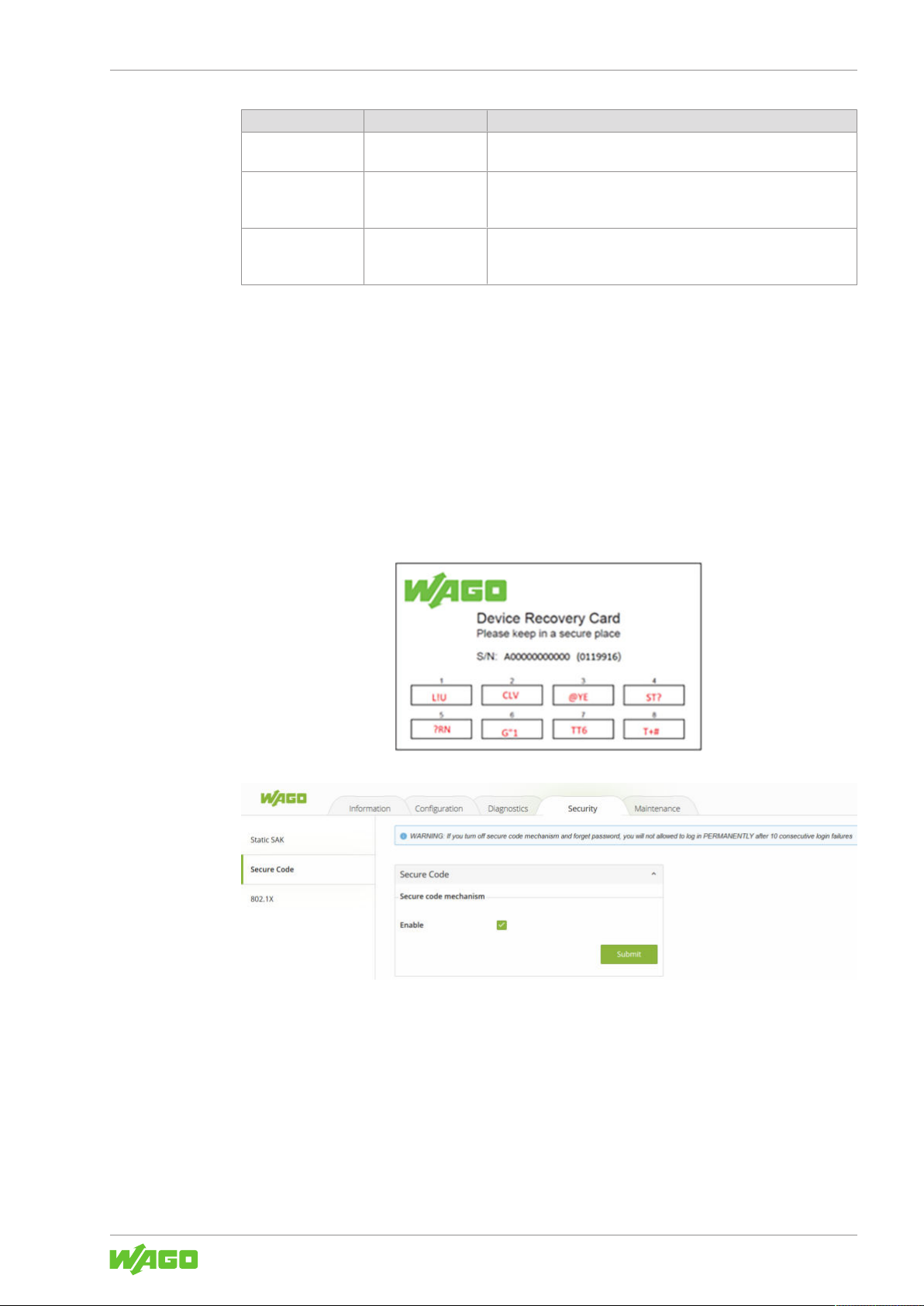

Figure18: Example of Security Card
After clicking [OK] button with a correct secure code from the security card, you will be
re-directed to the change password tab page to immediately update the password as
shown in Figure “Re-direction to Change Password Tab Page”. When you finished
changing the new password, click on the [Submit] button. The system will prompt you
with the WAGO login page to enter the new password as shown in Figure “WAGO Login
Dialog after Resetting Password”.
34 Product manual | Version: 1.2.0
Industrial Managed Switch
Figure19: Re-direction to Change Password Tab Page
Figure20: WAGO Login Dialog after Resetting Password
852-1322 Configuration in the WBM
10.3 Information
10.3.1 System Information
To help users become familiar with the device, the System Information tab page provides
important details of the WAGO’s industrial managed switch. This is also the main welcome screen once the user has logged in. The details make it easier to identify different
switches connected to the network. The user can check various information such as the
Model Name, MAC Address, Application Version, Kernel Version, IP Address, Default
Gateway and Subnet Mask. Figure “WBM “Information” Page – “System Information”
Tab” depicts an example of System Information of WAGO 852-1322 switch. Table “WBM
“Information” Page – “System Information” Tab” summarizes the description of each field
of system information.

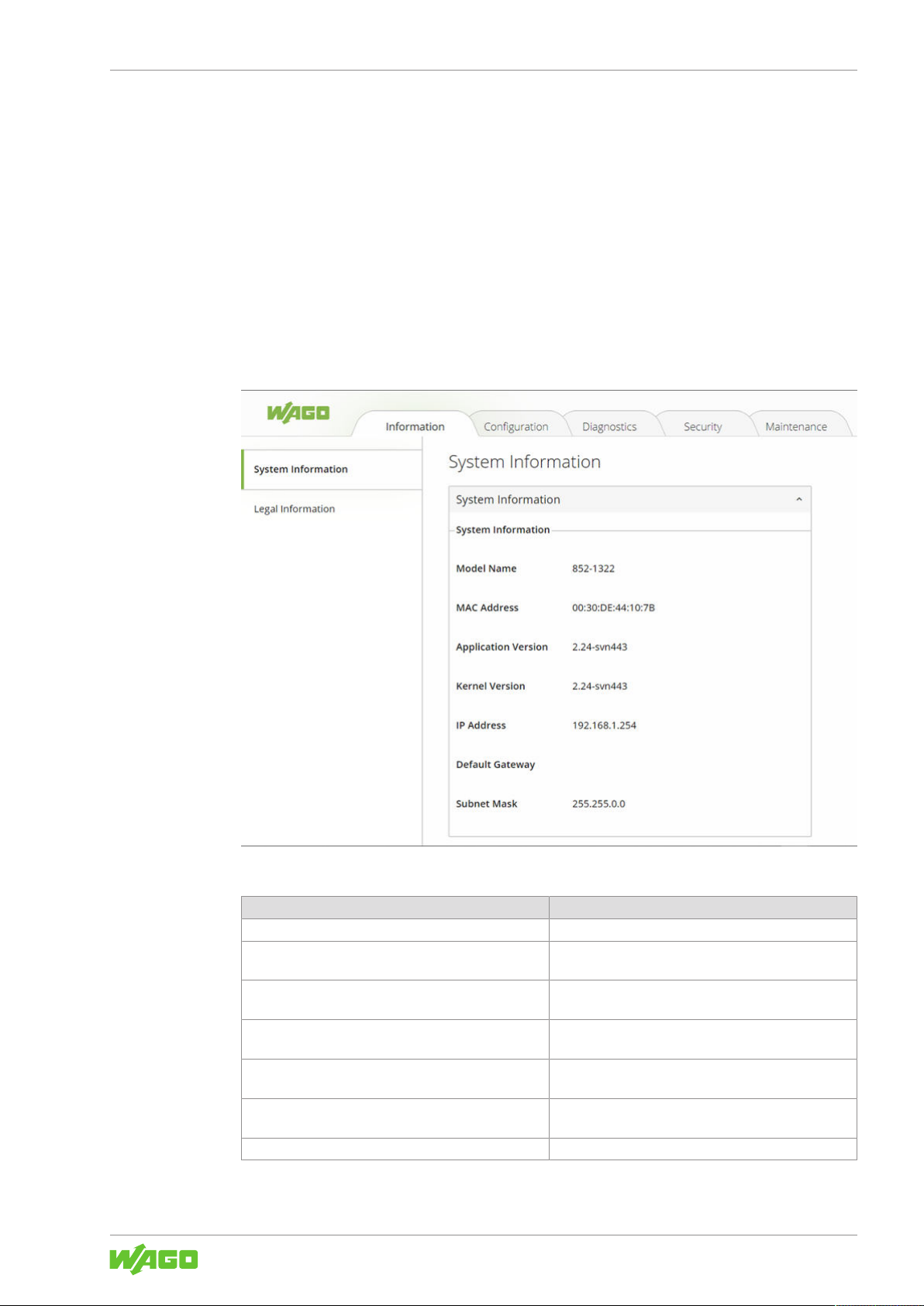

Figure21: WBM “Information” Page – “System Information” Tab
Table14: WBM “Information” Page – “System Information” Tab
Parameter Description
Model Name This display field shows the model name of the switch.
MAC Address This display field shows the MAC (Media Access Con-
trol) address of the switch.
Application Version This display field shows the application version of the
firmware inside the switch.
Kernel Version This display filed shows the kernel version of the
firmware inside the switch.
IP Address This display field shows the IP address of the switch. It
is also the IP address for logging in to the device.
Default Gateway This display field shows the default gateway of the
switch.
Subnet Mask This display filed shows the subnet mask of the switch.
Product manual | Version: 1.2.0 35
Industrial Managed Switch
10.3.2 Legal Information
This page has two tabs that are WAGO Licenses and Open Source Licenses. They list all
information and terms about software license agreement.
Wago Licenses
852-1322Configuration in the WBM
Open Source Licenses
10.4 Configuration
Figure22: WBM “Information” Page – “Legal Information” – “WAGO Licenses” Tab
Figure23: WBM “Information” Page – “Legal Information” – “Open Source License” Tab
10.4.1 System Settings
Users can assign device’s details to WAGO’s industrial managed switch on this System
Settings tab page. By entering unique and relevant system information such as device
name, this information can help identifying one specific switch among all other devices in
the network. Please click on the [Submit] button to update the information on the switch.
Figure “WBM “Configuration” Page – “System Settings” Tab” shows System Settings
36 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
page of the product. Table “WBM “Configuration” Page – “System Settings” Tab” summarizes the device information setting descriptions and corresponding default factory settings.
Parameters Factory Default Description
Device Name (None) This text field can specify a particular role or application of differ-
10.4.2 Device Discovery – LLDP
The LLDP (Link Layer Discovery Protocol) allows stations connected to a LAN according
to IEEE 802.1ab to send information to other stations connected to the same LAN. The
information includes essential system functions, including the management address or
addresses of an entity or entities that provide management of these functions, as well as
identification of the station’s access point to the IEEE802 LAN required by the management entity or entities.
LLDP information can only be sent to and received from devices; no information is requested, and no state changes are made between nodes. The device can turn the send
and receive functions on and off independently.
LLDP is designed to be managed using SNMP. Applications that use this protocol include
topology discovery, inventory management, emergency services, VLAN assignment, and
inline power.

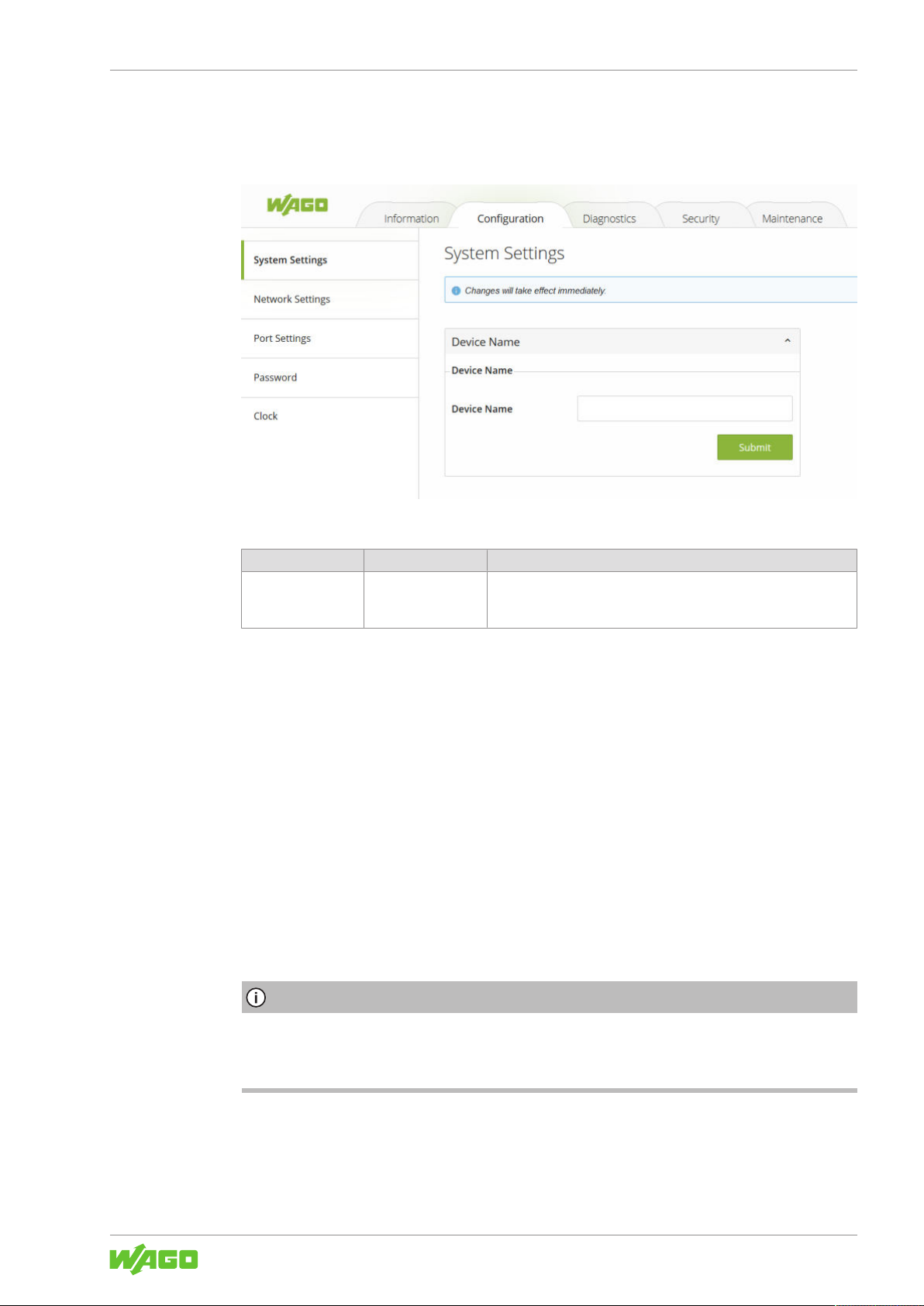

Figure24: WBM “Configuration” Page – “System Settings” Tab
Table15: WBM “Configuration” Page – “System Settings” Tab
ent switches. This text field can support a maximum of 63 characters.
Note
If enabled, LLDP device information will appear on the topology map of Lean Managed
Switches. The switch information will be shared with other devices connected within the
same network.
Product manual | Version: 1.2.0 37
Industrial Managed Switch
852-1322Configuration in the WBM
Parameter Description
Enable State Select Enable State to enable LLDP on the switch. Deselect Enable State to dis-
able LLDP on the switch. Remember to click on the [Submit] button to confirm your
choice.
LLDP Neighbor Information
Local Port Specify the port on the local switch for which LLDP neighbor information will be
A status overview of the detected LLDP neighbors is displayed here.
displayed. Information about LLDP-enabled devices that has been received on this
port will then be shown.
10.4.3 System Management – SNTP
10.4.3.1 General Information
The SNTP ("Simple Network Time Protocol") is a protocol for synchronizing clocks in
computer systems. It is a less complex implementation of NTP ("Network Time Protocol").
SNTP uses Coordinated Universal Time. No information on time zones or daylight savings time is transmitted. This information falls outside the protocol range and must be obtained separately. The SNTP port is 123.
Figure25: WBM "Configuration" tab – "LLDP Settings" page
Table16: WBM "Configuration" tab – "LLDP Settings" page
In addition:
• The SNTP server always replies with the current UTC time.
• If the switch receives the SNTP reply time, it adjusts the time to the time zone configuration and configures the time for the switch accordingly.
• If the time server's IP address is not specified, the switch does not send an SNTP request packet.
38 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
• If the switch does not receive an SNTP reply packet, it repeats the challenge every ten
seconds.
• If the switch receives an SNTP reply, it repeats the time request from the NTP server
every hour.
• If the time zone and NTP server changes, the switch repeats the request process.
• There is no default SNTP server.
10.4.3.2 SNTP Setup
A mode must first be selected from the Mode pull-down list. Manual mode disables
SNTP. The time must then be set manually. The Network Time Protocol mode enables
SNTP. Both of these modes are described below.
Mode: Manual
Select Manual mode to disable SNTP. The time must then be set manually.

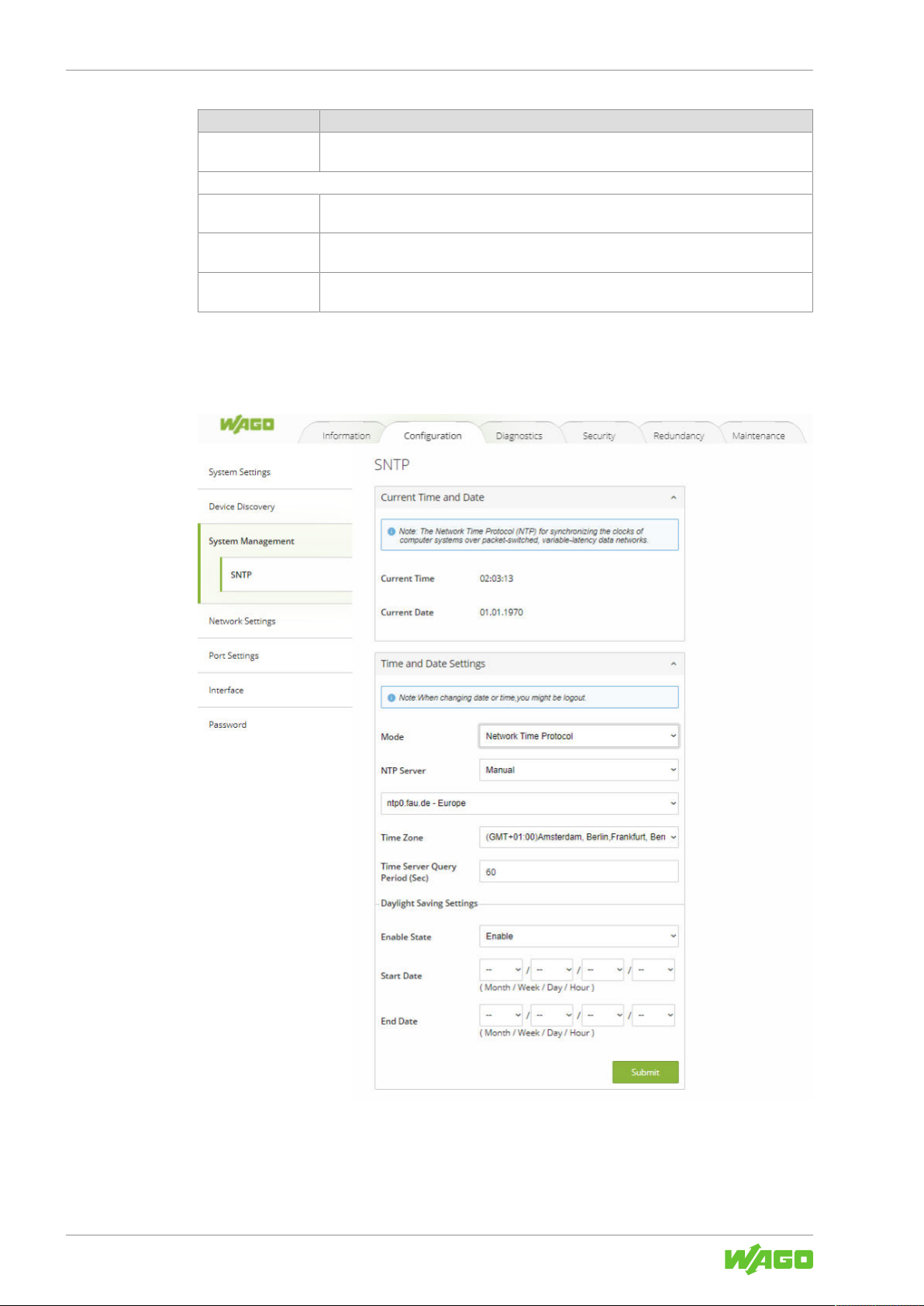

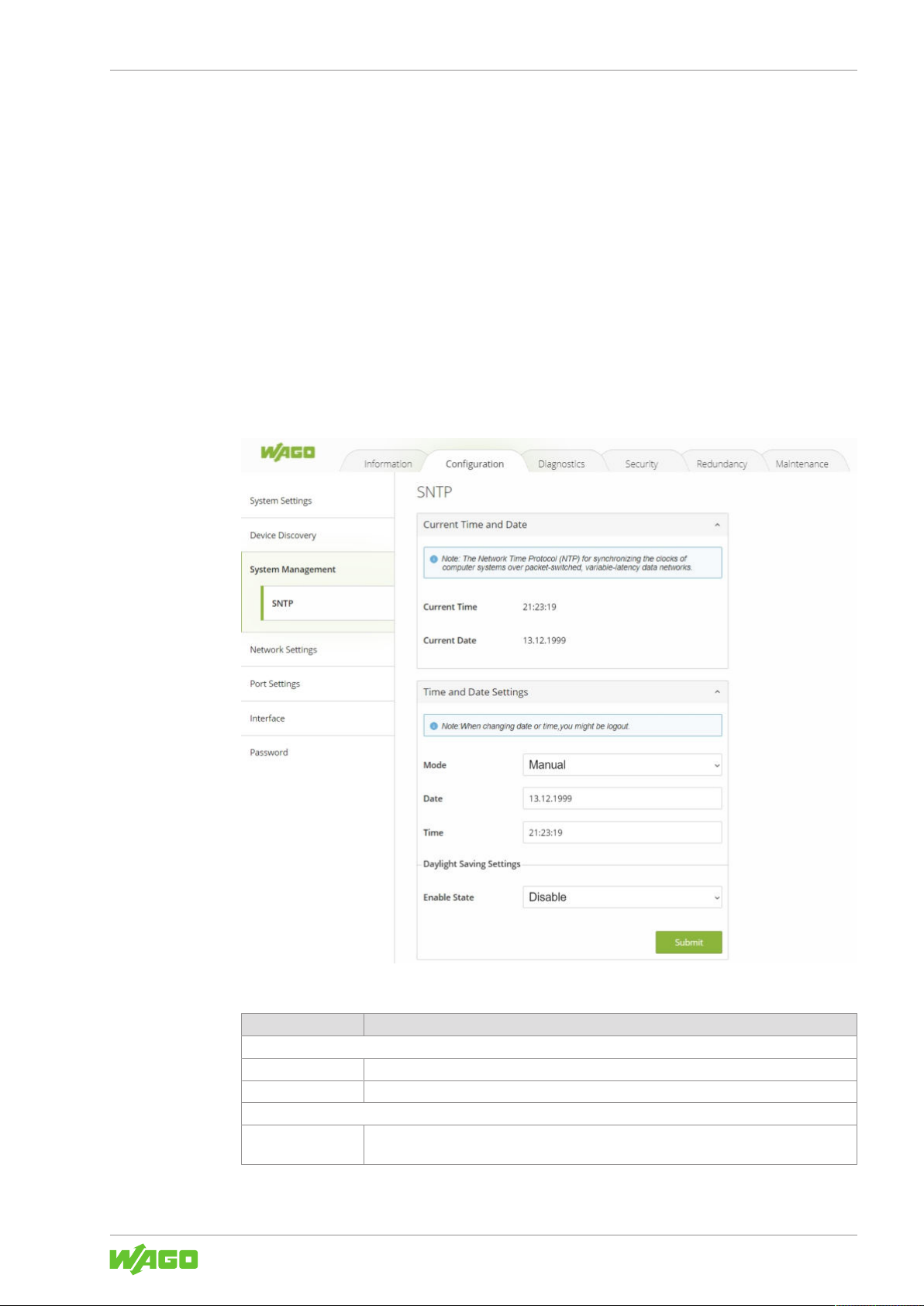

Figure26: WBM "Configuration" page – "SNTP" tab
Table17: WBM "Configuration" page – "SNTP" tab
Parameter Description
Current Time and Date
Current Time This field displays the current time when you open or refresh the WBM.
Current Date This field displays the current date when you open or refresh the WBM.
Time and Date Settings
Date Select the date in the format day/month/year that you are manually setting for the sys-
tem.
Product manual | Version: 1.2.0 39
Industrial Managed Switch
852-1322Configuration in the WBM
Parameter Description
Time Select the time in the format hour/minute/second that you are manually setting for the
system.
Daylight Saving Settings
Enable State Select Enable to enable Daylight Saving Settings or Disable to disable Daylight Saving
Settings.
Start Day Enter the date and time for the start of daylight saving time if you have activated this op-
tion. The time is displayed in 24-hour format.
End Day Enter the date and time for the end of daylight saving time if you have activated this op-
tion. The time is displayed in 24-hour format.
Mode: Network Time Protocol
Select Network Time Protocol mode to enable SNTP. An NTP server must then be specified.
40 Product manual | Version: 1.2.0
Industrial Managed Switch
Figure27: WBM "Configuration" tab – "SNTP" page
852-1322 Configuration in the WBM
Table18: WBM "Configuration" tab – "SNTP" page
Parameter Description
Current Time and Date
Current Time This field displays the current time when you open or refresh the WBM.
Current Date This field displays the current date when you open or refresh the WBM.
Time and Date Settings
NTP Server Choose a predefined time server (public) or enter the IP address of a time server manu-
ally (manual).
Public Select one of the predefined time servers
Manual IP/Domain Select whether you will specify the IP address or fully qualified
domain name for the time server
Manual In the text field below, enter the IP address or fully qualified domain name for the time
server
Time Zone Select the time zone you are located in.
Daylight Saving Settings
Enable State Select Enable to enable Daylight Saving Settings or Disable to disable Daylight Saving
Settings.
Start Day Enter the date and time for the start of daylight saving time if you have activated this op-
tion. The time is displayed in 24-hour format.
End Day Enter the date and time for the end of daylight saving time if you have activated this op-
tion. The time is displayed in 24-hour format.
10.4.4 Network Settings
In this tab page, users may modify network settings of Internet Protocol version 4 (IPv4)
for the WAGO industrial managed switch.
The Network Settings tab page is depicted in Figure “WBM “Configuration” Page – “Network Settings” Tab”. Inside the Network Settings box, the user can enable Dynamic Host
Configuration Protocol (DHCP) client inside the switch by checking the DHCP box so that
the switch can obtain IP address’ setting automatically from a DHCP server available on
the user’s local network. If the DHCP is enabled, the rest of the fields will be disabled.
Note that the user should consult your local network administrator for information about
the availability of DHCP server. If the user prefers a static IP setting, then the user can
proceed to enter the IP Address, Subnet Mask, Gateway, and the Primary DNS. If the
user set gateway or DNS on this page, the industrial managed switch will not use the
gateway or the DNS from DHCP server. After entering the desired information, please
click [Submit] button to change the IP Setting.
Product manual | Version: 1.2.0 41
Industrial Managed Switch
852-1322Configuration in the WBM
The description of each parameter and its default value in Network Settings tab page are
summarized in Table “WBM “Configuration” Page – “Network Settings” Tab”.
Parameters Factory Default Description
DHCP Unchecked By checking this box, an IP address and related parameters will
Static IP Address 192.168.1.254 This field displays current IP address. The user can also set a new
Subnet Mask 255.255.255.0 This field displays current subnet mask. The user can set a new
Gateway 0.0.0.0 This field shows current Gateway’s IP address. The user can set a
Primary DNS Null The user can set the primary DNS’ IP address used by your net-
10.4.5 Port Settings
10.4.5.1 Setting
The user can control the state of each port by either selecting Enable or Disable from the
dropdown list as shown in Figure “WBM “Configuration” Page – “Port Settings” Tab”. After
finishing any change on the port setting, please click on the [Submit] button.

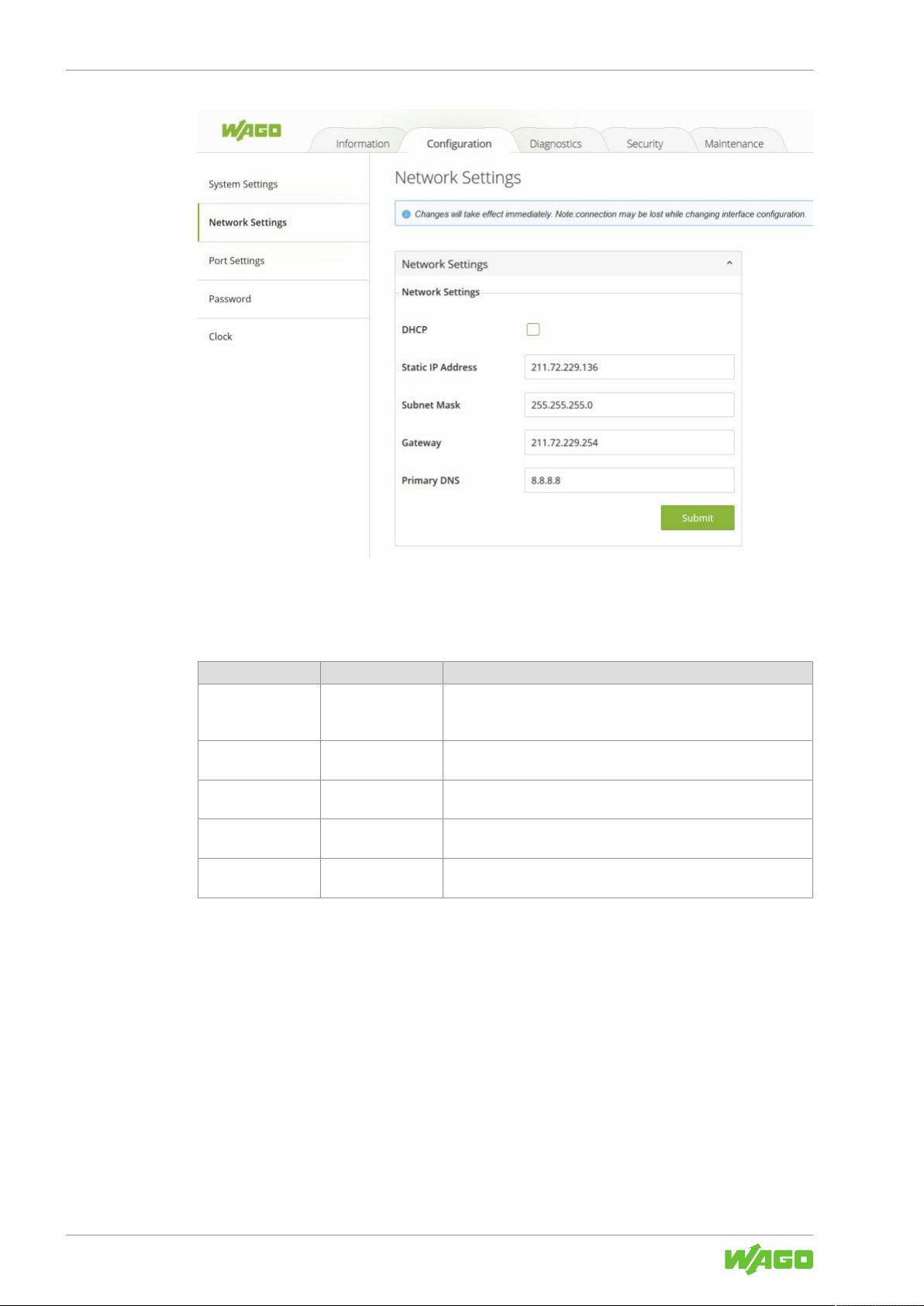

Figure28: WBM “Configuration” Page – “Network Settings” Tab
Table19: WBM “Configuration” Page – “System Settings” Tab
be automatically assigned. Otherwise, user can set up the static
IP address and related fields manually.
static IP address for the device.
subnet mask in this field.
new IP address for the Gateway in this field.
work in this field.
42 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
The description of each parameter and its default value in Port Settings tab page are
summarized in Table “WBM “Configuration” Page – “Port Settings” Tab”.
Parameters Factory Default Description
Port n Enable Port number on the industrial managed switch. The user can click
10.4.6 Interface – Port Mirroring
10.4.6.1 General Information
Port-based mirroring is used on a network switch to send a copy of the network packets
sent or received by one or a range of ports to a network monitoring system connected to
another port (monitor port).
This is often used for network devices that require monitoring of network traffic, such as
an intrusion detection system (IDS).
Port mirroring, together with a network traffic analyzer, assists in monitoring network traffic. Users can monitor the selected ports (source ports) for egress and ingress packets.

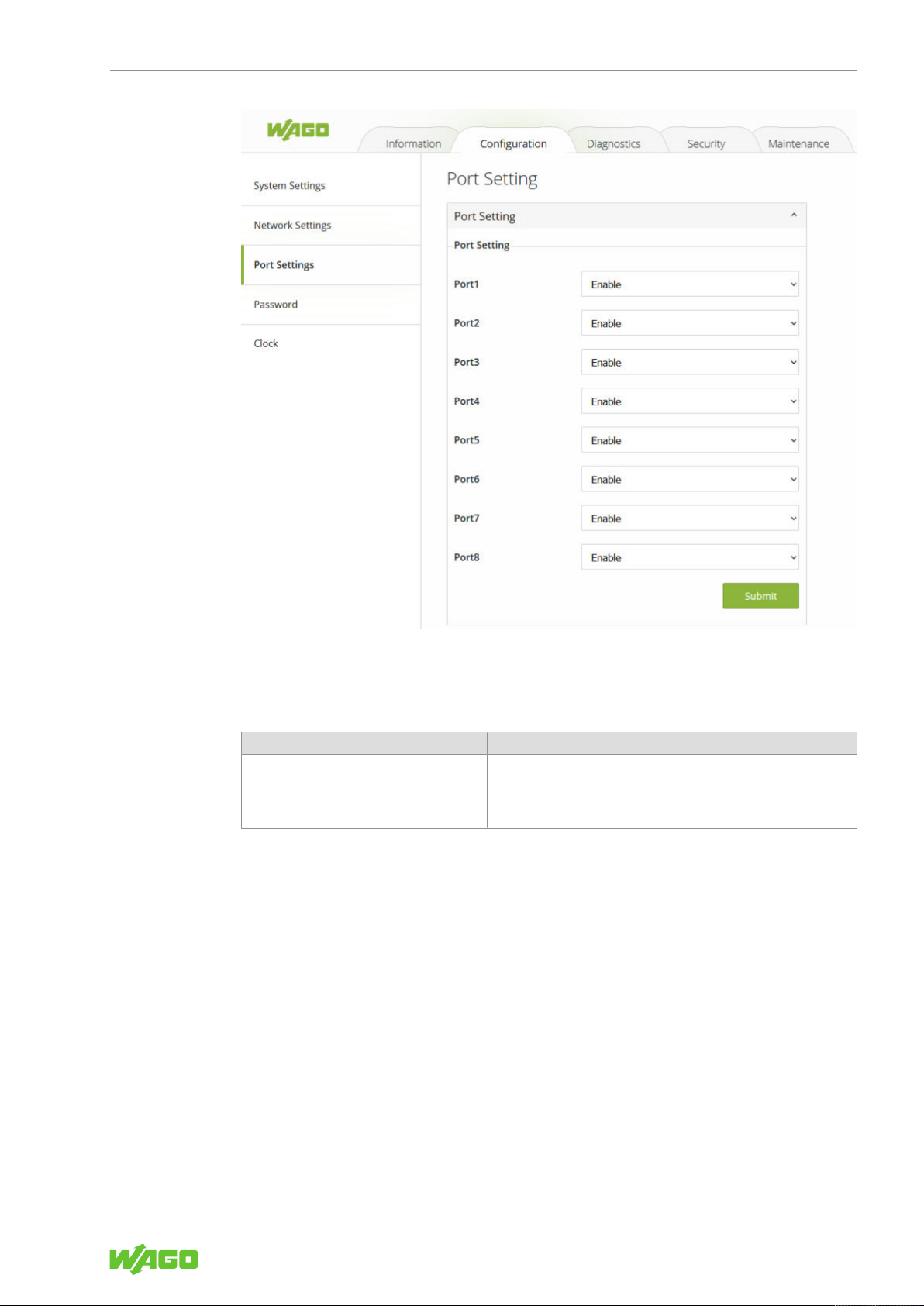

Figure29: WBM “Configuration” Page – “Port Settings” Tab
Table20: WBM “Configuration” Page – “Port Settings” Tab“
on the dropdown list to select either Enable or Disable to change
the status of the port. When enabling a port, data will be allowed
to transmit and receive through that particular port.
Source Mode
• Ingress: The incoming data packets are copied and forwarded to the monitor port.
Product manual | Version: 1.2.0 43
Industrial Managed Switch
• Egress: The outgoing data packets are copied and forwarded to the monitor port.
Note
The monitor port cannot be a trunk member port.
Firmware version 2.53 for the switch does not permit you to mirror a range of ports to a
monitor port.
Firmware version 2.53 for the switch does not permit you to choose between the different
source modes. By default, both incoming and outgoing data packets are copied and forwarded to the monitor port.
10.4.6.2 Port Mirroring Setup
852-1322Configuration in the WBM
Parameter Description
Enable State Select Enable State to enable port mirroring. Deselect Enable State to disable port mir-
Source Port Select a port to copy its ingress (incoming) and egress (outgoing) traffic to the Destina-
Destination Port Select the port to which the network traffic of the source port should be copied
10.4.7 Password
User name “admin” and password “wago” are set for the device when it is manufactured.
The user can modify the device’s user name and password to ensure overall system security. The user name and password can be updated in this tab as shown in Figure “WBM
“Configuration” Page – “Password” Tab”. The password must be entered twice in Password and Confirmed Password textboxes before a change to confirm its correctness.
Please click on the [Submit] button to update the user name and password information
on the switch.
Figure30: WBM "Configuration" tab – "Mirror" page
Table21: WBM "Configuration" tab – "Mirror" page
roring. Port mirroring must be enabled before the selected Source Port or Destination
Port can be changed
tion Port.
44 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
The description of each parameter and its default value in Password tab page are summarized in Table “WBM “Configuration” Page – “Password” Tab”.
Parameters Factory Default Description
User Name admin User name to log-in with maximum length of 15characters.
Password wago Password to log-in with maximum length of 15characters.
Confirmed Password wago Re-type the password. This has to be exactly the same as the
10.5 Diagnostics
10.5.1 SNMP
The SNMP („Simple Network Management Protocol“) is used in network management
systems to monitor the state of attached devices that require the attention of an administrator. SNMP is a component of the “internet protocol suite” defined by the IETF (“Internet
Engineering Task Force”). It consists of a set of standards for network management, including an application layer protocol, a database schema and a set of data objects.

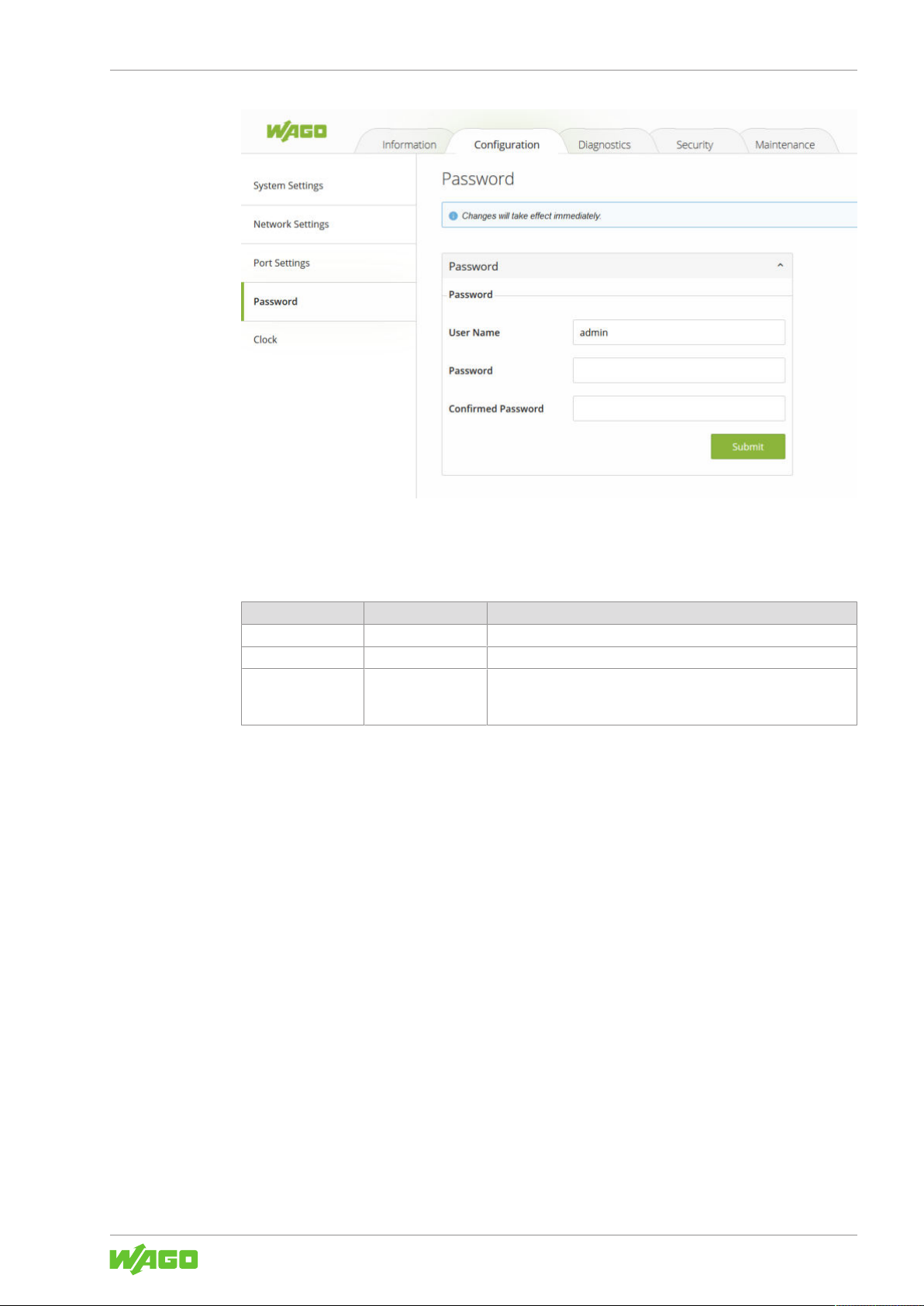

Figure31: WBM “Configuration” Page – “Password” Tab
Table22: WBM “Configuration” Page – “Password” Tab
password entered in the above field with maximum length of
15characters.
SNMP provides management data in the form of variables on the managed systems,
which describe the system configuration. These variables can be queried (and sometimes
changed) by managing applications.
An “SNMP community string” is a text string that acts as a password. It is used to authenticate messages that are sent between the management station (the SNMP manager)
and the device (the SNMP agent). The string is included in every packet transmitted between the SNMP manager and the SNMP agent.
Product manual | Version: 1.2.0 45
Industrial Managed Switch
852-1322Configuration in the WBM
The “SNMP community” acts like a password and is used to define the security parameters of SNMP clients in an SNMP v1 and SNMP v2c environments. The default “SNMP
community” is “public” for both SNMPv1 and SNMPv2c before SNMPv3 is enabled. Once
SNMPv3 is enabled, the “Communities” of SNMPv1 and v2c have to be unique and cannot be shared.
WAGO’s industrial managed switch support SNMP and can be configured in this tab
page as shown in Figure “WBM “Diagnostics” Page – “SNMP” Tab”. The SNMP setting
has four parts, which are:
• SNMP Agent
• SNMPv1/v2c Community
• SNMP-Trap

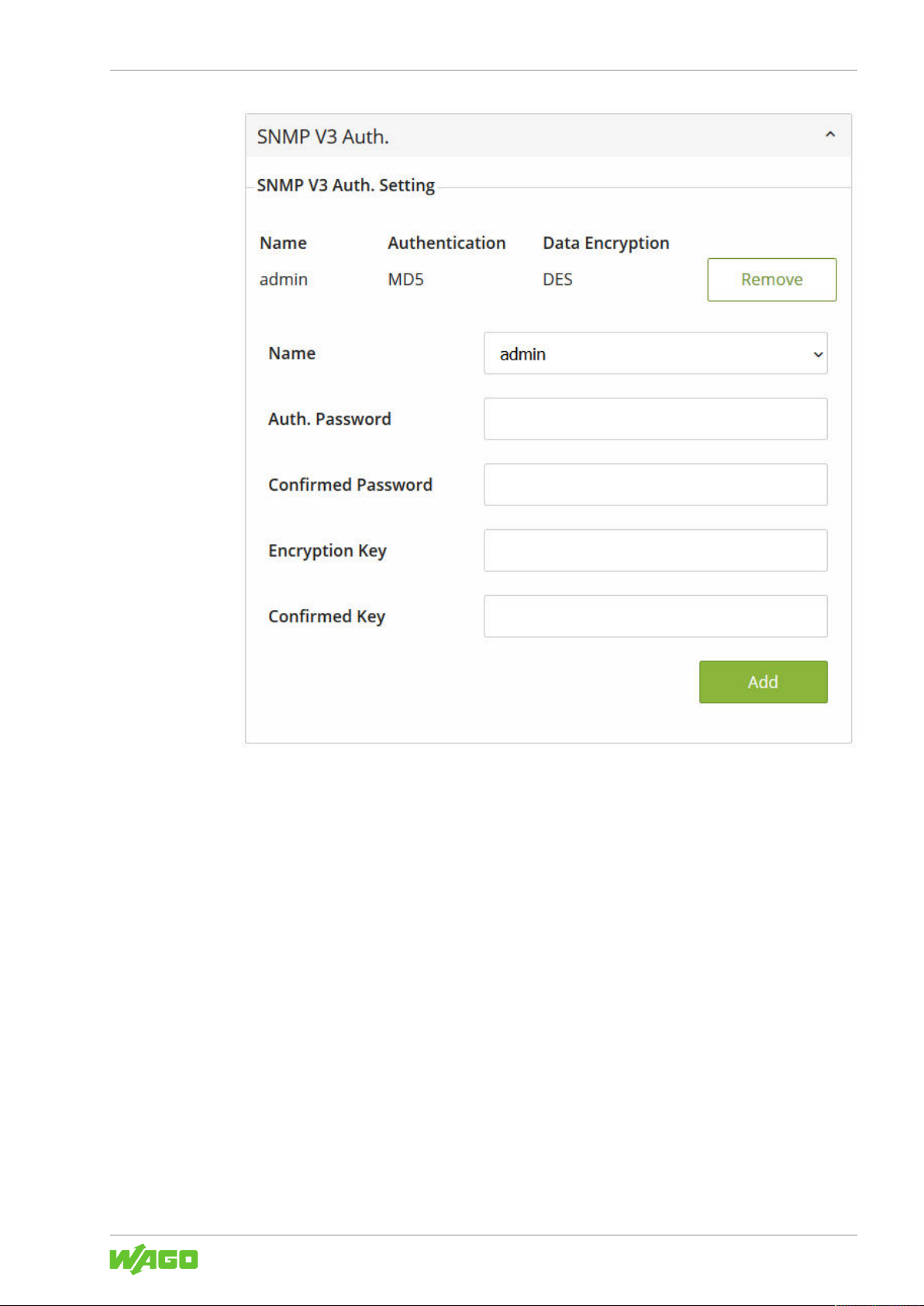

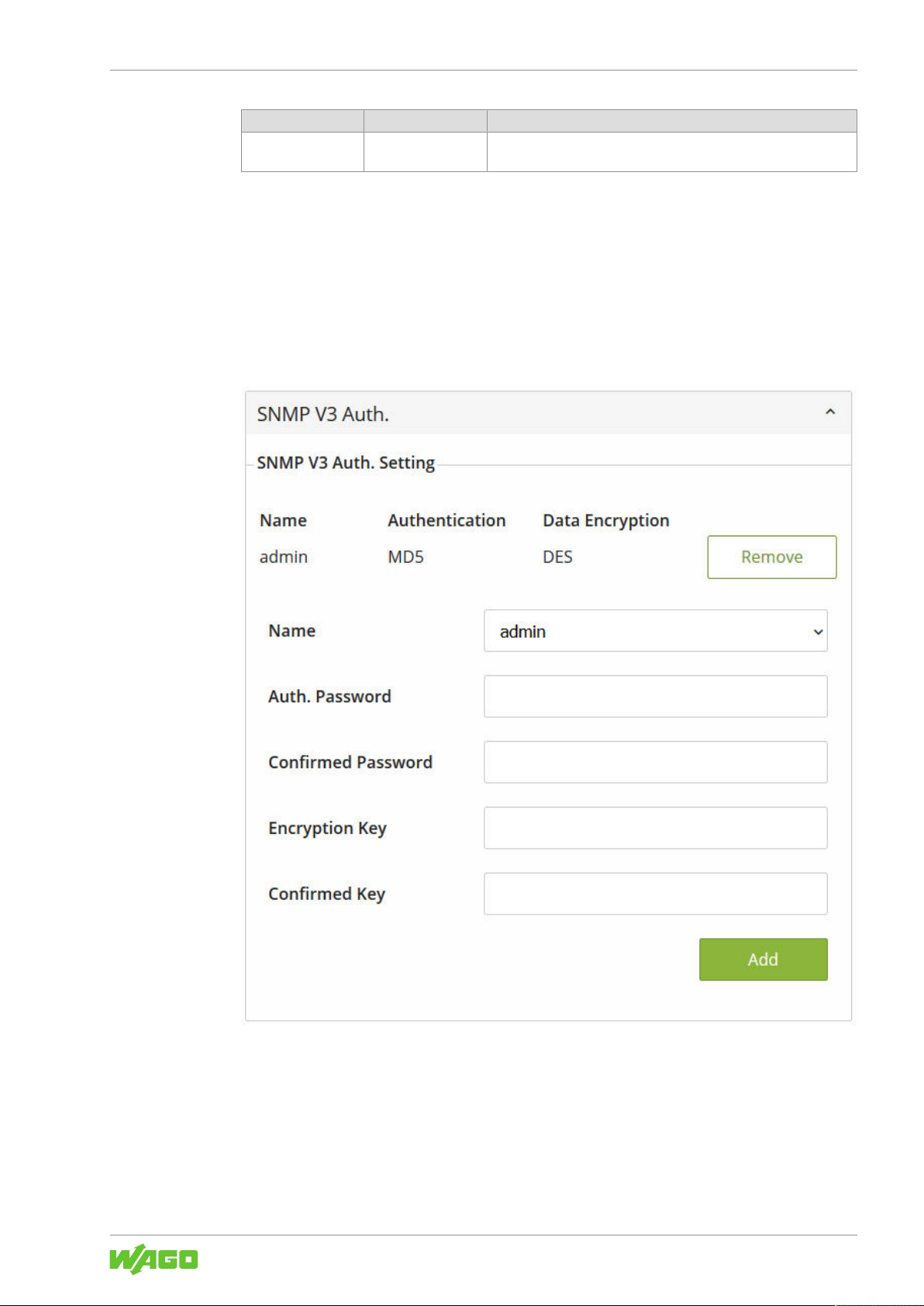

• SNMPv3 Authentication (Auth.)
Note that SNMP V1/V2c Community setting was not shown in Figure “WBM “Diagnostics”
Page – “SNMP” Tab” but it will be shown when SNMP V1/V2c version option was selected.
Note
Using SNMPv3
For security reasons, the user cannot use SNMP v1/v2c to reboot the device, change security related settings, and change the device’s password. These changes are possible
only by using SNMPv3.
46 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM

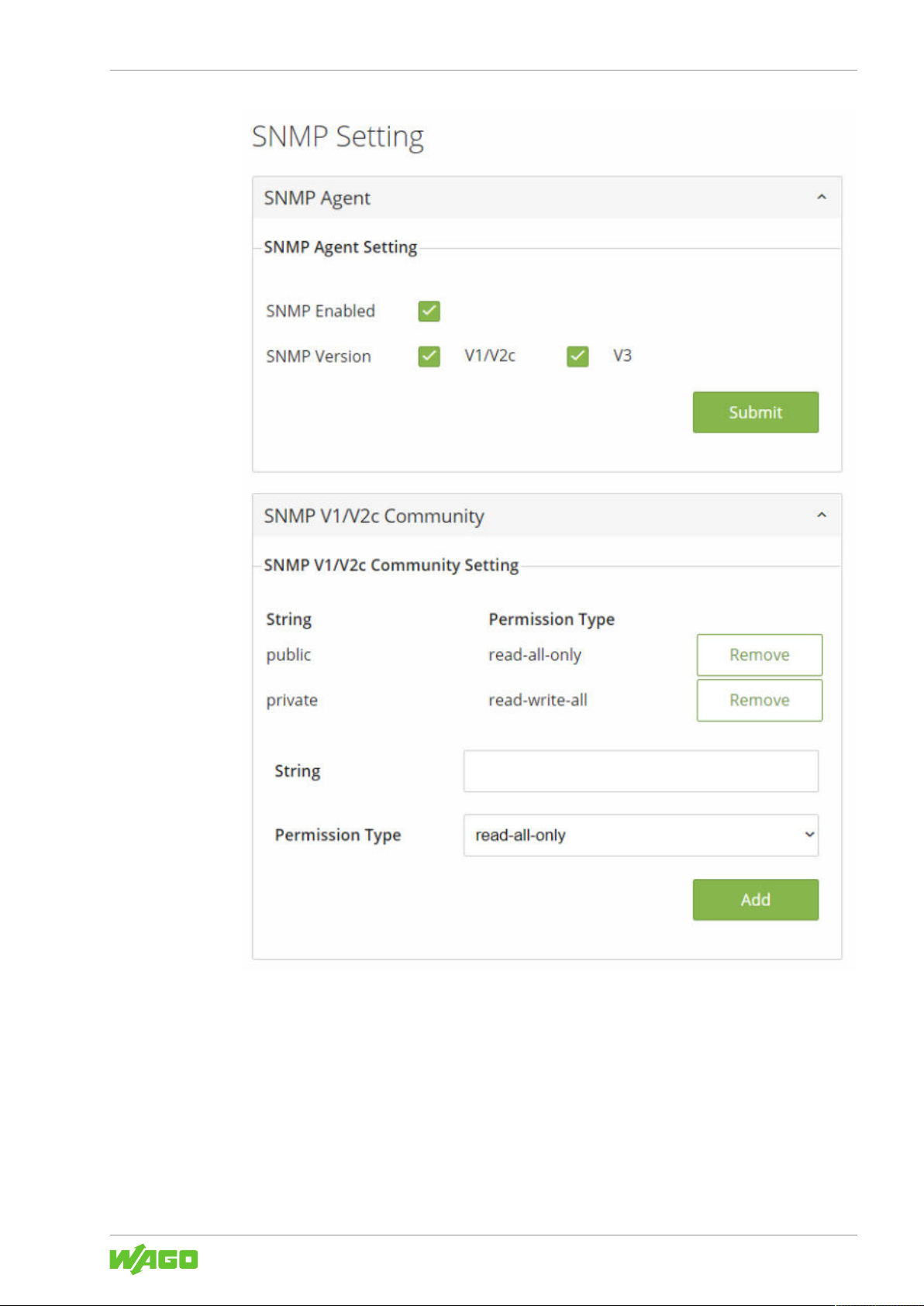

Figure32: WBM “Diagnostics” Page – “SNMP Setting Part 1” Tab
Product manual | Version: 1.2.0 47
Industrial Managed Switch
852-1322Configuration in the WBM
Figure33: WBM “Diagnostics” Page – “SNMP Setting Part 2” Tab
48 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
10.5.1.1 SNMP Agent
To enable SNMP agent on the managed switch, please check the SNMP Enabled box
and click [Submit] button as shown in Figure “SNMP Agent Setting”. The SNMP version
1 (V1), version 2c (V2c) and version 3 are supported by WAGO’s managed switches as
summarized in “WBM Page, “Diagnostics” – “SNMP” Tab, SNMP Agent Setting”Fehler!
Verweisquelle konnte nicht gefunden werden.. Basically, SNMP V1 and SNMP V2c have
simple community string based authentication protocol for their security mechanism, while
SNMP V3 is improved with cryptographic security. The default setting of SNMP Version is
V3. The user can select SNMP Version by checking either the V1/V2c box and/or the V3
box.
Figure34: WBM “Diagnostics” Page – “SNMP Setting Part 3” Tab
Product manual | Version: 1.2.0 49
Industrial Managed Switch
852-1322Configuration in the WBM

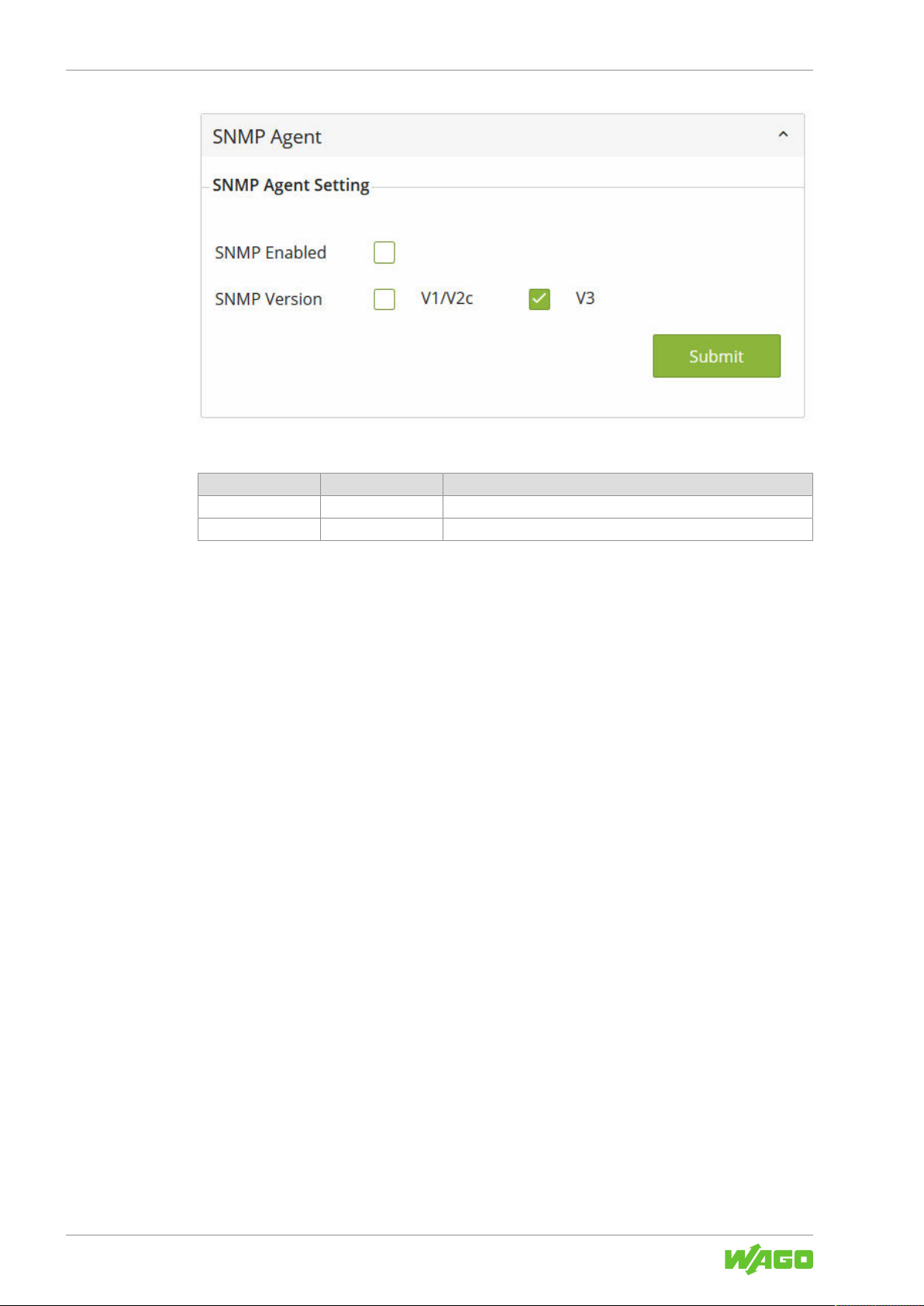

Figure35: SNMP Agent Setting
Table23: WBM Page, “Diagnostics” – “SNMP” Tab, SNMP Agent Setting
Parameters Factory Default Description
SNMP Enabled Disable Check the box to enable SNMP agent.
SNMP Version V3 Check the desired SNMP Version as either V1/V2c and/or V3.
10.5.1.2 SNMPv1/v2c-Community
SNMP V1 and SNMP V2c use a community string matching for authentication. This authentication will allow network management software to access the information or data
objects defined by Management Information Bases (MIBs) on the industrial managed
switch. Note that this simple authentication is considered a weak security mechanism. It
is recommended to use SNMP V3, if possible. There are two levels of authentications or
permission type in WAGO 852-1322, which are read-all-only or read-write-all. For example, in our default setting as shown in Figure “SNMP V1/V2c Community Setting”, an
SNMP agent, which is a network management software module residing on the industrial
managed switch, can access all objects with read-all-only permissions using the string
“public”. Another setting example is that the string “private” has permission of read-writeall.
The SNMP V1/V2c Community Setting as shown in Figure “SNMP V1/V2c Community
Setting” allows the user to set a community string with a type of permission for authentication or remove existing community string from the list by clicking on the [Remove] button at the end of each community string item. The users can specify a new string names
by entering a text in the String field and choose a type of permissions from the dropdown
list of Permission Type. Then, click on the [Add] button.
50 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
Table “WBM “Diagnostics” Page – “SNMP” Tab, SNMP V1/V2c Community Setting
“briefly provides descriptions of SNMP V1/V2c community string setting.
Parameters Factory Default Description
(Community) String Public (read-all-only) Define name of strings for authentication. The maximum length of
Permission Type - Choose a type from the dropdown list: read-all-only and read-

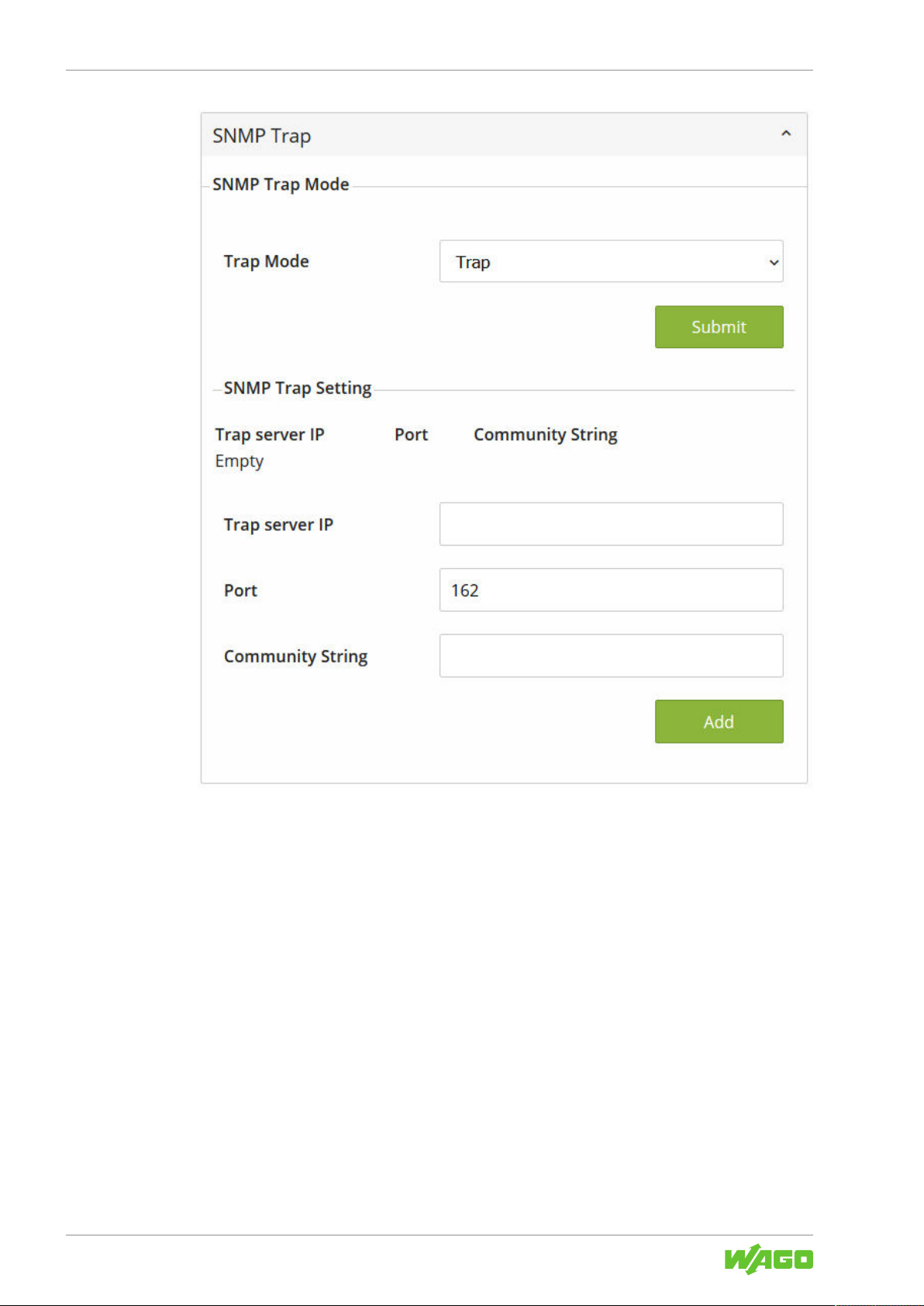

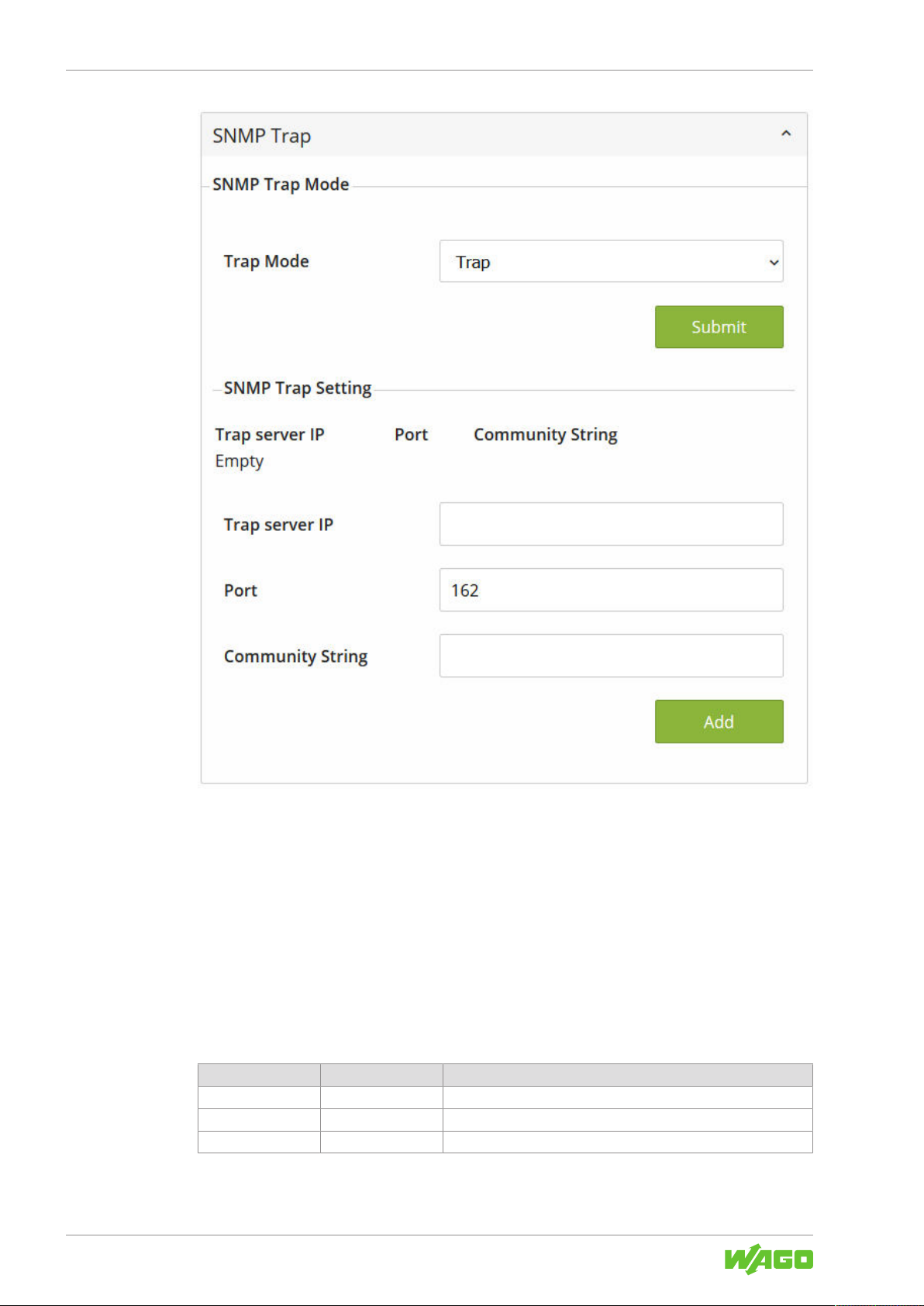

10.5.1.3 SNMP Trap
The industrial managed switch provides a trap function that allows the switch to send notification to agents with SNMP traps or inform. The notifications are based on the status
changes of the switch such as link up, link down, warm start, and cold start. For inform
mode, after sending SNMP inform requests, the switch will resends inform request if it
does not receive response within 10 seconds. The switch will try re-send three times. Figure “WBM “Diagnostics” Page – “SNMP” Tab, SNMP Trap” shows the SNMP Trap section.
Figure36: SNMP V1/V2c Community Setting
Table24: WBM “Diagnostics” Page – “SNMP” Tab, SNMP V1/V2c Community Setting
Private (read-writeall)
the string is 15characters.
write-all. See notes below for a briefed explanation.
• Choose a type from the dropdown list: read-all-only and readwrite-all. See notes below for a briefed explanation
• Read write-all: permission to read/write OID 1 Sub Tree.
Product manual | Version: 1.2.0 51
Industrial Managed Switch
852-1322Configuration in the WBM
Figure37: WBM “Diagnostics” Page – “SNMP” Tab, SNMP Trap
The SNMP Trap Mode allows users to configure SNMP Trap mode or Inform mode by selecting the desired mode from the dropdown list as shown in Figure WBM “Diagnostics”
Page – “SNMP” Tab, SNMP Trap“. Then, click [Submit] button to change the mode. The
SNMP Trap Setting shows a list of configured SNMP Trap Server. Example in Figure
“WBM “Diagnostics” Page – “SNMP” Tab, SNMP Trap” shows an Empty list. The user
can enter an IP address in the Trap server IP field, port number of Trap server in the Port
field, and a string used as Community String for an authentication. After filled in all required field for SNMP Trap Setting, please click on the [Add]. button. Table “WBM “Diagnostics” Page – “SNMP” Tab, SNMP Trap” summarizes the descriptions of the SNMP
Trap parameters.
Table25: WBM “Diagnostics” Page – “SNMP” Tab, SNMP Trap
Parameters Factory Default Description
Trap Mode Trap Choose between Trap mode or Inform mode.
Trap server IP Null Enter the IP address of your Trap Server.
Port 162 Enter the Trap server’s service port.
52 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
Parameters Factory Default Description
Community String Null Enter the community string for authentication. The maximum
length of the string is 15characters.
10.5.1.4 SNMP-V3-Auth.
As mentioned earlier, SNMP V3 is a more secure SNMP protocol. In this part, the user
will be able to set a password and an encryption key to enhance the data security. When
SNMP V3 is chosen, the users can configure SNMP V3’s authentication and encryption
parameters. MD5 (Message-Digest algorithm 5) is used for authentication password and
DES (Data Encryption Standard) is used for data encryption algorithm. Figure “WBM “Diagnostics” Page – “SNMP Tab”, SNMP V3 Auth.” shows the SNMP V3 Authentication
(Auth.) Setting options.
Figure38: WBM “Diagnostics” Page – “SNMP Tab”, SNMP V3 Auth.
The users can view existing SNMP V3 users’ setting on the list at the upper part of SNMP
V3 Auth. Setting as shown in Figure “WBM “Diagnostics” Page – “SNMP Tab”, SNMP V3
Auth.”. The list provides information about user Name, Authentication type, and Data Encryption. The user have an option to remove existing SNMP V3 user by clicking on the
[Remove] button in the last column of each entry.
Product manual | Version: 1.2.0 53
Industrial Managed Switch
852-1322Configuration in the WBM
To add a new SNMP V3 user, the user have to select the user Name from the dropdown
list which can be either Admin or User. Then, the authentication password with a maximum length of 31 characters must be entered in the Auth. Password field and re-entered
again in the Confirmed Password field. Note that if no password is provided, there will be
no authentication for SNMP V3. Finally, the encryption key with a maximum length of 31
characters can be entered in the Encryption Key field and re-entered again in Confirmed
Key field. After filling all the required fields, please click on [Add] button to update the information on the industrial managed switch. Table “WBM “Diagnostics” Page – “SNMP”
Tab, SNMP V3 Auth.” lists the descriptions of SNMP V3 settings.
Table26: WBM “Diagnostics” Page – “SNMP” Tab, SNMP V3 Auth.
Parameters Factory Default Description
Name admin Choose from one of the following options:
Admin: Administration level (Default)
User: Normal user level
Auth. (Authentication) Password
Confirmed Password wago0852 Re-entering the Authentication Password to confirm.
Encryption Key wago0852 Set an encryption key for more secure protection of SNMP com-
Confirmed Key wago0852 Re-entering the Encryption Key to confirm.
wago0852 Set an authentication password for the user name specified
above. If the field is left blank, there will be no authentication. Note
that the authentication password is based on MD5 and the maximum length of the password is 31characters.
munication. Note that the encryption algorithm is based on DES
and the maximum length of the key is 31characters.
10.5.2 Modbus TCP
WAGO’s industrial managed switch can be connected to a Modbus network using Modbus TCP/IP protocol which is an industrial network protocol for controlling automation
equipment. The switch’s status and settings can be read through Modbus TCP/IP protocol which operates similar to the Management Information Base (MIB) browser. The
switch will be a Modbus slave which can be remotely configured by a Modbus master.
The Modbus slave address must be set to match the setting inside the Modbus master. In
order to access the switch, a Modbus Address must be assigned as described in this subsection. A Modbus memory mapping table, which lists all the register’s addresses inside
the switch and their descriptions, is provide in “Modbus Memory Map” table in the “Appendix”. Figure “WBM “Diagnostics” Page – “Modbus TCP” Tab” shows the Modbus TCP
tab page “.
54 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
To set a Modbus Address for the industrial managed switch, choose a number from 1 to
247 and enter it in the Modbus Address field. Click [Submit] button to configure it. To enable the Modbus protocol on the industrial managed switch, check the box behind the
Modbus Enable and set a Modbus Port number by choosing a number from 1 to 65535
and enter that number in the Modbus Port field. Click [Submit] button to set the Modbus
TCP. Table “WBM “Diagnostics” Page – “Modbus TCP” Tab” summarizes the descriptions of the Modbus TCP’s parameters.
Please refer to Appendix for the Modbus Memory mapping (see chapter
ister [
}85]).
Parameters Factory Default Description
Modbus Address 1 Enter a number from 1 to 247 to set the Modbus Address of the in-
Modbus Enable Uncheck Enable the Modbus protocol on the industrial managed switch by
Modbus Port 502 Enter a number from 1 to 65535 to set the Modbus service port
10.5.3 System-Log

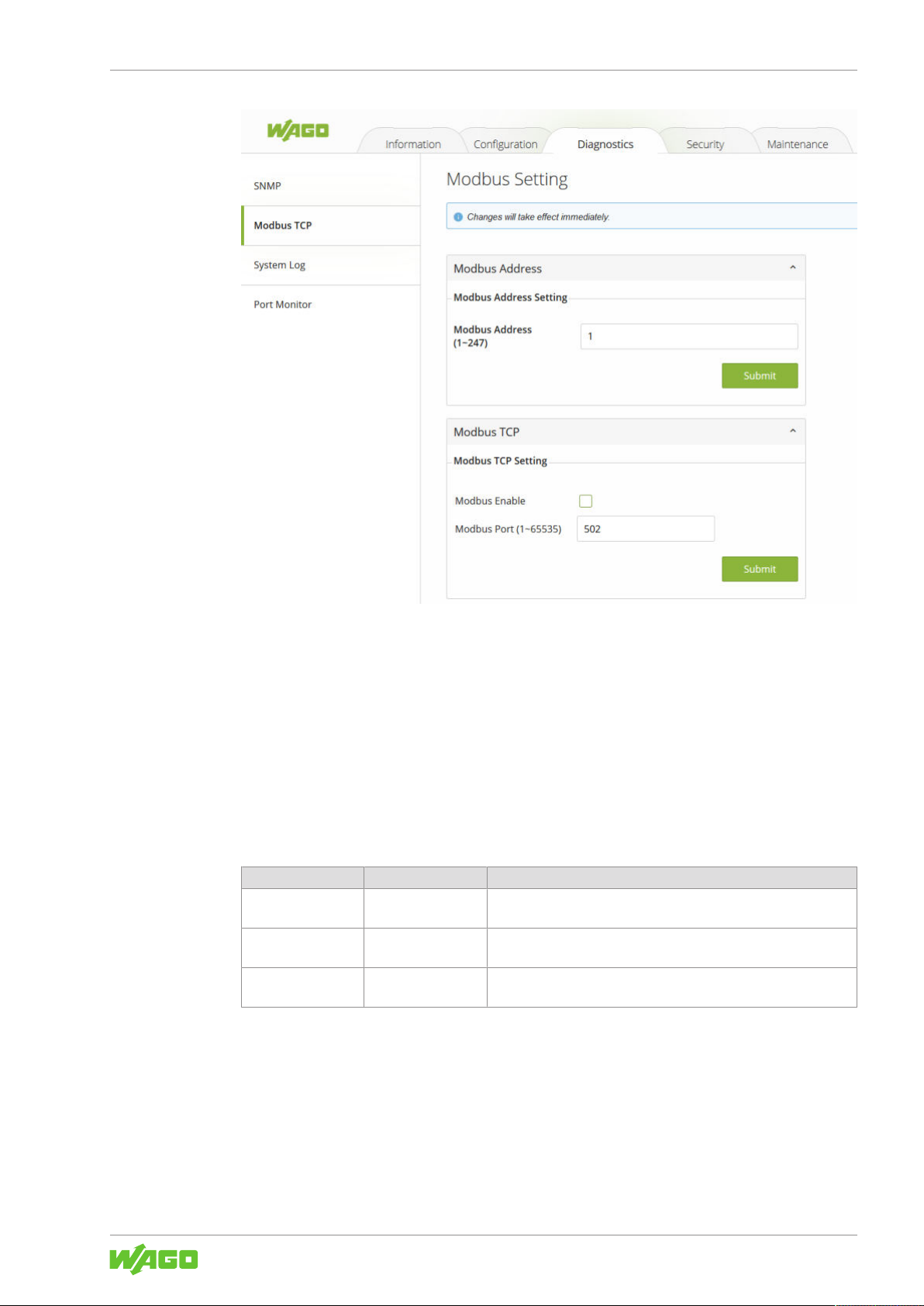

Figure39: WBM “Diagnostics” Page – “Modbus TCP” Tab
8Modbus-Reg-
Table27: WBM “Diagnostics” Page – “Modbus TCP” Tab
dustrial managed switch.
checking the Modbus Enable box.
number for the industrial managed switch.
10.5.3.1 Setting
The user can enable how the system log (syslog) will be saved and/or delivered to other
system in the System Log Setting tab page as show in Figure” WBM “Diagnostics” Page
– “System Log” – “Setting” Tab”. The syslog can be saved to flash memory inside the in-
Product manual | Version: 1.2.0 55
Industrial Managed Switch
852-1322Configuration in the WBM
dustrial managed switch and/or it can be sent to a remote log server. The user needs to
select the log level and provides the IP address of a remote log server and the service
port of the log server. Please click on the [Submit] button after finishing the setup. Table
“WBM “Diagnostics” Page – “System Log” – “Setting” Tab” summarizes the descriptions
of the Syslog Settings‘ parameters.

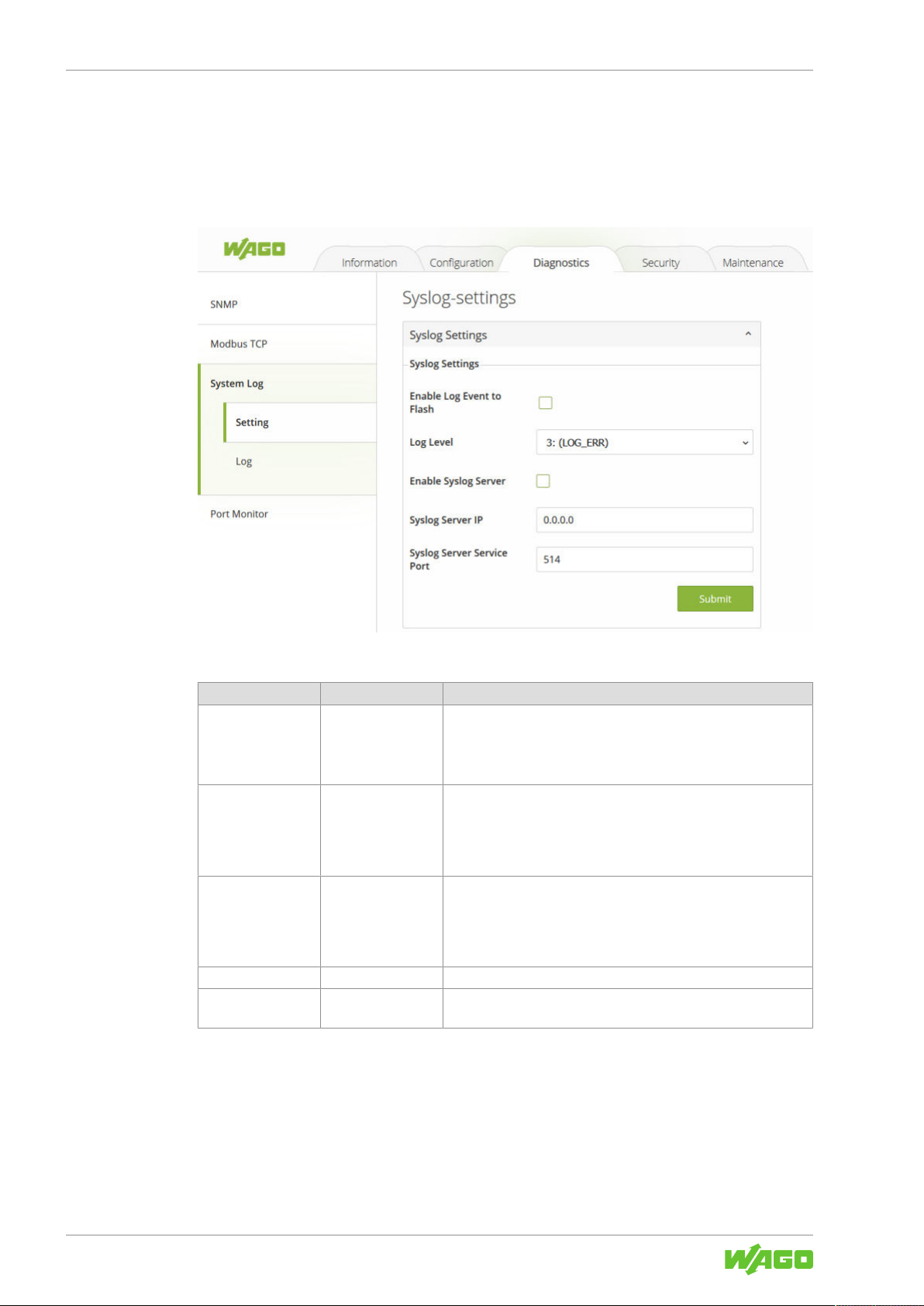

Figure40: WBM “Diagnostics” Page – “System Log” – “Setting” Tab
Table28: WBM “Diagnostics” Page – “System Log” – “Setting” Tab
Parameters Factory Default Description
Enable Log Event to
Flash
Log Level (Protokollebene)
Enable Syslog
Server
Syslog Server IP 0.0.0.0 Set the IP address of Syslog server.
Syslog Server Service Port
Uncheck Checked: Saving log event into flash memory. The flash memory
can keep the log event files even if the switch is rebooted.
Unchecked: Saving log event into RAM memory. The RAM memory cannot keep the log event files after each reboot.
3: (LOG_ERR) Set the log level to determine what events to be displayed on the
next webpage (Log). The level selection is inclusive. For example,
if 3: (Log_ERR) is selected, all 0,1,2 and3 log levels will be implied.
Range from Log 0 to Log7.
Uncheck Checked: Enable Syslog Server.
Uncheck: Disable Syslog Server.
If enabled, all recorded log events will be sent to the remote System Log server.
514 Set the service port number of Syslog server.
Range from Port 1 to Port65535.
56 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
10.5.3.2 Log
The Log tab page under the System Log as shown in Figure “System Log Page” can display the log information based on the log level configured in the System Log Setting tab
page (previous subsection). The user has options to either Read all notifications or Read
only the last n records of the log. This can be selected by clicking on the corresponding
radio button.

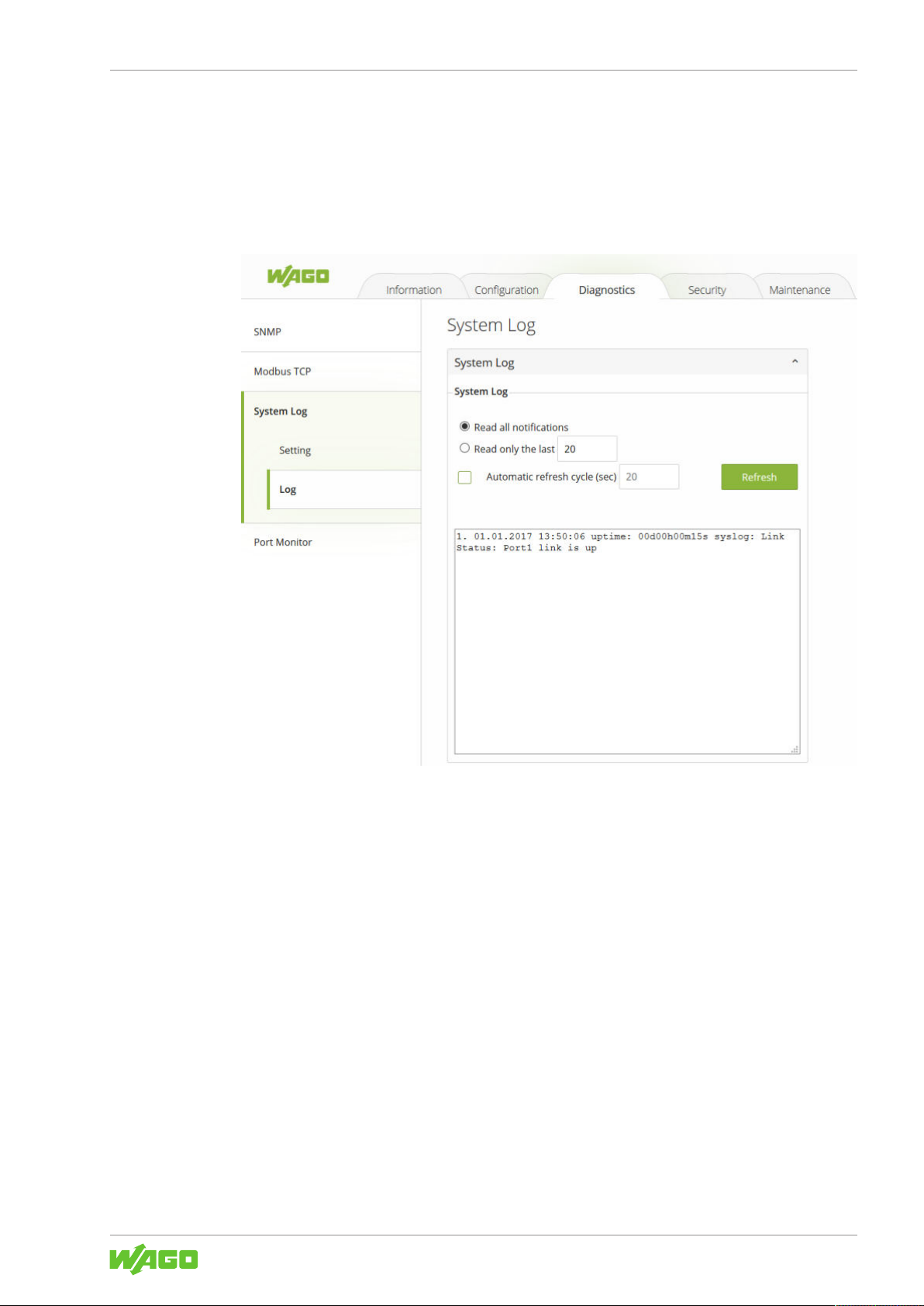

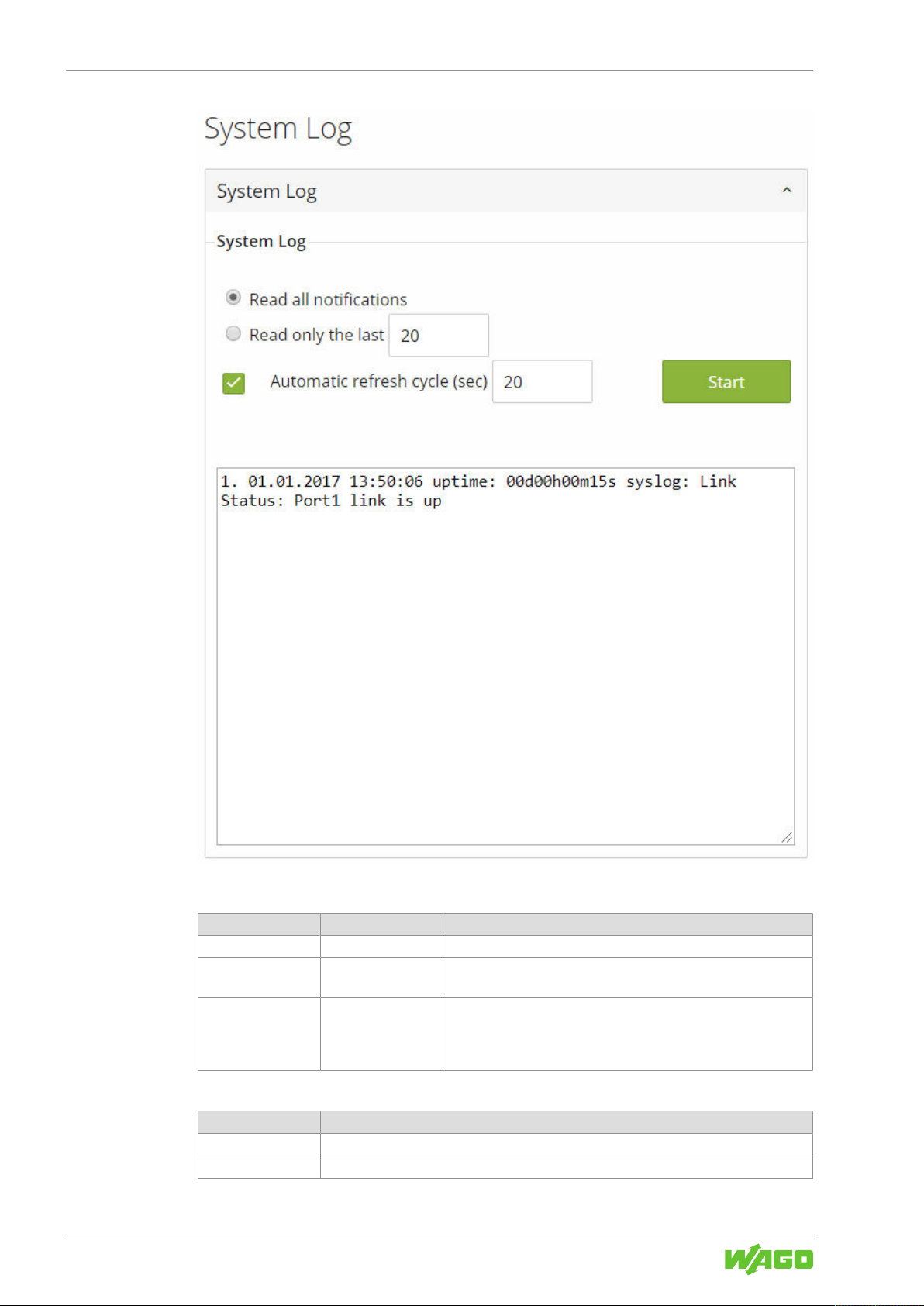

Figure41: WBM Page, “Diagnostics” – “System Log” Tab – “Log” Section
To refresh the display or to enable cyclic refresh, click the [Refresh] button. This [Refresh] button is only visible if the Automatic refresh cycle option is not enabled or
stopped. To enable cyclic refresh, click the [Start] button. The [Start] button is only visible if Automatic refresh cycle option is enabled and has not yet started as shown in Figure “[[Start] button is visible when Automatic refresh cycle is enabled”. To stop cyclic refresh again, click the [Stop]. button. The [Stop] button is only visible if cyclic refresh is
enabled. The user can set the duration of automatic refresh cycle in seconds by entering
the number in the corresponding field. Note that the log records are sorted by date and
time. Table “WBM Page, “Diagnostics” – “System Log” – “Log” Tab” summarizes the descriptions of the parameters in the Log page. Table “Log Event Description” provides descriptions of a log event.
Product manual | Version: 1.2.0 57
Industrial Managed Switch
852-1322Configuration in the WBM
Parameters Factory Default Description
Read all notifications Selected Activate the display of all log messages.
Read only the last n 20 Activate the display of only the last nmessages. The user can
Automatic refresh cycle (sec)
Parameters Description
Index Indicate the index of a particular log event
Date Indicate the system date of the occurred log event.
Disable, 20 Select the check box to enable cyclic refresh. Enter the cycle time
58 Product manual | Version: 1.2.0
Industrial Managed Switch
Figure42: [Start] Button is visible when Automatic refresh cycle is enabled.
Table29: WBM Page, “Diagnostics” – “System Log” – “Log” Tab
also specify the number of messages to be displayed.
in seconds in which a cyclic refresh is performed. The label of the
button (“Refresh”/“Start“/“Stop”) changes depending on the selected mode.
Table30: Log Event Description
852-1322 Configuration in the WBM
Parameters Description
Time Indicate the time stamp that this log event occurred.
Startup Time Indicate how long the system (industrial managed switch) has been up since this log
event occurred.
Event Details description of this log event.
10.5.4 Port Monitor
Port monitor tab page is shown in Figure “WBM “Diagnostics” Page – “Port Monitor” Tab”.
It depicts the actual connecting status for all available ports of the WAGO industrial managed switch in this page. The user can see that status whether a port is connected (Link
Up/ Green color) or disconnected (Link Down/ Yellow color) or disabled (Black color). Table “WBM “Diagnostics” Page – “Port Monitor” Tab” summarizes the descriptions of each
legend on the port status.

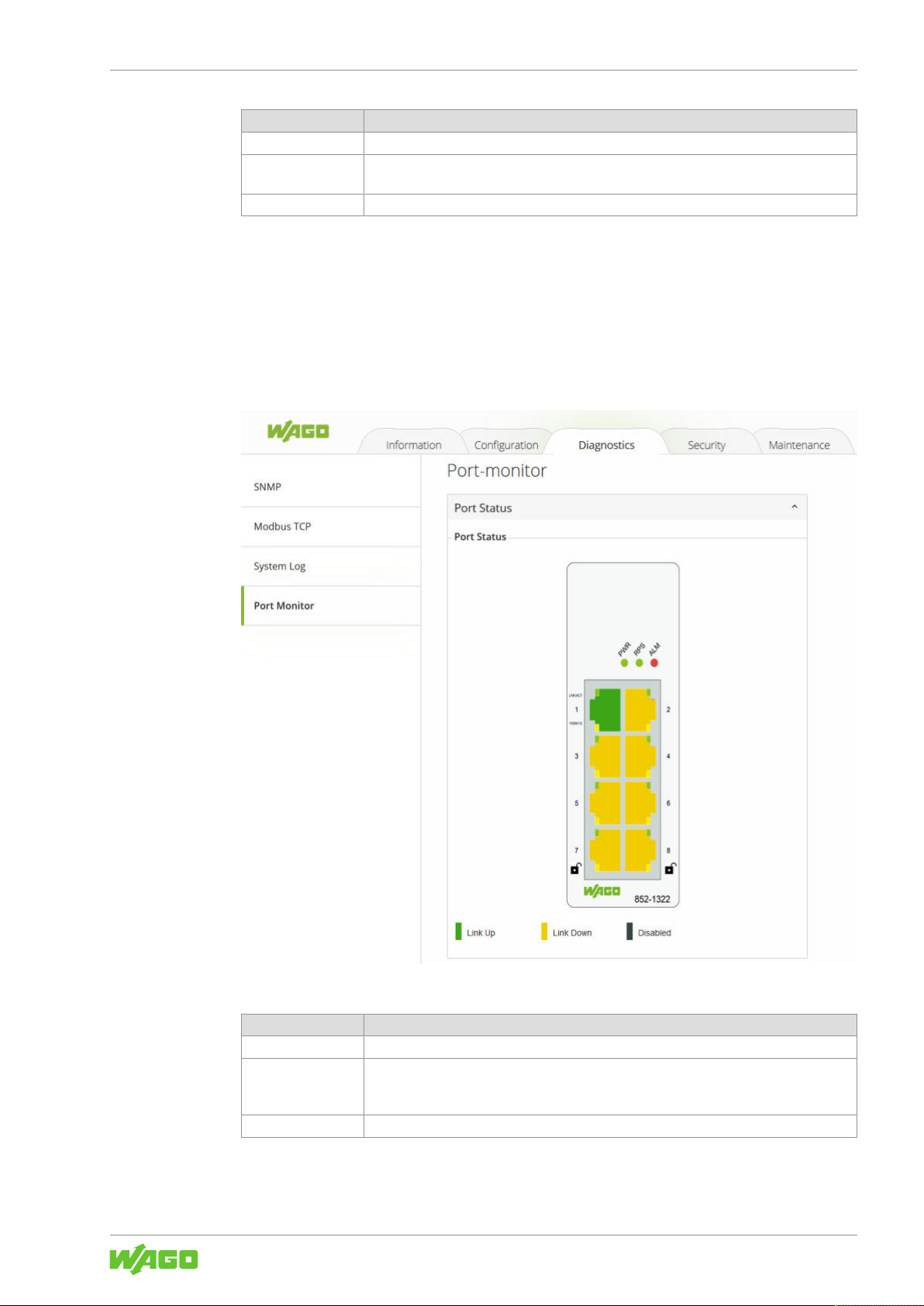

Figure43: WBM “Diagnostics” Page – “Port Monitor” Tab
Table31: WBM “Diagnostics” Page – “Port Monitor” Tab
Parameters Description
Port The port name: Port1 to Port8.
Connected Status Green: indicates copper link up
Yellow: indicates link down
Black: indicates disable.
lock Port is encrypted if the lock is closed.
Product manual | Version: 1.2.0 59
Industrial Managed Switch
10.6 Security
10.6.1 Static SAK
Figure WBM Page, “Security” – “Static SAK” Tab shows the “Static Secure Association
Key” (SAK) settings tab. Please note that WAGO 852-1322 supports the MACsec protocol on ports 7 and 8. To enable secure association mode on industrial managed switch’s
port(s), first select one of the two ports from the dropdown list under the Ports. Then, enter the Secure Channel Identifier (SCI) with a 16-digit hexadecimal number (i.e., 0,1,2,
…,a,b,c,d,e,f) and enter the Secure Association Key (SAK) with a 32-digit hexadecimal
number. Finally, click on the [Submit] button to update the setting to one of the ports in
the Static SAK Status table in the lower part.
852-1322Configuration in the WBM
The selected port(s) will use the given static SAK as the secure key to secure all the traffic. If any two switches have the same SCI and SAK, they can securely communicate. If
there is any non-secured traffic that uses incorrect SCI and SAK, the traffic will be
dropped by the ingress port of the switch. The description of the static SAK setting fields
are summarized in Table “WBM Page, “Security” – “Static SAK” Tab”.
To disable the Static SAK setting for any of the port(s), simply select the desired port(s)
from the dropdown list and uncheck the Enabled box. Then click on the [Submit] button.
This will update the status of the setting in the Static SAK Status table in the lower part of
the Figure “WBM Page, “Security” – “Static SAK” Tab”.
Parameters Factory Default Description
Ports Option Select specific port form the dropdown list to be configured.
60 Product manual | Version: 1.2.0
Industrial Managed Switch

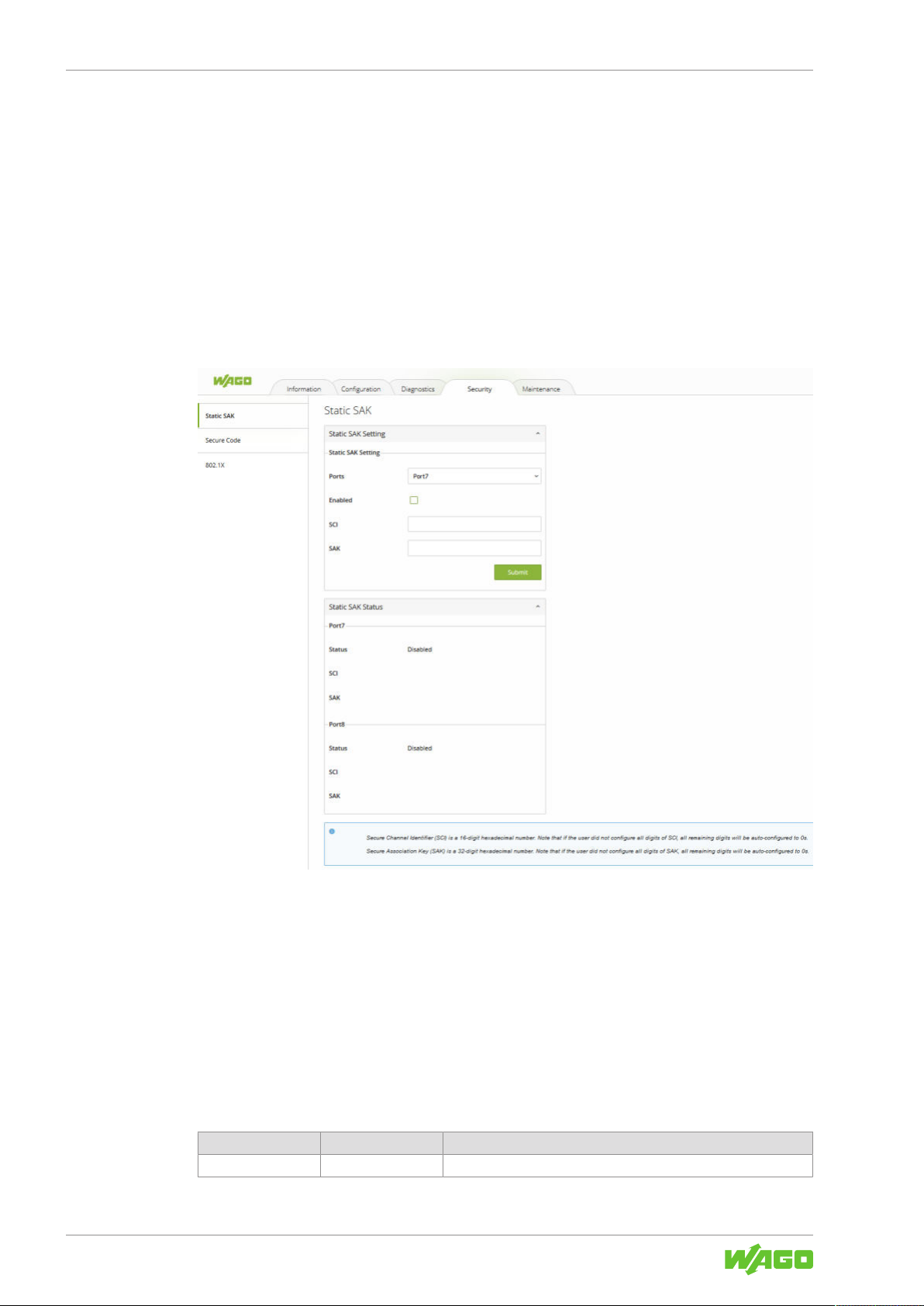

Figure44: WBM Page, “Security” – “Static SAK” Tab
Table32: WBM Page, “Security”– “Static SAK” Tab
852-1322 Configuration in the WBM
Parameters Factory Default Description
Enabled Uncheck Check the box to enable static secure association key (SAK)
mode of MACSec for the selected port(s) on the switch.
SCI 0 Secure Channel Identifier (SCI) is a 16-digit hexadecimal number.
Note that if the user did not configure all digits of SCI, all remaining digits will be auto-configured to 0s.
SAK 0 Secure Association Key (SAK) is a 32-digit hexadecimal number.
Note that if the user did not configure all digits of SAK, all remaining digits will be auto-configured to 0s.
10.6.2 Secure Code
Every WAGO industrial managed switch will have eight secure codes. Every code has
three characters. The security codes of every switch are unique. An example of secure
code is illustrated in Figure “Example of Secure Codes”. They can be used to log in to the
industrial managed switch when the user forgot the password and selected the [Forget
it] button at the login dialog.
The use of the device recovery card is enabled by default.
To disable this secure code mechanism, uncheck the Enable box and click [Submit] button as shown in Figure “WBM “Security” Page – “Secure Code” Tab”. Please refer the
WAGO login in Section „Login Failure“ for more detail.
10.6.3 802.1X (IEEE 802.1X)
The 802.1X tab under the Security page is subdivided into three sub-tabs which are: Setting, Parameters Setting, and Port Setting as shown below.
Figure45: Example of Secure Codes
Figure46: WBM “Security” Page – “Secure Code” Tab
Product manual | Version: 1.2.0 61
Industrial Managed Switch
852-1322Configuration in the WBM
10.6.3.1 Setting (IEEE 802.1X - Setting)
The 802.1X security mechanism can be enabled in this tab page as shown in Figure
“WBM “Security” Page – “802.1X” – “Setting” Tab. When the user checks the Enabled
box, the rest of the option fields will become active. The user then have to enter all the required fields to configure the 802.1X Setting which are the IP address of RADIUS server,
the RADIUS server’s port number, the RADIUS server’s accounting port number, the
NAS identifier, and a shared key. Summary of 802.1X Setting options are given in Table
“WBM “Security” Page – “802.1X” – “Setting” Tab”. After inputting all the required fields,
click the [Update]] button to keep the change.
Figure47: WBM “Security” Page – “802.1X” Tab
62 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM

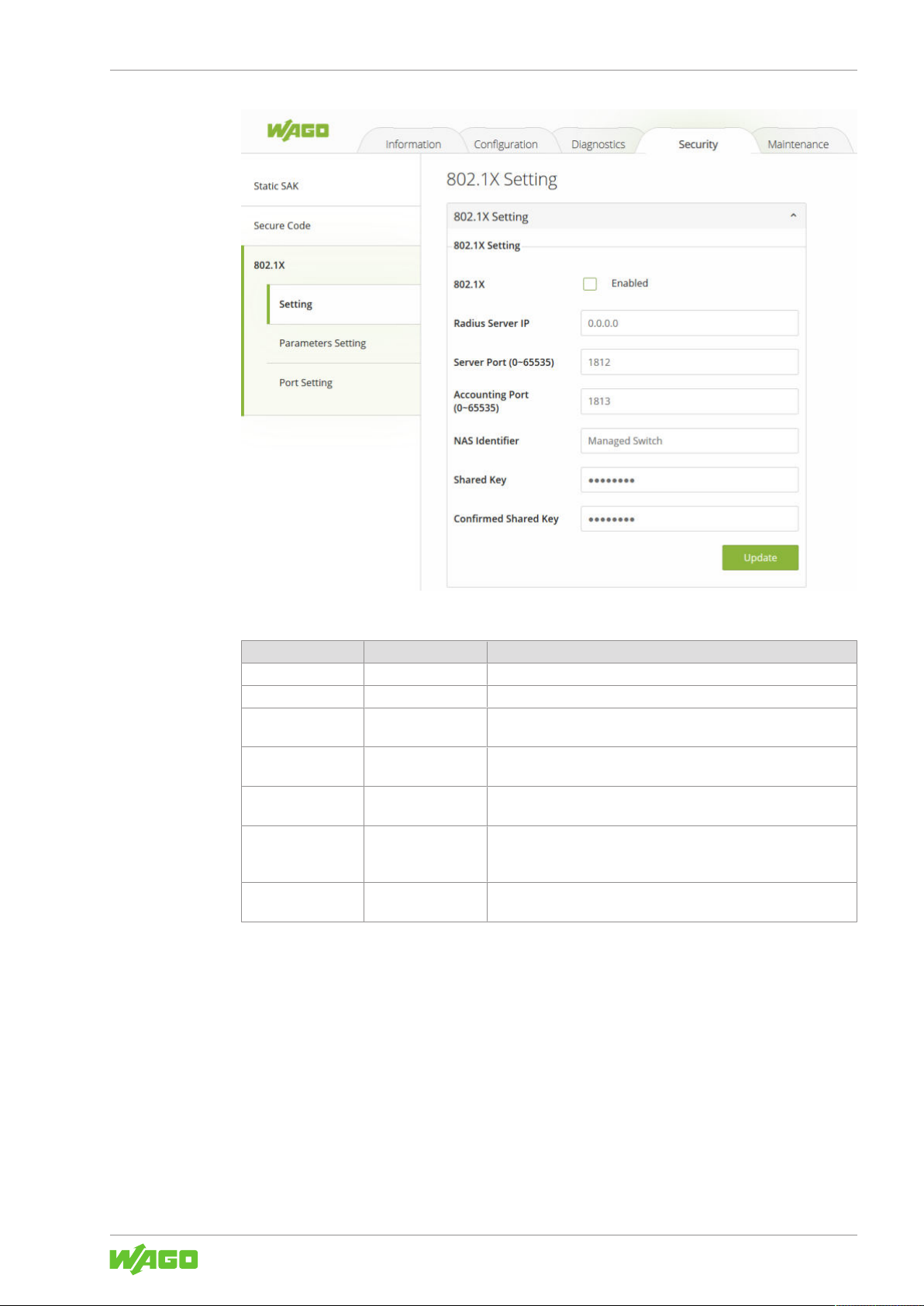

Figure48: WBM “Security” Page – “802.1X” – “Setting” Tab
Table33: WBM “Security” Page– “802.1X”– “Setting” Tab
Parameters Factory Default Description
802.1x Disabled Choose to Enable/Disable 802.1X for all ports.
Radius Server IP 0.0.0.0 Set an IP address of the RADIUS server.
Server Port 1812 Set the port number of the RADIUS server. The range is from 0 to
65535.
Accounting Port 1813 Set the accounting port number of the RADIUS server. The range
is from 0 to 65535.
NAS Identifier Managed-Switch Specify the identifier string for the 802.1X Network Access Server
(NAS). The maximum length is 30 characters.
Shared Key NULL A shared key between the managed switch and the RADIUS
Server. Both devices must be configured to use the same key
where the maximum length is 30 characters.
Confirmed Shared
Key
Dependent Re-type the shared key string.
10.6.3.2 Parameters Setting (IEEE 802.1X - Parameter Setting)
A setting tab page of the 802.1X parameters is shown in Figure “WBM “Security” Page –
“802.1X” – “802.1X Parameter Setting” Tab”. These parameters are related to the authentication periods, the timeout durations, and the maximum number of authentication requests. Table “WBM “Security” Page – “802.1X” – “802.1X Parameter Setting” Tab” summarizes the descriptions of these parameters and their default settings. To keep the
change of any input parameters, a user should click on the [Update] button afterwards.
Product manual | Version: 1.2.0 63
Industrial Managed Switch
852-1322Configuration in the WBM

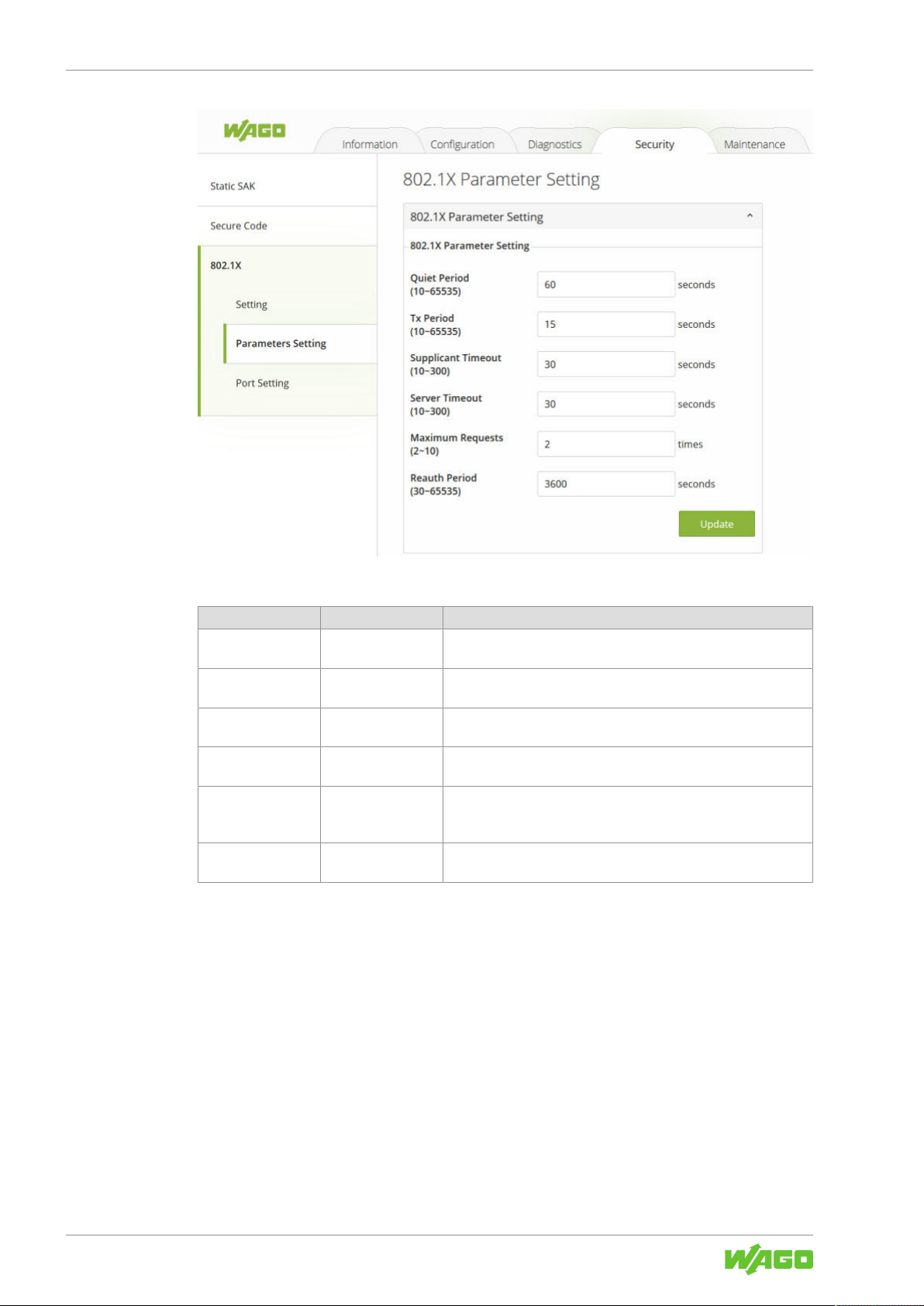

Figure49: WBM “Security” Page – “802.1X” – “802.1X Parameter Setting” Tab
Table34: WBM “Security” Page– “802.1X”– “802.1X Parameter Setting” Tab– Parameters Settings“
Parameters Factory Default Description
Quiet Period 60 Waiting time before a new request can be submitted after the au-
thorization failed. The range is from 10 to 65535 seconds.
Tx Period 15 Waiting time for the supplicant’s EAP response before retransmit-
ting another EAP request. The range is from 10 to 65535 seconds.
Supplicant Timeout 30 Waiting time for the supplicant to respond to the authentication
server’s EAP packet. The range is from 10 to 300 seconds.
Server Timeout 30 Waiting time for the authentication server to respond to the suppli-
cant’s EAP packet.The range is from 10 to 300 seconds.
Maximum Requests 2 The maximum number of the retransmissions that the authentica-
tion server can send the EAP request to the supplicant before the
authentication session times out. The range is from 2 to 10 times.
Reauth Period 3600 Time between the periodic re-authentication of the supplicant. The
range is from 30 to 65535 seconds.
10.6.3.3 Port Setting (IEEE 802.1X - Port Setting)
The user can configure the 802.1x security mechanism on each port of the WAGO secure
switch as shown in Figure “WBM “Security” Page – “802.1X” – “802.1X Port Setting” Tab”.
Each port can be set for any of the four authorization modes which are Force Authorization (FA), Force Unauthorization (FU), IEEE 802.1X Standard Authorization (AU), and no
authorization (NO), as described in Table “WBM “Security” Page – “802.1X” – “802.1X
Port Setting” Tab”.
64 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
The webpage’s representation is divided into two parts. The upper part of the webpage
allows the setting of port(s) to be changed, while the lower part of the webpage is a table
displaying the current status of the authorization mode and the state of each port on the
managed switch. To enable the 802.1X security on any of the port(s), click one of the port
or press Ctrl key and click multiple ports on the list and choose the Authorization Mode
from the dropdown list and click the [Update] button. To check the latest status of the
802.1X port setting, user can click on the [Refresh] button.
Parameters Factory Default Description
Port Option Set specific port(s) to be configured.
Mode NO Choices:
10.6.4 Port Security
Port security is a security feature that makes it possible to link each port of a switch with a
specific number of MAC addresses so that communication is permitted only with authorized MAC addresses. For this, the switch checks the sender MAC address each time a
link is established before any user data is transmitted.

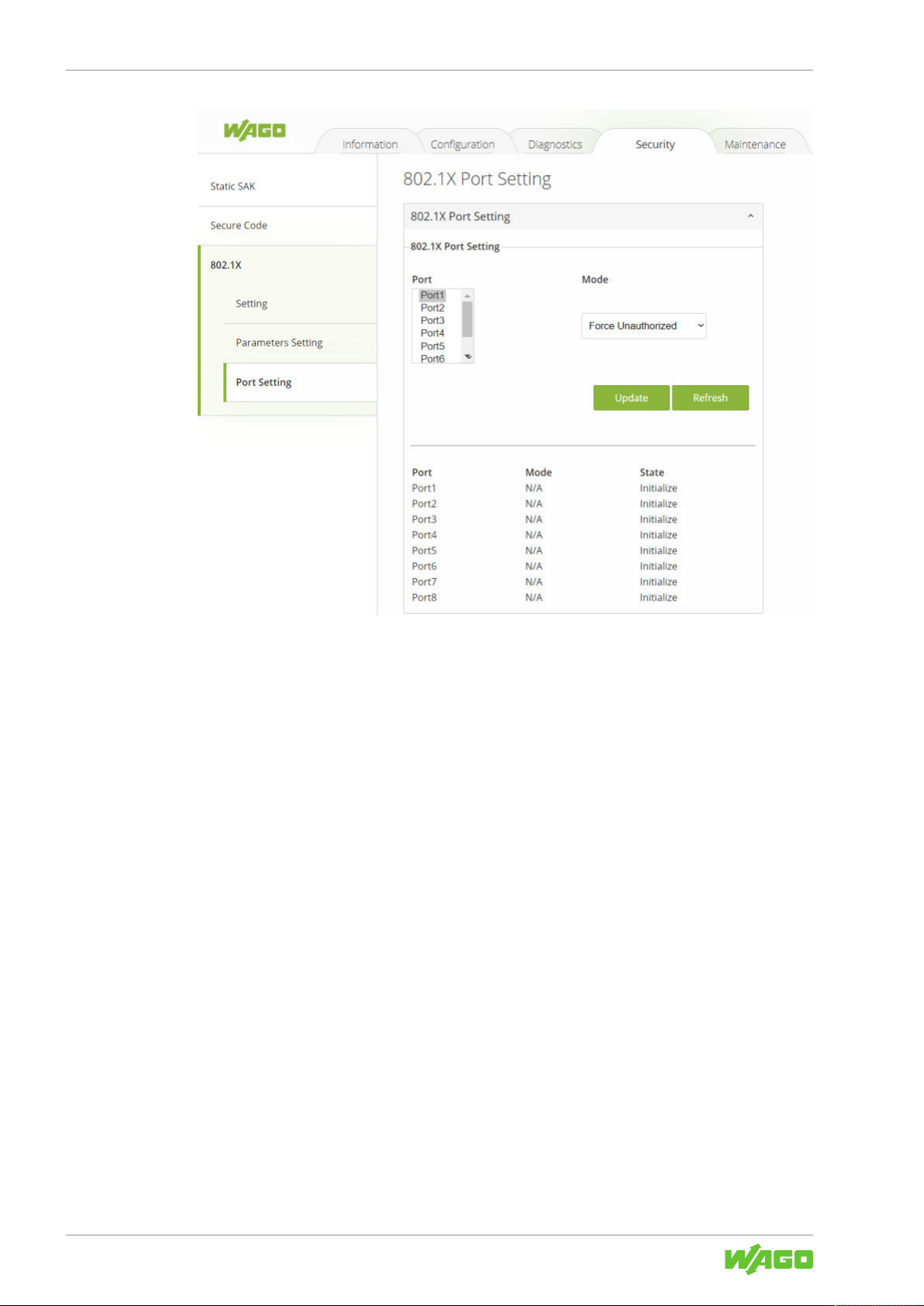

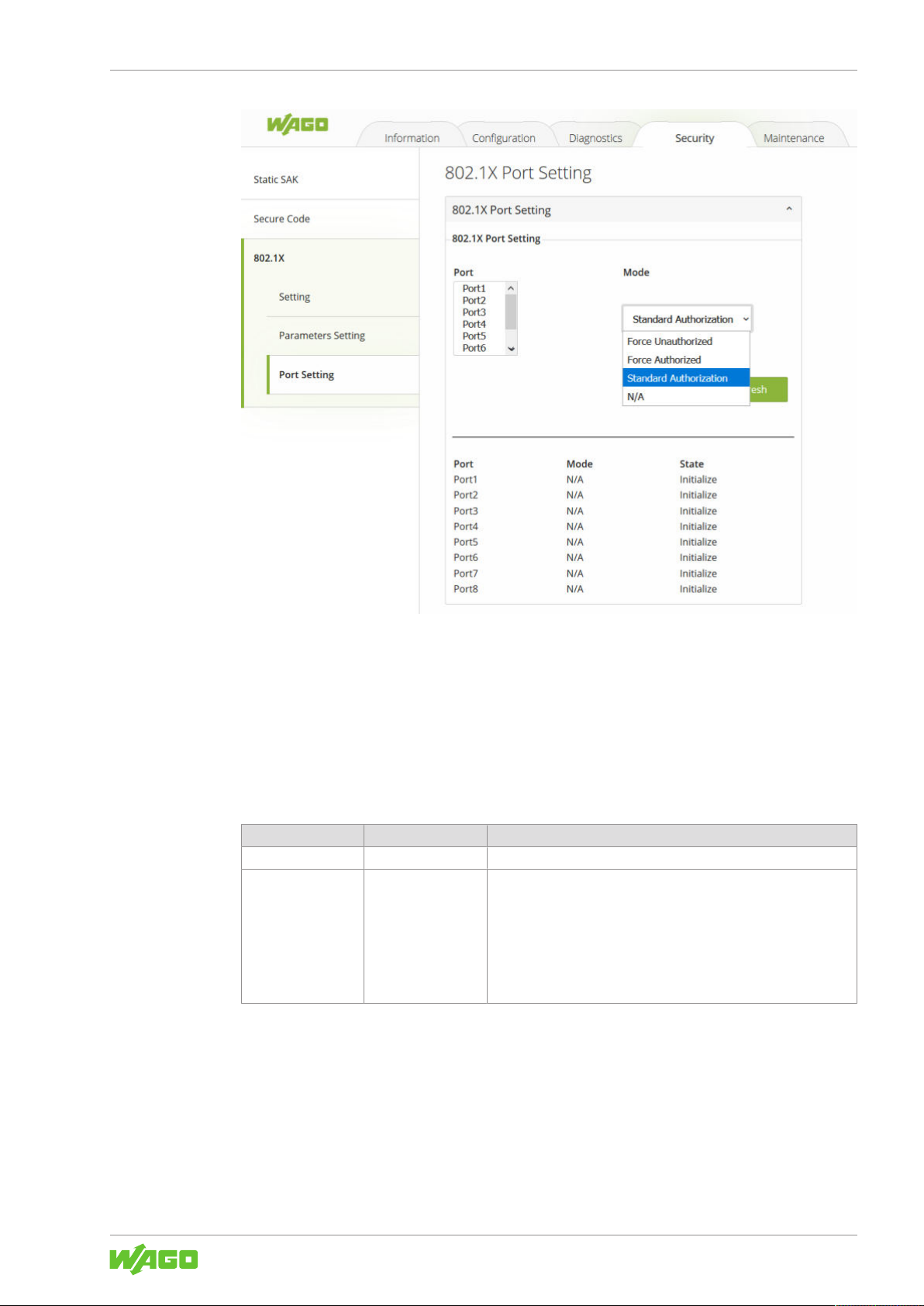

Figure50: WBM “Security” Page – “802.1X” – “802.1X Port Setting” Tab
Table35: WBM “Security” Page– “802.1X”– „802.1XPort Setting” Tab
FU (Force Unauthorized): Specify forced unauthorized
FA (Force Authorized): Specify forced authorized
AU (Standard Authorization): Specify authorization based on
IEEE 802.1X.
NO: Specify disable authorization
Product manual | Version: 1.2.0 65
Industrial Managed Switch
852-1322Configuration in the WBM
The Port Security functions can specify the maximum number of MAC addresses per interface. If this number is exceeded, incoming packets with new MAC addresses are
dropped. The allowed MAC addresses are defined automatically after the activation of the
respective port. Once enabled, the switch stores the MAC addresses of the sender in a
table each time a link is established at the port until the permitted number defined by the
user is reached.
When the state of a port on the switch is changed from disabled to enabled, all MAC addresses captured by that port are deleted.
Note
Configuration of the Port Security
Port security configuration will allow the user to configure MAC limitations to permit the interface. This product supports up to 1,000 MAC address for one port.
66 Product manual | Version: 1.2.0
Industrial Managed Switch

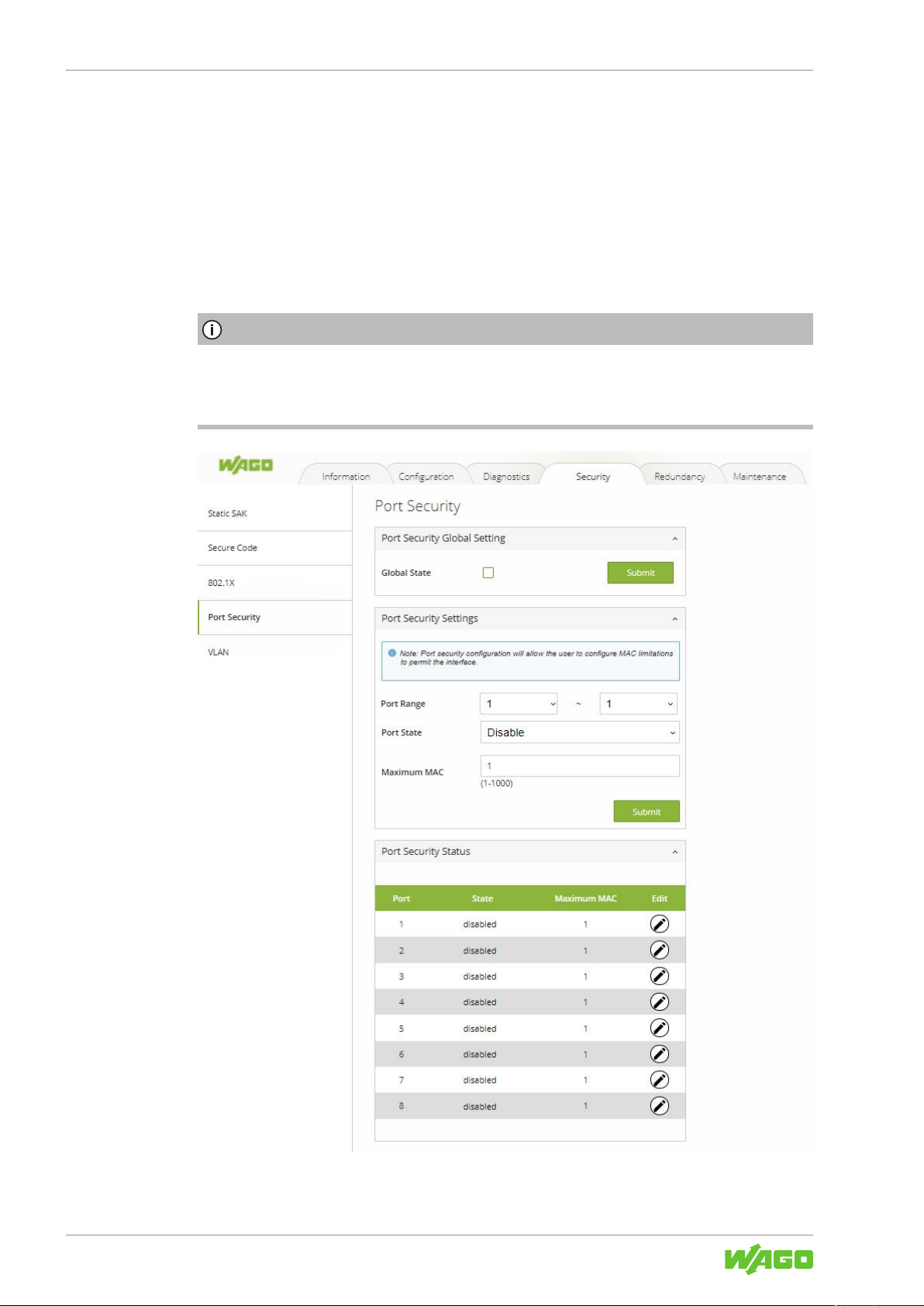

Figure51: WBM "Security" tab – "Port Security" page
852-1322 Configuration in the WBM
Table36: WBM "Security" tab – "Port Security Settings" tab
Parameter Description
Port Security Global Setting
Global State Select Global State to enable port security on the switch. Deselect Global State to dis-
able port security on the switch.
Port Security Settings
Port Range Select the range of ports for which you want to enable/disable port security.
Port State Enable or disable port security on the selected range of ports.
Maximum MAC Select the maximum number of MAC addresses for the selected range of ports
10.6.5 VLAN
10.6.5.1 Port Isolation
Port Isolation is a port-based virtual LAN function. It partitions the switching ports into virtual private domains designated on a per port basis. Data switching outside of the
switch's private domain is not allowed. VLAN tag information of the packets is ignored.
This function can be used to configure one or more egress ports that allow the data received by the specific port to forward it.
If you want to allow communications between two subscriber ports, you must define the
egress port for both ports. By default, it forms a VLAN with all ETHERNET ports.
Product manual | Version: 1.2.0 67
Industrial Managed Switch
852-1322Configuration in the WBM
Parameter Description
Port Range Select the range of ports for which you want to submit the Port Isolation Settings.
Port (1-8) Select the egress ports for the selected range of ports.
10.6.5.2 VLAN Setup
A VLAN (Virtual LAN) is a group of hosts with a common set of requirements that communicate as if they were attached to a broadcast domain, regardless of their physical location. A VLAN has the same attributes as a physical LAN, but it allows end stations to
be grouped together even if they are not located on the same network switch. Networks
can be reconfigured through software instead of spatially offset devices.
VID (VLAN-ID) is the identification of a VLAN that is generally used by the 802.1Q standard. It has 12 bits and allows the identification of 4096 (212) VLANs. Of the 4096 possible
VIDs, VID 0 is used to identify Priority Frames and value 4095 (FFF) is reserved, so the
maximum possible VLAN configurations are 4094.
Figure52: WBM "Security" tab – "Port Isolation Setting" page
Table37: WBM "Security" tab – "Port Isolation Settings" page
68 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
A Tagged VLAN uses an explicit tag (VLAN ID) in the MAC header to identify the VLAN
membership of a frame across Bridges; they are not confined to the switch on which they
were created. VLANs can be created statically (manually by users) or dynamically via the
GVRP (GARP VLAN Registration Protocol). The VLAN ID associates a frame with a specific VLAN and provides the information that switches need to process the frame across
the network. A tagged frame is four bytes longer than an untagged frame and contains
two bytes of TPID (Tag Protocol Identifier, residing within the type/length field of the ETHERNET Frame) and two bytes of TCI (Tag Control Information, starting after the source
address field of the ETHERNET Frame).
Forwarded Tagged and Untagged Frames
Each port on the switch is capable of forwarding tagged or untagged frames. To forward
a frame from an 802.1Q VLAN-aware switch to an 802.1Q VLAN-unaware switch, the
switch first decides where to forward the frame and then strips off the VLAN tag. To forward a frame from an 802.1Q VLAN-unaware switch to an 802.1Q VLAN-aware switch,
the switch first decides where to forward the frame and then inserts a VLAN tag reflecting
the ingress port's default VID. The default PVID is VLAN 1 for all ports, but this can be
changed.
A broadcast frame (or a multicast frame for a multicast group that is known by the system) is duplicated only on ports that are subscribers of the VID (except the ingress port itself), thus confining the broadcast to a specific domain.
Port-Based 802.1Q VLAN
As a subscriber of a port-based VLAN, the port is assigned to a specific VLAN independent of the user or system attached to the port. This means all users attached to the port
should be subscribers of the same VLAN. The network administrator typically performs
the VLAN assignment. The port configuration is static and cannot be automatically
changed to another VLAN without manual reconfiguration.
Two roles can be assigned to a port in a Port-Based VLAN:
• Access port: A port that carries only traffic to and from the specific VLAN to which it is
assigned.
• Trunk port: A port that can carry traffic for one or all VLANs that a specific switch can
access.
As with other VLAN approaches, the packets forwarded using this method are not transmitted to other VLAN domains or networks. After a port has been assigned to a VLAN,
the port cannot send to or receive from devices in another VLAN without the intervention
of a Layer 3 device.
The device that is attached to the port likely has no understanding that a VLAN exists.
The device simply knows that it is part of a subnet and that the device should be able to
talk to all other network subscribers by simply sending information via the cable connection. The switch is responsible for identifying that the information came from a specific
VLAN and for ensuring that the information gets to all other subscribers of the VLAN. The
switch is also responsible for ensuring that ports in a different VLAN do not receive the information.
Product manual | Version: 1.2.0 69
Industrial Managed Switch
852-1322Configuration in the WBM
This approach is quite simple, fast and easy to manage in that there are no complex
lookup tables required for VLAN segmentation. If the Port-to-VLAN connection is designed with an application-specific integrated circuit (ASIC), performance is very good. An
ASIC allows Port-to-VLAN mapping at the hardware level.
Note
Creating VLANs
Up to 128 VLANs can be set up. It is recommended to configure a trunk port with tag and
have all ports join the VLAN.
Parameter Description
Role Select whether that port should be assigned the Access or Trunk role.
VLAN Select the VLAN to be assigned to the port (for trunk e.g. 1,3,6,19)
10.6.5.3 Management VLAN
There must always be a port in the Management VLAN. Otherwise, the switch cannot be
configured.

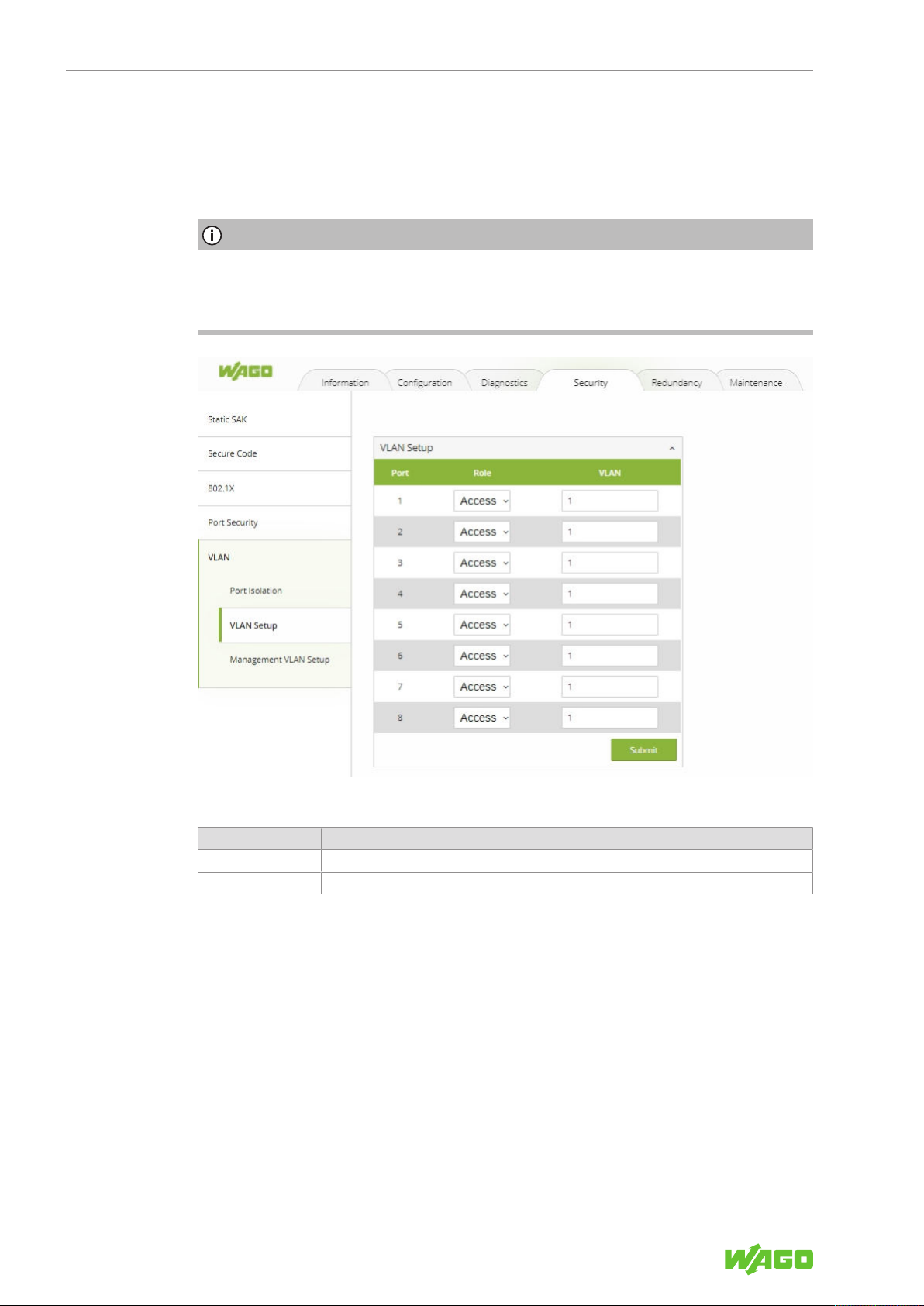

Figure53: WBM "Security" tab – "VLAN Setup" page
Table38: WBM "Security" tab – "VLAN Setup" page
70 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
Note
Obtaining the management VLAN information
If the information for the Management VLAN is missing, you can obtain this information
via LLDP.
- Step 1: Connect Port1 to your laptop or PC.
- Step 2: Port1 will send the information of management VLAN configuration three times
via LLDP DA when the system is booting up (Interval time of 5 seconds).

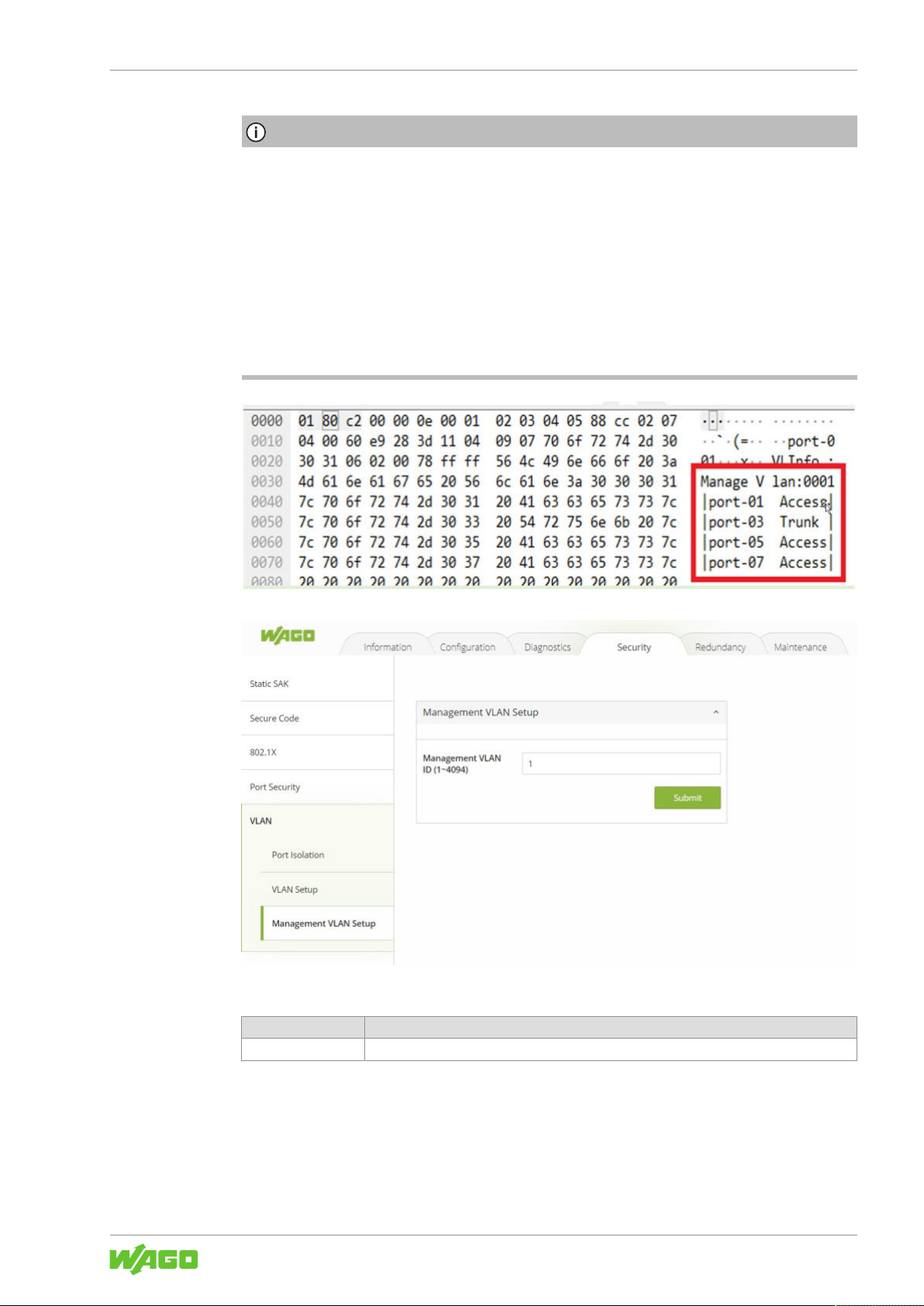

- Step 3: Use the network monitoring tool to monitor LLDP packets and find the manage-
ment VLAN. In the example below, the management VLAN has the ID 1. Ports 1, 3, 5,
and 7 have been set up for VLAN 1.
Figure55: WBM "Security" tab – "Management VLAN Setup" page
Table39: WBM "Security" tab – "Management VLAN Setup" page
Parameter Description
Management VLAN Select the VLAN ID for the Management VLAN
Figure54: Management VLAN – Example
Product manual | Version: 1.2.0 71
Industrial Managed Switch
Note
If the management VLAN is not configured as an access port on the switch, the configuration must be accessed via the trunk port. In this case, the configuration must be performed via an access port of a second switch that is located in the same management
VLAN.
10.7 Redundancy
10.7.1 RSTP
10.7.1.1 General Information
The Rapid Spanning Tree Protocol (RSTP) is a development of the Spanning Tree Protocol (STP). Both protocols are defined by the IEEE in the following standards:
• IEEE 802.1D: Spanning Tree Protocol
• IEEE 802.1w: Rapid Spanning Tree Protocol
852-1322Configuration in the WBM
RSTP can detect and break network loops and provide backup links (spare connections)
between switches, bridges or routers. By regularly exchanging Bridge Protocol Data Units
(BDPU), a switch can interact with other RSTP-capable switches in the network to ensure
that only one connection exists between any two stations in the network at any given
time.
Compared to STP, RSTP allows faster adaptation of the spanning tree. It is also backward compatible with STP-only bridges. With RSTP, information about changes in topology is broadcasted throughout the network directly from the device generating the
change. With STP, a longer delay is required because the device causing a topology
change first notifies the root bridge, which in turn notifies the rest of the network. Both
RSTP and STP remove unwanted learned addresses from the filter database.
To create the spanning tree, a root bridge must be selected first. This is the starting point
of a spanning tree. Starting from the root bridge, , all paths are defined via which the
other bridges in the
network can be reached. The root bridge is selected according to a defined procedure.
For this purpose, the switches exchange their Bridge-ID (BID - consisting of priority, system ID and MAC address) via multicast messages and select the switch with the lowest
priority as the root bridge of the spanning tree. If the lowest priority is assigned to more
than one switch, other criteria such as the MAC address are decisive.
After the root bridge has been selected, the paths through which the other bridges in the
network can be reached are defined. For this purpose, all paths on which other switches
can be reached are first determined. If several paths are recognized over which a switch
can be reached, the paths with the least favorable path costs are blocked. The path costs
are the costs for transmitting a frame through the port in the LAN. The IEEE standard defines the path costs, but also allows them to be set manually. This value should be adjusted to the transmission speed. The valid range is 1 to 200000000. A path with higher
costs is more likely to be blocked by STP if a network loop is detected.
72 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
If the topology changes in a LAN coupled via bridge, a new tree is spanned. Once a stable network topology has been established, all bridges listen for Hello BPDUs transmitted
from the Root Bridge. If a bridge does not get a Hello BPDU after a predefined interval
(Max Age), the bridge assumes that the link to the Root Bridge is down. This bridge then
initiates negotiations with other bridges to reconfigure the network to re-establish a valid
network topology.
RSTP Switch Port States:
• Discarding
If a port causes a Switching Loop (looping connection between two ports), user data
can no longer be sent or received. However, the port can go into the Forwarding state
if the other active connections fail and the Spanning Tree algorithm determines that the
port may transition to that state. BPDU data (Bridge Protocol Data Unit, configuration
message) continues to be received and sent in the "Discarding" state.
• Learning
Even before the port has forwarded any frames (packets), it can learn source addresses from frames received and add them to the filter database (Switching Database).
• Forwarding
The port is in normal operating mode; it receives and sends data. RSTP still monitors
incoming BPDUs, which would indicate that the port should return to the Blocking state
to prevent a loop.
RSTP Bridge Port Roles
• Root
The Root Port is a forwarding port that can best transmit data from the Non-Root
Bridge to the Root Bridge.
• Designated
This is a forwarding port for every LAN segment.
• Alternate
This port represents an alternate path to the Root Bridge. However, this path differs
from the Root Port.
• Backup
This port is used as a backup/redundant path to a segment to which another Bridge
Port is already connected.
• Disabled
This is not actually part of RSTP because a network administrator can manually disable a port.
Other important terms:
Table40: Other important terms
Term Description
Forward Time The Forward Time or Forward Delay is the maximum time (in seconds) that the switch
waits before it changes states. This delay is required because every switch must first receive information on topology changes before it forwards frames. In addition, each port
needs time to receive information on conflicts that would make it return to the blocking
state. Otherwise, temporary data loops might result. The valid range is 4 to 30 seconds.
Max Age The Max Age is the maximum time (in seconds) that the switch can wait without receiv-
ing a BPDU (Bridge Protocol Data Unit, configuration message) before attempting to reconfigure. All switch ports (except for Designated Ports) receive BPDUs at regular inter-
Product manual | Version: 1.2.0 73
Industrial Managed Switch
852-1322Configuration in the WBM
Term Description
vals. Each port that ages out RSTP information (from the last BPDU) becomes the Designated Port for the attached LAN. If it is a Root Port, a new Root Port is selected from
among the switch ports attached to the network.
Hello Time The Hello Time is the time interval in seconds between configuration messages (BDPU
Bridge Protocol Data Unit) sent from the root switch.
Edge Port Edge Ports are attached to a LAN that has no other bridges attached. These ports can
transition directly to the Forwarding state. RSTP continues to monitor the port for BPDUs
in case a bridge is connected. RSTP can also be configured to automatically detect
Edge Ports. As soon as the bridge detects a BPDU coming to an Edge Port, the port
loses its status as an Edge Port.
Transmission Limit The Transmission Limit is used to configure the minimum interval between the transmis-
sion of consecutive RSTP BPDUs. This function can only be enabled in RSTP mode.
The valid range is from 1 to 10 seconds.
Priority The priority is used in determining the root switch, root port, and designated port. The
switch with the highest priority (lowest numeric value) becomes the RSTP root switch. If
all switches have the same priority, the switch with the lowest MAC address becomes
the root switch.
Enter a value from 0~61440.
The lower the numeric value you assign, the higher the priority for this bridge.
The priority determines the root bridge, which in turn determines the root hello time,
maximum root age, and root forwarding delay.
Convergence Time Time required to recalculate the spanning tree in the event of a link failure.
BPDU Guard This setting is configured individual for each port. If the port is enabled in BDU Guard
and receives a BPDU, the port is switched to the Disabled state to prevent a faulty environment. The user must then manually enable the port.
BPDU Filter This function is used to set up a filter for sending or receiving BPDUs on a switch port. If
the port receives BPDUs, the BPDUs are dropped. If both of the BPDU Filter and BPDU
Guard are enabled, the BPDU Filter has the higher priority.
Root Guard The Root Guard function forces an interface to become a Designated Port to prevent
neighboring switches from becoming a root switch. This function provides a way to specify the selection of a Root Bridge in a network. It prevents a Designated Port from becoming the Root Port. If a port with the Root Guard function receives a superior BPDU,
the port moves to a root-inconsistent state (effectively equal to the Listening state) to
maintain the status of the current Root Bridge. The port can be moved to the Forwarding
state if no superior BPDU received over the period of three Hello Times.
74 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
10.7.1.2 RSTP Setup
Figure56: WBM "Redundancy" tab – "RSTP Setup" page
Table41: WBM "Redundancy" tab – "RSTP Setup" page
Parameter Description
Enable State Select Enable State to enable RSTP on the switch. Deselect Enable State to disable
RSTP on the switch.
Mode Only one mode (RSTP) is supported.
Bridge Parameters
Priority Define the priority of the switch, which is used to determine the root switch, the root port,
and the designated ports.
Note
Maximum switches in RSTP ring
A maximum of 20 switches can be connected in one RSTP ring (Default values: "Max
Age" = 20 seconds).
Product manual | Version: 1.2.0 75
Industrial Managed Switch
10.7.1.3 RSTP Port Setup
852-1322Configuration in the WBM
Parameter Description
Port Range Select the range of ports for which you want to apply the Port Parameters Settings.
Edge Port Select if the Edge Port setting should be enabled or disabled on the selected port range.
RSTP per port Select if RSTP should be enabled or disabled on the selected port range.
BDPU Filter Select if the BDPU Filter setting should be enabled or disabled on the selected port
range.
BDPU Guard Select if the BDPU Guard setting should be enabled or disabled on the selected port
range.
Root Guard Select if the Root Guard setting should be enabled or disabled on the selected port
range.
10.7.1.4 RSTP Failover & Recovery Times
Industrial automation applications require robust communication networks that ensure
high availability. The availability of an Ethernet network is largely determined by how
quickly a network can recover from a cable or device failure.
There are several approaches to ensuring availability. The ring-based network topology is
the simplest and most widely used. However, not all solutions achieve the same system
availability and are directly dependent on the network topology. In order to make conclu-

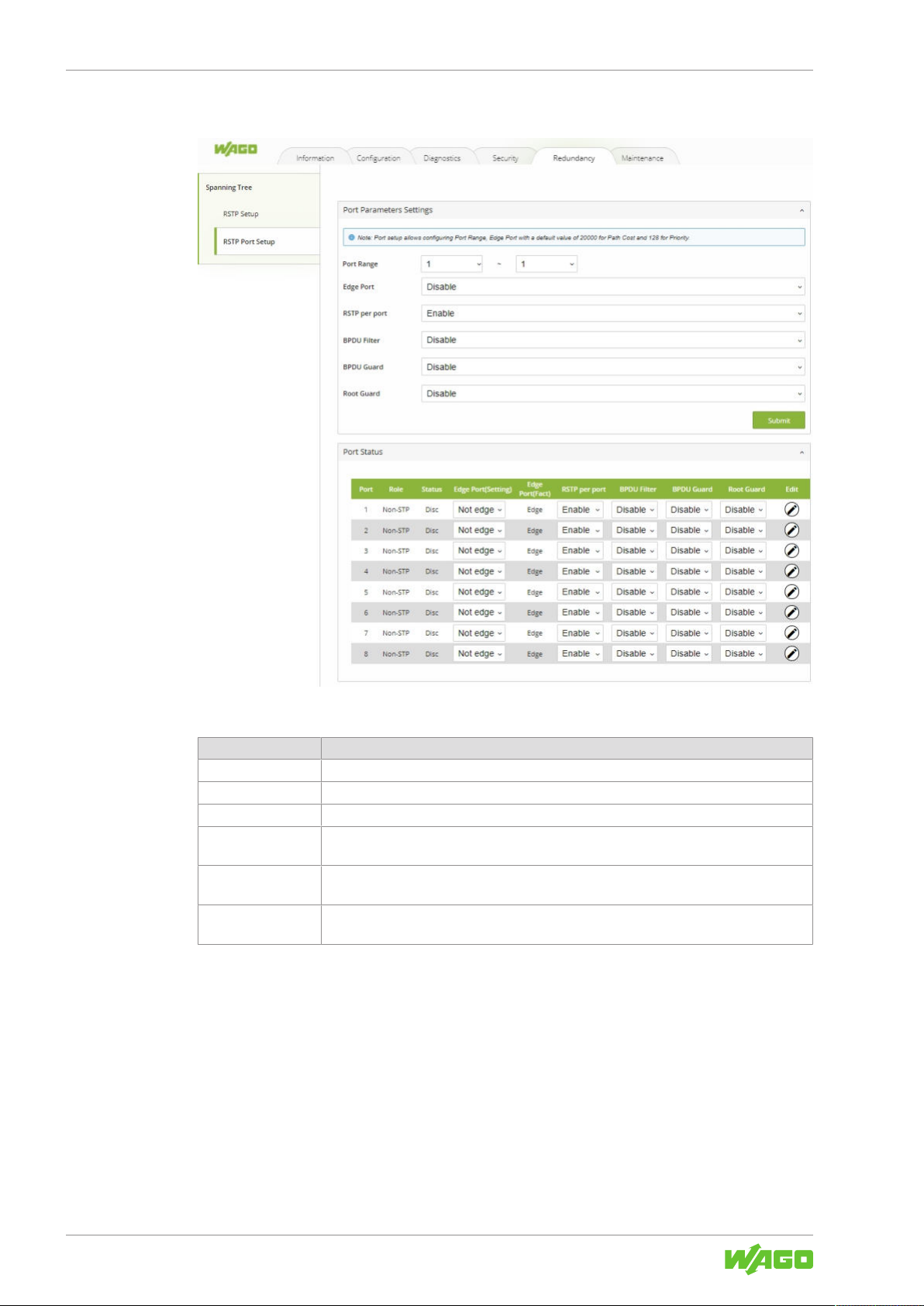

Figure57: WBM "Redundancy" tab – "RSTP Port Setup" page
Table42: WBM "Redundancy" tab – "RSTP Port Setup" page
76 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Configuration in the WBM
sions about the performance for a specific industrial network application, the results of the
measurements of the failover and recovery time of the network are presented below. The
tested topologies correspond to an RSTP ring with 10 and 20 switches.
Cable Break (Failover) & New Uplink (Recovery)
Bidirectional traffic (TCP) Bidirectional traffic (UDP)
Number of devices
in the ring
(852-1322)
10 1210.7 127.0 1213.3 127.8
20 1238.8 528.7 1239.0 530.0
Average failover
time (ms)
Average recovery
time (ms)
Average failover
time (ms)
Average recovery
time (ms)
Power-off Root (Failover)
Bidirectional traffic (TCP) Bidirectional traffic (UDP)
Number of devices
in the ring
(852-1322)
10 1064.9 N/A 1064.5 N/A
20 1233.6 N/A 1232.6 N/A
Average failover
time (ms)
Average recovery
time (ms)
Average failover
time (ms)
Average recovery
time (ms)
10.8 Maintenance
10.8.1 Firmware Upgrade
The user can update the device firmware via web interface as shown in Figure “WBM
“Maintenance” Page – “Firmware Upgrade” Tab”.
To update the firmware, the user can download a new firmware from WAGO’s website
and save it in a local computer. Then, the users can click [Browse…] button and choose
the firmware file that is already downloaded. The switch’s firmware typically has a “.dld”
extension such as 0852-132x-V223.dld. After that, the users can click [Update] button
and wait for the update process to be finished.
Note
Firmware-Upgrade
Please make sure that the switch is plug-in with power supply all the time during the
firmware upgrade.
Product manual | Version: 1.2.0 77
Industrial Managed Switch
10.8.2 Reset to Default
When the switch is not working properly, the user can reset it back to the original factory
default setting by clicking on the [Reset] button as shown in Figure “WBM “Maintenance”
Page – “Reset to Default” Tab”. When the switch is restarted, the web browser will be redirected to the login web page as depicted in Figure “Login Web Page”. Note that there is
no physical reset button on the front panel of the box; therefore, the user will have to either using the [Reset] button on this page.
852-1322Configuration in the WBM

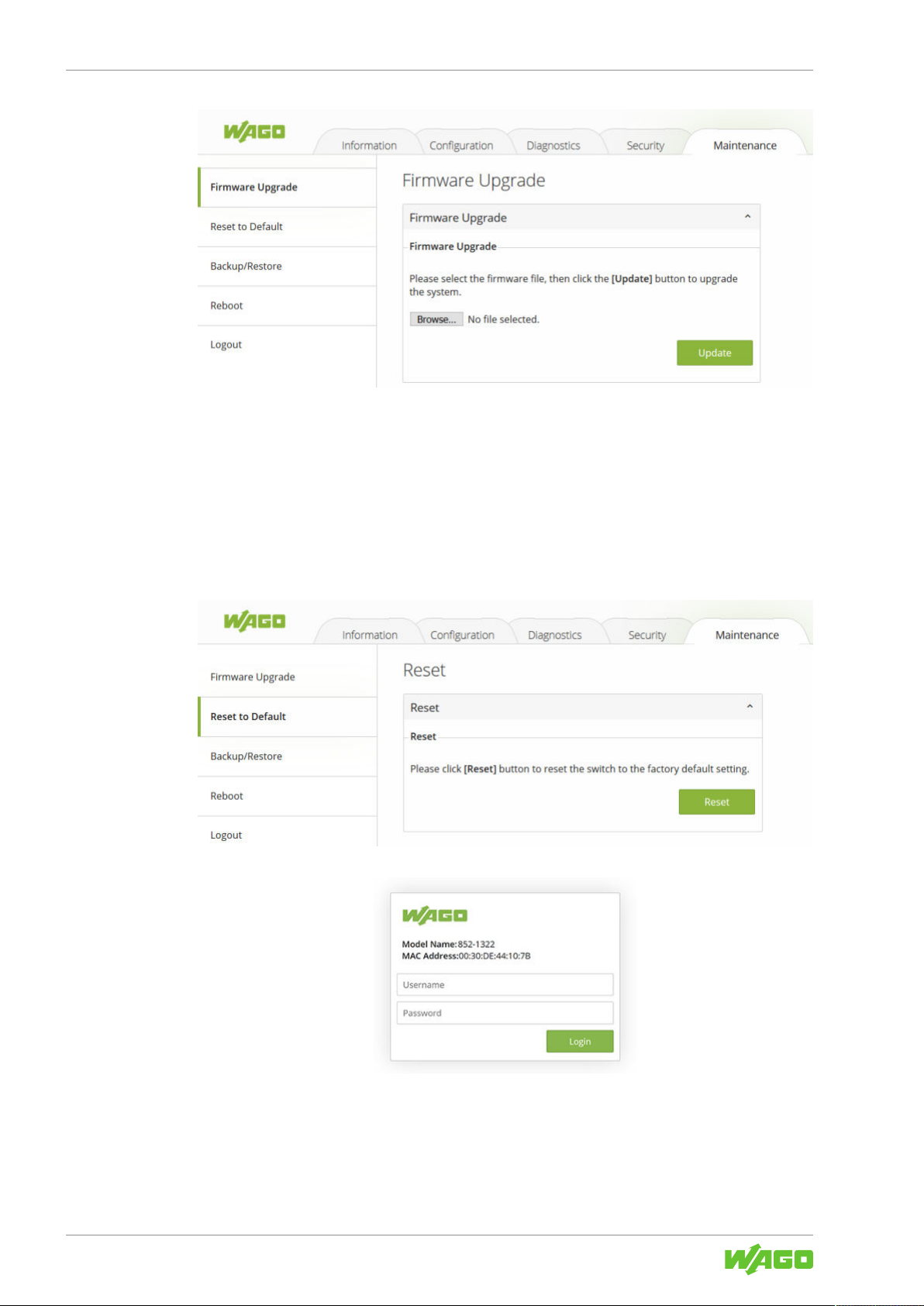

Figure58: WBM “Maintenance” Page – “Firmware Upgrade” Tab
78 Product manual | Version: 1.2.0
Industrial Managed Switch
Figure59: WBM “Maintenance” Page – “Reset to Default” Tab
Figure60: Login Web Page (Example)
852-1322 Configuration in the WBM

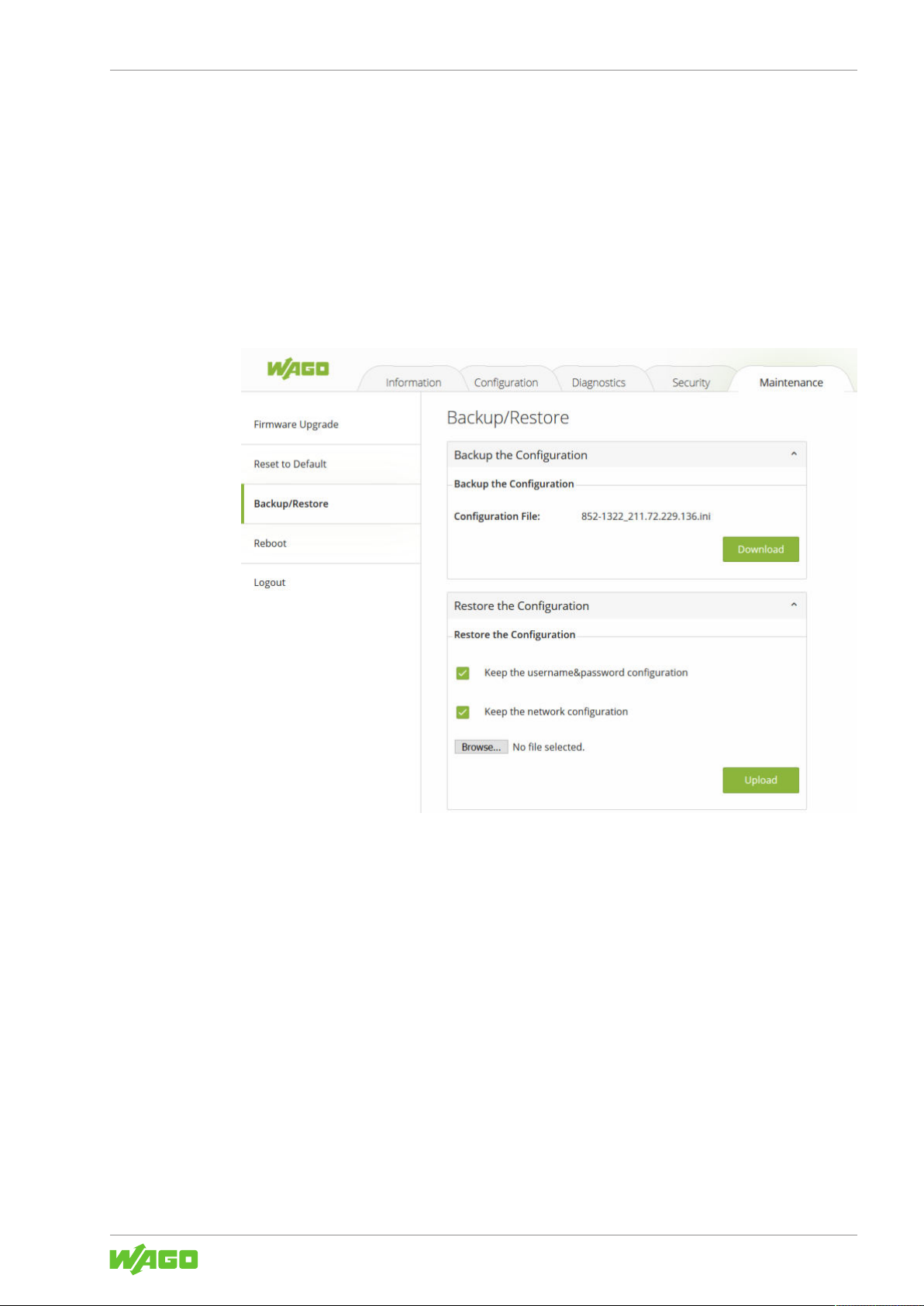

10.8.3 Backup/Restore
The Backup/Restore tab page allow the user to back up the current configuration of the
switch to a file, save the configuration file on the local PC, or upload a new configuration
from a previously saved configuration file. Figure “WBM “Maintenance” Page– “Backup/
Restore” Tab” shows the Backup/Restore tab page where it can be divided into two parts:
Backup the Configuration and Restore the Configuration.
When clicking on the [Download] button on the upper part of the page (Backup the Configuration box), the user will be prompted to save or keep the file name
852-1322_XXX.XXX.XXX.XXX.ini by the Web browser. Choosing to Save File will back
up the switch’s current configuration to your local drive on the local PC.
To restore a configuration file to the switch, click on [Browse…] button to open a file
chooser to select a configuration file from the local drive of your PC. Before clicking the
[Upload] button, the user can check any of the options above the file name, which are
“Keep the username & password configuration” and “Keep the network configuration”.
These two options will help to prevent the users from un-necessary logging-in to the
switch using previously stored username, password, and/or network configuration after
settings are restored.
10.8.4 Reboot
A simple reboot function is provided in this tab page requiring only one single click on the
[Reboot] button as shown in Figure “WBM “Maintenance” Page – “Reboot” Tab”.
Product manual | Version: 1.2.0 79
Industrial Managed Switch
Figure61: WBM “Maintenance” Page – “Backup/Restore” Tab
10.8.5 Logout
For security best practice, the users should logout of the device if they no longer need to
modify the system configuration. The logout process is highly recommended to ensure
that the correct user settings will not be changed easily by unauthorized access or user.
The user can logout of the device by either browsing to the Logout page and click [Lo-
gout] button or using the logout quick button which is located on the upper right corner of
the web page as shown in Figure “WBM “Maintenance” Page – “Logout” Tab” and Figure
Logout Quick Button on the Upper Right Conner“, respectively.
852-1322Configuration in the WBM

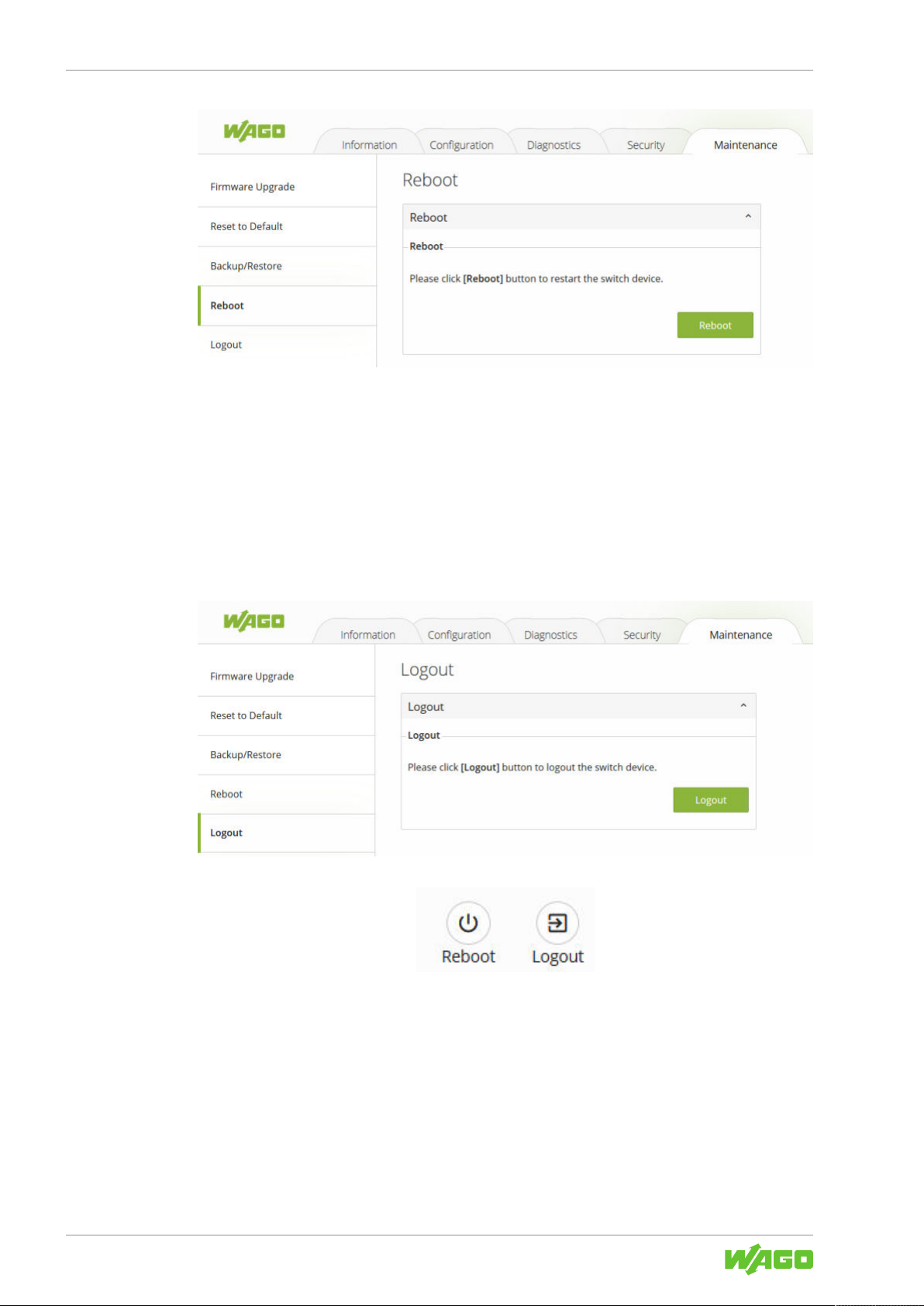

Figure62: WBM “Maintenance” Page – “Reboot” Tab
80 Product manual | Version: 1.2.0
Industrial Managed Switch
Figure63: WBM “Maintenance” Page – “Logout” Tab
Figure64: Logout Quick Button on the Upper Right Conner
852-1322 Commissioning
11Commissioning
Note
For important and useful information on commissioning, see sections:
- System Settings:
- Network Settings: 8Network Settings [}41]
- Port Settings: 8Setting [}42]
- Password: 8Password [}44]
- Clock Settings: 8SNTP Setup [}39]
8System Settings [}36]
Product manual | Version: 1.2.0 81
Industrial Managed Switch
12Diagnostics
Note
For diagnostics and troubleshooting, see sections:
Diagnostics via LED Indicators:
852-1322Diagnostics
- Diagnostics using product LEDs:
- Diagnostics using connection LEDs: 8Port LEDs [}19]
Diagnostics via WBM:
- Diagnostics using SNMP network management:
- Diagnostics in the System Log: 8System-Log [}55]
- Monitoring ports: 8Port Monitor [}59]
8Unit LEDs [}18]
8SNMP [}45]
82 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Service
13Service
Note
The following topics are useful for maintenance, for which the sections in the WBM description are given:
- Update the firmware:
- Reset to factory settings: 8Reset to Default [}78]
- Backup and restore: 8Backup/Restore [}79]
- Reboot: 8Reboot [}79]
- Logout: 8Logout [}80]
8Firmware Upgrade [}77]
Product manual | Version: 1.2.0 83
Industrial Managed Switch
14Decommissioning
14.1 Disposal and Recycling
• Observe national and local regulations for the disposal of batteries, packaging and
electrical and electronic equipment.
• Clear any data stored on electrical and electronic equipment.
• Remove any batteries or memory cards installed in electrical and electronic equipment.
• Dispose of all types of packaging to ensure a high level of recovery, reuse and recycling.
• Have electrical and electronic equipment sent to a local collection point.
• The guidelines 2006/66/EG, PPWD 2018/852/EU and WEEE 2012/19/EU apply
throughout Europe. National directives and laws may vary.
Logo Description
Electrical and electronic equipment may not be disposed of with household waste. This also
applies to products without this mark.
852-1322Decommissioning
Table43: WEEE Mark
Electrical and electronic equipment contain materials and substances that can be harmful
to the environment and health. Electrical and electronic equipment must be disposed of
properly after use. Environmentally friendly disposal benefits health, protects the environment from harmful substances in electrical and electronic equipment and enables sustainable and efficient use of resources.
84 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 Appendix
15Appendix
15.1 MODBUS/TCP Map
15.1.1 Modbus-Register
Table44: Modbus-Register
Address Data Type Read/Write Description
Systeminformation
0x0020 (32) 1 word R Firmware Version =
Ex: Version = 1.02
Word 0 Hi byte = 0x01
Word 0 Lo byte = 0x02
0x0021 (33) 3 words R ETHERNET MAC Address
Ex: MAC = 00-01-02-03-04-05
Word 0 Hi byte = 0x00
Word 0 Lo byte = 0x01
Word 1 Hi byte = 0x02
Word 1 Lo byte = 0x03
Word 2 Hi byte = 0x04
Word 2 Lo byte = 0x05
0x0024 (36) 1 word R Kernel Version
Ex: Version = 1.03
Word 0 Hi byte = 0x01
Word 0 Lo byte = 0x03
IP-Information
0x0050 (80) 1 word R DHCP Status
0x0000: Disabled
0x0001: Enabled
0x0051 (81) 2 words R IP Address of switch
Ex: IP = 192.168.1.1
Word 0 Hi byte = 0xC0
Word 0 Lo byte = 0xA8
Word 1 Hi byte = 0x01
Word 1 Lo byte = 0x01
0x0053 (83) 2 words R Subnet Maske of switch
Ex: IP = 255.255.255.0
Word 0 Hi byte = 0xFF
Word 0 Lo byte = 0xFF
Word 1 Hi byte = 0xFF
Word 1 Lo byte = 0x00
0x0055 (85) 2 words R Gateway Address of switch
Ex: IP = 192.168.1.254
Word 0 Hi byte = 0xC0
Word 0 Lo byte = 0xA8
Word 1 Hi byte = 0x01
Word 1 Lo byte = 0xFE
Product manual | Version: 1.2.0 85
Industrial Managed Switch
Address Data Type Read/Write Description
Port Status
0x1000 (4096) 5 words R Port Status
0x0000: Disabled
0x0001: Enabled
Word 0 Hi byte = Port 1 Status
Word 0 Lo byte = Port 2 Status
Word 1 Hi byte = Port 3 Status
Word 1 Lo byte = Port 4 Status
Word 2 Hi byte = Port 5 Status
Word 2 Lo byte = Port 6 Status
Word 3 Hi byte = Port 7 Status
Word 3 Lo byte = Port 8 Status
Word 4 Hi byte = Port 9 Status
Word 4 Lo byte = Port 10 Status
0x1040 (4160) 5 words R Port Speed
Status, 10M = 0x01
Status, 100M = 0x02
Status, 1000M = 0x03
Word 0 Hi byte = Port 1 Status
Word 0 Lo byte = Port 2 Status
Word 1 Hi byte = Port 3 Status
Word 1 Lo byte = Port 4 Status
Word 2 Hi byte = Port 5 Status
Word 2 Lo byte = Port 6 Status
Word 3 Hi byte = Port 7 Status
Word 3 Lo byte = Port 8 Status
Word 4 Hi byte = Port 9 Status
Word 4 Lo byte = Port 10 Status
0x10A0 (4256) 5 words R Port Link Status
Status, down = 0x00
Status, up = 0x01
Word 0 Hi byte = Port 1 Status
Word 0 Lo byte = Port 2 Status
Word 1 Hi byte = Port 3 Status
Word 1 Lo byte = Port 4 Status
Word 2 Hi byte = Port 5 Status
Word 2 Lo byte = Port 6 Status
Word 3 Hi byte = Port 7 Status
Word 3 Lo byte = Port 8 Status
Word 4 Hi byte = Port 9 Status
Word 4 Lo byte = Port 10 Status
852-1322Appendix
86 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 List of Tables
List of Tables
Table 1 Legend for the Figure "Front View of the Industrial Managed Switch"............................... 15
Table 2 Legend for the Figure “Top View of the Industrial Managed Switch” ................................. 15
Table 3 Legend for Figure „Label“ .................................................................................................. 16
Table 4 Legend for Figure “Power Supply" ..................................................................................... 17
Table 5 Legend for Figure "Network Connections" ......................................................................... 17
Table 6 Legend for “Unit LEDs” Figure ........................................................................................... 18
Table 7 Legend for „Port LEDs“ Figure ........................................................................................... 19
Table 8 Technical Data – Device Data ........................................................................................... 19
Table 9 Technical Data – System Data .......................................................................................... 19
Table 10 Technical Data – Power Supply......................................................................................... 19
Table 11 Technical Data – Communication ...................................................................................... 19
Table 12 Technical Data ‒ Environmental Conditions ...................................................................... 20
Table 13 Overview – Navigation Links and WBM Pages.................................................................. 31
Table 14 WBM “Information” Page – “System Information” Tab....................................................... 35
Table 15 WBM “Configuration” Page – “System Settings” Tab ........................................................ 37
Table 16 WBM "Configuration" tab – "LLDP Settings" page............................................................. 38
Table 17 WBM "Configuration" page – "SNTP" tab .......................................................................... 39
Table 18 WBM "Configuration" tab – "SNTP" page .......................................................................... 41
Table 19 WBM “Configuration” Page – “System Settings” Tab ........................................................ 42
Table 20 WBM “Configuration” Page – “Port Settings” Tab“............................................................. 43
Table 21 WBM "Configuration" tab – "Mirror" page .......................................................................... 44
Table 22 WBM “Configuration” Page – “Password” Tab................................................................... 45
Table 23 WBM Page, “Diagnostics” – “SNMP” Tab, SNMP Agent Setting....................................... 50
Table 24 WBM “Diagnostics” Page – “SNMP” Tab, SNMP V1/V2c Community Setting .................. 51
Table 25 WBM “Diagnostics” Page – “SNMP” Tab, SNMP Trap ..................................................... 52
Table 26 WBM “Diagnostics” Page – “SNMP” Tab, SNMP V3 Auth................................................. 54
Table 27 WBM “Diagnostics” Page – “Modbus TCP” Tab ................................................................ 55
Table 28 WBM “Diagnostics” Page – “System Log” – “Setting” Tab................................................. 56
Table 29 WBM Page, “Diagnostics” – “System Log” – “Log” Tab..................................................... 58
Table 30 Log Event Description........................................................................................................ 58
Table 31 WBM “Diagnostics” Page – “Port Monitor” Tab.................................................................. 59
Table 32 WBM Page, “Security”– “Static SAK” Tab......................................................................... 60
Table 33 WBM “Security” Page– “802.1X”– “Setting” Tab.............................................................. 63
Table 34 WBM “Security” Page– “802.1X”– “802.1X Parameter Setting” Tab– Parameters Set-
tings“ .................................................................................................................................. 64
Table 35 WBM “Security” Page– “802.1X”– „802.1XPort Setting” Tab.......................................... 65
Product manual | Version: 1.2.0 87
Industrial Managed Switch
852-1322List of Tables
Table 36 WBM "Security" tab – "Port Security Settings" tab ............................................................ 67
Table 37 WBM "Security" tab – "Port Isolation Settings" page ......................................................... 68
Table 38 WBM "Security" tab – "VLAN Setup" page ........................................................................ 70
Table 39 WBM "Security" tab – "Management VLAN Setup" page .................................................. 71
Table 40 Other important terms ........................................................................................................ 73
Table 41 WBM "Redundancy" tab – "RSTP Setup" page................................................................. 75
Table 42 WBM "Redundancy" tab – "RSTP Port Setup" page ......................................................... 76
Table 43 WEEE Mark ....................................................................................................................... 84
Table 44 Modbus-Register................................................................................................................ 85
88 Product manual | Version: 1.2.0
Industrial Managed Switch
852-1322 List of Figures
List of Figures
Figure 1 Front View of the Industrial Managed Switch................................................................ 14
Figure 2 Top View of the Industrial Managed Switch .................................................................. 15
Figure 3 Label ............................................................................................................................ 16
Figure 4 Grounding screw ........................................................................................................... 16
Figure 5 Power Supply Connector .............................................................................................. 17
Figure 6 Network Connections .................................................................................................... 17
Figure 7 Unit LEDs ...................................................................................................................... 18
Figure 8 Port LEDs...................................................................................................................... 19
Figure 9 RADIUS Authentication Sequence ............................................................................... 22
Figure 10 Example of Wireshark software sniffing on IP address of a switch............................... 29
Figure 11 Security Warning Page ................................................................................................. 30
Figure 12 WAGO Login Page ....................................................................................................... 30
Figure 13 Start Page of WBM ....................................................................................................... 31
Figure 14 Default Password Warning Pop-up Dialog on Password Web Page ............................ 31
Figure 15 Login Failure Dialog ...................................................................................................... 33
Figure 16 Login Failure Dialog with only [Forget it] button............................................................ 33
Figure 17 Example of Dialog after Clicking [Forget it] Button ....................................................... 33
Figure 18 Example of Security Card ............................................................................................. 34
Figure 19 Re-direction to Change Password Tab Page................................................................ 34
Figure 20 WAGO Login Dialog after Resetting Password ............................................................ 34
Figure 21 WBM “Information” Page – “System Information” Tab.................................................. 35
Figure 22 WBM “Information” Page – “Legal Information” – “WAGO Licenses” Tab .................... 36
Figure 23 WBM “Information” Page – “Legal Information” – “Open Source License” Tab ............ 36
Figure 24 WBM “Configuration” Page – “System Settings” Tab ................................................... 37
Figure 25 WBM "Configuration" tab – "LLDP Settings" page........................................................ 38
Figure 26 WBM "Configuration" page – "SNTP" tab ..................................................................... 39
Figure 27 WBM "Configuration" tab – "SNTP" page ..................................................................... 40
Figure 28 WBM “Configuration” Page – “Network Settings” Tab .................................................. 42
Figure 29 WBM “Configuration” Page – “Port Settings” Tab......................................................... 43
Figure 30 WBM "Configuration" tab – "Mirror" page ..................................................................... 44
Figure 31 WBM “Configuration” Page – “Password” Tab.............................................................. 45
Figure 32 WBM “Diagnostics” Page – “SNMP Setting Part 1” Tab ............................................... 47
Figure 33 WBM “Diagnostics” Page – “SNMP Setting Part 2” Tab ............................................... 48
Figure 34 WBM “Diagnostics” Page – “SNMP Setting Part 3” Tab ............................................... 49
Figure 35 SNMP Agent Setting ..................................................................................................... 50
Figure 36 SNMP V1/V2c Community Setting................................................................................ 51
Product manual | Version: 1.2.0 89
Industrial Managed Switch
852-1322List of Figures
Figure 37 WBM “Diagnostics” Page – “SNMP” Tab, SNMP Trap ................................................. 52
Figure 38 WBM “Diagnostics” Page – “SNMP Tab”, SNMP V3 Auth............................................ 53
Figure 39 WBM “Diagnostics” Page – “Modbus TCP” Tab ........................................................... 55
Figure 40 WBM “Diagnostics” Page – “System Log” – “Setting” Tab............................................ 56
Figure 41 WBM Page, “Diagnostics” – “System Log” Tab – “Log” Section................................... 57
Figure 42 [Start] Button is visible when Automatic refresh cycle is enabled. ................................ 58
Figure 43 WBM “Diagnostics” Page – “Port Monitor” Tab............................................................. 59
Figure 44 WBM Page, “Security” – “Static SAK” Tab.................................................................... 60
Figure 45 Example of Secure Codes ............................................................................................ 61
Figure 46 WBM “Security” Page – “Secure Code” Tab................................................................. 61
Figure 47 WBM “Security” Page – “802.1X” Tab .......................................................................... 62
Figure 48 WBM “Security” Page – “802.1X” – “Setting” Tab......................................................... 63
Figure 49 WBM “Security” Page – “802.1X” – “802.1X Parameter Setting” Tab........................... 64
Figure 50 WBM “Security” Page – “802.1X” – “802.1X Port Setting” Tab..................................... 65
Figure 51 WBM "Security" tab – "Port Security" page................................................................... 66
Figure 52 WBM "Security" tab – "Port Isolation Setting" page ...................................................... 68
