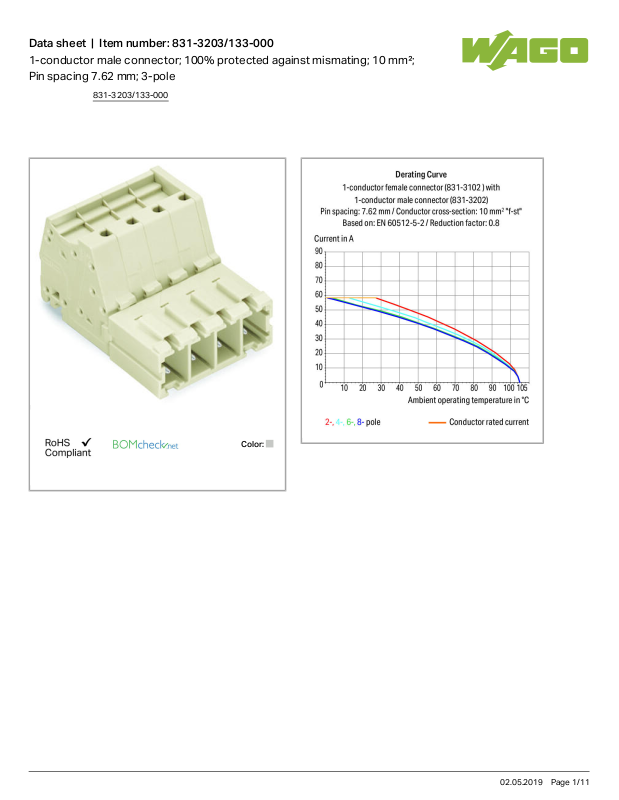

Wago 831-3203/133-000 Data Sheet
Data sheet | Item number:831-3203/133-000
1-conductor male connector; 100% protected against mismating; 10 mm²;
Pin spacing 7.62 mm; 3-pole
Color:
831-3203/133-000
02.05.2019Page /1 11
Data sheet | Item number:831-3203/133-000
L = (pole no. – 1) x pin spacing + 9.5mm
Item description
Universal connection for all conductor types
Push-in termination of solid or ferruled conductors
Integrated test ports for 2 mm Ø test plugs
600 V UL per UL 1059
100 % protected against mismating
Coding via coding fingers
Safety information 1:
The is designed without breaking capacity for compliance with DIN EN 61984. When used as intended, MCS
MULTI CONNECTION SYSTEM (MCS)
Connectors shall not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are
not live when unmated.
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated voltage (III / 2) 1000 V
Rated impulse voltage (III / 2) 8 kV
Rated voltage (II / 2) 1000 V
Rated impulse voltage (II / 2) 8 kV
Rated current 41 A
831-3203/133-000
02.05.2019Page /2 11
Data sheet | Item number:831-3203/133-000
Approvals per UL 1059
Rated voltage UL (Use Group C) 600 V
Rated current UL (Use Group C) 42 A
Approvals per CSA
Rated voltage CSA (Use Group C) 600 V
Rated current CSA (Use Group C) 41 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Operating tool
Solid conductor 0.5 … 10mm²/ 20 … 8AWG
Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG
Fine-stranded conductor with ferrule with plastic collar 0.5 … 6mm²
Fine-stranded conductor with ferrule without plastic collar 0.5 … 6mm²
Strip length 13 … 15mm/ 0.51 … 0.59inch
No. of poles 3
Total number of connection points 3
Total number of potentials 3
Number of connection types 1
Number of levels 1
Geometrical Data
Pin spacing 7.62mm/ 0.3inch
Width 24.74mm/ 0.974inch
Height 27.5mm/ 1.083inch
Depth 46mm/ 1.811inch
Plug connection
Contact type (pluggable connector) Male connector/plug
Connector connection type for conductors
Mismating protection Yes
Material Data
Color light gray
Material group I
Insulating material Polyamide 66 (PA 66)
Flammability class per UL94 V0
831-3203/133-000
02.05.2019Page /3 11
Data sheet | Item number:831-3203/133-000
Clamping spring material Chrome nickel spring steel (CrNi)
Contact material Electrolytic copper (E )
Cu
Contact plating tin-plated
Fire load 0 MJ
Weight 21.934 g
Environmental Requirements
Limit temperature range -60 … +105°C
Commercial data
Country of origin PL
GTIN 4055143511360
Customs Tariff No. 85366990990
Compatible products
Coding
Item no.: 831-500
Coding pin carrier with six coding pins
831-500
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-110/762-852
Marking strips; cut to a defined length; not stretchable
2009-110
/762-852
Item no.: 2009-110/762-853
Marking strips; cut to a defined length; not stretchable
2009-110
/762-853
Item no.: 2009-110/762-854
Marking strips; cut to a defined length; not stretchable
2009-110
/762-854
Item no.: 2009-110/762-855
Marking strips; cut to a defined length; not stretchable
2009-110
/762-855
Item no.: 2009-110/762-856
Marking strips; cut to a defined length; not stretchable
2009-110
/762-856
831-3203/133-000
02.05.2019Page /4 11
