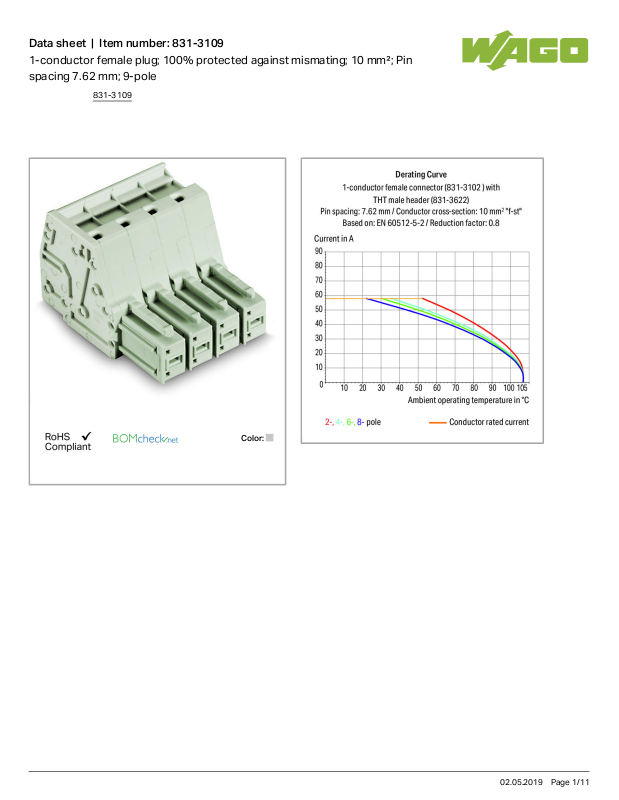

Wago 831-3109 Data Sheet

Data sheet | Item number:831-3109

1-conductor female plug; 100% protected against mismating; 10 mm²; Pin
spacing 7.62 mm; 9-pole

Color:

831-3109

02.05.2019Page /1 11

Data sheet | Item number:831-3109

L = (pole no. – 1) x pin spacing + 9.5mm

Item description

Universal connection for all conductor types

Push-in termination of solid or ferruled conductors

Integrated test ports for 2 mm Ø test plugs

600 V UL per UL 1059

100 % protected against mismating

Coding via coding fingers

Safety information 1:

The is designed without breaking capacity for compliance with DIN EN 61984. When used as intended, MCS

MULTI CONNECTION SYSTEM (MCS)

Connectors shall not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are
not live when unmated.

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated voltage (III / 2) 1000 V

Rated impulse voltage (III / 2) 8 kV

Rated voltage (II / 2) 1000 V

Rated impulse voltage (II / 2) 8 kV

Rated current 41 A

831-3109

02.05.2019Page /2 11

Data sheet | Item number:831-3109

Approvals per UL 1059

Rated voltage UL (Use Group C) 600 V

Rated current UL (Use Group C) 42 A

Approvals per CSA

Rated voltage CSA (Use Group C) 600 V

Rated current CSA (Use Group C) 41 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Operating tool

Solid conductor 0.5 … 10mm²/ 20 … 8AWG

Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG

Fine-stranded conductor with ferrule with plastic collar 0.5 … 6mm²

Fine-stranded conductor with ferrule without plastic collar 0.5 … 6mm²

Strip length 13 … 15mm/ 0.51 … 0.59inch

No. of poles 9

Total number of connection points 9

Total number of potentials 9

Number of connection types 1

Number of levels 1

Geometrical Data

Pin spacing 7.62mm/ 0.3inch

Width 70.46mm/ 2.774inch

Height 27.5mm/ 1.083inch

Depth 41.9mm/ 1.65inch

Plug connection

Contact type (pluggable connector) Female connector/socket

Connector connection type for conductors

Mismating protection Yes

Material Data

Color light gray

Material group I

Insulating material Polyamide 66 (PA 66)

Flammability class per UL94 V0

831-3109

02.05.2019Page /3 11

Data sheet | Item number:831-3109

Clamping spring material Chrome nickel spring steel (CrNi)

Material of the additional spring for socket contact Chrome nickel spring steel (CrNi)

Contact material Electrolytic copper (E )

Cu

Contact plating tin-plated

Fire load 0.94 MJ

Weight 66.012 g

Environmental Requirements

Limit temperature range -60 … +105°C

Commercial data

Product Group 3 (Multi Conn. System)

Country of origin DE

GTIN 4050821345312

Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 61984 2169534.04

CCA

DEKRA Certification B.V.

IEC 61984 NL-31143

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

Underwriters Laboratories Inc.

UL 1059 20181217-

E45172

Compatible products

check
