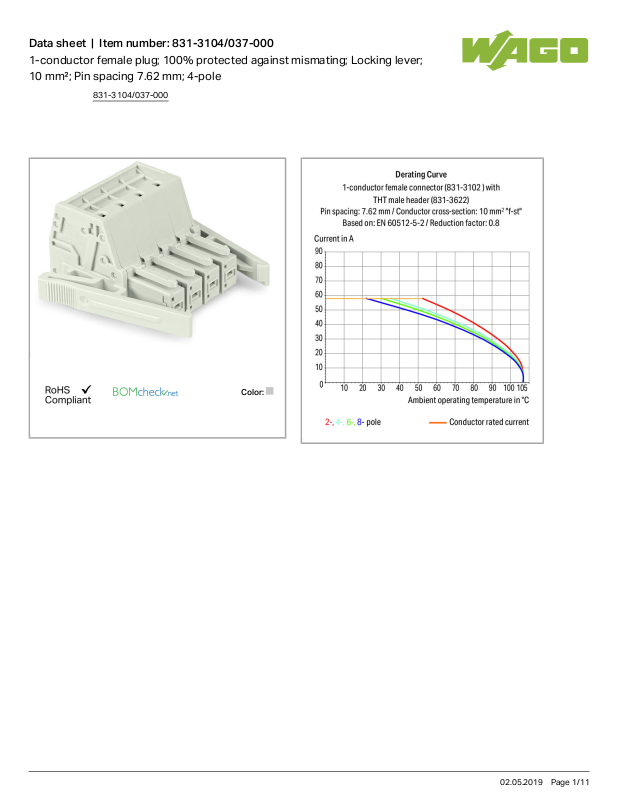

Wago 831-3104/037-000 Data Sheet

Data sheet | Item number:831-3104/037-000

1-conductor female plug; 100% protected against mismating; Locking lever;
10 mm²; Pin spacing 7.62 mm; 4-pole

Color:

831-3104/037-000

02.05.2019Page /1 11

Data sheet | Item number:831-3104/037-000

L = (pole no. – 1) x pin spacing + 10.5mm

L = L + 23.7mm

1

Item description

Universal connection for all conductor types

Push-in termination of solid or ferruled conductors

Integrated test ports for 2 mm Ø test plugs

600 V UL per UL 1059

100 % protected against mismating

Coding via coding fingers

Safety information 1:

The is designed without breaking capacity for compliance with DIN EN 61984. When used as intended, MCS

MULTI CONNECTION SYSTEM (MCS)

Connectors shall not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are
not live when unmated.

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

831-3104/037-000

02.05.2019Page /2 11

Data sheet | Item number:831-3104/037-000

Rated voltage (III / 2) 1000 V

Rated impulse voltage (III / 2) 8 kV

Rated voltage (II / 2) 1000 V

Rated impulse voltage (II / 2) 8 kV

Rated current 41 A

Approvals per UL 1059

Rated voltage UL (Use Group C) 600 V

Rated current UL (Use Group C) 42 A

Approvals per CSA

Rated voltage CSA (Use Group C) 600 V

Rated current CSA (Use Group C) 41 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Operating tool

Solid conductor 0.5 … 10mm²/ 20 … 8AWG

Fine-stranded conductor 0.5 … 10mm²/ 20 … 8AWG

Fine-stranded conductor with ferrule with plastic collar 0.5 … 6mm²

Fine-stranded conductor with ferrule without plastic collar 0.5 … 6mm²

Strip length 13 … 15mm/ 0.51 … 0.59inch

Connection technology 2 Quick-connect/Solder contact

No. of poles 4

Total number of connection points 4

Total number of potentials 4

Number of connection types 1

Number of levels 1

Geometrical Data

Pin spacing 7.62mm/ 0.3inch

Width 57.16mm/ 2.25inch

Height 27.5mm/ 1.083inch

Depth 41.9mm/ 1.65inch

Plug connection

Contact type (pluggable connector) Female connector/socket

Connector connection type for conductors

Mismating protection Yes

831-3104/037-000

02.05.2019Page /3 11

Data sheet | Item number:831-3104/037-000

Locking of plug-in connection locking lever

Material Data

Color light gray

Material group I

Insulating material Polyamide 66 (PA 66)

Flammability class per UL94 V0

Clamping spring material Chrome nickel spring steel (CrNi)

Material of the additional spring for socket contact Chrome nickel spring steel (CrNi)

Contact material Electrolytic copper (E )

Cu

Contact plating tin-plated

Fire load 0.537 MJ

Weight 33.6 g

Environmental Requirements

Limit temperature range -60 … +105°C

Commercial data

Product Group 3 (Multi Conn. System)

Country of origin DE

GTIN 4045454333904

Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 61984 2169534.04

CCA

DEKRA Certification B.V.

IEC 61984 NL-31143

CSA

DEKRA Certification B.V.

C22.2 1466354

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL 1059 20181217-
