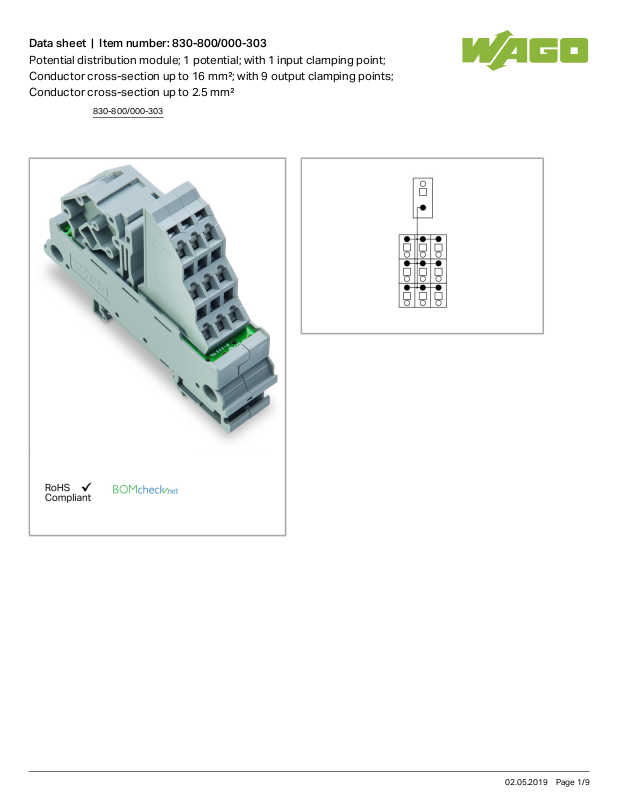

Wago 830-800/000-303 Data Sheet

Data sheet | Item number:830-800/000-303

Potential distribution module; 1 potential; with 1 input clamping point;
Conductor cross-section up to 16 mm²; with 9 output clamping points;
Conductor cross-section up to 2.5 mm²

830-800/000-303

02.05.2019Page /1 9

Data sheet | Item number:830-800/000-303

Data

Electrical data

Operating voltage ≤AC/DC250V

Current consumption at supply voltage 0

Max. current per connection 10 A

Max. total current per potential 65 A

Connection data

Total number of potentials 1

Connection type (1) Input

Mating direction 45°

Connection technology

CAGE CLAMP

®

WAGO terminal WAGO 745 Series

Solid conductor 0.2 … 16mm²/ 24 … 6AWG

Fine-stranded conductor 0.2 … 16mm²/ 24 … 6AWG

Strip length 11 … 12mm/ 0.43 … 0.47inch

Connection type (2) Output

Mating direction 2 45°

Connection technology 2

CAGE CLAMP

®

WAGO terminal 2 WAGO 737 Series

Solid conductor (2) 0.08 … 2.5mm²/ 28 … 12AWG

Strip length (2) 5 … 6mm/ 0.2 … 0.24inch

Note (conductor cross-section) 12 AWG: THHN, THWN

830-800/000-303

02.05.2019Page /2 9

Data sheet | Item number:830-800/000-303

Geometrical Data

Width 21mm/ 0.81inch

Height from upper-edge of DIN-35 rail 62mm/ 2.44inch

Depth 85mm/ 3.35inch

Mechanical data

Type of mounting DIN-35 rail

Housing design Mounting carrier

Material Data

Fire load 0 MJ

Weight 63

Environmental Requirements

Surrounding air (operating) temperature -20 … 50°C

Relative humidity ≤95% (no condensation)

Standards and specifications

Standards/specifications cULus 61010-2-201

Commercial data

Country of origin US

GTIN 4055143379304

Customs Tariff No. 85369010000

Compatible products

Marking accessories

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-002

Item no.: 2009-115/000-006

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-006

830-800/000-303
