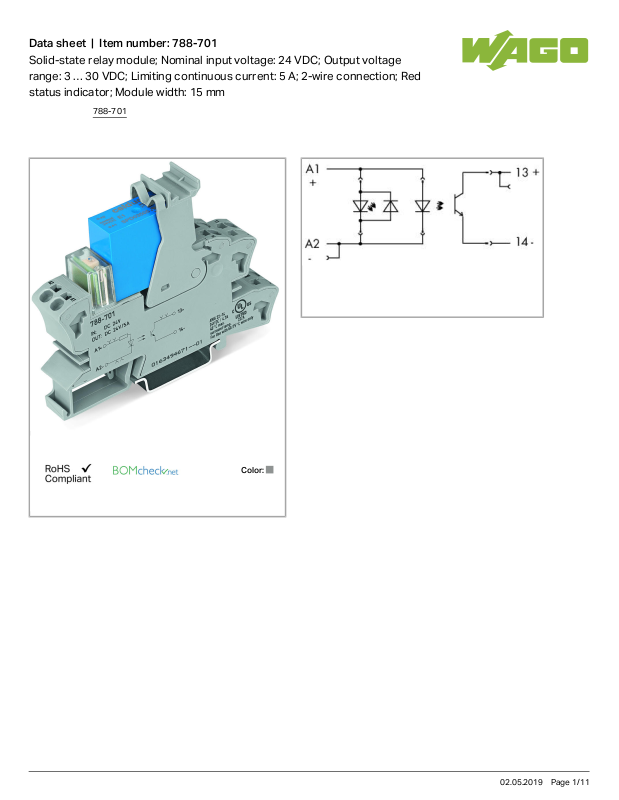

Wago 788-701 Data Sheet

Data sheet | Item number:788-701

Solid-state relay module; Nominal input voltage: 24 VDC; Output voltage
range: 3 … 30 VDC; Limiting continuous current: 5 A; 2-wire connection; Red
status indicator; Module width: 15 mm

Color:

788-701

02.05.2019Page /1 11

Data sheet | Item number:788-701

Current-carrying capacity curve

Item description

Note:

Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply

networks.

Data

Technical Data

Control circuit

Nominal input voltage U

N

DC24V

Input voltage range (low level) DC0 … 2.5V

Input voltage range (high level) DC15 … 30V

Nominal input current at U

N

9.3mA

Load circuit:

Circuit type 2-conductor termination

Limiting continuous current 5A

Output voltage range DC 0 … 30V

Max. voltage drop at output ≤DC0.3V

Min. switching current 0µA

Turn-on time ≤50µs

Drop-out time ≤600µs

Switching frequency ≤100Hz

788-701

02.05.2019Page /2 11

Data sheet | Item number:788-701

Signaling

Status indication LED red

Safety and protection:

Pollution degree 2

Dielectric strength, control/load circuit (AC, 1 min) 2.5kVrms

Protection class IP20

Connection data

Connection technology

Push-in CAGE CLAMP

®

Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG

Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 15mm/ 0.591inch

Height from upper-edge of DIN-35 rail 64mm/ 2.52inch

Depth 86mm/ 3.386inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Color gray

Fire load 0 MJ

Weight 47 g

Environmental Requirements

Pollution degree 2

Surrounding air (operating) temperature at U

N

-40 … 70°C

Surrounding air (storage) temperature -40 … 70°C

Processing temperature -25 … +50°C

Surrounding air (operating) temperature for UL -40 … 40 °C

Standards and specifications

Standards/specifications EN 61000-6-2; EN 61000-6-3; EN 61373; EN 61010-2-201; UL 508

(max. 40 °C/4.7 A)

788-701

02.05.2019Page /3 11

Data sheet | Item number:788-701

Commercial data

Product Group 6 (Interface Electronics)

Country of origin DE

GTIN 4045454743871

Customs Tariff No. 85365005000

Approvals / Certificates

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Netherlands B.V. (ORDINARY
LOCATIONS)

UL 508 E175199

Sec.6

Compatible products

tools

Item no.: 210-720

Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm

210-720

Jumper

Item no.: 788-113

Comb-style jumper bar; 2-way; insulated

788-113

Item no.: 788-114

Comb-style jumper bar; 3-way; insulated

788-114

Item no.: 788-115

Comb-style jumper bar; 4-way; insulated

788-115

Item no.: 788-116

Comb-style jumper bar; 6-way; insulated

788-116

Item no.: 788-117

Comb-style jumper bar; 8-way; insulated

788-117

Item no.: 788-118

Comb-style jumper bar; 2-way (1-3); insulated

788-118

Item no.: 859-402

Push-in type jumper bar; 2-way; Nominal current 18 A; insulated

859-402

Item no.: 859-402/000-005

Push-in type jumper bar; 2-way; Nominal current 18 A; insulated

859-402

/000-005
