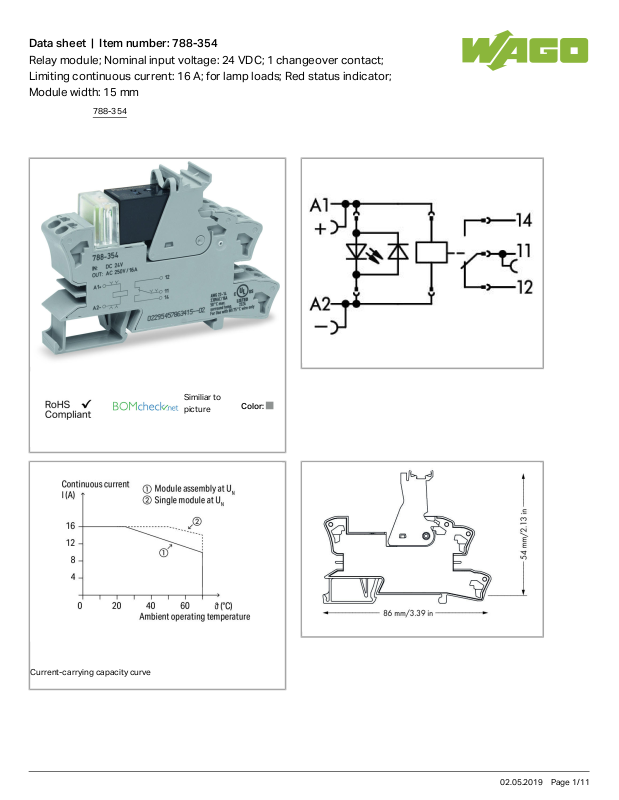

Data sheet | Item number:788-354
Relay module; Nominal input voltage: 24 VDC; 1 changeover contact;
Limiting continuous current: 16 A; for lamp loads; Red status indicator;
Module width: 15 mm
Current-carrying capacity curve
Similiar to
Color:
788-354
02.05.2019Page /1 11
![](/html/2b/2bf2/2bf2c268fbe7c3df3d5eaa156047b64abc55d0e793eccc3942885c7db53f9635/bg2.png)
Data sheet | Item number:788-354
Load limit curve
Item description
Note:
Reinforced insulation between coil and contacts
A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the
reinforced insulation requirements.
To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
Data
Technical Data
Control circuit
Nominal input voltage U
N
DC24V
Input voltage range -15 … +20%
Nominal input current at U
N
19mA
Load circuit:
Number of changeover/switchover contacts 1
Contact material (relay) AgSnO
2
Limiting continuous current 16A
Max. make current (resistive) (AC) 120A/ 0.05s
Max. switching voltage AC250V
Max. switching power (resistive) AC4,000VA;DC see load limit curve
Recommended minimum load 5V/ 100mA
788-354
02.05.2019Page /2 11
![](/html/2b/2bf2/2bf2c268fbe7c3df3d5eaa156047b64abc55d0e793eccc3942885c7db53f9635/bg3.png)
Data sheet | Item number:788-354
Min. switching current 0µA
Pull-in time (typ.) 15 ms
Drop-out time (typ.) 5ms
Drop-out time ≤0µs
Electrical life (N.O.; resistive load; 23 °C)
100x 10 switching operations
3
Mechanical life (N.O.; resistive load; 23 °C)
10x 10 switching operations
6
Signaling
Status indication LED red
Safety and protection:
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 3
Dielectric strength, control/load circuit (AC, 1 min) 5kVrms
Dielectric strength open contact (AC, 1 min) 1kVrms
Protection class IP20
Connection data
Connection technology
Push-in CAGE CLAMP
®
Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG
Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Geometrical Data
Width 15mm/ 0.591inch
Height from upper-edge of DIN-35 rail 54mm/ 2.126inch
Depth 86mm/ 3.386inch
Mechanical data
Type of mounting DIN-35 rail
Material Data
Color gray
Fire load 0.915 MJ
Weight 44.12 g
788-354
02.05.2019Page /3 11
![](/html/2b/2bf2/2bf2c268fbe7c3df3d5eaa156047b64abc55d0e793eccc3942885c7db53f9635/bg4.png)
Data sheet | Item number:788-354
Environmental Requirements
Pollution degree 3
Surrounding air (operating) temperature at U
N
-40 … 70°C
Surrounding air (storage) temperature -40 … 70°C
Processing temperature -25 … +50°C
Standards and specifications
Standards/specifications EN 61010-2-201; EN 61810-1; EN 61373; UL 508 (max. 10 A)
Commercial data
Product Group 6 (Interface Electronics)
Country of origin CN
GTIN 4055143184168
Customs Tariff No. 85364900990
Approvals / Certificates
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Netherlands B.V. (ORDINARY
LOCATIONS)
UL 508 E175199
Sec.6
Compatible products
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
