Wago 785-613 Data Sheet

Data sheet | Item number:785-613

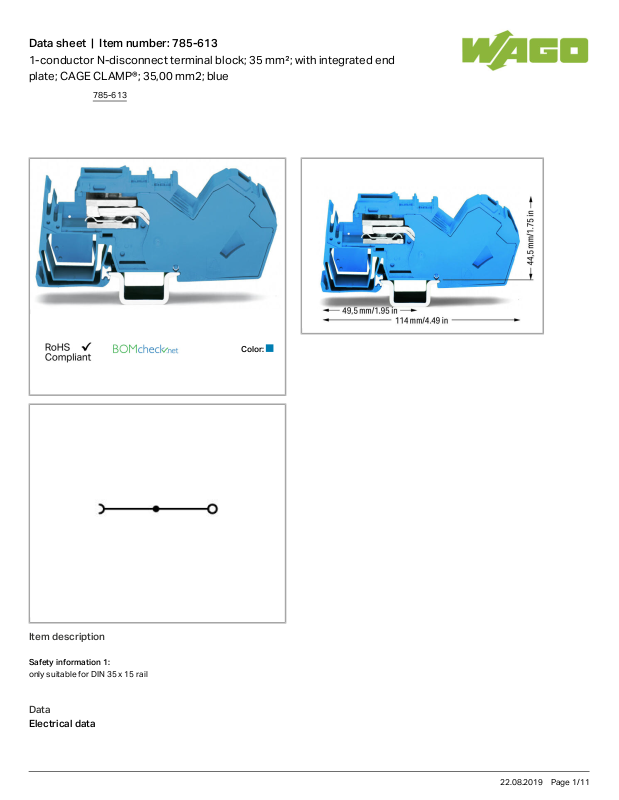

1-conductor N-disconnect terminal block; 35 mm²; with integrated end
plate; CAGE CLAMP®; 35,00 mm2; blue

Color:

Item description

Safety information 1:

only suitable for DIN 35 x 15 rail

Data

Electrical data

785-613

22.08.2019Page /1 11

Data sheet | Item number:785-613

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 125 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

Solid conductor 6 35mm²/ 8 2AWG

Strip length 23mm/ 0.91inch

Total number of connection points 1

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 16mm/ 0.63inch

Height from upper-edge of DIN-35 rail 44.5mm/ 1.752inch

Depth 116.5mm/ 4.587inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color blue

Weight 93.29g

Commercial data

Product Group 17 (TOP JOB installation terminal blocks)

Country of origin DE

GTIN 4045454601874

Customs Tariff No. 85365080990

Approvals / Certificates

Radio-Approvals

785-613

22.08.2019Page /2 11

Data sheet | Item number:785-613

Logo

Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1632550

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1632550

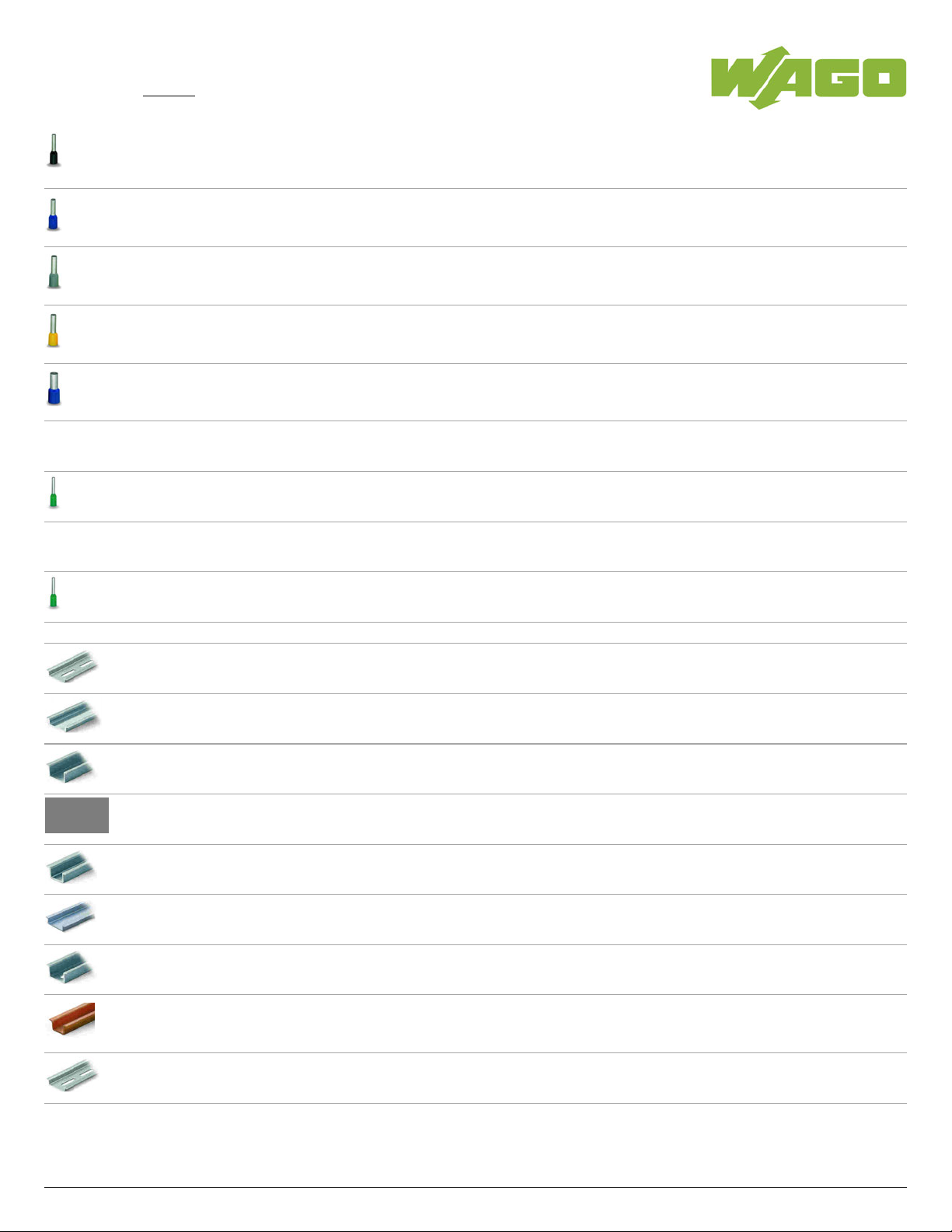

Compatible products
