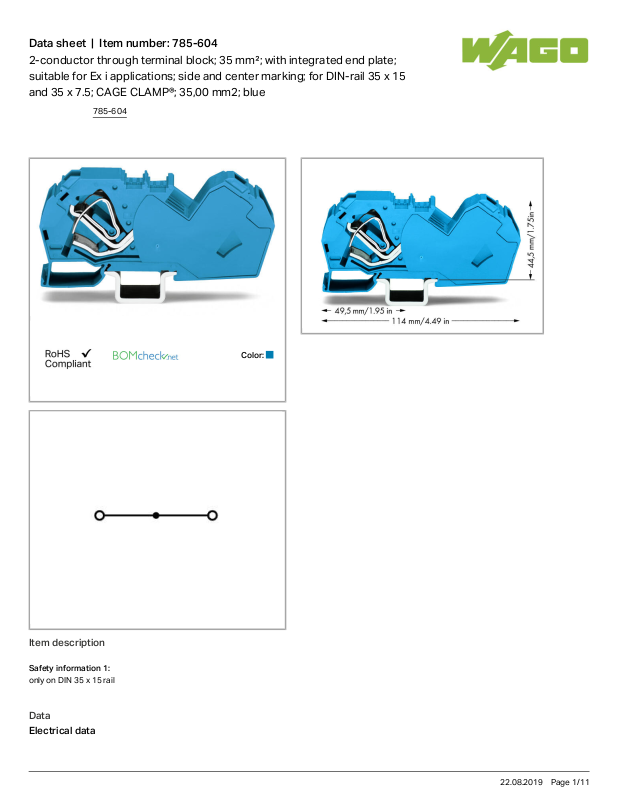

Wago 785-604 Data Sheet
Data sheet | Item number:785-604
2-conductor through terminal block; 35 mm²; with integrated end plate;
suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15
and 35 x 7.5; CAGE CLAMP®; 35,00 mm2; blue
Color:
Item description
Safety information 1:
only on DIN 35 x 15 rail
Data
Electrical data
785-604
22.08.2019Page /1 11
Data sheet | Item number:785-604
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 1000 V
Rated impulse voltage (III / 3) 8 kV
Rated current 125 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Solid conductor 6 35mm²/ 8 2AWG
Strip length 23mm/ 0.91inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 16mm/ 0.63inch
Height from upper-edge of DIN-35 rail 44.5mm/ 1.752inch
Depth 114mm/ 4.488inch
Mechanical data
Design angled
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 1.103 MJ
Weight 87.195g
Commercial data
Product Group 17 (TOP JOB installation terminal blocks)
Country of origin DE
GTIN 4045454400583
Customs Tariff No. 85369010000
785-604
22.08.2019Page /2 11
Data sheet | Item number:785-604
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7707
CSA
DEKRA Certification B.V.
C22.2 No. 158 1632550
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
101911
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7707
CSA
DEKRA Certification B.V.
C22.2 No. 158 1632550
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
101911
Compatible products
Jumper
Item no.: 283-402
Adjacent jumper; insulated; Nominal current 70 A; gray
283-402
785-604
22.08.2019Page /3 11
Data sheet | Item number:785-604
Item no.: 285-435
Adjacent jumper; insulated; Nominal current 85 A; gray
285-435
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; light green
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-115
/000-024
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-145
/000-012
785-604
22.08.2019Page /4 11
Loading...
