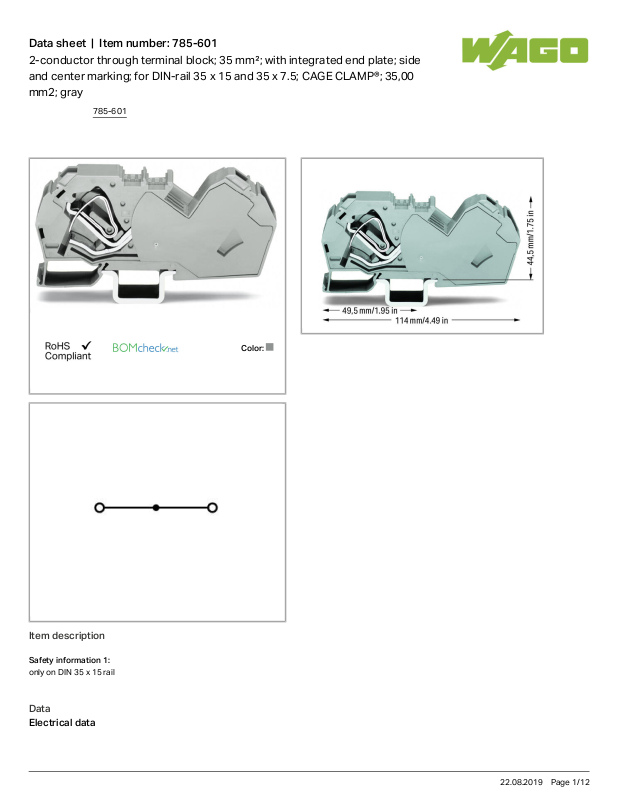

Wago 785-601 Data Sheet

Data sheet | Item number:785-601
2-conductor through terminal block; 35 mm²; with integrated end plate; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 35,00 mm2; gray
Item description
Safety information 1:
only on DIN 35 x 15 rail
Data
Electrical data
785-601
22.08.2019Page /1 12
Data sheet | Item number:785-601
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 1000 V
Rated impulse voltage (III / 3) 8 kV
Rated current 125 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Solid conductor 6 35mm²/ 8 2AWG
Strip length 23mm/ 0.91inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 16mm/ 0.63inch
Height from upper-edge of DIN-35 rail 44.5mm/ 1.752inch
Depth 114mm/ 4.488inch
Mechanical data
Design angled
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 1.103 MJ
Weight 86.615g
Commercial data
Product Group 17 (TOP JOB installation terminal blocks)
Country of origin DE
GTIN 4045454400576
Customs Tariff No. 85369010000
Approvals / Certificates
785-601
22.08.2019Page /2 12
Data sheet | Item number:785-601
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7707
CSA
DEKRA Certification B.V.
C22.2 No. 158 1632550
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
101911
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7707
CSA
DEKRA Certification B.V.
C22.2 No. 158 1632550
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
101911
Other Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 20190731-
E45172
785-601
22.08.2019Page /3 12
Data sheet | Item number:785-601
Compatible products
Jumper
Item no.: 283-402
Adjacent jumper; insulated; Nominal current 70 A; gray
283-402
Item no.: 285-435
Adjacent jumper; insulated; Nominal current 85 A; gray
285-435
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver-colored
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; copper­colored
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508

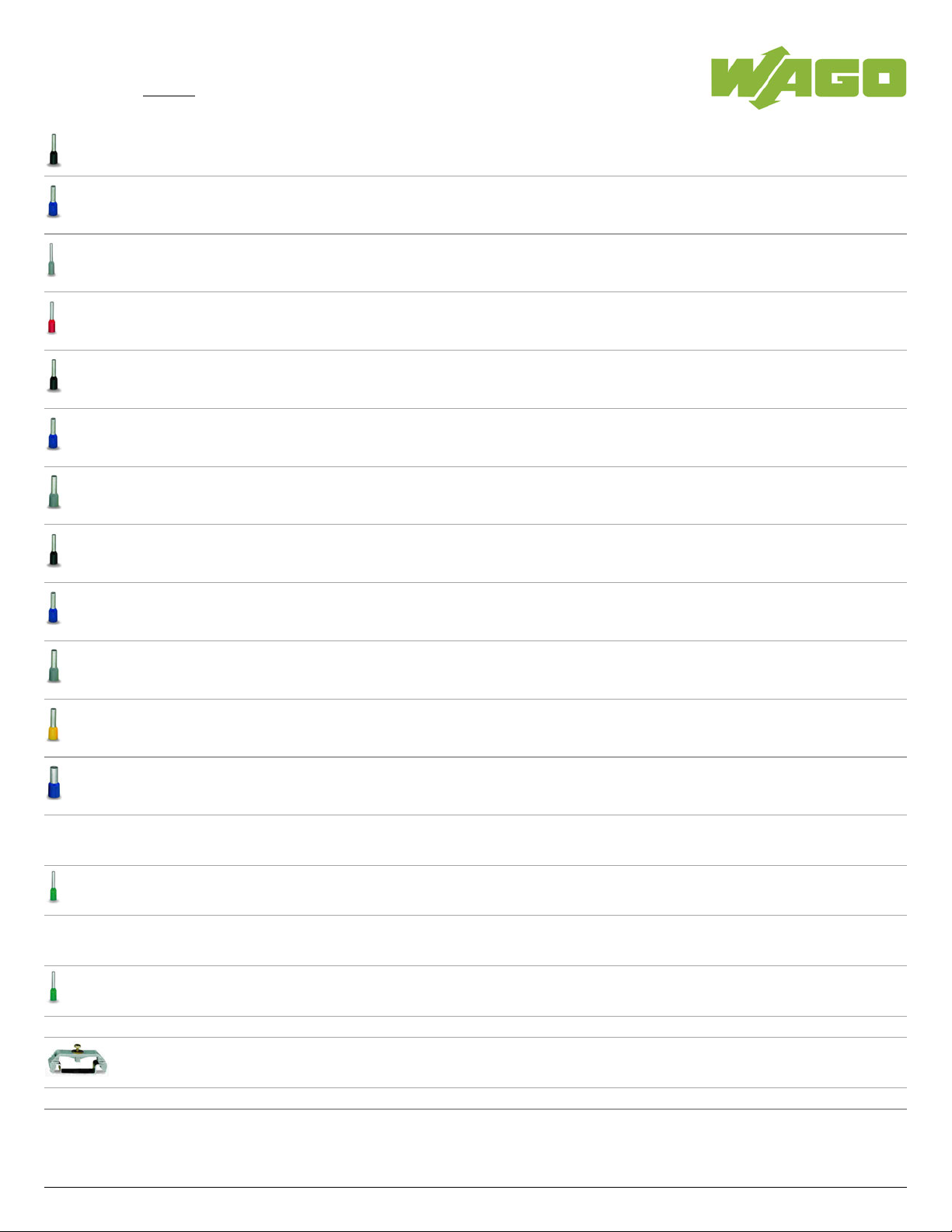

ferrule
785-601
22.08.2019Page /4 12
