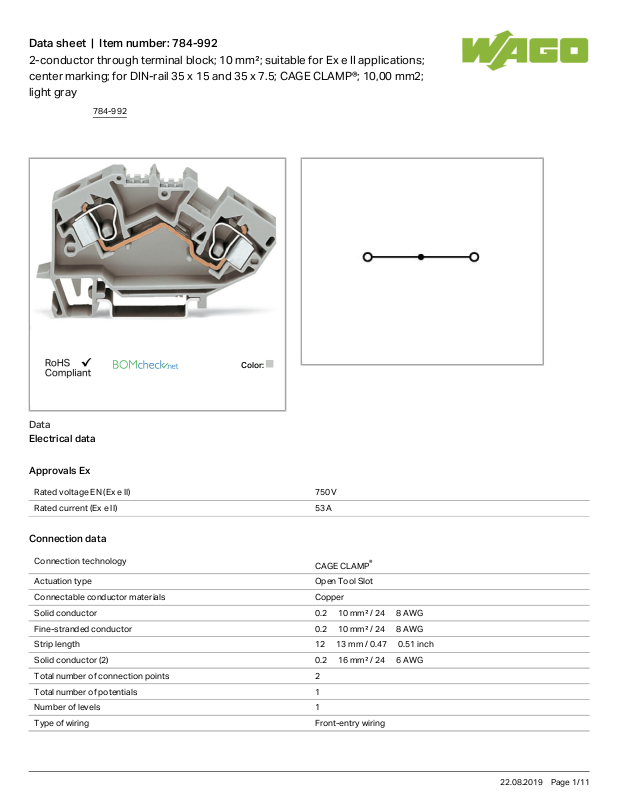

Wago 784-992 Data Sheet

Data sheet | Item number:784-992
2-conductor through terminal block; 10 mm²; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 10,00 mm2; light gray
Data
Electrical data
Approvals Ex
Rated voltage EN (Ex e II) 750 V
Rated current (Ex e II) 53 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Open Tool Slot
Connectable conductor materials Copper
Solid conductor 0.2 10mm²/ 24 8AWG
Fine-stranded conductor 0.2 10mm²/ 24 8AWG
Strip length 12 13mm/ 0.47 0.51inch
Solid conductor (2) 0.2 16mm²/ 24 6AWG
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
784-992
22.08.2019Page /1 11
Data sheet | Item number:784-992
Fine-stranded conductor (2) 0.2 16mm²/ 24 6AWG
Geometrical Data
Width 10mm/ 0.394inch
Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch
Depth 82.5mm/ 3.248inch
Mechanical data
Design angled
Type of mounting DIN-35 rail
Marking level Center marking
Material Data
Color light gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.339 MJ
Weight 22.9g
Commercial data
Country of origin DE
GTIN 4044918806022
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt
UL 60079 E185892
sec.20
AEx
UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt
UL 60079 E185892
sec.20
ATEx
Physikalisch Technische Bundesanstalt (PTB)
- PTB 00 ATEX 3132 U
ATEx
Physikalisch Technische Bundesanstalt (PTB)
- PTB 00 ATEX 3132 U
784-992
22.08.2019Page /2 11
Data sheet | Item number:784-992
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7379
CSA
DEKRA Certification B.V.
C22.2 No. 158 1833819
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2178517.01
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0
BV
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7379
CSA
DEKRA Certification B.V.
C22.2 No. 158 1833819
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2178517.01
LR
Lloyds Register
EN 60947 91/20112
(E9)
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
784-992
22.08.2019Page /3 11
Data sheet | Item number:784-992
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
Other Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 20190731-
E45172
Compatible products
End plate
Item no.: 782-317
End and intermediate plate; 1.5 mm thick; orange
782-317
General accessories
784-992
22.08.2019Page /4 11
