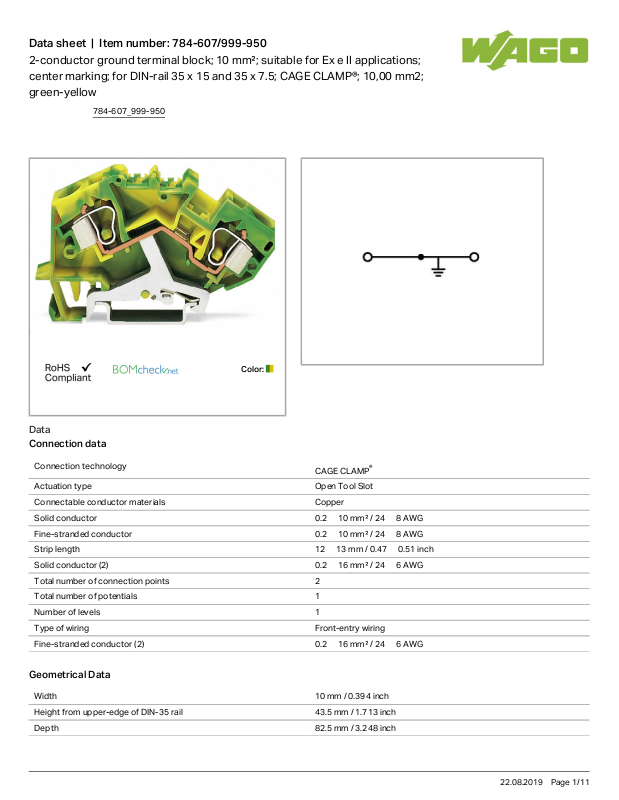

Wago 784-607/999-950 Data Sheet

Data sheet | Item number:784-607/999-950

2-conductor ground terminal block; 10 mm²; suitable for Ex e II applications;
center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 10,00 mm2;
green-yellow

Color:

Data

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

Solid conductor 0.2 10mm²/ 24 8AWG

Fine-stranded conductor 0.2 10mm²/ 24 8AWG

Strip length 12 13mm/ 0.47 0.51inch

Solid conductor (2) 0.2 16mm²/ 24 6AWG

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Fine-stranded conductor (2) 0.2 16mm²/ 24 6AWG

Geometrical Data

Width 10mm/ 0.394inch

Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch

Depth 82.5mm/ 3.248inch

784-607_999-950

22.08.2019Page /1 11

Data sheet | Item number:784-607/999-950

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Weight 33.66g

Commercial data

Product Group 17 (TOP JOB installation terminal blocks)

Country of origin DE

GTIN 4045454092795

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.20

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.20

ATEx

Physikalisch Technische Bundesanstalt (PTB)

- PTB 00
ATEX
3132 U

ATEx

Physikalisch Technische Bundesanstalt (PTB)

- PTB 00
ATEX
3132 U

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7379

784-607_999-950

22.08.2019Page /2 11

Data sheet | Item number:784-607/999-950

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2178517.01

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7379

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2178517.01

LR

Lloyds Register

EN 60947 91/20112

(E9)

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

784-607_999-950

22.08.2019Page /3 11

Data sheet | Item number:784-607/999-950

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 20190731-

E45172

Compatible products

assembling

Item no.: 209-106

Mounting carrier; for isolated mounting on DIN 35 rails; gray

209-106

Item no.: 709-154

Cover; Type 2; suitable for cover carrier, type 2; 1 m long; transparent

709-154

ferrule

Item no.: 216-101

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-101

Item no.: 216-102

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-102
