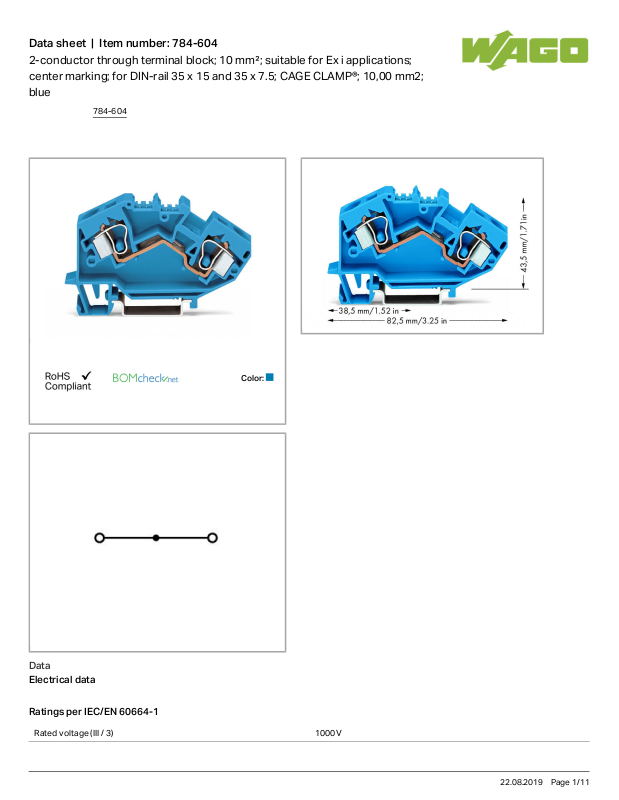

Wago 784-604 Data Sheet

Data sheet | Item number:784-604

2-conductor through terminal block; 10 mm²; suitable for Ex i applications;
center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 10,00 mm2;
blue

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 1000 V

784-604

22.08.2019Page /1 11

Data sheet | Item number:784-604



Rated impulse voltage (III / 3) 8 kV

Rated current 57 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

Solid conductor 0.2 10mm²/ 24 8AWG

Fine-stranded conductor 0.2 10mm²/ 24 8AWG

Strip length 12 13mm/ 0.47 0.51inch

Solid conductor (2) 0.2 16mm²/ 24 6AWG

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Fine-stranded conductor (2) 0.2 16mm²/ 24 6AWG

Geometrical Data

Width 10mm/ 0.394inch

Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch

Depth 82.5mm/ 3.248inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.357 MJ

Weight 23.05g

Commercial data

Country of origin DE

GTIN 4044918805995

Customs Tariff No. 85369010000

784-604

22.08.2019Page /2 11

Data sheet | Item number:784-604

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7379

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2178517.01

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7379

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2178517.01

LR

Lloyds Register

EN 60947 91/20112

(E9)

Ship Approvals

784-604

22.08.2019Page /3 11

Data sheet | Item number:784-604

Logo

Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 20190731-

E45172
