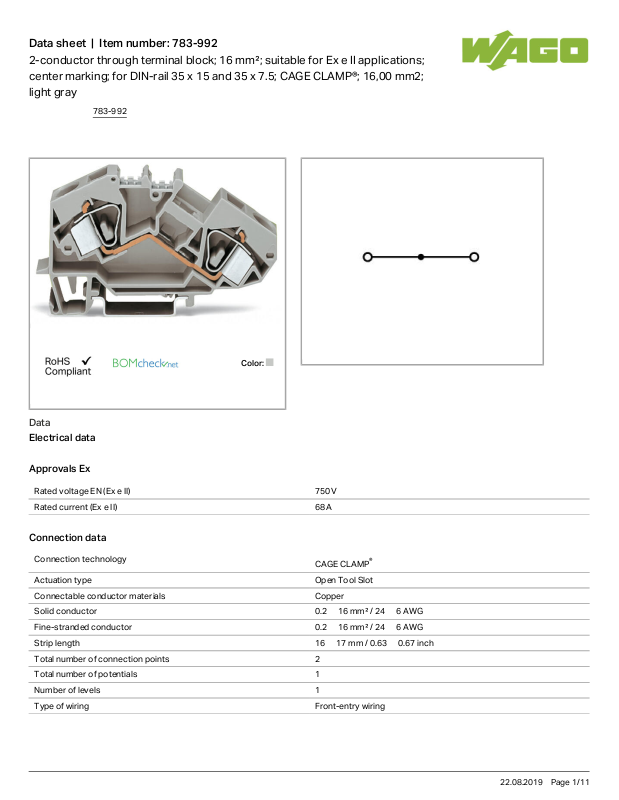

Wago 783-992 Data Sheet

Data sheet | Item number:783-992

2-conductor through terminal block; 16 mm²; suitable for Ex e II applications;
center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 16,00 mm2;
light gray

Color:

Data

Electrical data

Approvals Ex

Rated voltage EN (Ex e II) 750 V

Rated current (Ex e II) 68 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

Solid conductor 0.2 16mm²/ 24 6AWG

Fine-stranded conductor 0.2 16mm²/ 24 6AWG

Strip length 16 17mm/ 0.63 0.67inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

783-992

22.08.2019Page /1 11

Data sheet | Item number:783-992

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch

Depth 88.5mm/ 3.484inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color light gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.489 MJ

Weight 32.204g

Commercial data

Product Group 17 (TOP JOB installation terminal blocks)

Country of origin DE

GTIN 4017332627313

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.19

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.19

ATEx

Physikalisch Technische Bundesanstalt (PTB)

- PTB 00
ATEX
3131 U (II
2 G/D EEx
e II)

ATEx

Physikalisch Technische Bundesanstalt (PTB)

- PTB 00
ATEX

783-992

22.08.2019Page /2 11

Data sheet | Item number:783-992

3131 U (II
2 G/D EEx
e II)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7456/A1

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2187239.03

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7456/A1

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2187239.03

LR

Lloyds Register

EN 60947 91/20112

(E9)

783-992

22.08.2019Page /3 11

Data sheet | Item number:783-992

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 20190731-

E45172

Compatible products

Protective Warning Marker
