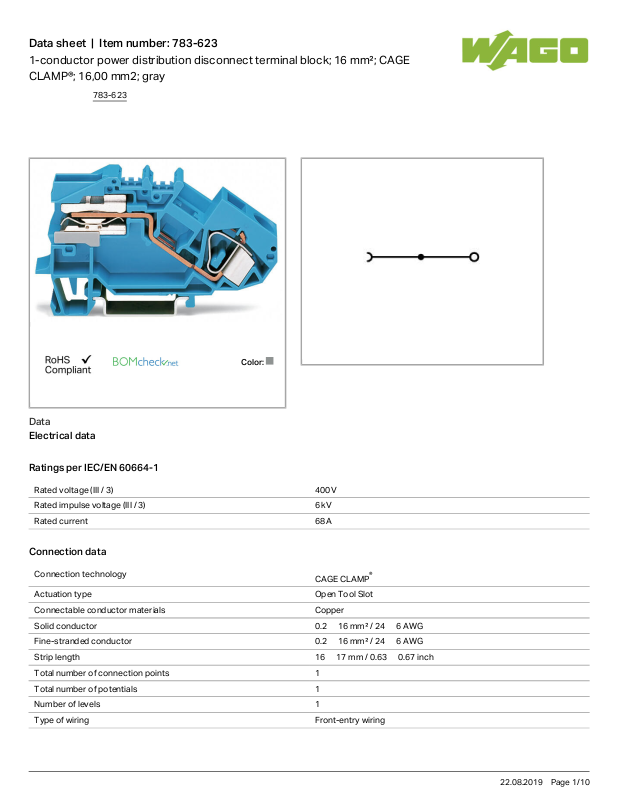

Wago 783-623 Data Sheet

Data sheet | Item number:783-623

1-conductor power distribution disconnect terminal block; 16 mm²; CAGE
CLAMP®; 16,00 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 68 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

Solid conductor 0.2 16mm²/ 24 6AWG

Fine-stranded conductor 0.2 16mm²/ 24 6AWG

Strip length 16 17mm/ 0.63 0.67inch

Total number of connection points 1

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

783-623

22.08.2019Page /1 10

Data sheet | Item number:783-623

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch

Depth 88.5mm/ 3.484inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Fire load 0.461 MJ

Weight 43.518g

Commercial data

Product Group 17 (TOP JOB installation terminal blocks)

Country of origin PL

GTIN 4044918691475

Customs Tariff No. 85365080990

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7456/A1

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2187239.03

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

CCA

EN 60947 NTR NL-

783-623

22.08.2019Page /2 10

Data sheet | Item number:783-623

DEKRA Certification B.V. 7456/A1

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2187239.03

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 20190731-

E45172

Compatible products

Jumper

783-623
