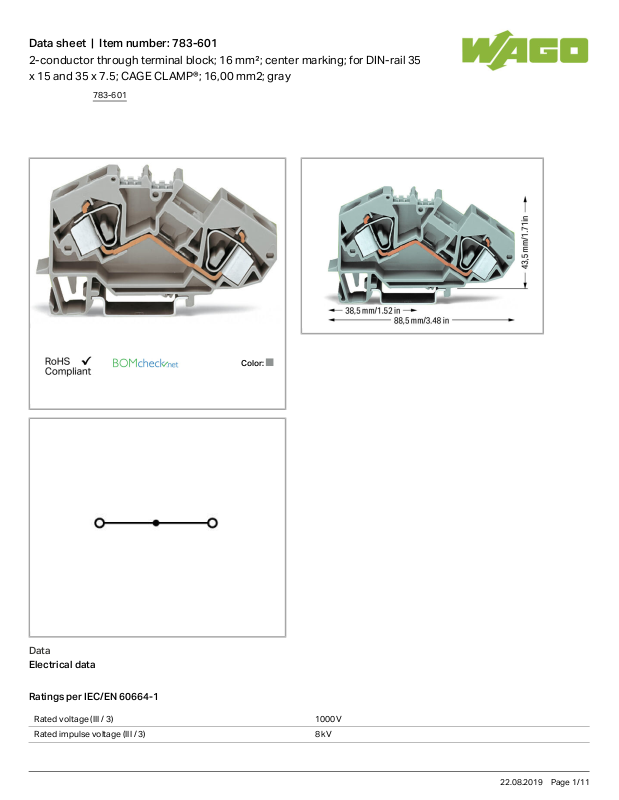

Wago 783-601 Data Sheet

Data sheet | Item number:783-601

2-conductor through terminal block; 16 mm²; center marking; for DIN-rail 35
x 15 and 35 x 7.5; CAGE CLAMP®; 16,00 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 1000 V

Rated impulse voltage (III / 3) 8 kV

783-601

22.08.2019Page /1 11

Data sheet | Item number:783-601



Rated current 76 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

Solid conductor 0.2 16mm²/ 24 6AWG

Fine-stranded conductor 0.2 16mm²/ 24 6AWG

Strip length 16 17mm/ 0.63 0.67inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch

Depth 88.5mm/ 3.484inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.474 MJ

Weight 31.694g

Commercial data

Country of origin DE

GTIN 4044918582384

Customs Tariff No. 85369010000

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

783-601

22.08.2019Page /2 11

Data sheet | Item number:783-601

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7456/A1

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2187239.03

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7456/A1

CSA

DEKRA Certification B.V.

C22.2 No. 158 1833819

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2187239.03

LR

Lloyds Register

EN 60947 91/20112

(E9)

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14-

HG1293677­PDA

783-601

22.08.2019Page /3 11

Data sheet | Item number:783-601

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 20190731-

E45172

Compatible products

Marking accessories

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow

2009-115

/000-002

Item no.: 2009-115/000-006

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue

2009-115

/000-006

783-601

22.08.2019Page /4 11
