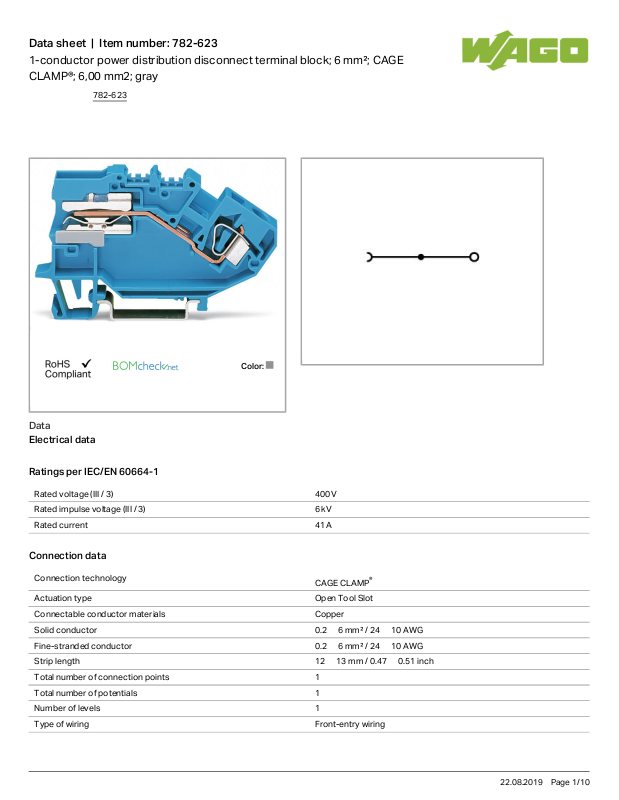

Wago 782-623 Data Sheet

Data sheet | Item number:782-623

1-conductor power distribution disconnect terminal block; 6 mm²; CAGE
CLAMP®; 6,00 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 41 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Open Tool Slot

Connectable conductor materials Copper

Solid conductor 0.2 6mm²/ 24 10AWG

Fine-stranded conductor 0.2 6mm²/ 24 10AWG

Strip length 12 13mm/ 0.47 0.51inch

Total number of connection points 1

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

782-623

22.08.2019Page /1 10

Data sheet | Item number:782-623

Geometrical Data

Width 8mm/ 0.315inch

Height from upper-edge of DIN-35 rail 43.5mm/ 1.713inch

Depth 82.5mm/ 3.248inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Fire load 0.002 MJ

Weight 25.195g

Commercial data

Product Group 17 (TOP JOB installation terminal blocks)

Country of origin PL

GTIN 4045454186913

Customs Tariff No. 85365080990

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2195540.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7522

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2195540.01

CCA

EN 60947 NTR NL-

782-623

22.08.2019Page /2 10

Data sheet | Item number:782-623

DEKRA Certification B.V. 7522

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 20190731-

E45172

Compatible products

ferrule

Item no.: 216-101

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-101

Item no.: 216-102

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-102

Item no.: 216-103

Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated

216-103

Item no.: 216-104

Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated

216-104

Item no.: 216-106

Ferrule; Sleeve for 2.5 mm² / AWG 14; uninsulated; electro-tin plated

216-106

Item no.: 216-107

Ferrule; Sleeve for 4 mm² / AWG 12; uninsulated; electro-tin plated

216-107

782-623

22.08.2019Page /3 10
